Reackstacker HELI RSH4532-VO 45ton port reach stacker for container

  • 1 Units
    $328,800.00
  • >=2 Units
    $327,800.00
Model Number:
RSH4532-VO
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI
Type:
Reach stacker
Power Souce:
Diesel Engine
Rated Loading Capacity:
450000
Max. Lifting Height:
15050mm
Min. Lifting Height:
4754mm
Fork Length:
1220mm
Fork Width:
150mm
Overall Dimensions:
11670x4060x4754mm
Certification:
CE ISO
Warranty:
1 Year/2,000 Working Hours
Max lifting load:
45 ton
Product Name:
45 ton reach stacker for containers
Tire:
18.00-25-40PR
Mini. Turning radius:
8590mm
Overall Dimensions::
11670x4060x4754mm
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X4X5 cm
Single gross weight:
720000.0 kg
Package Type:
RORO + 2 units 40ft container or 40Flat rack + 2 units 40ft container
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 45 To be negotiated

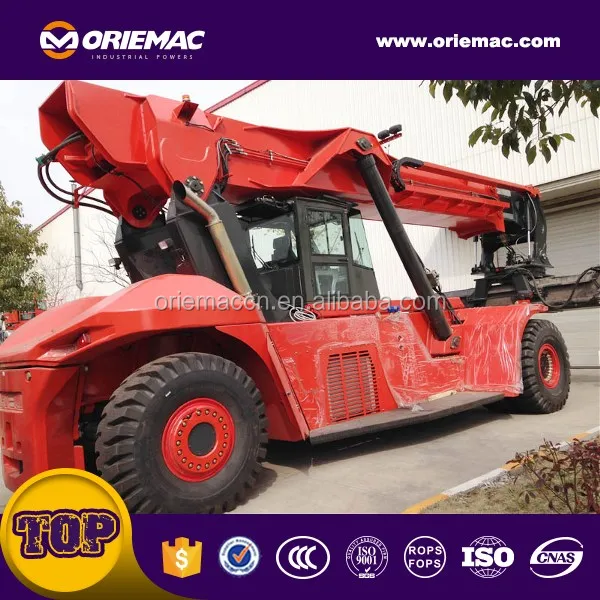

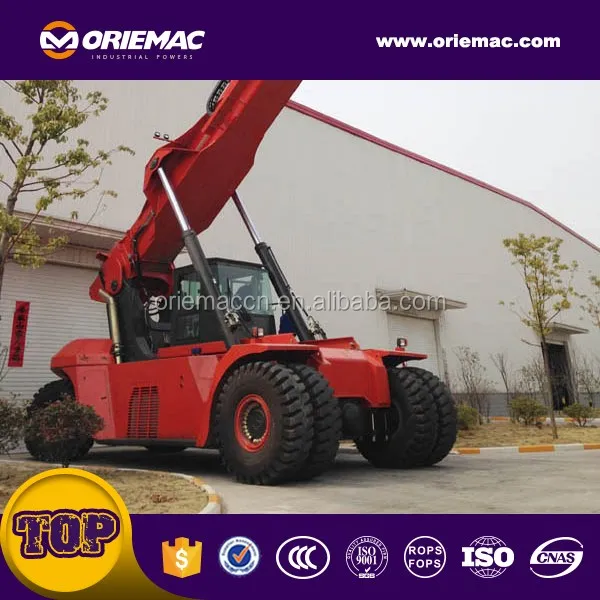

Heli 45ton reach stacker for containers

Product Description

 Features&Parameters:

1. American CUMINS QSX11 engine
2. American DAN.A DA.NATE27 transmission
3. Germany KESSLE.R D102 axle
4. Sweden ELM.E spreader
5. Parke.r brand hydraulic system
6. Italy 3B6 electric system
7. Max lifting capacity: 45ton
8. Max lifting height: 15050mm





1, Engine: original imported VoIvo/ TAD952VE (Euro 3 emmission)-as well, the special accessories is original imported to ensure the normal use and maintainance.
2, Transmission (front/rear) :original imported DA.NA TE27(CLARK)4/4
3, Electronic system adopt the modularized design and center controlling with can-bus for connecting all of systems of engine, transmission, braking, hydraulic and suspending system together in order to achieve harmonious controlling system.
4, Hydraulic System(original imported): using hydraulic oilpump system to realize the continuous oil supplying and reduce the overflow losses.

Model No.

Unit

RSH4532-VO

Load Capacity

First row/Second row/Third row

kg

45000/28000/14000

Load Center

First row/Second row/Third rowL4/L5/L6

mm

1800/3850/6400

Max.lifting height(First row)

mm

15050

Liftin Arm

Side sway

mm

+800~-800

Rotation

°

-95~+185

Min. Turning radius

mm

8590

Max.obliquity of the lifting arm

°

59

Wheel Base

mm

6500

Track

mm

3030/2838

Overall Length

mm

11670

Overall Width

mm

4060

Min. height of lifing arm

mm

4754

Tyre

Standard



18.00-25-40PR

(Front/back)



4/2

Motor

Brand/Model



CUMINS/VOIVO(EURO-III)

Rated power

KW/rpm

250/2000

Max.Torque

KW/rpm

1631/1400

Number of transmission(Front/Back)



4/4

Packaging & Shipping
Packing methods:

method-1:
main machine by RORO + 2 units 40ft container

Method-2:
Main machine by 40Flat rack + 2 units 40ft container
