Rebar thread rolling machine threaded rods making machine

FOB Reference Price:Get Latest Price
1 Set/Sets it is for thread rolling machine (Min. Order)
Supply Ability:
80 Set/Sets per Month it is for thread rolling machine
Port:
Shenzhen
Overview
Quick Details
Condition:
New
Application:
Bolt, screw, threaded rods, etc
Production Capacity:
4-25(pcs/min)
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-50S
Voltage:
3 Phase 380V
Power(W):
7350W
Dimension(L*W*H):
1850*1910*1380mm
Weight:
3600(KG)
Certification:
ISO 9001-2008, CE
Warranty:
1 year for thread rolling machine
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Rebar thread rolling machine threaded rods making machine
Work piece diameter:
5-100/mm
Range of pitch rolled:
1.0-5.0P
Max.length of thread rolled:
In feed and thru feed for option
Spindle speed:
16/25/40/63rpm (variable speed)
Outside diameter of rolling die:
145-235mm
Inside diameter of rolling die(keyway):
75mm
Thickness of rolling die:
120mm
Distance between the roller shaft:
140-320mm
Main power motor:
10HP
Packaging & Delivery
Packaging Details
1. thread rolling machine is packed in wooden case
2. neutral package can be accepted
Delivery Time
Shipped in 25 days after payment
Product Description

Product Application

1. Used for making thread on bolts, screws, fasteners, threaded rods, etc.

2. Used widely in construction, motorcycle, car industry.

3. Work for products : Max.diameter is 100 mm, and Max. Length is 6 m.

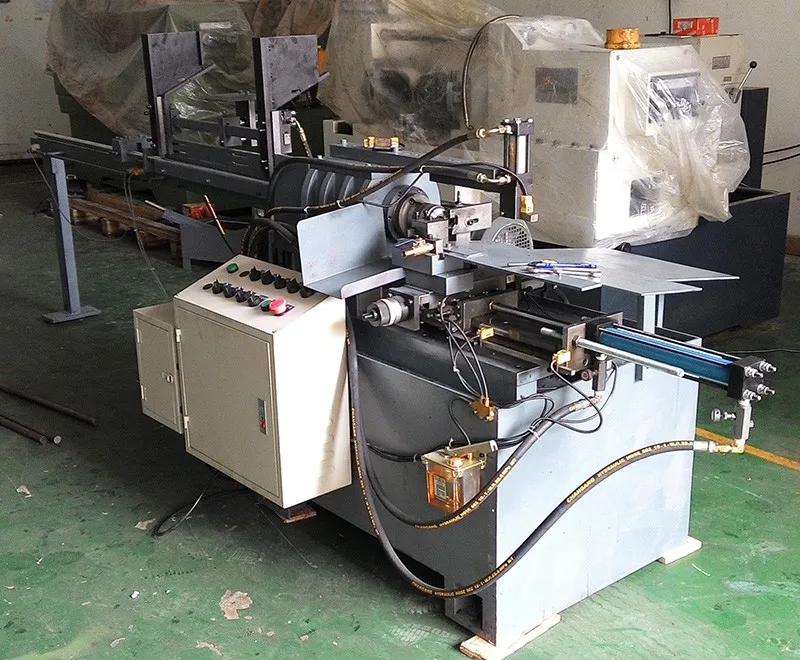

4. Can be designed with automatic feeding devices

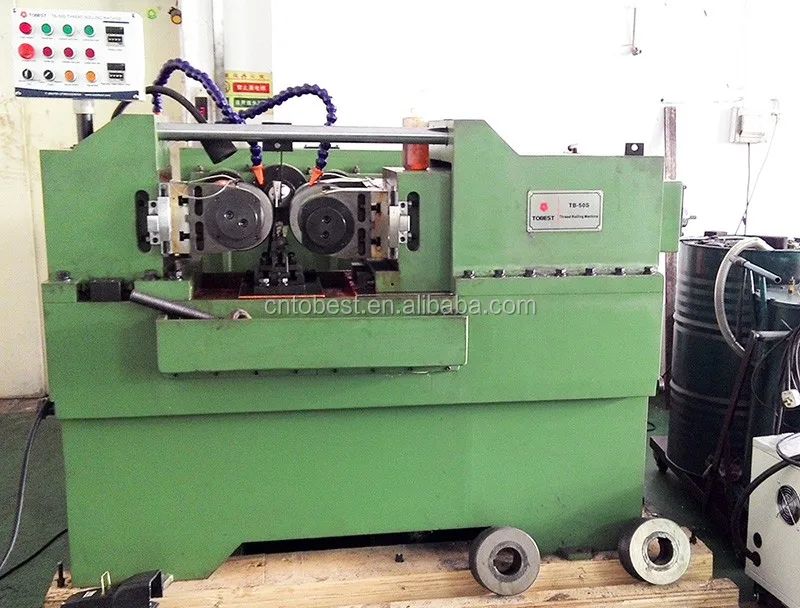

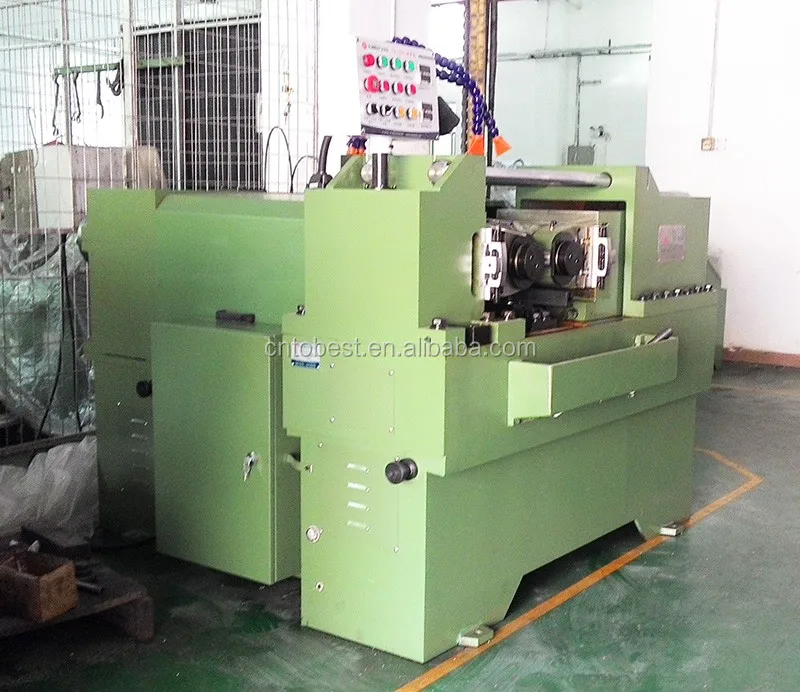

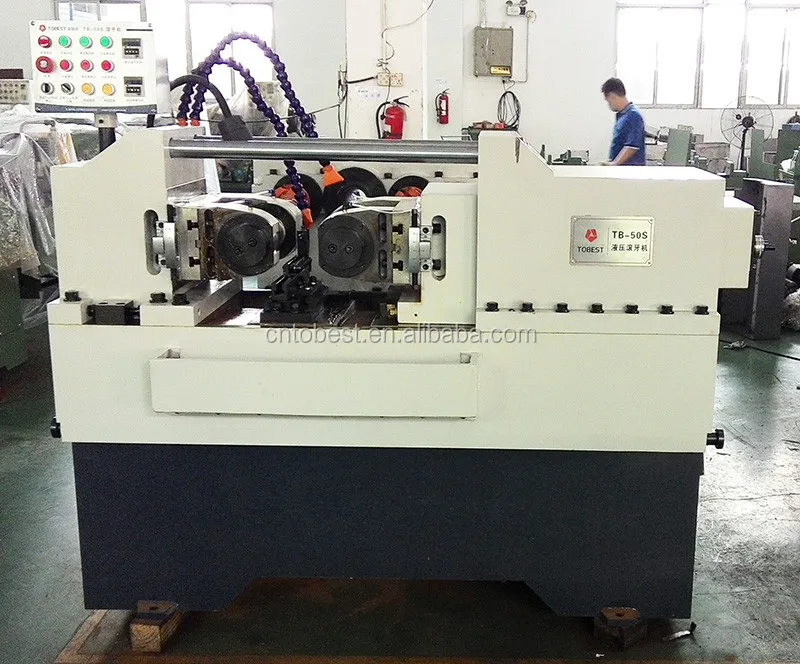

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-50S
Diameter for the threads rolled
φ5-φ100/mm
Range of pitch rolled
0.8-8.0P
Max.length of thread rolled
In feed or Thru feed
Spindle speed
16/25/40/63rpm (variable speed)
Outside diameter of rolling die
φ145-φ235mm
Inside diameter of rolling die(keyway)
φ75mm
Thickness of rolling die
120mm
Distance between the roller shaft
140-320mm
Output(pcs/min)
4-25(pcs/min)
Main power motor
10HP
Hydraulic motor
2HP
Max rolling pressure
40T

Main Features

1) High precision, stability and high durability with more than 10 years.


2) In feed and thru feed can be realized on one machine.

3) Automatic feeding devices can be installed on machine.

4) Rolling time and speed can be adjustable.


5) Used widely for making 6 m threaded rods, lead screws, etc.

6) ISO9001-2008, CE.

Detailed Images

Machine Parts

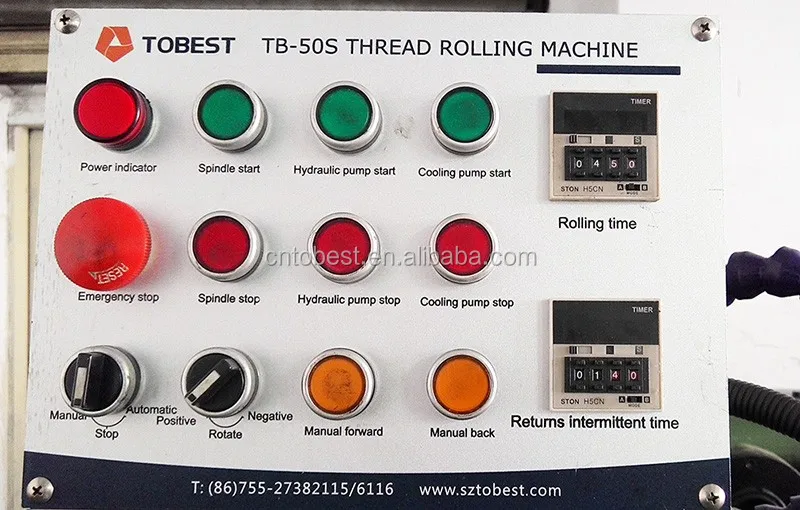

Name: Control Box

Brand: TOBEST

Original: China

Use importing components from Taiwan.

Safe control with emergency button.

Main Features

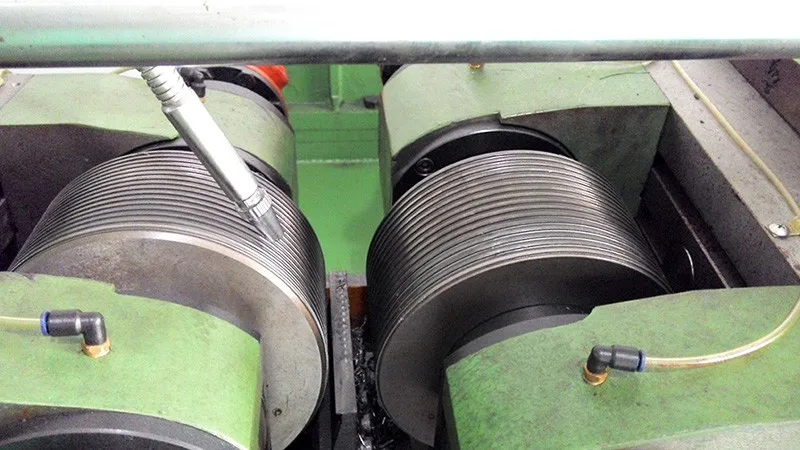

Name: Thread Rolling Dies
Brand: TOBEST
Original: China Mainland
High precision, stability and high durability.

Life time is usually 50-100 thousand pieces.

Hardness is about 58-60 HRC.

Machine Parts

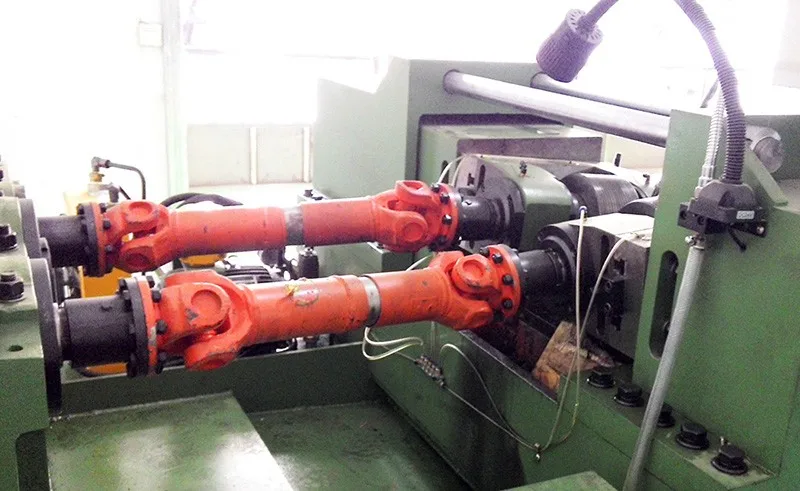

Name: Main Spindle
Brand: Dong Feng
Original: Hong Kong
High tensile performance

Used widely for heavy cars and machines

Main Features

Name: Cooling Fan
Brand:
GROSCHOPP

Original: America
Yellow color design with long life time

Have safety protection cover

High quality with good stability

Related Products

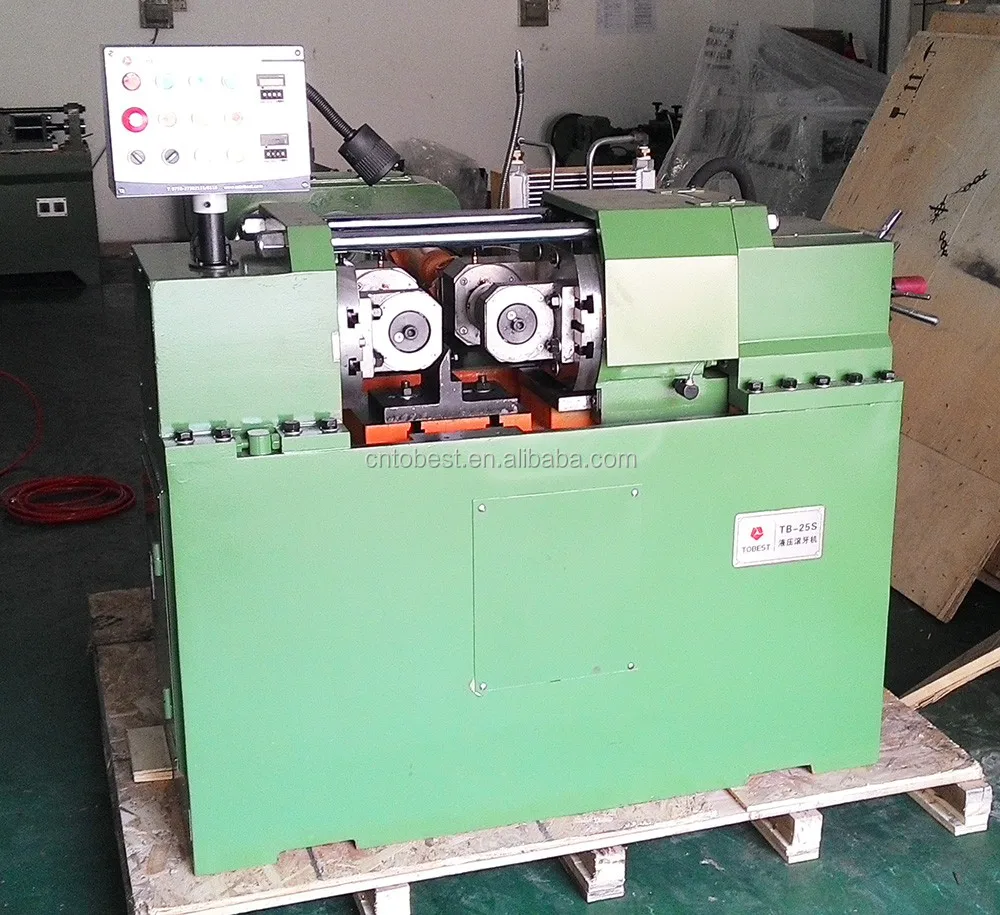

TB-25S

91.8% Response Rate

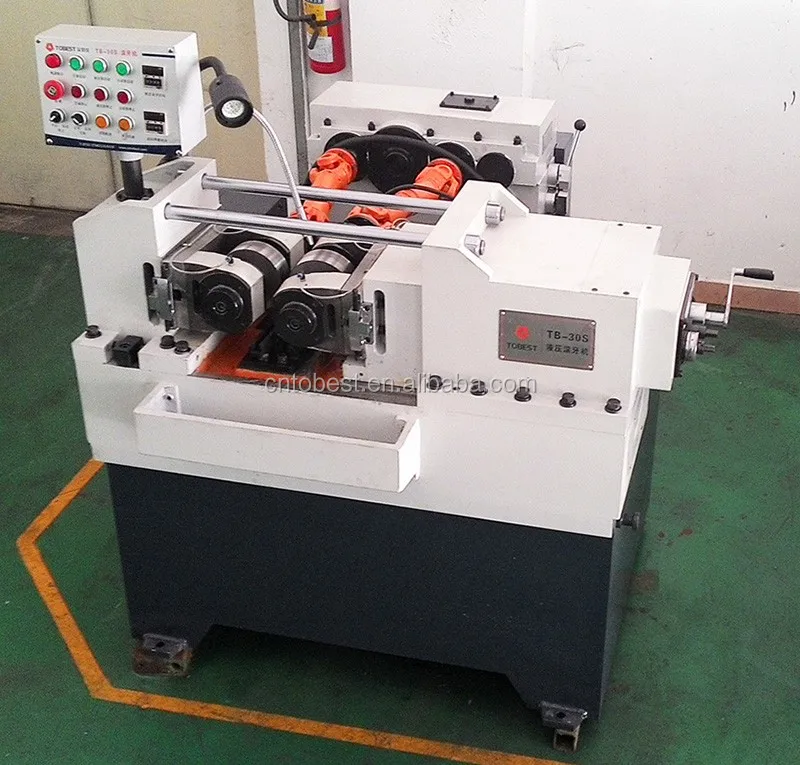

TB-30S

91.8% Response Rate

Auto lathe machine

91.8% Response Rate

Packing & Delivery
Packaging
Size
210 cm (L) * 195 cm (W) * 150 (H)
Weight
3.6 T



Packaging Details
The normal package is wooden box(Size: 210*195*150 cm L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Contact Person
