Red Black 12AWG 680stands Soft Flexible Silicone Wire Cable For RC Lipo Battery

  • 100-1999 Meters
    $0.75
  • >=2000 Meters
    $0.65
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Meters)
Customized packaging (Min. Order: 100 Meters)
Contact Supplier
Samples - $0.75 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
WYE
Model Number:
12AWG
Type:
Insulated
Application:
Internal Wiring
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
Silicone
Product Name:
12awg silicone wire
Copper Structure:
680/0.08mm
Outer Diameter:
4.5mm
Copper Conductor:
stranded tinned copper
Insulation:
silicone rubber
Rated Voltage:
600V
Rated Temperature:
-60C ~ +200C
Packing:
100m/roll
Sample:
Free sample
Stock Color:
Red/Black

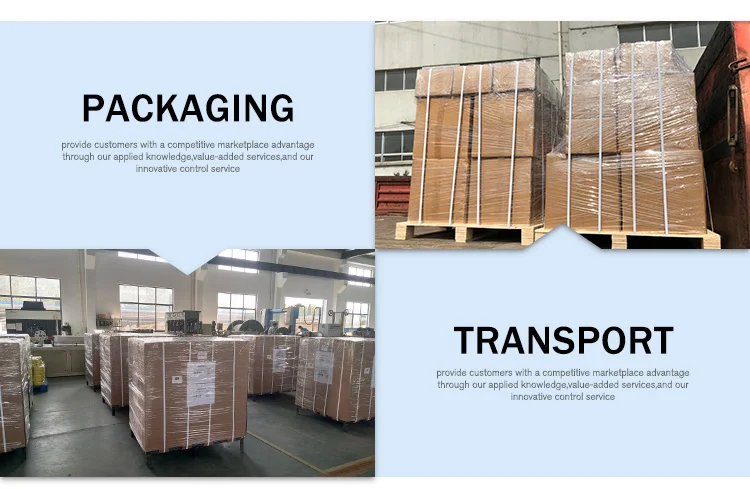

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X27X20 cm
Single gross weight:
0.05 kg
Package Type:
Carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meter) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

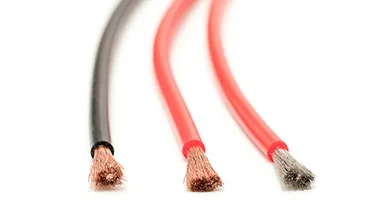

Soft/Flexible Silicone Wire

1.low resistance,high conductivity
2.soft silicone rubber insulation
3.-60C-+200C high/low temperature resistance
4.flexible,bendable freely

AWG
NO.
Spec
mm2
Conductor
pcs/mm
Conductor Diameter
mm
Insulation
Thickness
mm
Outer
Diameter
mm
Packing
M/roll
22
0.32
60/0.08
0.72
0.76
2.3
200
20
0.50
100/0.08
0.93
0.76
2.4
200
18
0.75
150/0.08
1.20
0.76
2.8
200
16
1.30
252/0.08
1.60
0.76
3.1
200
14
2.0
400/0.08
1.90
0.76
3.5
100
12
3.3
680/0.08
2.50
          1.0
4.5
100
10
5.3
1050/0.08
3.40
1.10
5.6
100
8
8.29
1650/0.08
4.20
1.30
6.8
100
6
16.08
3200/0.08
5.20
1.65
8.5
100
Product Details

1.The sheath is made of environmentally-friendly materials, no smell, no rubbery, no pungent taste.

2.The inner core is made of high-quality tinned copper wire, to ensure the quality of wire.

3.Soft silicone skin, not easy to harden and embrittle, smooth surface, clearly printing on the insulation of wire.

Product Advantages




Using high quality silicone raw materials.

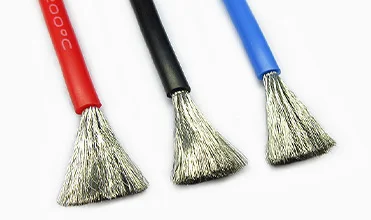

Using 0.08mm tinned copper core, anti-oxidation, safety and stable.





High/Low temperature resistance -60°C ~ +200°C



Using high-quality silicone raw materials,  flame retardant. The general open fire will damage the sheath only, not burn the copper conductor. So it can extend rescue time and reduce the damage of machine.




Some properties such as elongation, creep, cyclic flexing, tear strength.

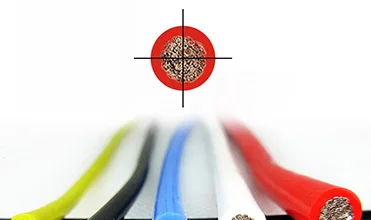

With excellent production experience, precise equipment, advanced tested measurement equipment, ensure low eccentricity of cables.

Eliminate faults caused by the thinnest point damage, prevent electrical fires to affect electrical safety.


Product Application
Our Company
Wuxi Chinawye International Co.,Ltd is a modern enterprise, located in Qingyang Town, Jiangyin City, near Shanghai. We're specialized in designing and manufacturing high temperature wire, silicone wire, Teflon wire and related products for many years.
FAQ

1. Are you factory or trade company?

--We are professional factory !

2. Can I get an sample to check quality before mass order?

--Of course.Welcome to place sample order to check our quality.We do believe our high quality products will bring more orders for you from your clients!

3. Any certifications for your products?

--Our products can pass UL,VDE,CE,ROHS,etc,so they can be sold to worldwide safely!

4. How about the delivery time?

--Usually for sample order 1-5days,for mass order 5-25days.


5. At last,about the payment terms,any convenient and safe way for our buyers?

--We have Alibaba Trade Assurance,Paypal,Western Union T/T payment terms options.Do business with us,your money will be in safe,your business will be in safe!
