Fix on the wood pallet, one set packed into one wooden case
1 - 1
To be negotiated
Load banks are devices which contain resistive, inductive and/or capacitive loads, apply the load to an electrical power source and dissipate the power of the electrical source. Unlike the on-site loads which are randomly variable in terms of many electrical parameters, load banks provide predetermined and controllable load which serves the power source, using it's energy output to test, support or protect the power source.
1) Generator testing. 2) Ship Testing. 3) Power Plants. 4) Telecommunication Sites. 5) Mining. 6) Military Establishments. 7) Data Centers. 8) Battery UPS Systems.
1) DC or 50 – 60 – 400 Hz. 2) Power Analyzer Measurements : V, A, W, VAr, Hz, cosPhi. 3) Up to 4000KW. 4) Local control & Remote control is available. 5) Compact design.
6) Vertical / Horizontal air releas.
7) Ease of integrated load testing with other load banks.
8) Stainless steel vibration proof resistor.
9)Portable or stationary available
AC440V 500KW Resistive Load bank
440VAC @ 50/60 Hz

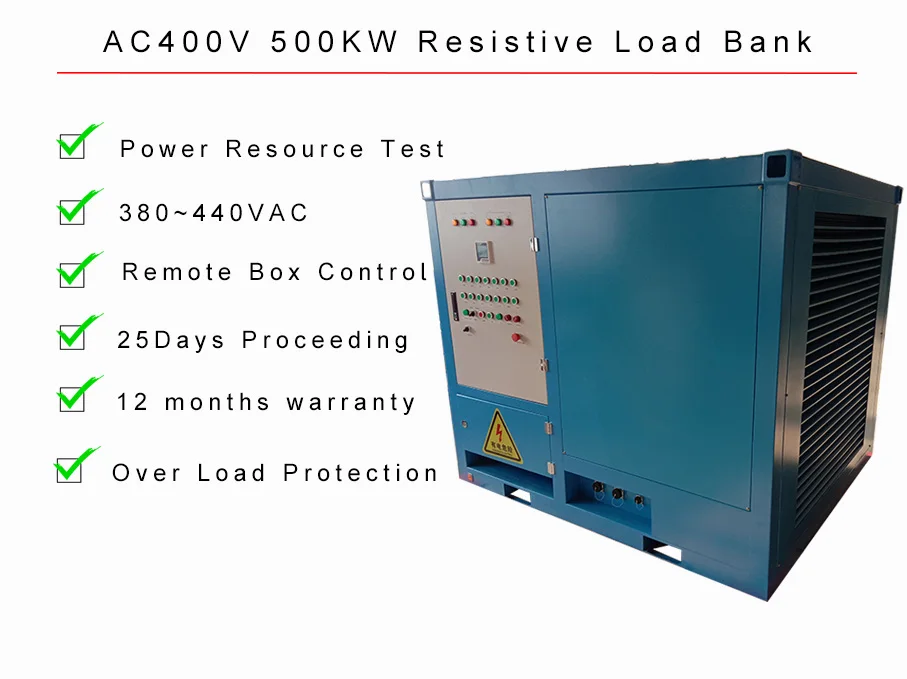

AC400 500KW Resistive Load bank technical specification

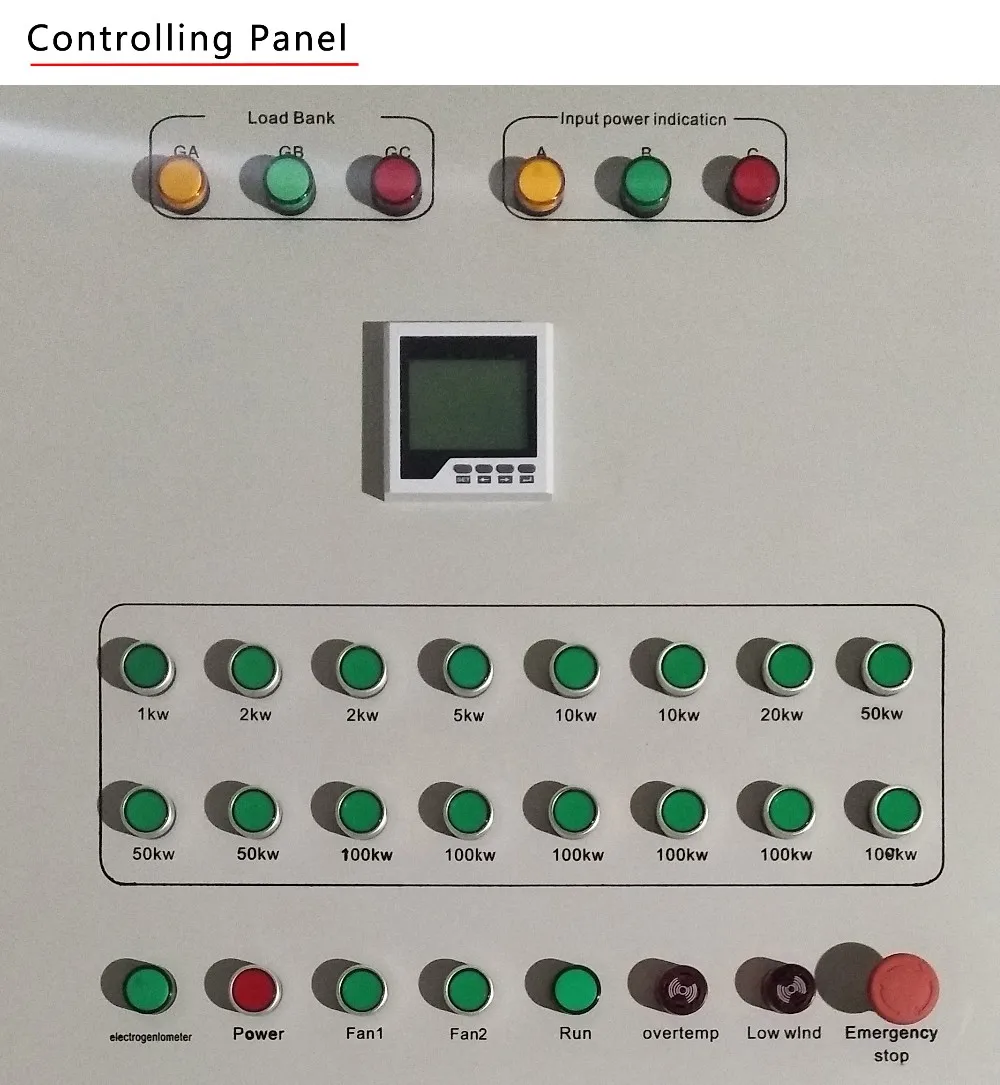

1. 500KW resistive load bank, PF = 1.0 2. Rated voltage: 400VAC 50/60HZ, 3P 4W, . 3. Cooling system: forced air-cooled, 380VAC 50/60Hz power supply for fans. 4. Control method: load step local control,
Insolution 5KW, 5KW, 10KW, 10KW, 20KW, 50KW, 100KW, 100KW, 100KW, 100KW. Load step resolution is 5kw, load combination 5kW-500KW is achievable by load step. 5. Load control accuracy: ±3%.
6. Parameter measuring accuracy grade: 0.5. 7. Protection: over heating protection, cooling fans failure protection and over load protection with alarm. 8. Parameter display: a Multifunction Electricity Meter displaying voltage, current, load power,frequency etc. 9. Operating environment: in door use.
Data Center & UPS Test load bank
1) Rated Voltage: 110/220KV
2) Rated Power: 6KW
3) Control Method: Local mannual control, 100W Min. Step
4) Display: Voltage, Current
5) Protection: over temperature alarm
6) Dimenison: 700*483*267
7) Weight: 30kG
400VAC 200KW Generator Load Bank
1) Rated Voltage: 400VAC 2) Rated Power: 200KW 3) Control Method: Local mannual control, 1KW Min. Step 4) Display: Voltage, Current, Power 5) Protection: over temperature alarm, Short circuit 6) Dimenison: 1400*1300*1600 7) Weight: 280kG
Inductive Load bank with computer control
1) Rated Voltage: 300VAC 2) Rated Power: 30KW , PF 0.3-1.0 adjustable 3) Control Method: Local mannual control, 100W Min. Step 4) Display: Voltage, Current, Power 5) Protection: over temperature alarm, short circuit 6) Dimenison: 1200*1200*1600 7) Weight: 850kG
DC Load Bank for battery & generator control
1) Rated Voltage: 650VDC 2) Rated Power: 130KW 3) Control Method: Local mannual control, 5KW Min. Step 4) Display: Voltage, Current, Power 5) Protection: over temperature alarm. Short circuit 6) Dimenison: 1200*1200*1600 7) Weight: 350kG
Packing & Delivery
1. After test, products will be packed Wooden Case
1. By air or by sea for batch goods. (Your option) 2. Delivery Time: 7-25 days for batch goods.
* One years warranty. * Engineers available to service machinery overseas.
1. 30% deposit first, 70% balance should be paid before delivery. (Payment method: T/T)

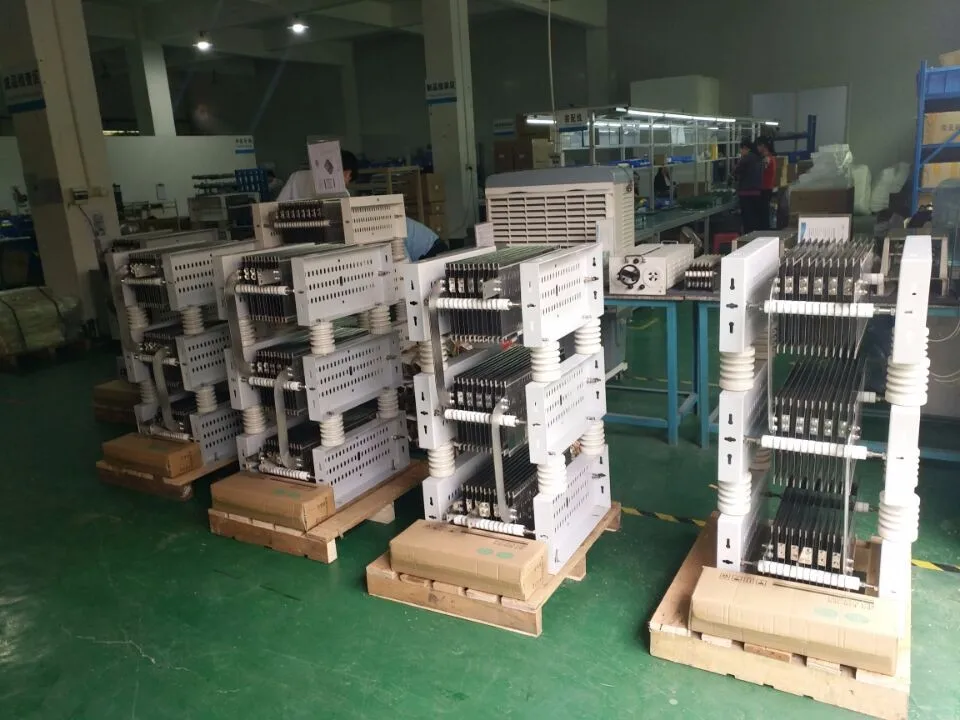

NY Technology is a leading supplier of standard and custom-designed high power resistors for industrial, control and general-purpose applications. Products are Neutral Grounding Resistor, Load bank, Ceramic Wirewound Resistor, Aluminum Housed Resistor, Braking Resisor. We had successfully coporation with many large company such as NARI, NATIONAL GRID, and products are widely exported to Japan, Indonesia, Pakistan, USA, German with CE, RoHS certifcated.
1. What is the minimum Order Quantity(MOQ) ?
No quantity limited.
2. What is the leading time? ?
7 days for Traditional Type, 20-25 days for OEM Type.
3. What is your terms of payment?
30% as deposit, and 70% by B/L.
4. What is your terms of delivery?
FOB, CIF, DDP.
5. Are the product competitive?

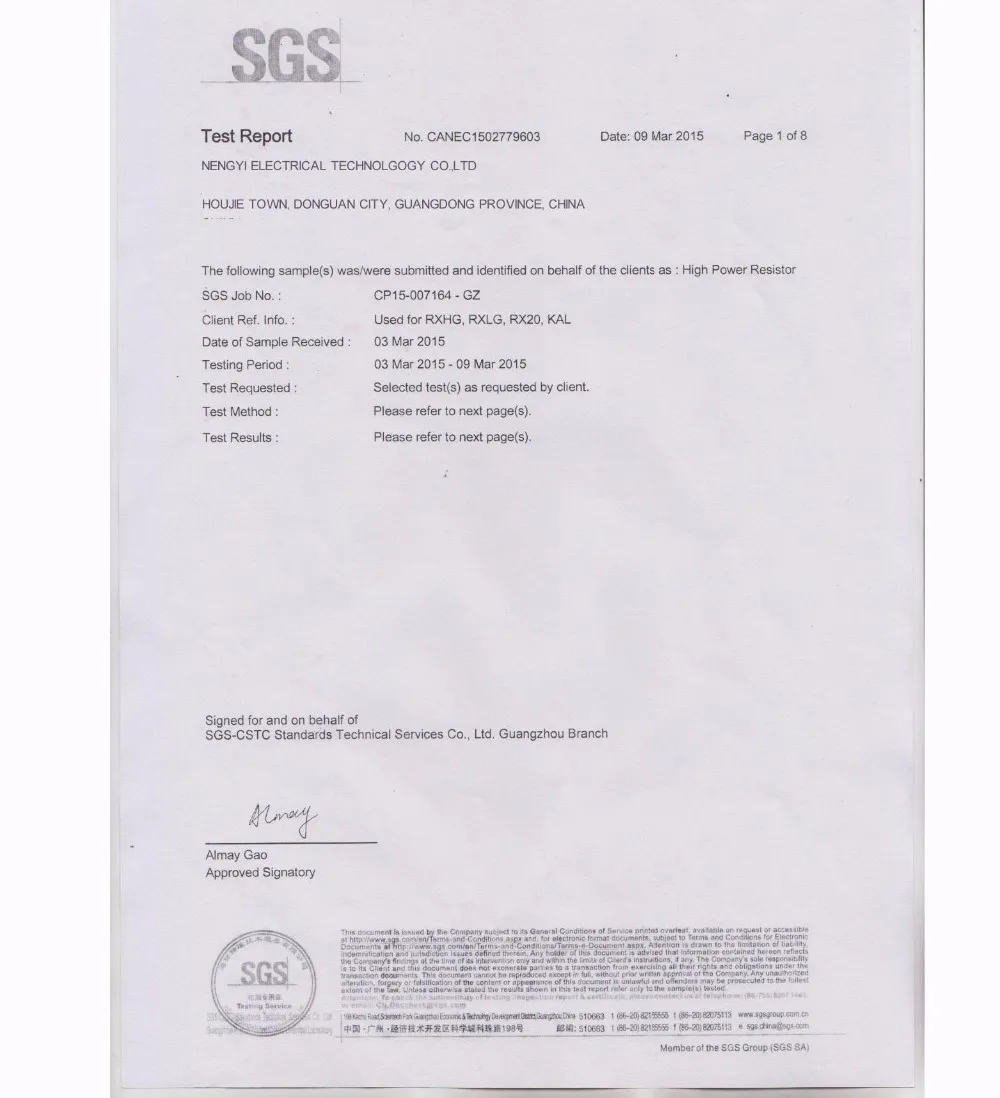

We provide good quality products certificated by CE, RoHS with competitive quotation.
6. How long is the warranty?
12 months warranty
7. How is the after sale service?
If necessary, engineers available to service machinery overseas.
