Rotork gear operated butterfly valve

FOB Reference Price:Get Latest Price
US $1-5,000 / Piece | 1 Piece/Pieces welcome trial order (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month own strong ability
Port:
TIANJIN XINGANG
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Power:
Manual
Material:
cast iron,ductile iron,wcb,SS316,C954 etc.
Temperature of Media:
Medium Temperature
Media:
water,oil,gas
Port Size:
DN40-DN600
Place of Origin:
Tianjin, China (Mainland)
Model Number:
CWBV2302
Brand Name:
GALA
Product name:
Rotork gear operated butterfly valve
Certificate:

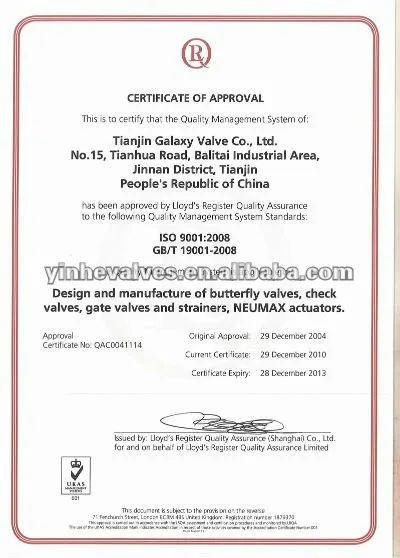

ISO9001,CE,CCS.DNV,ABS
Company:
Manufacturing company
Packaging & Delivery
Packaging Details
each pc into one bubble plastic bag,several pcs into one wooden crate or according to customers requirements
Delivery Time
within 30 days

Specifications

1.MSS/API/BS design.
2.Size:DN40-600
3.Working pressure:PN10/150PSI.
4.IS09001/ABS/CCS/DNV/CE.
5.Flange:AWWA/BS/EN etc.

Introduction

We, Tianjin Galaxy Valve, is one of the biggest valve manufacturers and exporter in Northern China,is also  alibaba gold member for nine year.We have attend the large-scale exhibition at home and abroad each year.Products are mainly used for fire protection,water works,HVAC,marine,etc. Our income in 2012 achieved to 30,000,000 USD. Welcome to visit our web:www.galars.info.


Nominal diameter: 2 in - 24 in

Face-to-face: EN 558 Series 20 (DIN 3202 T3 K1)

ISO 5752 Series 20

API 609 Table1

BS 5155, Tab. 6 Series 4

NF E 29-305.1

Flange accommodation: DIN 2501 PN 10/16

ANSI B 16.5, Class 150

MSS SP44 Class 150

AWWA C 207

AS 2129 Table D and E

BS 10 Table D and E

JIS B 2211-5 K

JIS B 2212-10K

Tightness check: DIN 3230 T3 BO (Leakage Rate 1)

ISO 5208, Category 3

API 598 Table 5 and

ANSI B 16-104, Class VI



General Applications:

Chemically corrosive media

Purification plants

Pharmaceutical Industry

Adhesives,paper Industry,Fuel Transport

Paint manufacturer and processing

Food Industry



Pressure Temperature Ratings

Working pressure:10bar/150psi

Testing pressure: Shell:15bar/225psi Seal:11bar/165psi

Working Pressure:  -20°C to 110°C EPDM backed

                               -10°C to 80°C NBR backed



Material Specification

PartMaterialASTM
BodyCast ironA126 Class B
 Ductile ironA536 Gr.65-45-12
 Carbon steelA216WCB
 Stainless steelA351 CF8M/CF8
 DiscBronze B148 C95400
 Stainless steel 304A351 CF8
  Stainless steel 316A351 CF-8M
 Shaft Stainless steel 410A276 S410 00
  Stainless steel 316A276 S316 00
 SeatPTFE
 O-RingFluorcabon Caoutchouc  VITON



 Dimensions

SizeMM40506580100125150200
 Inch1-1/222-1/234568
 A68808995114127139175
 B110161175181200213226260
 C2430303030303034
 L3342454551555560
SizeMM250300350400450500600
 Inch10121416182024
 A203242267316334370468
 B292337368400422480562
 C34344052526470
 L687878102114127154
