Round wine bottle labeling machine

  • 1-2 Sets
    $6,800.00
  • >=3 Sets
    $5,800.00
Power:
1.0kw
Model Number:
KPR-200
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Bottles
Packaging Material:
Glass, Paper, Plastic
Type:
Labeling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
KINGPACK
Voltage:
220V/50HZ Customized
Application:
Chemical, Commodity, Food, Medical
Weight:
200kg
Automatic Grade:
Automatic
Certification:
ISO9001, CE
Driven Type:
Pneumatic
Dimension(L*W*H):
2000*900*1500MM
Applicable Industries:
Manufacturing Plant
Product name:
bottle labeling machine
Function:
bottle labeling machine
Bottle type:
plastic bottle and glass bottle
bottle size:
diameter 20~100 mm , height 30~300mm
Labeling speed:
20~120 pcs/min
Machine Type:
labeling machine
Used for goods:
cosmetic ,medical,food,beverage industry
Control:
Button control
Model:
KPR-200 Round wine bottle labeling machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
200X70X160 cm
Single gross weight:
200.0 kg
Package Type:
Standard export packing for round wine bottle labeling machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description

Round wine bottle labeling machine

Product Description

Introduction of KPR-200

KPR-200 is suitable for round bottles or paper box, carton double sides and single side labeling. It is featured by high labeling precision, stable operation, neat, no bubble, no wrinkle. The qualified rate can reach 99%. It is no bottle no labeling. Besides, if the label size is different, it can be adjustable in certain scope. The whole machine is easy to move can be matched with ribbon code printer, bottle unscrambler, turn table and inkjet printer etc.

Round wine bottle labeling machine

 Main technical parameters:
Product nameAutomatic round bottle labeling machine
Power220V/50HZ
Product  speed20-120pcs/min
Weight200kg
Tube diameter10mm-30mm
Machine size2000*700*1600mm

ApplicationPET bottles, glass bottles
Bottle shapeCylindrical bottles label / round bottle labeling/ boston bottle labeling
Working principleMachine sticks the label automatic by sensoring the bottle
MaterialSS304 & aluminum alloy
Working flowefeed the bottles on the conveyor (or connected to production line) -bottle moving forward (automatic) – circle labeling (automatic) - label recovering systems
Electrical brandSiemens, Weinview, Atonics, Schneider

 Features and performance of KPR-20

1. high labeling precision, steady performance. Labels are plain, no bubble and wrinkle

2. one machine could be used for different kind of containers, round bottles, conical flasks and square bottles.

3. The speed of labeling, conveying and bottle distributor could be adjustable steplessly, which is convenient to adjust according the actual needs

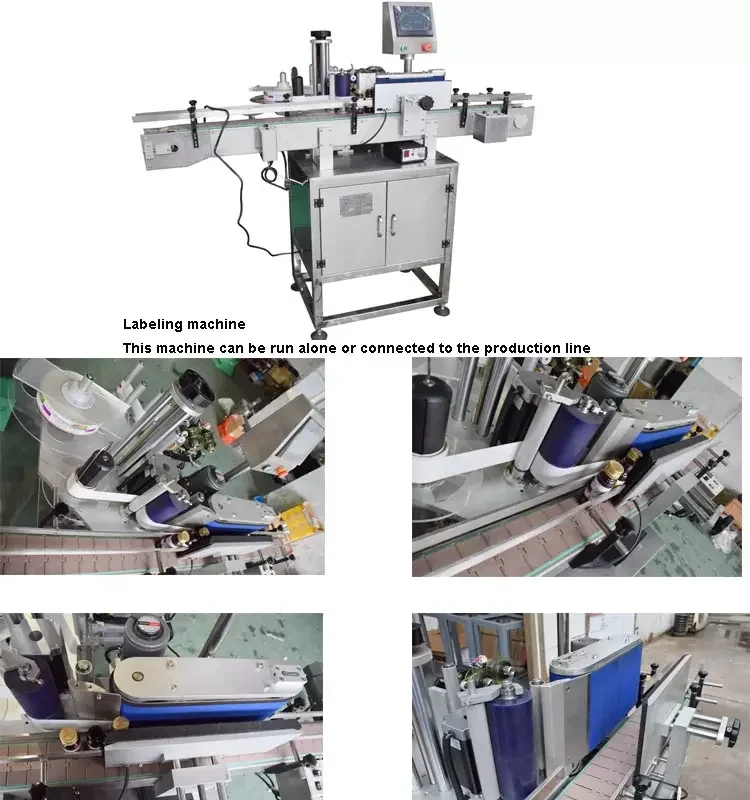

4. The machine could be used separately and also can be connected to the production line to work automatically

5. The mechanical system guarantee a stead operation of the machine

6. The machine is equipped with automatic bottle distributing function

7.  Automatic operation and high working efficiency to save labor cost

8. Prevent the deflect sticker and bubble

9. Good sticker looking

10.  Sensor check: no bottle, no sticking,

11. automatic sticker test and adjustment function.

12. The machine is made mainly from high quality stainless steel and aluminium alloy

13. Control method: PLC + touch screen + stepping motor + standard sensor control.

14. High safety standard, human-computer interaction interface

15. Simple operation and maintenance

16. Production counter and electricity-saving function

Picture reference : (The design of the machine could according to the request of the clients,it's not changeless, If you have purchase plan about the machine , please tell us your detailed request ,we will make a suitable solution accordingly)

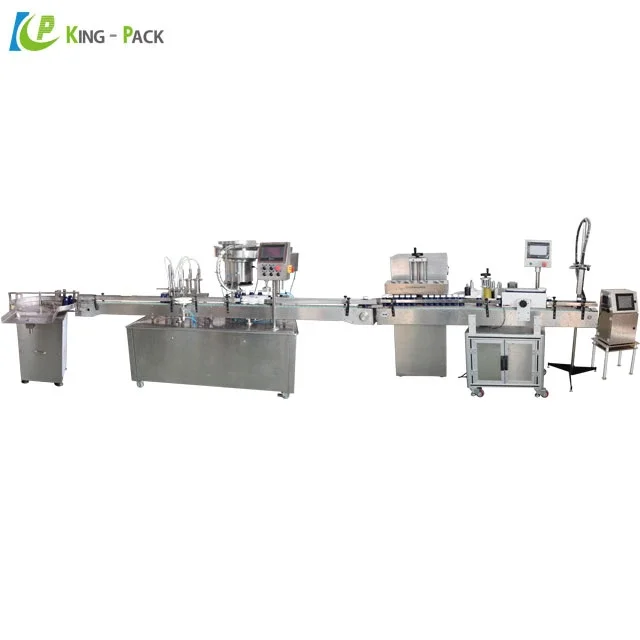

  KPR-200 round bottle labeling machine can working together with the prodution line ,such as  filling -capping - labeling-coding

Round wine bottle labeling machine

Application range

Application examples: PET round bottle labeling, plastic bottle labeling, mineral water, glass bottles, etc.



Scope of application

The machine is labeled by means of standing objects. Therefore, as long as it is a bottle or other cylindrical article that can stand relatively stably, the machine can be used for labeling.



 Click here to send a inquiry for details!

Layout : ( we could design the size according to your factory space)



Related Products

Company Information



Round wine bottle labeling machine



Round wine bottle labeling machine

Our team:

Round wine bottle labeling machine

Our Services

Round wine bottle labeling machine

Packaging & Shipping



FAQ

<1>What should I do if we are not able to operate the machine when we receive it?


     Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.


<2>How could I get the spares on machines?



       We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.



 <3>How can I ensure that I get high-quality machine?



      As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.



 <4>Is there any insurance to guarantee I will get the right machine I pay for?


     We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
