S type Load Cell High Precision Column Weighing Load Cell 5T

Feedback Ratings
  • 1-9 Pieces
    $79.00
  • >=10 Pieces
    $75.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
DYLY-101
Usage:
Load Cell, Tension and compression Sensor
Theory:
Compression and Tension Force Sensor
Output:
Other
Measuring range:
5T
Sensitivity:
2.0±0.05mV/V
Operating temperature range:
-20℃~+80℃
Excitation voltage:
10V-15V
Material:
Alloy steel
Input resistance:
350±20Ω
Type:
Column S type
Output Resistance:
350±5Ω
Warranty:
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X12X10 cm
Single gross weight:
3.0 kg
Package Type:
Export Carton Packing
Lead Time :
5
Product Description

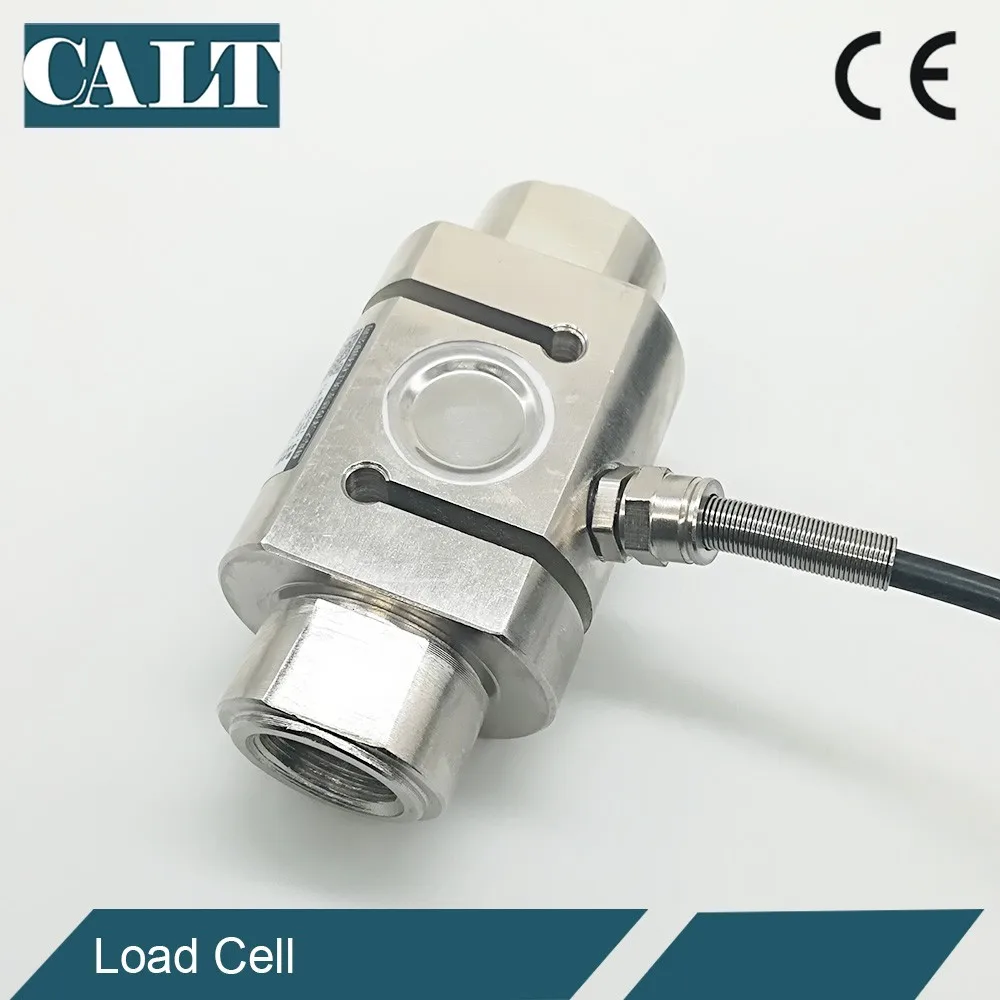

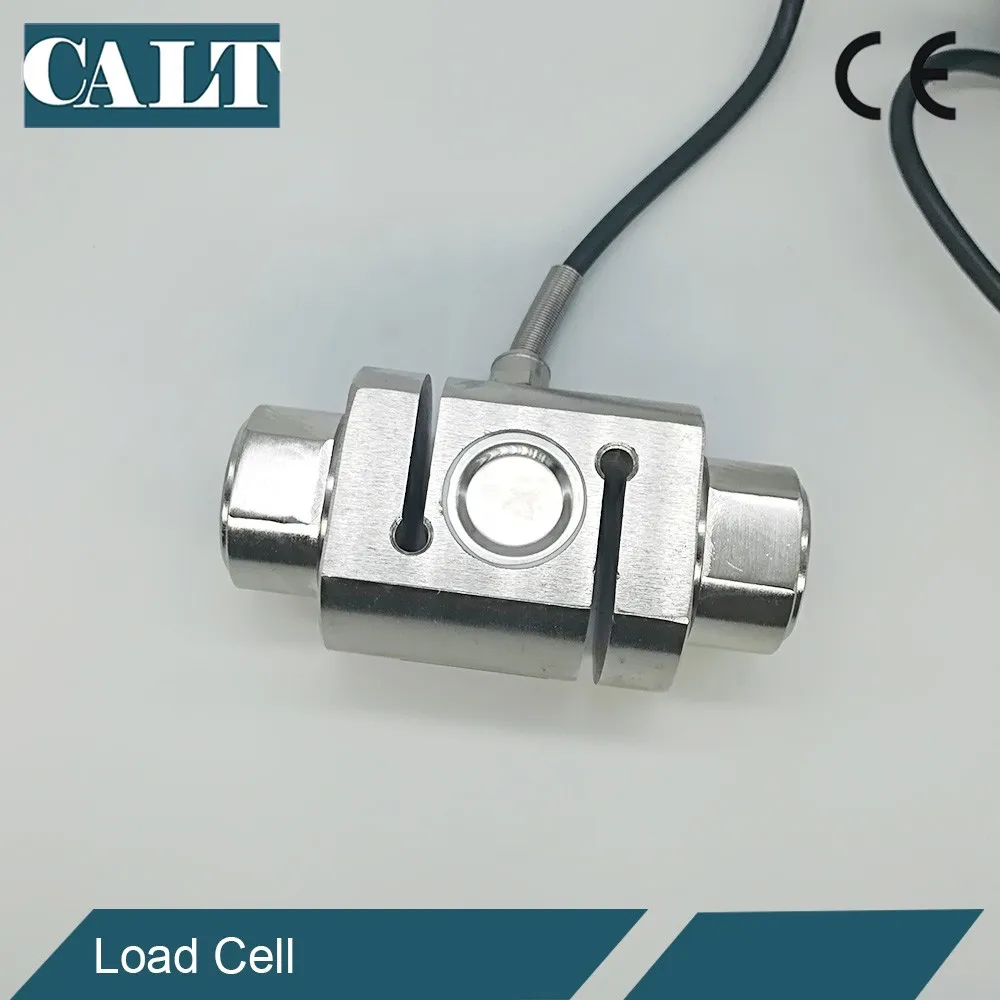

S type Load Cell High Precision Column Weighing Load Cell 5T

Characteristics & Usage:
S type load cell, tension
Good output symmetry, compact structure,
simple to install, full range of capacities.
Suitable for batch weigher , crane scale,
hopper scale and various special scales, process control devices


Detailed Images
Packing & Delivery
Our Company

  Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
