S52F square flange rotary encoder 52*52mm with the shaft seal H25 Incremental Encoder elevator encoder

Feedback Ratings
  • 1-9 Pieces
    $58.00
  • >=10 Pieces
    $50.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Samples - $58.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENG XIANG
Model Number:
S52F square flange rotary encoder
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
Other
ITEM:
S52F square flange rotary encoder
Square flange size:
52*52mm
Shaft diameter:
10mm
Resolution:
up to 23040 PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8V-30V
Outlet type:
wire out from side (with metal sleeve)
MOQ:
1 PCS
Wire length:
1M (it can be added as customer requirements)
Weight:
330g

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.4 kg
Package Type:
Carton box for S52F square flange rotary encoder
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description





S52F square flange rotary encoder 52*52mm with the shaft seal H25 Incremental Encoder elevator encoder





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2) S52F- Series Encoder Specification



Items Basic parameters
BrandHENGXIANG
Encoder typeIncremental encoder
External diameter52mm
Thickness44mm
Flange dimension52mm x 52mm
Installation dimension44mm x 44mm
Shaft length 16mm
Solid Shaft diameter10mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;   23040
Output phasePhase A+,B+,Z+ , A- B- Z-
Supply voltageDC5V ; DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeNPN Collector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Protection gradeIP50 ; IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Consumption current100mA MAX
Top response frenquency300KHZ
Allowable ripple≤3%rms
Load Voltage≤DC30V
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDnot connect to encoder
Mark to Space ratio45% to 55%
starting torqueless than 5 x 10-3 N.m
Intertia momentless than 3x 10-6kg.m2
Shaft loadRadial 60N; Axial 60N
Top REV6000RPM ;IP65≤3000r rpm
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating:-20  ~+85°;storage:-25 ~+90°
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft MaterialStainless steel
Shell Material Dia cast aluminium
Cable length1000mm(cable with shielding)
Certification CE
packageCarton box
Net weight About  300g (with package)

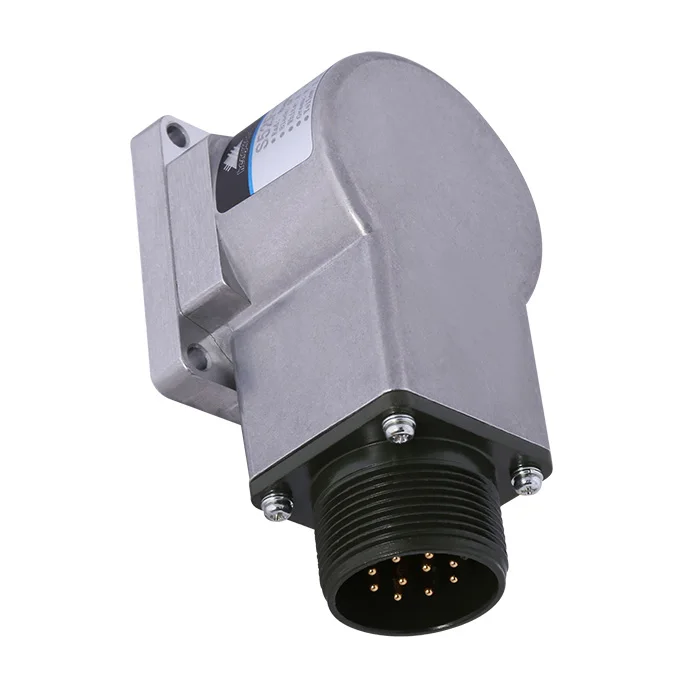

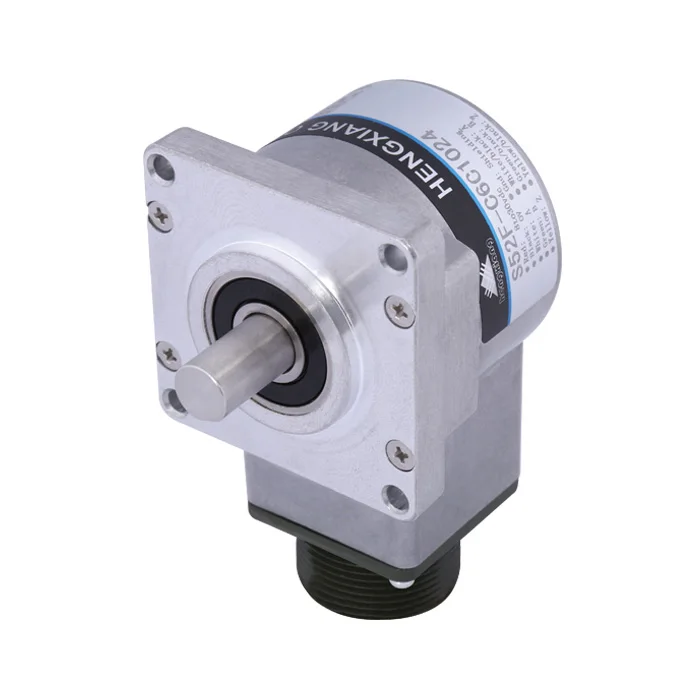

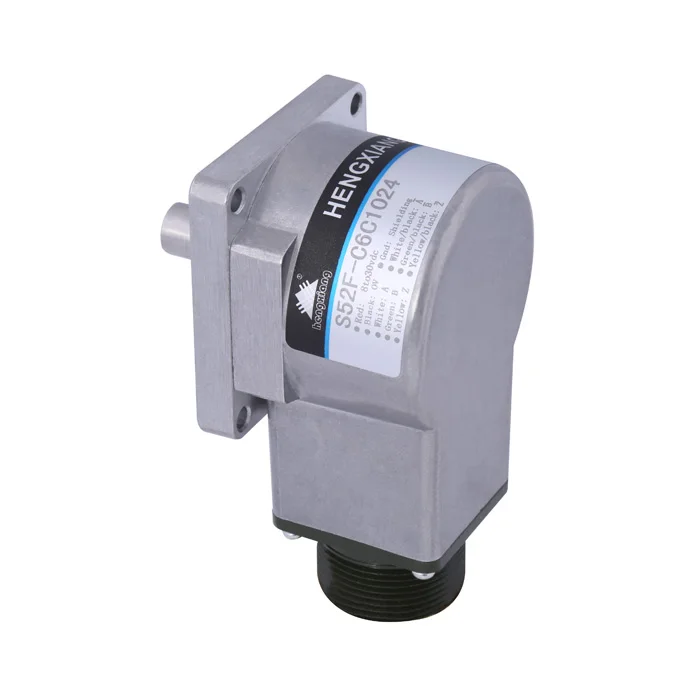

3) Pictures









4)Machine Dimension







Encoder Application



Company Information



Packaging & Shipping

 Shipping

INTERNATIONAL AIR MAIL

 Payment

 Fast Delivery

Different amount of time will be required for different
FAQ

Q1.What’s your advantage? Why we choose you?

A:1)Over16 Years experience of producing encoders with the most professional techniques and team. More advantage in price

2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.

3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.

Q2.What’s the Payment?

A:T/T would be better with quick transfer and few bank fees. Also Western Union is acceptable,
Citibank and American Bank both OK,including credit card.

Q3.Are you a factory or trading company?

A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How can I get some samples?

A:We are honored to offer you samples.
Kindly check alll parameters needed, such as revolution(PPR), phase, circuit output mode, power supply voltage, motor speed(RPM)
