SEETEC broadcast monitor HDMI SDI input suitcase focus assist 4k monitor 30

FOB Reference Price:Get Latest Price
US $899-999 / Pieces | 1 Piece/Pieces 4k monitor 30 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Desktop
Screen Size:
28"
Response Time:
10ms
Brightness:
300cd/m
Interface Type:
DVI, HDMI, SDI, VGA, AV
Contrast Ratio:
1000:1
Resolution:
3840*2160
Widescreen:
Yes
Panel Type:
IPS
Pixel Pitch:
0.001
Brand Name:
SEETEC
Model Number:
4K280-9HSD-CO
Place of Origin:
Fujian, China (Mainland)
Keyword:
4k monitor 30
Size:
28"
Product Name:
4K280-9HSD-CO
Warranty:
1 Year
Backlight:
LED Backlight
Aspect Ratio:
16: 9
Payment:
Paypal, Credit Card, T/T
Viewing Angle:
178 / 178 (H/V)
Condition:
A+ Grade
Color:
Black
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Month 4k monitor 30
Packaging & Delivery
Packaging Details
1PCS/Carton
Port
Xiame/Shenzhen
Lead Time :
Within 10days after the payment

SEETEC broadcast monitor HDMI SDI input suitcase focus assist 4k monitor 30

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability!

Parameters

 Display Spec.

 Model 4K280-9HSD-CO
 Screen Size 28"
 Color Depth 1.073G (10 bits)
 Resolution 3840×2160 pixels
 Pixel Pitch 0.16 (H) × 0.16 (V) mm
 Aspect Ratio 16:9
 Brightness 300cd/m²
 Contrast Ratio 1000:1
 Backlight LED
 Viewing Angle 170°(H) / 160°(V)

Input
 4 X HDMI HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ)
 1 X BNC SDI
 1 X DVI DVI
 1 X VGA VGA
 2 X RCA Audio(L/R)
 1 X Tally Tally

Output
 1 X BNC SDI

Audio
 Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)
HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
 Input Voltage DC12~24V (XLR)
 Power Consumption ≤45W
 Working Temperature -10°C~50°C
 Storage Temperature -20°C~60°C
 Unit Size 731L×410H×39D (mm) (W/O Suitcase) / 780L×470H×250D (mm) (W/ Suitcase)
 Unit Weight 21.7kg (with Suitcase)



Product Description



Quad Split LCD Display
SEETEC new 4K280-9HSD-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.





High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.



Rich Interfaces
Multiple inputs meet the best need of various professional display solutions.





Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field Production



Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K280-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.



Collapsable Sunshade
Design for easier viewing in bright environments.



Features

 1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display

 2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output

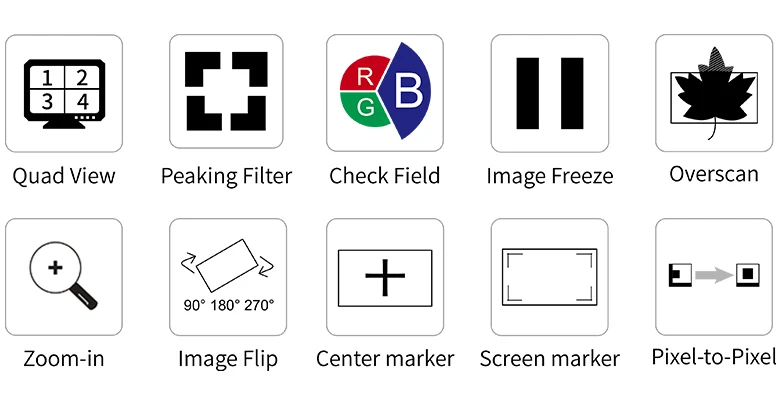

 3. Special Features:

* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* Overscan
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Line Color (Red, Green, Blue, White)

4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
