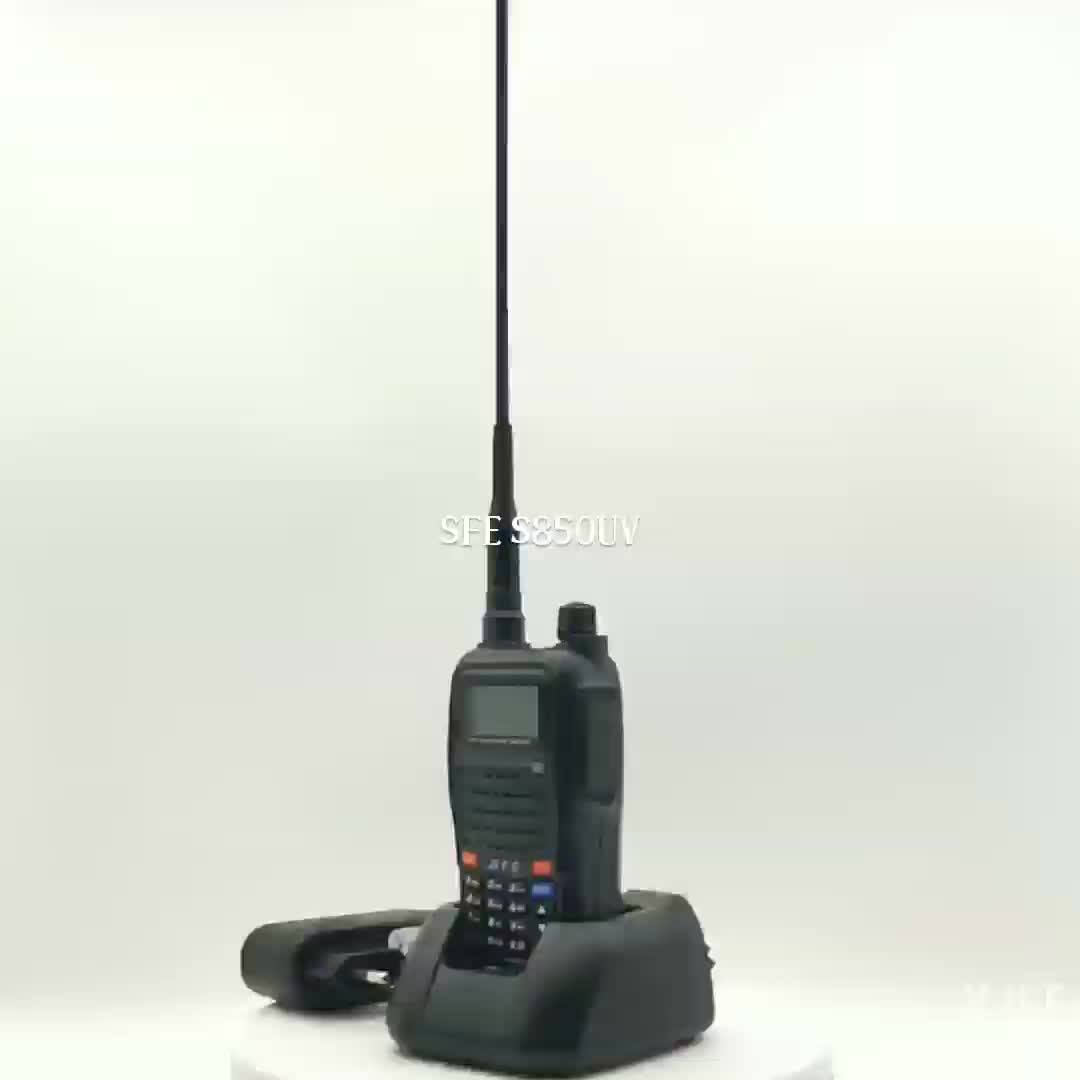

SFE S850UV 5W Dual Band UHF VHF FM Transceive
Main Features
1. 256 Channels(UHF & VHF)
2. Operation Mode: UU, UV, VV
3. Power Output: 5W/2W/0.5W
4. CTCSS/DCS/DTMF 2TONE/5TONE Encode & Decode
5. Channel Steps: 2.5/5/6.25/10/12.5/15/20/25/30/50KHz
6. Frequency Scan + Channel Scan + Dual Standby + CTCSS/DCS Scan
7. Wide/Narrow Bandwidth 25KHz/20KHz/12.5KHz (Selective)
8. VOX Function (10 levels)
9. ANI Code (DTMF/2Tone/5Tone) and PTT ID
10. FM Radio 76-108MHz
11. End-tone Elimination
12. Dimension: 53x28x104mm
Specification
|
S850UV 5W Dual Band UHF VHF FM Transceiver |
|
|
Frequency Range |
136-174/200-260MHz/400-470MHz/470-520MHz |
|
Channel Capacity |
VHF128/UHF128 |
|
Channel Spacing |
12.5/20/25KHz |
|
Operating Voltage |
7.4V DC |
|
Battery Capacity |
1650mAh/2200mAh(Li-Ion) |
|
Battery Life |
About 11/17 hours |
|
Operating Temperature |
-30°C~ +60°C |
|
Frequency Stability |
±2.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimension |
53*28*104mm |
|
Weight |
236g |
|
Transmitter |
|
|
Frequency Error |
≤ 5 X 10-6 |
|
RF Power Output |
≤5W |
|
Modulation Limiting |
≤ 5KHz |
|
Spurious Emission |
≥65dB |
|
Modulation Distortion |
Less Than 5% |
|
Receiver |
|
|
Sensitivity |
0.25μV |
|
Audio Distortion |
≤ 5% |
|
Spurious Response Rejection |
≥ 55dB |
|
Adjacent Channel Selectivity |
≥ 55dB |
|
Inter-modulation |
≥ 55dB |
|
Audio Output |
≥ 250mW |
| MOQ | 2 for samples; 100 for mass production; 500 for OEM |
| Packaging | Gift box, 20pcs/carton |
| Trade Terms | FOB Xiamen |
| Express delivery | DHL/UPS/FEDEX/EMS/TNT |
| Delivery time | 3-5 days after received the payment |
| Payment | T/T, West Union, Money Gram, PayPal or LC |
| Warranty | Radio 1 year; Accessories 6 Months |

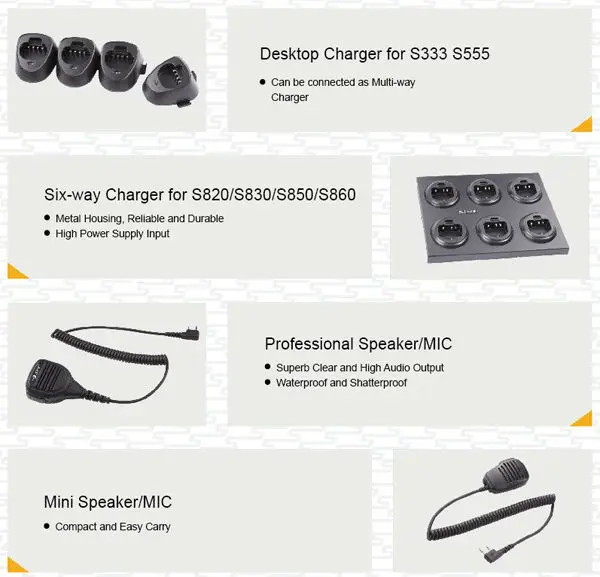

Accessories
Optional Accessories

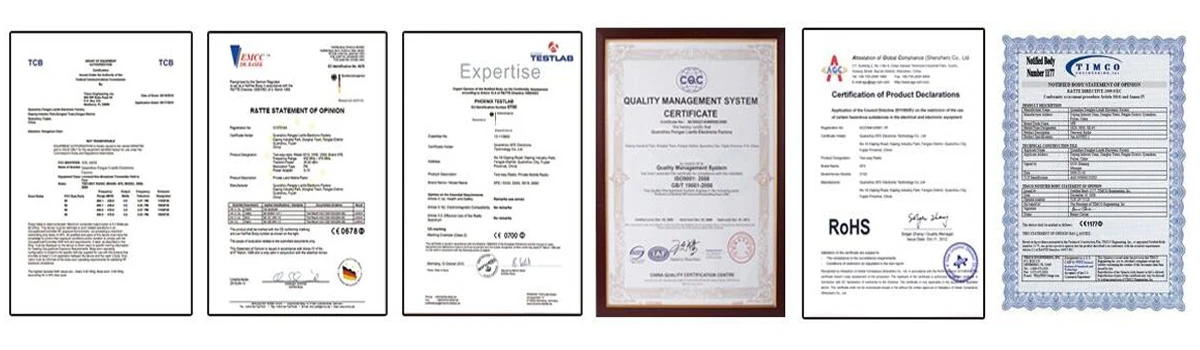

Certification
