SGUV-650B Automatic uv coating machine glaze coating machine uv varnish machine coater with 520mm 650mm

  • 1-4 Sets
    $16,000.00
  • >=5 Sets
    $15,500.00
Model Number:
SGUV-650B
$
- +
available
SGUV-520B
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Cartons
Packaging Material:
Wood
Type:
Coating Machine
Condition:
New
Application:
Machinery & Hardware
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Power:
9.5KW
Place of Origin:
Zhejiang, China
Brand Name:
FENGMING
Dimension(L*W*H):
3520*1130*1560MM
Weight:
1500kg
Certification:
CE Certificate
Product name:
UV coating machine
Max feeding Speed:
35m/min
Warranty:
1 Year
Max. paper size:
630*700
Min. paper size:
220*280
Color:
You can decide
Paper Thickness:
80-200/m2
Max. coating width:
9.5kw
Mode of operation:
automatic
Usage:
Coating Materials
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
508X125X156 cm
Single gross weight:
1500.0 kg
Package Type:
Normally we use wooden carton to package, also can do fumigation
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 5 >5
Est. Time(days) 15 45 To be negotiated
Video Description
 Latest Design SGUV-650B Automatic Small Whole UV Varnish Machine UV Coating Machine with 650mm
Specifications

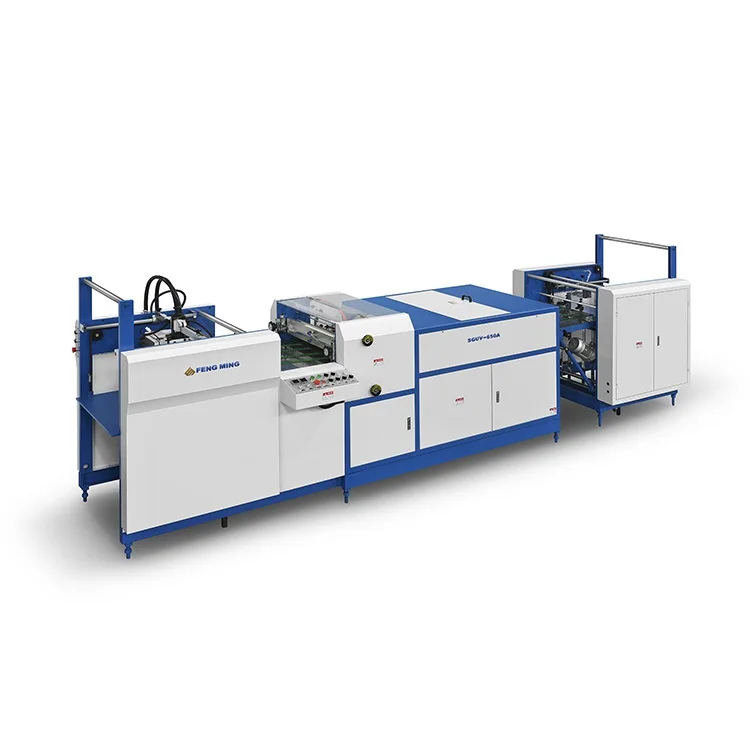

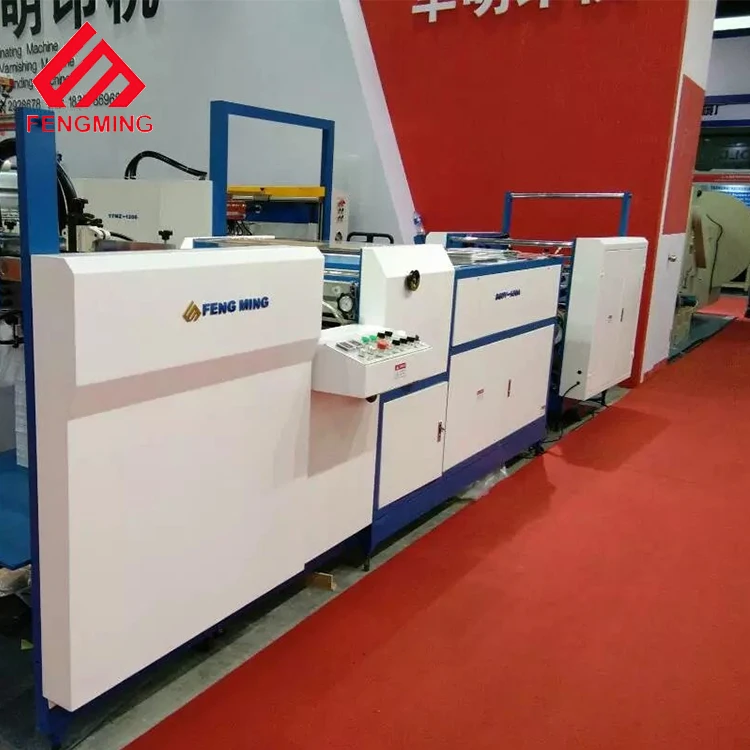

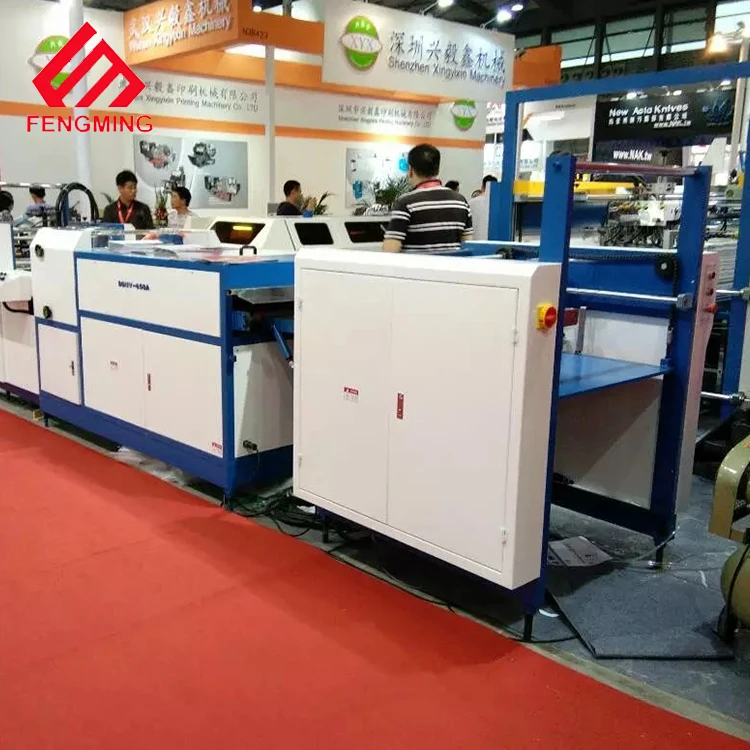

SGUV650B AUTOMATIC UV COATING MACHINE

Configuration

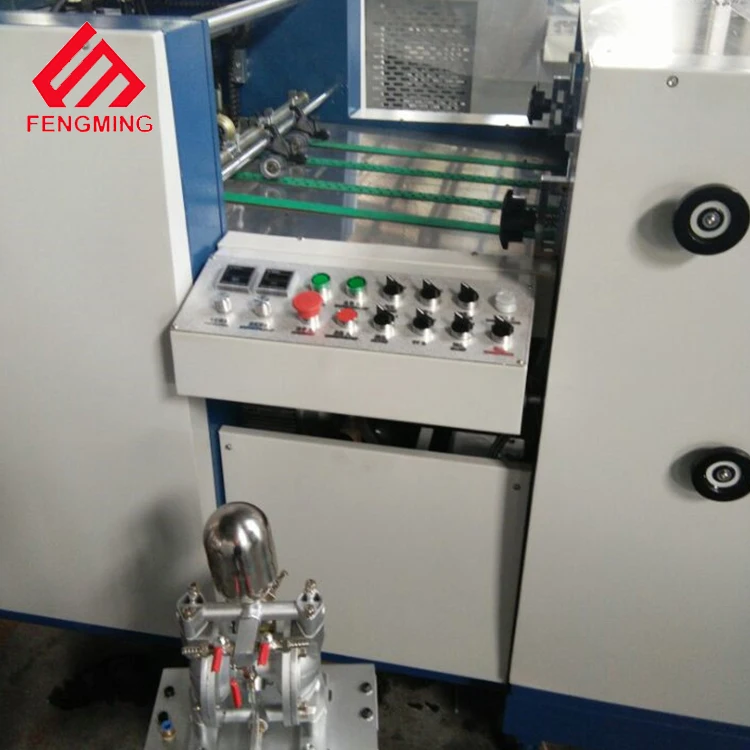

1.PLC control

2.Two UV lamps, four IR lamps

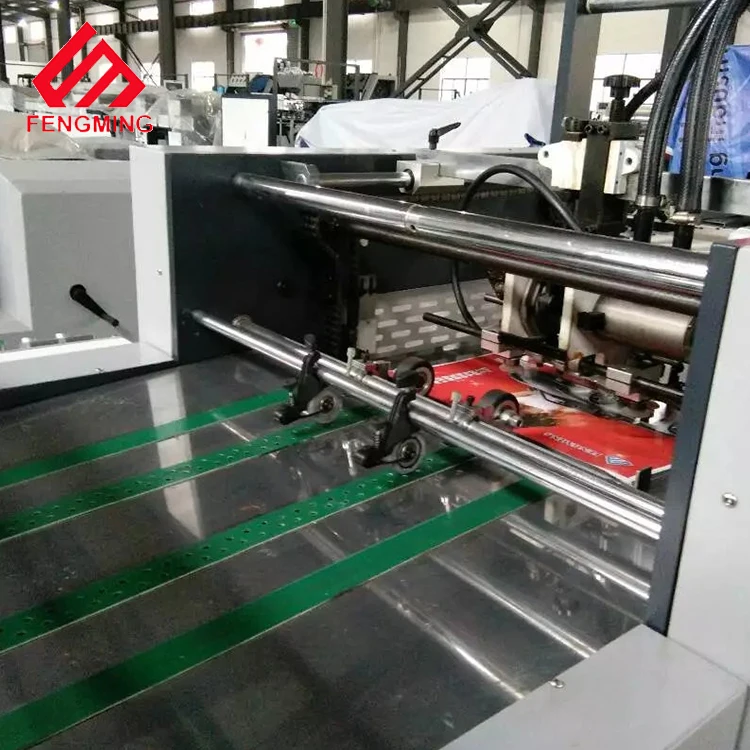

3.Automatic feeding system

4.Automatic paper stacking system

5.Air Knife(Used for thin paper coating)

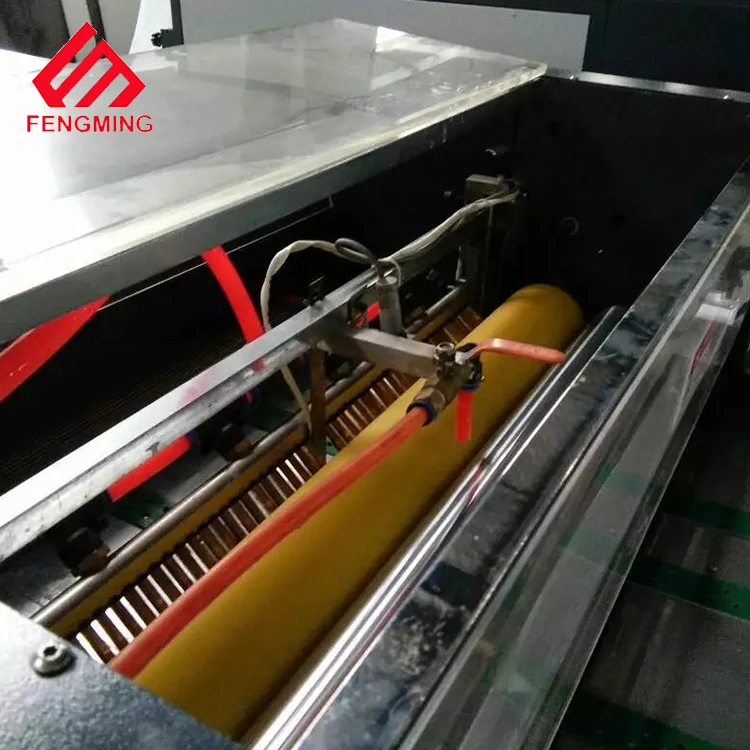

6.Equipped with Anilox Roller and Chambered Ductor Blade to make simple spot coat(strip coating,coat width can be adjusted freely).

Technical specification

MODEL

SGUV-650B

Max.paper size

630*750mm

Min.paper size

220*280mm

Max.Coating Width

630mm

Max.Feeder Speed

35m/min

Paper Thickness

80-200g/m²(with air knife)



200-600g/m²

Total Power

9.5KW

Total Weight

1500kg

Overall Dimensions

5080mm*1250mm*1560mm






FAQ
