SIM800L GSM GPRS TCP IP Module MicroSIM Card GSM SMS

Feedback Ratings
  • 1-49 Pieces
    US $8.00
  • >=50 Pieces
    US $7.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM800L
Quad band:
850/900/1800/1900MHz
FM band limits:
76~109MHz
bluetooth:
compatible3.0+EDR
SIM card interface:
3V/ 1.8V
FAX:
Group 3, class 1
Supply voltage:
3.4~4.3V
Operating temperature range:
- 40℃ ~ 85℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
5X5X3 cm
Single gross weight:
0.01 KG
Package Type:
Carton package
Lead Time :
2

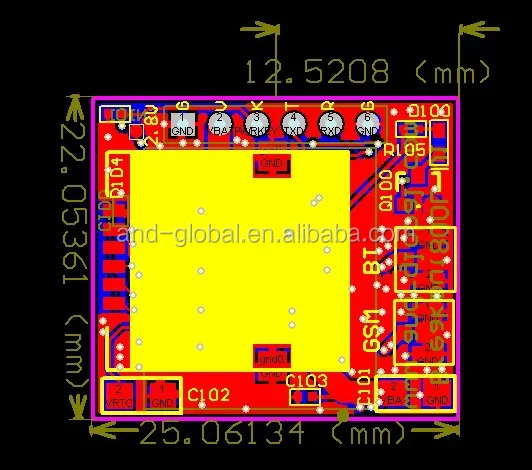

 SIM800H/SIM800L Breakout Board



We accept PCB design & OEM PCB assembly, according customers' requirements, feel free to leave message to us if you have any demands.


.jpg



D100

LED indicator

CN101

6pin 2.54mm header interface

J100

GPRS/GSM ANT

J102

BT ANT(only for SIM800H)

CN100

Micro SIM card socket

C102

VRTC(Not mounted by default)

TEST

2.8V





PCB dimension:25*22mm

.jpg




More using steps, we will provide the documents for your referring.



4.Accessories:



Name

Qty

Unit

SIM800L/H board

1

Pc

GSM antenna

1

Pc

BT antenna (Only for SIM800H)

1

Pc





 Looking forward from your inquiry!!!!







Packaging Details
