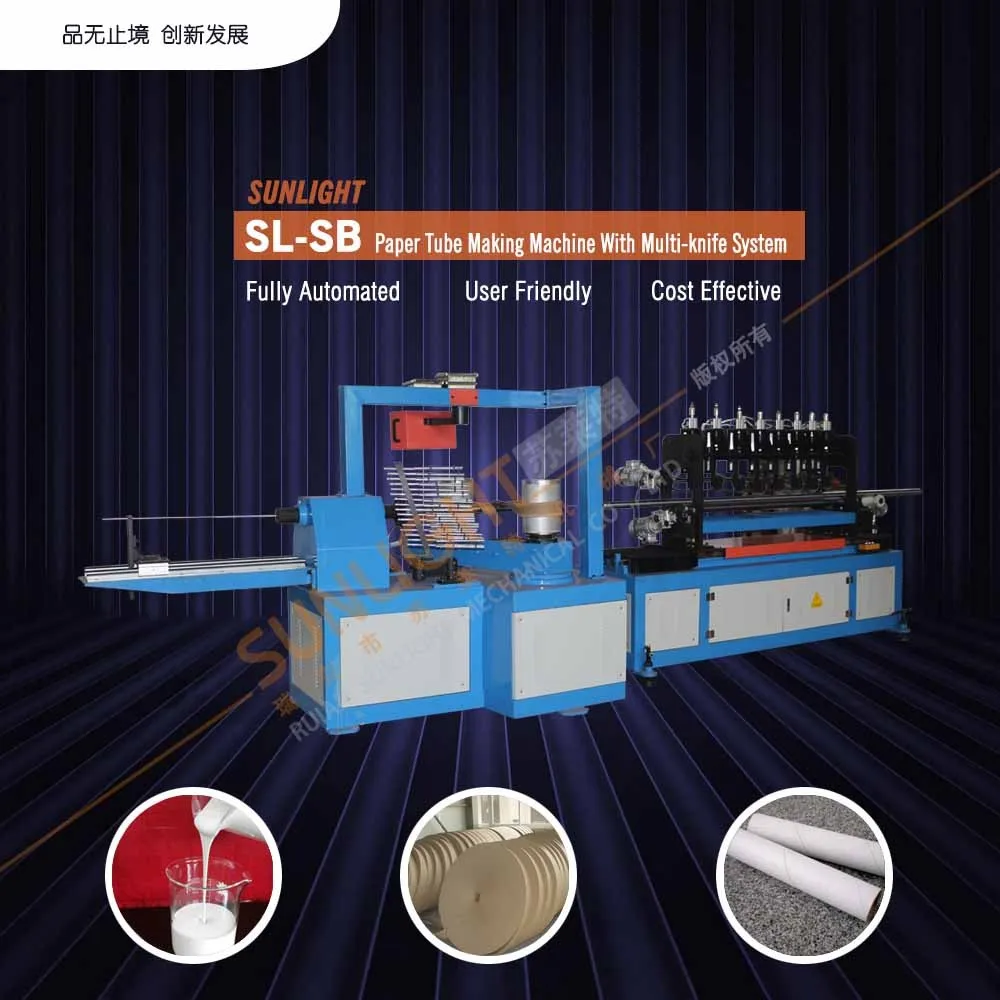

SL-SB Paper Tube Making Machine With Multi-knife System

FOB Reference Price:Get Latest Price
US $9,000-15,000 / Set | 1 Set/Sets SL-SB Paper Tube Making Machine With Multi-knife System (Min. Order)
Supply Ability:
30 Set/Sets per Month SL-SB Paper Tube Making Machine With Multi-knife System
Port:
NINGBO
Overview
Quick Details
Condition:
New
Product Type:
Paper Core Machine
Processing Type:
Winding Machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNLIGHT
Model Number:
SL-SB
Voltage:
380V, 380V 3Phase 50HZ
Power(W):
5.5KW
Dimension(L*W*H):
5600*1600*1750mm
Weight:
1500KGS
Certification:
CE
Warranty:
1year
After-sales Service Provided:
Engineers available to service machinery overseas
Winding Type:
Spiral
Material:
Kraft Paper and Glue
Product:

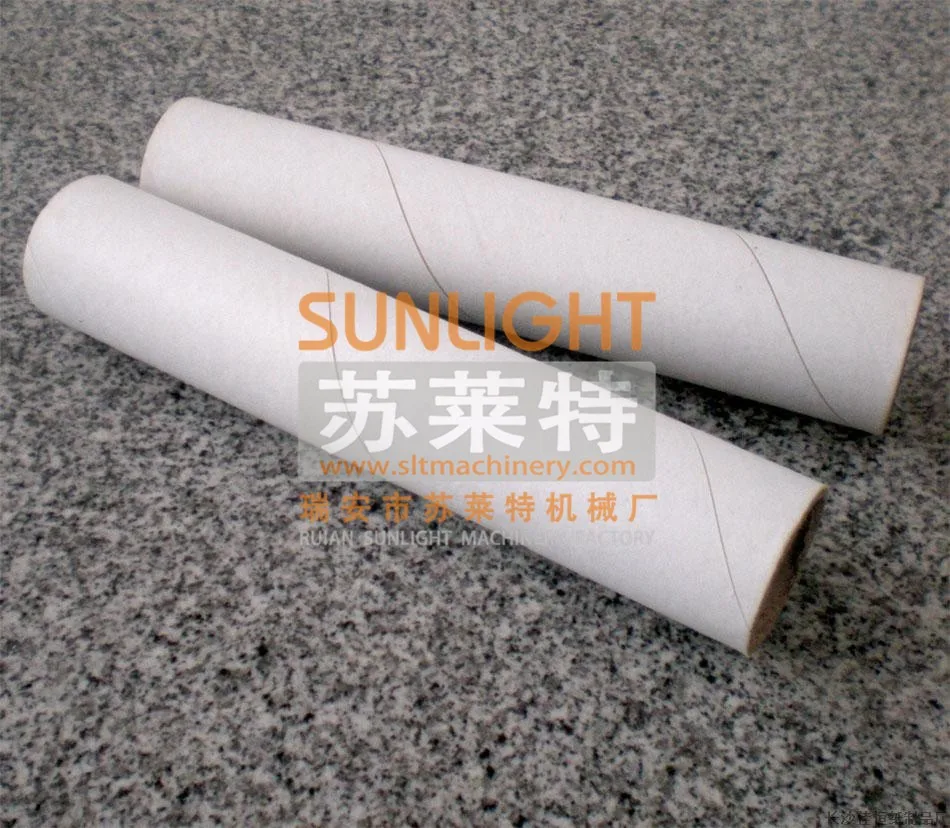

Paper Tube
Control System:
PLC
Motor Control:
Inverter
Cutting System:
Single Circle Knife
Inner Tube Diameter:
25-100mm
Thickness:
1-5mm
Operator:
2-3 person
Packaging & Delivery
Packaging Details
SL-SB Paper Tube Making Machine With Multi-knife System will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Delivery Time
Shipped in 35 days after payment
Product Description
Feature
1. Adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting;
2. Adopt human-machine operation interface, more convenient for operation;
3. Paper reeling stand , Slitting rolls are easily placed into reel stand by electric lifting device;
4.Choose Single or double glue coating unit

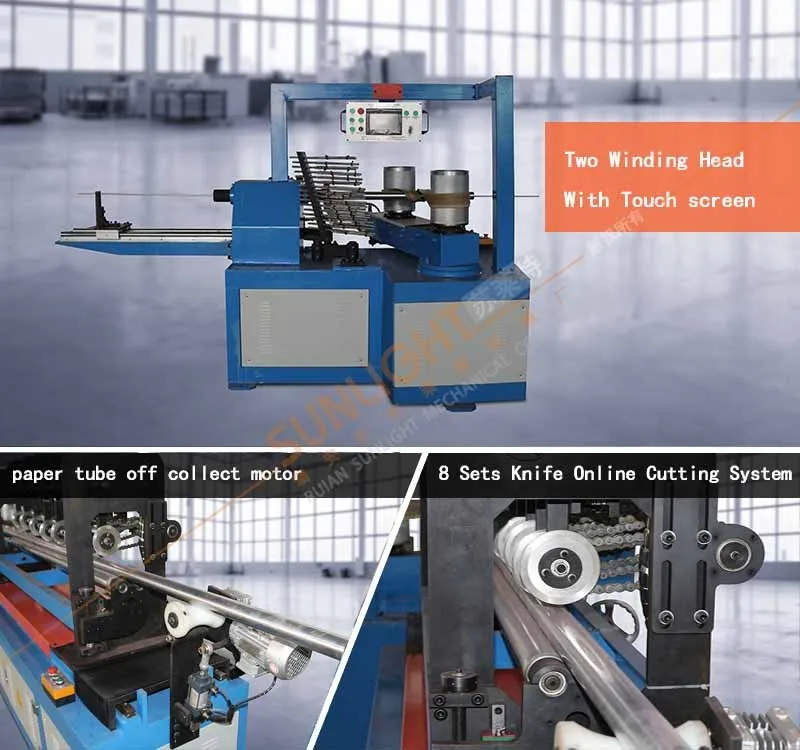

5. Spiral winding part , Hanging-type operation panel, specialized operation system , Belt tension device (hand-wheel driven)

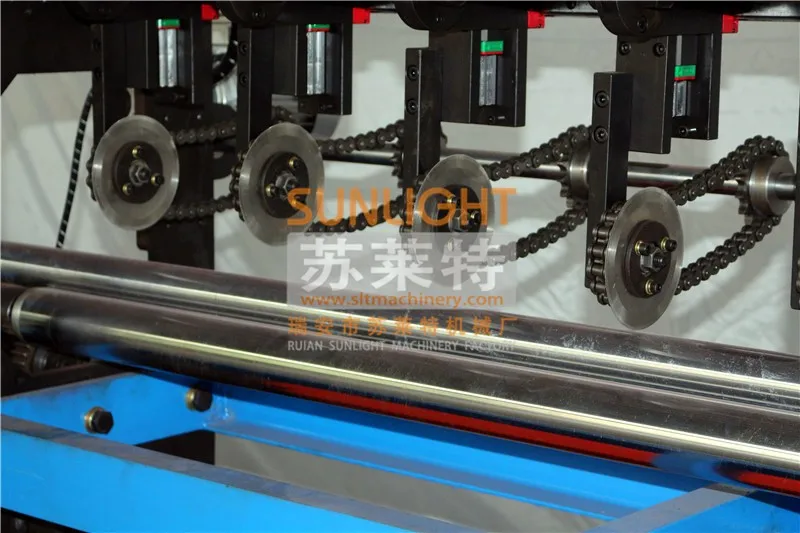

6. Multi-knife System in-line cutting unit controlled by encoder, cutting final paper tube directly

Inner Tube Diameter
25-100mm

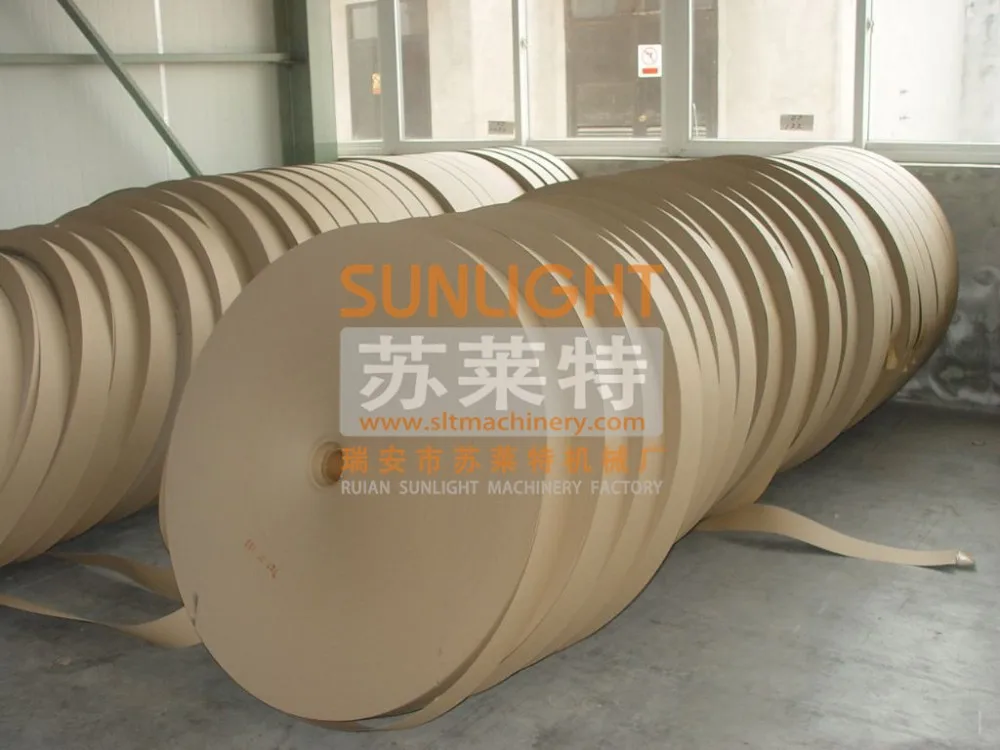

Paper Reel
3-12 Plies
Thickness
1-5mm
Spiral Speed
0-30m/Min
Hub Wheel
Two head and single belt
Way Of Fixing Mandrel
Flange

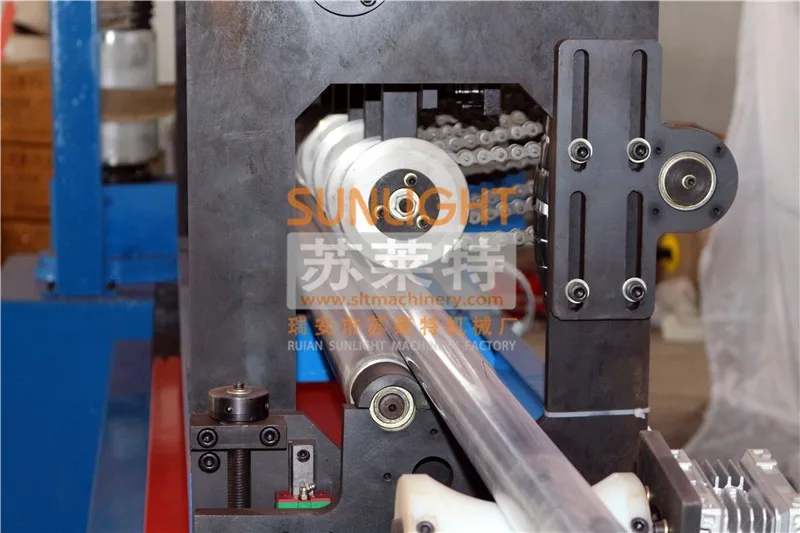

Cutting System
8 blade cutting system , numerical control
Synchronous Tracking Cutting
Servo motor control
Cutting Length
70mm-1380mm
Way Of Gluing
Double Side
Cutting Length
Encode control
Operator
2-3 person
Speed Control
Inverter control
Voltage
380V, 3Phase, 50HZ
Drive System
Main Motor
CHINA XINLING 5.5KW
Rotated Speed
1400r/Min
Rotated Speed Of Hub Wheel
48r/Min
Output Strength
1000N.M
Gear Box
WPDO155
Driving Chain
16A*2
Main Parts
Paper Reel Stand
12 Plies Integral Paper Reel Stand
Gluing Unit
12 plies Immersion Glue Loading Machine with pneumatic tension control
Double Motor Control Paper Bottom Feeding Unit
1 set
Surface Paper Feeding Unit
1 set
Mandrel And Belt
2 sets (The size according the client requirement)
Belt Adjustment
Manual
Angle Adjustment For Reel Stand And Glue Tank
Manual (optional : Motor adjustment)
Glue System
Independent Glue Box/Polyurethane Scraping Blade , 1.5kw Pump
Lubricating Oil
Automatic Giving
Certifications

Paper Tube Machine

Slitting Machine

Film Blowing Machine

Packing & Delivery
Testing And Packing

We testing every machine before shipment
The machine will be packed and shipped by container
It is ok by train or sea
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing

Payment & Delivery

 We accept L/C, T/T(30% down payment, 70% before shipment).
Inform sea shipment charge advance.
A shipping notification with tracking number will be inform you once your order shipped.
Pls note that we are not responsible for any customs duty incurred at foreign customs.
30-35days after payment/deposit, subject to the machine

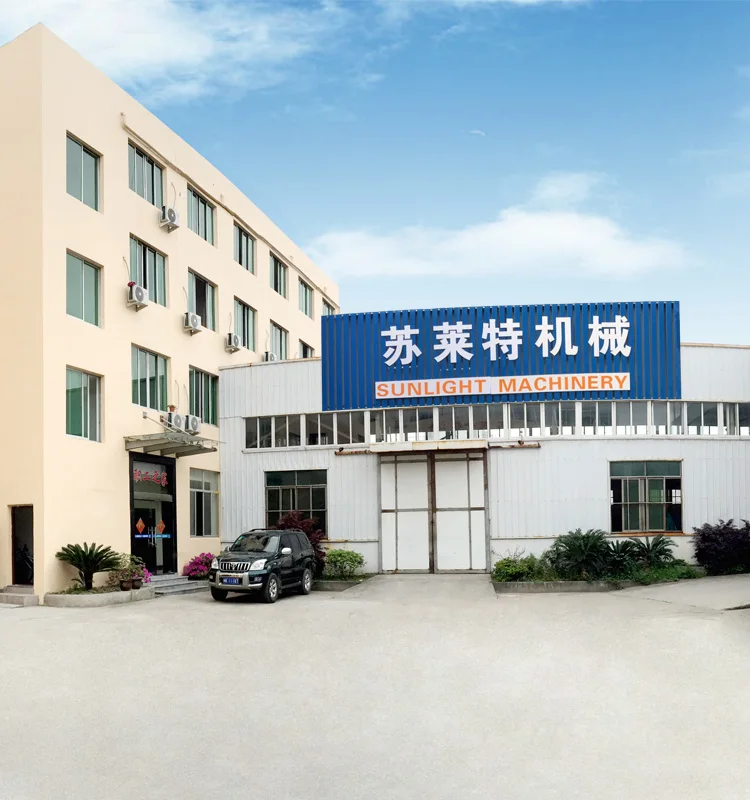

Our Company

SUNLIGHT Machinery Factory committed to provide the best solutions and share the most advanced products and technologies to our customers. The company has strong capabilities who with a modern production plant. It specializes in producing paper tube machine line , plastic and non-woven shoe cover making machines, various materials slitting machines, sleeve cover making machines, strip cap making machines, automobile steering wheel making machines, etc.,our machines are exported to Europe, North American, South America, Africa, Middle East, Southeast Asia and other countries and regions.

Our Services

Service:

1.R&D team: gathered professional electrical engineer team, development any machine you fit your requirement.
2.Raw material inspection: All material test high quality, then keep in warehouse
3.Workers: All workers training 3 months, skilled workers on produce line.
4.Quality Control: We have strict quality control system Incoming Quality Control, Final quality control, Out-going quality control
