SLT-SG Film And Paper Slitting Rewinder

FOB Reference Price:Get Latest Price
US $5,000-20,000 / Set | 1 Set/Sets SLT-SG Film And Paper Slitting Rewinding Machine (Min. Order)
Supply Ability:
30 Set/Sets per Month SLT-SG Film And Paper Slitting Rewinding Machine
Port:
NINGBO
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Machinery & Hardware, slitting
Packaging Type:
Cans
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
5KW
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNLIGHT
Model Number:
SLT-SG
Weight:
1500KG
Dimension(L*W*H):
2400X1800X1500
Certification:
ISO, CE
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
White and Red
Model name:
slitter
Machinery:
Plastic
Control System:
PLC
Warranty:
One Year
Operator:
1 person
Function:
Converter
Material:
BOPP, PET, PE, PVC
Packaging & Delivery
Packaging Details
SLT-SG Film And Paper Slitting Rewinding Machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Product Description

Main Features

Use:

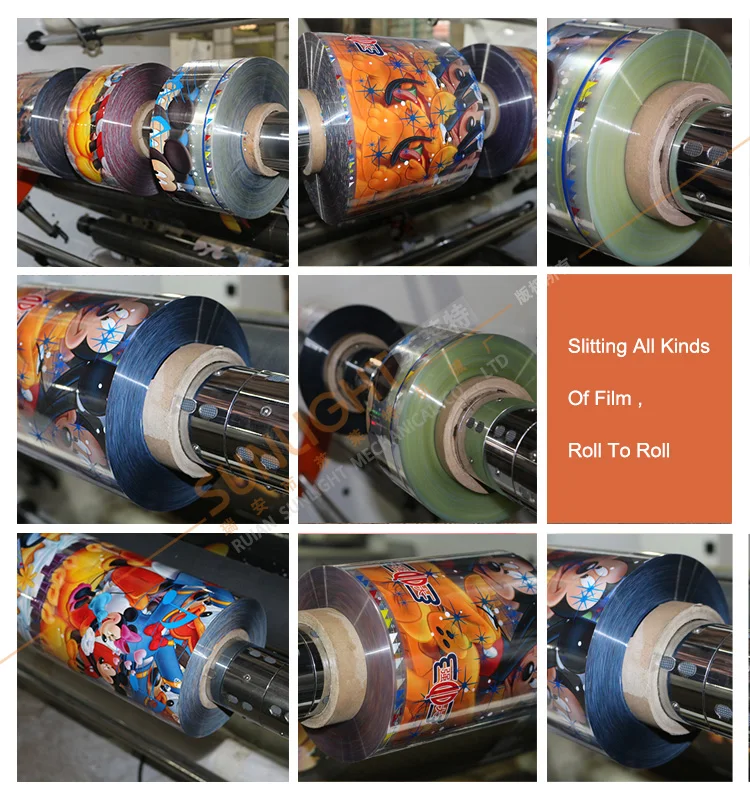

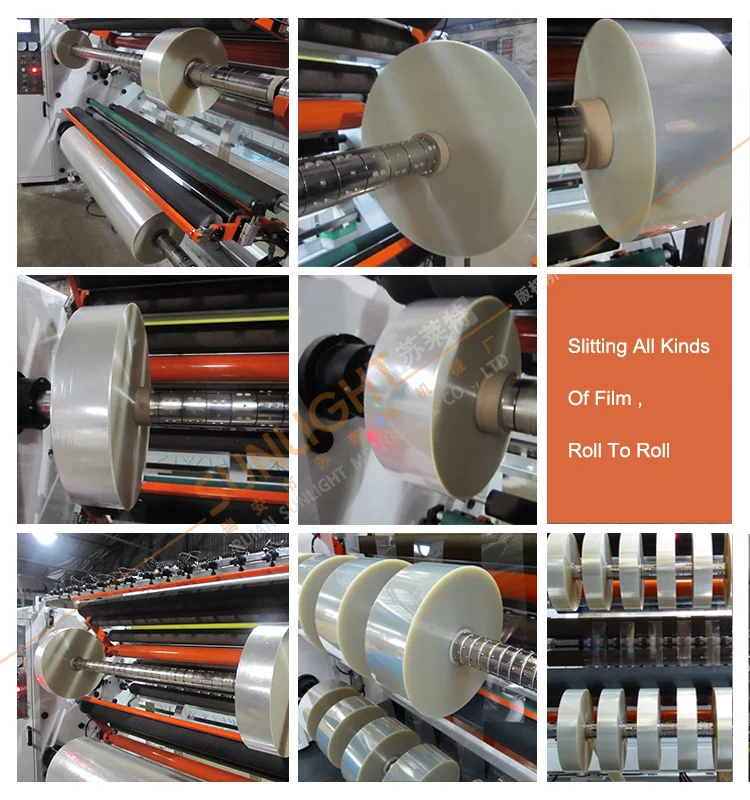

This machine are suitable for stripping of reel-shape materials such as BOPP, PET, PE, PVC , Aluminum foil , reel paper and so on

 Feature :
Main Motor: electromagnetic speed regulation motor
Separated General Control Cabinet, more flexible and even easier operation.

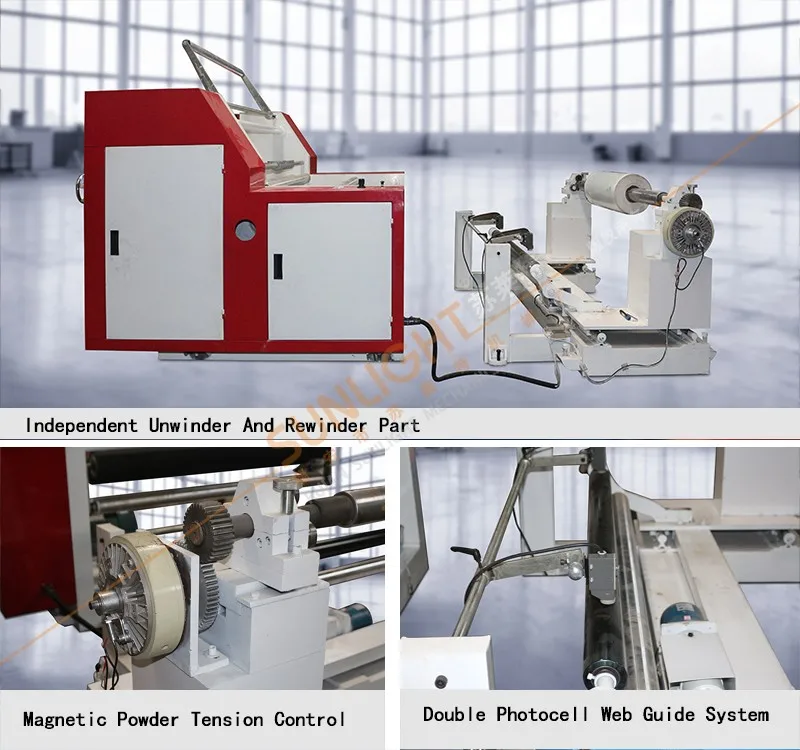

Automatic EPC for unwinding, photocell is suitable for tracking the edge and the line of material.

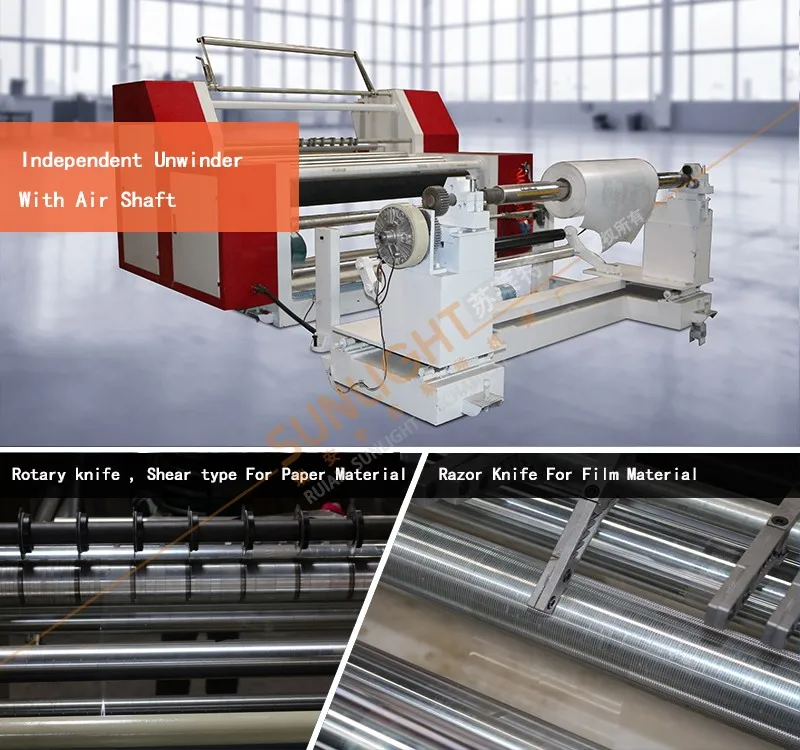

Equipped with air shaft for unwinding material loading, magnetic powder brake for unwinding tension control

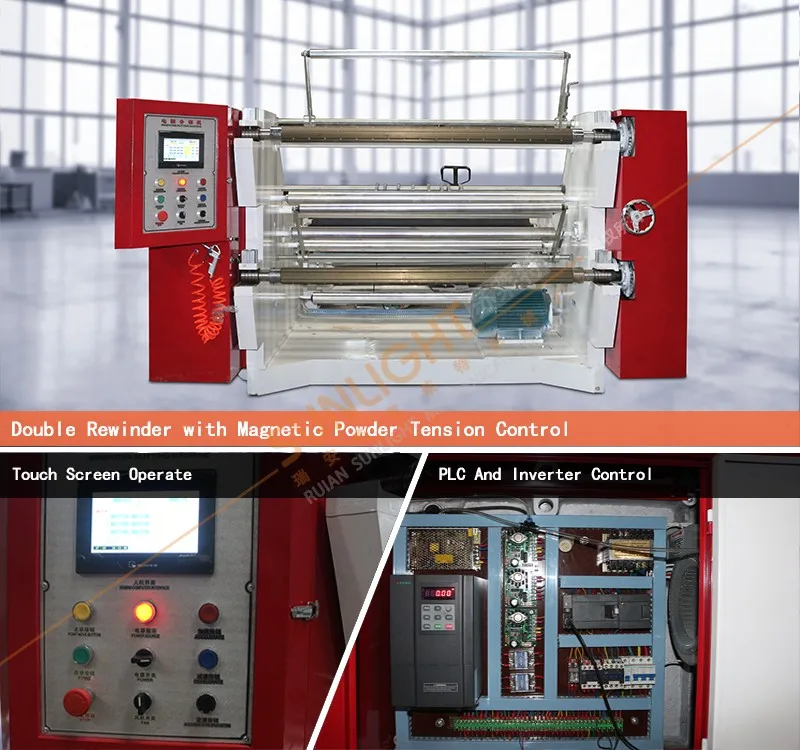

Air shaft for rewinding, Magnetic powder clutch for rewinding tension control
Equipped with air trim discharge conveying system.
Automatic meter counting device.

Model
SLT-SG700
SLT-SG1100
SLT-SG1300
Max. Width of Mother Roll
700mm
1100mm
1300mm
Max. Diameter of Mother Roll
600mm
600mm
600mm
Width of Final Roll
40~700mm
40~1100mm
40~1300mm
Max. Diameter of Rewinding
600mm
600mm
600mm
Slitting and Rewinding Speed
160m/min
160m/min
160m/min
Precision of EPC
±0.5mm
±0.5mm
±0.5mm
Total Power
5kw
5.5Kw
7.5Kw
Overall Dimension(L×W×H mm)
2400×1800×1500
2400×2200×1500
2400×2400×1500
Weigh t o f Machine
1500kg
2000kg
2500kg

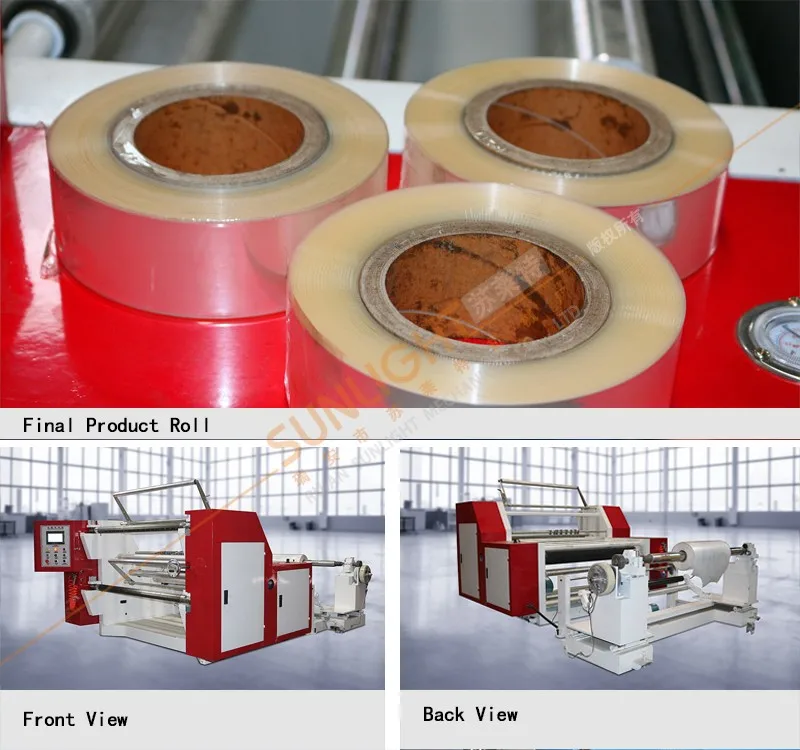

Detailed Images
