SMD Rework station with hot air gun,soldering iron , repair machinery

Feedback Ratings
  • 2-14 Sets
    US $48.00
  • 15-49 Sets
    US $43.00
  • >=50 Sets
    US $39.00
Model Number:
FT-8586
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Other, welding machine
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FEITA
Voltage:
110V/220V
Current:
AC
Rated Capacity:
750W
Rated Duty Cycle:
90%
Dimensions:
27x17x15cm
Weight:
3KG
Usage:
Repair
Certification:
CE
After-sales Service Provided:
No overseas service provided
Product name:
Soldering Station
Color:
Black
Function:
Melting
Soldering Tips:
900M Soldering Iron Tips
Keyword1:
hot air rework station
Work environment:
0 to 40 relative humidity < 80%
Storage temperature:
20 ~ 80 relative humidity < 80%
Gas flow rate:
120L / min ( maximum )
Output Temperature:
100 -500

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X20X15 cm
Single gross weight:
3.5 KG
Package Type:
1set/box
Lead Time :
Quantity(Set) 1 - 50 >50
Est. Time(day) 7 To be negotiated

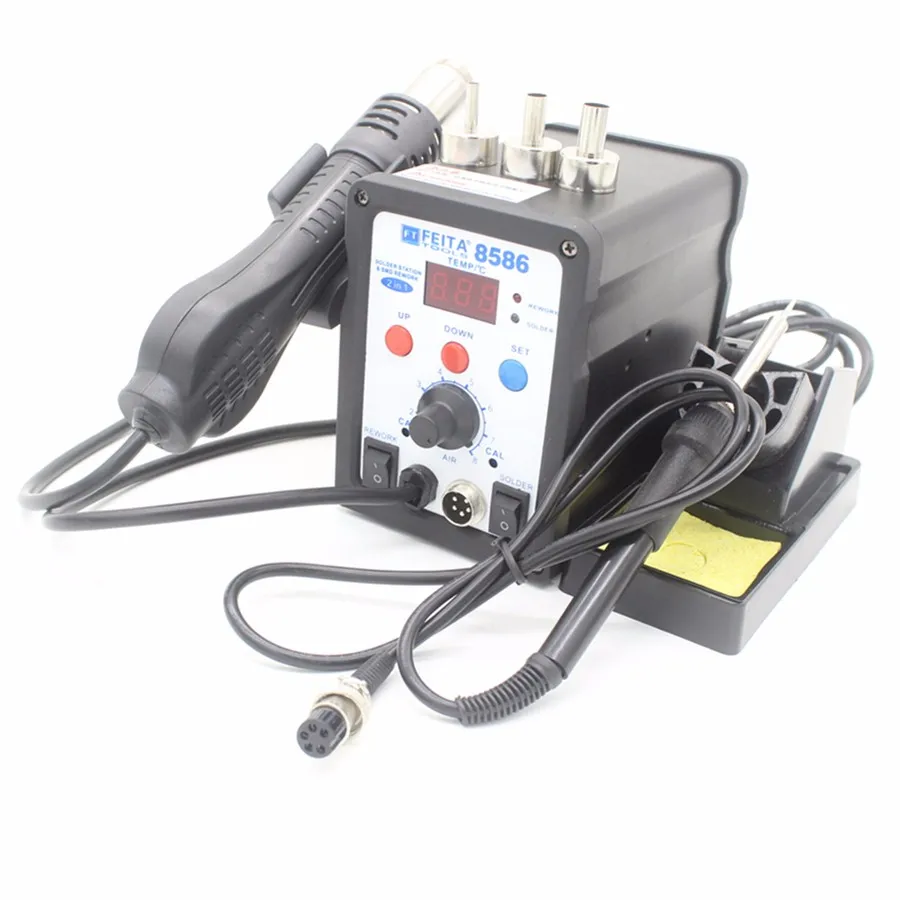

FT-8586 Automatic bga rework station smd hot air station Rework Station

The operator  parameters:

Relative humidity: <80%
Storage temperature: 20 ~ 80 C



Air gun parameters:

Working voltage: AC 220V + 10% 50Hz
Output power: 700W + 10%
Temperature range: 100 to 500 DEG C gas flow 120L/min (max)
Temperature stability is + - 2 DEG (static)
Setup mode: the key regulation
Display mode: LED digital display
Temperature adjusting method: digital calibration
Methods: digital temperature lock
Nozzle: A1130, A1170, A1110
Heating wire heating wire: 700W 220V



Welding machine parameters:

Working voltage: AC 26V + 10% 50Hz
Output power: 50W + 10%
Temperature range: 200 to 480 DEG C
Stability of temperature: - 2 DEG C (static)
Setup mode: the key regulation
Display mode: LED digital display
Temperature adjusting method: digital calibration
Methods: digital temperature lock
Welding nozzle to ground impedance: <2.
Welding nozzle to ground voltage: <2mV
Iron head: AT-02-SI
The heating core: 50W four core ceramic heating core

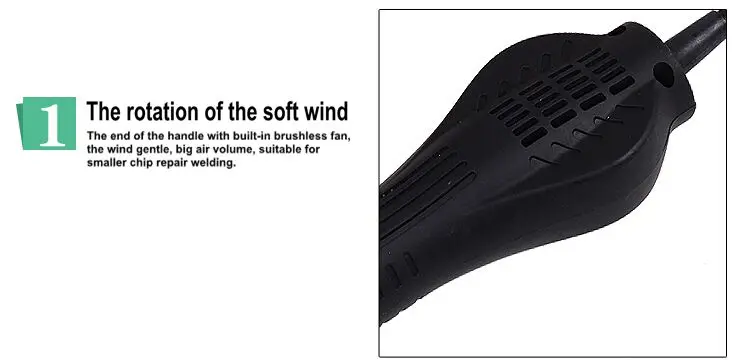

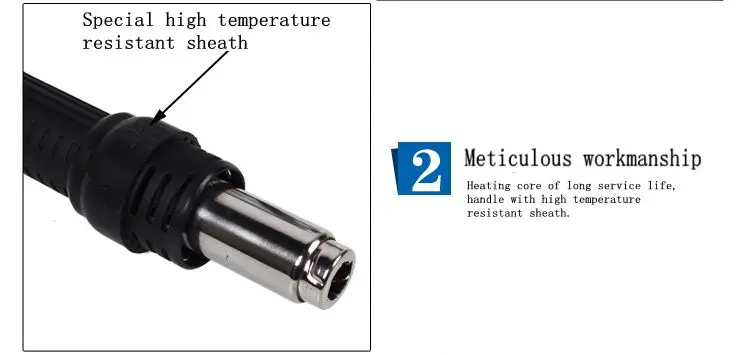

1 air gun part.jpg2 air gun head.jpg

parts .jpg
