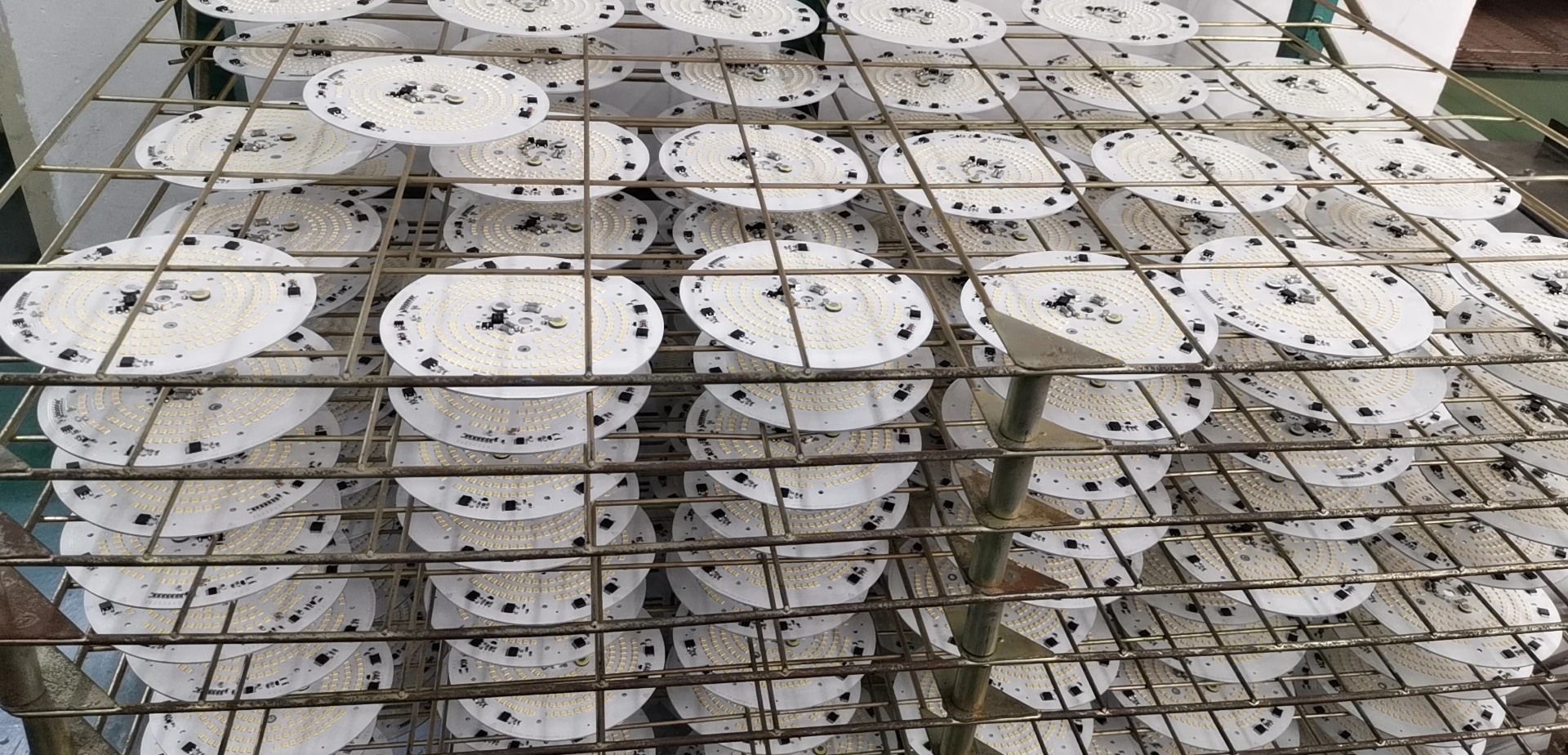

SMD3030 DOB Round LED Module 50W 220-240VAC for LED Work Light Ceiling Light

  • 500-9999 Pieces
    $0.15
    $15.00
  • >=10000 Pieces
    $0.14
    $14.50
99% OFF Discount ends in : : :
Lamp Power(W):
50
Model Number:
18803
$0.15
- +
available
Samples:
$100.00 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Graphic customization (Min. Order: 10000 Pieces) Less
Contact Supplier
Samples - $100.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Color Temperature(CCT):
5000K (Daylight)
Input Voltage(V):
AC 220V( ± 10%)
Warranty(Year):
3-YEAR
Support Dimmer:
yes
Lighting solutions service:
Lighting and circuitry design, auto CAD layout
Luminous Efficacy(lm/w):
125
Lifespan (hours):
50000
Working Time (hours):
50000
Chip Material:
AlGaInP
Emitting Color:
COOL WHITE
Luminous Flux(lm):
18000
Optical Attenuation(%):
10
Power:
50W
Power Dissipation:
1
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
5000K
Operating Temperature(℃):
-40 - 85
Storage Temperature(℃):
-25 - 55
Place of Origin:
Guangdong, China
Brand Name:
mankun
Certification:
ce, RoHS
Application:
Advertising Channel Letter
Product name:
Injection Led Module
LED Type:
SMD 3030
Voltage:
AC220V
LED Chip:
3030 Led Chip Module
Color:
Cold White
PCB Size:
225*44*2.0
Material:
Aluminum PCB
Usage:
Light Source
Item:
SMD LED Module China
Lamp Luminous Efficiency(lm/w):
125

Packaging & Delivery

Selling Units:
Single item
Single package size:
22.5X4.4X0.6 cm
Single gross weight:
0.200 kg
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated
Specification
Quick details:
* AC integrated driver, high reliability,PF>0.98
* With OVP, OTP and OCP pProtection,
* 4KV surge protection(optional),
* LED 2835 ,CRI>80,
* CE, RoHS, FCC,SAA,RCM certification
* 3000K,4000K,5000K,6000K
* THD<15%
* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
* Long lifespan>30,000h,3 years warranty
* The 50w AC led module can use in high bay light,flood light,street light,downlight and so on.
PROTOTYPES
1. This led Bulb light module has a small size can match a variety of lamp housing .
2. Whole led light module use smd 2835/3030 leds ,High quality leds guarantee long life .
3. We have a competitive price for 2835/3030 leds .
4. We can according your requirements to customized PCB board and Shell kit.

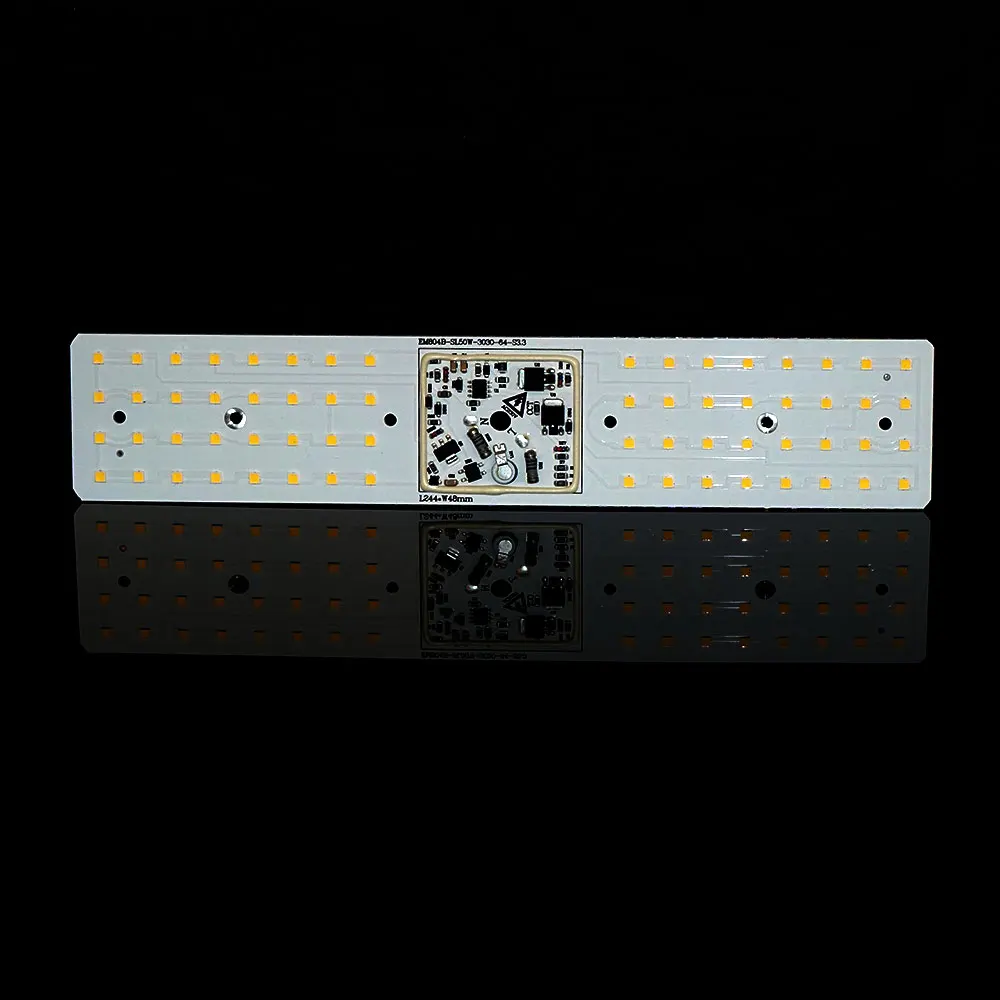

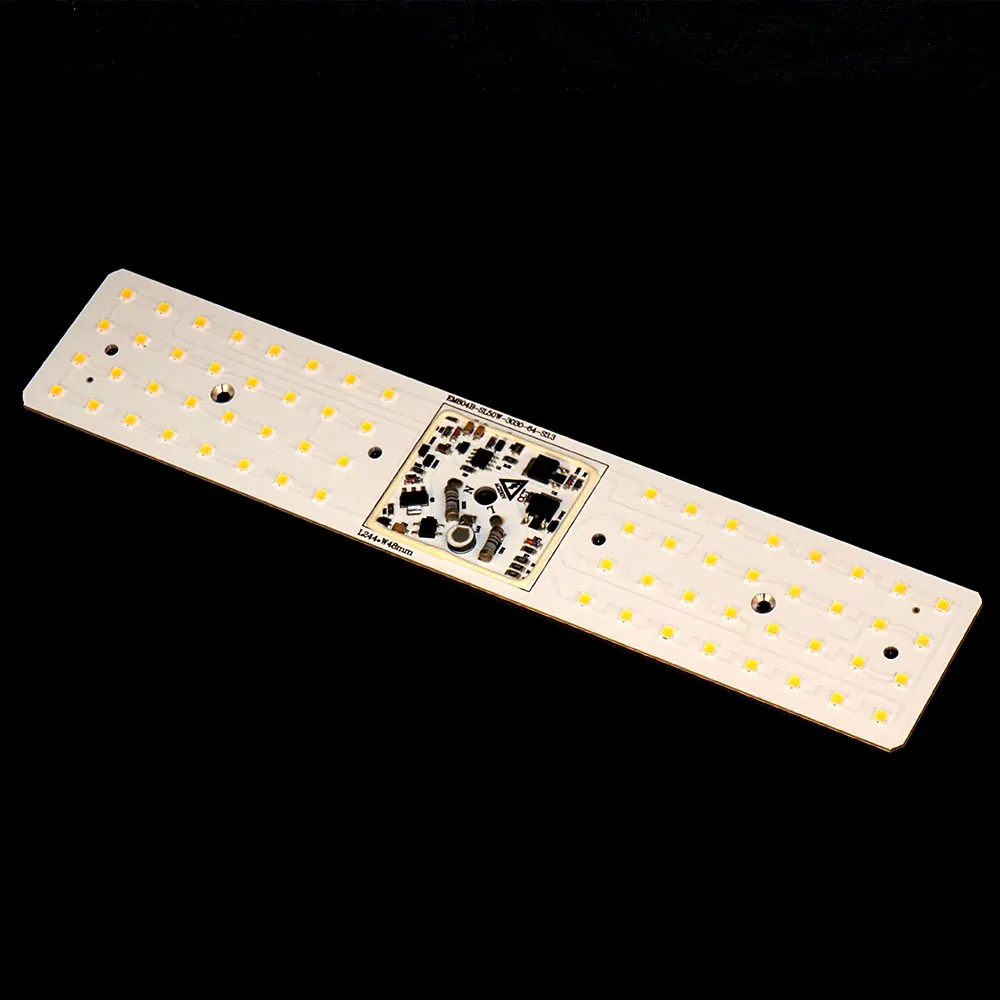

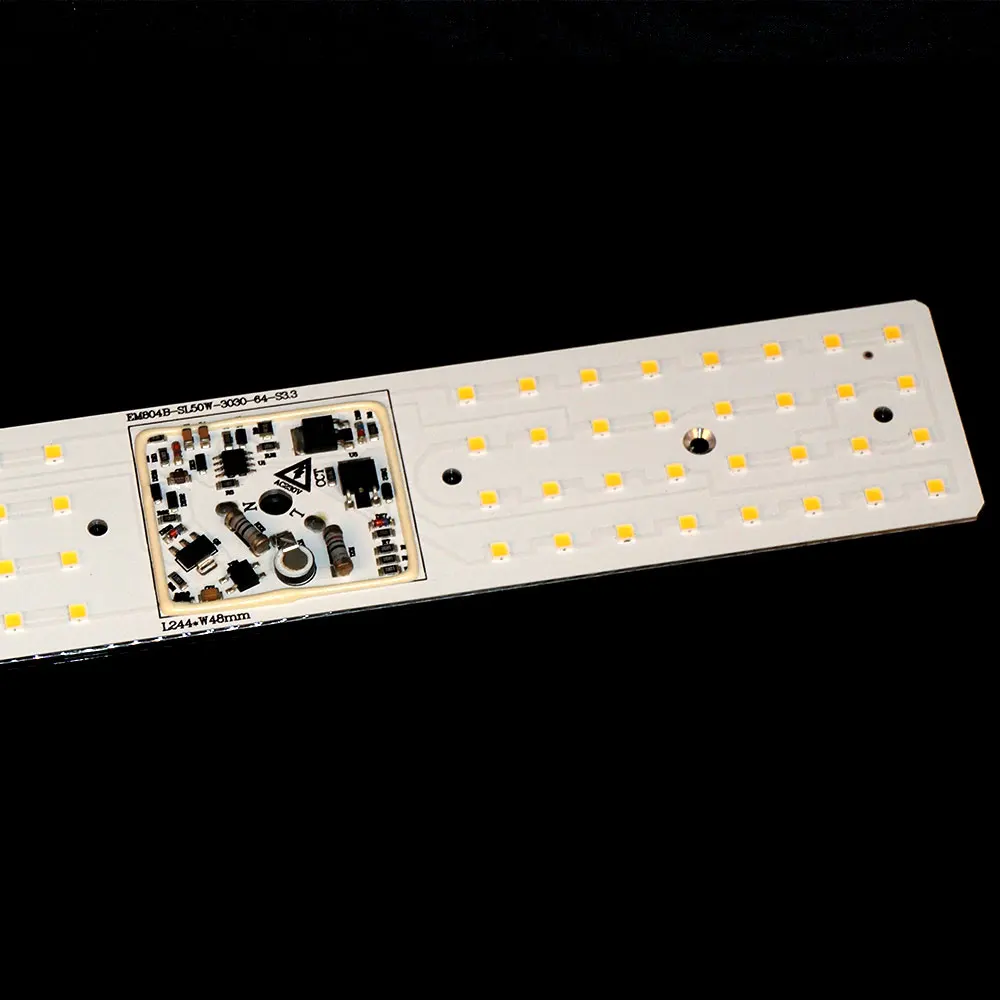

150W AC Linear LED Module
Led source:
SMD 3030
Rated Watts:
50W
Input Voltage:
AC190-270V
PF:
0.98
Surge protector
4KV surge protection on board
Lux(lm/w):
135lm/w±5%
CCT(K):
3000-6000K
Ra:
>80
Beam angle:
120°
Material:
PCB2.0(high-conductivity)
life span(H):
>30,000
Operating temperature:
-30℃ ~ 55℃
Size:
D230*2.0mm


All the PCB can be customized in materials,
size, shape and so on.

PROTOTYPES,
WE OFFER,
No MOQ
Shipment in 2 weeks
Customized design
Rebate on high VOLUME ORDERS



Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.

Can I Have Details of this Product?
Yes, Common Data are in the Following Table.
Technical parameters and process capability of metal substarte(MCPCB)
ITEM
SPECIFICATION
Surface
LF HASL,immersion gold,immersion siliver,OSP
Layer
Single side,double sided Multilayer and special structure
Maximum PCB size
240mmx1490mm OR 490x1190mm
PCB thickness
0.4-3.0mm
Copper Foil thickness
H 1/2/3/4(oz)
Insulation layer thickness
50/75/100/125/150/175/200(um)
Metal Base thickness
AIuminum(1100/3003/5052/6061),Copper AIuminum
Metal Base thickness
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
Shaping
Die punching/CNC Route/V-Cut
Test
100% open&short test
Shaping tolerance
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
Hole tolerance
+-0.5mm
Min.Hole DIameter
Single side 0.5/Double sided PTH0.3MM
Solder mask
green/white/black/red/yellow
Min.letter height
0.8mm
Min.line space
0.15mm
Min.letter width
0.15mm
Sile screen color
blue/white/black/red/yellow
Sopecial hole
Spot facing/cup hole/buried via hole/buried tank
File format
Gerber,Protel,PowerPCB,AutoCAD etc
FAQ
Q: 1. CAN I HAVE A SAMPLE ?

A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.

Q: 2. WHAT IS THE LEAD TIME?

A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.

Q: 3. DO YOU HAVE ANY MOQ LIMIT?

A: OUR MOQ IS 1PCS.

Q: 4. CAN YOU OFFER BEST PRICE TO US?

A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.

Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?

A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.

Q: 6. WHAT FILE WE SHOULD OFFER?

A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.

Q: 7. WE WANT TO VISIT YOUR COMPANY?

A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.


Contact person:Celio Phone:18922313080
Tel:86-020-34832899
