SOLAR POWER SYSTEM UPS SYSTEM DEEP CYCLE LONG LIFE NI-IRON NI-FE STORAGE BATTERY TN600(1.2V, 600Ah)

Feedback Ratings
US $270.00 / Piece | 50 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Hengming Fengyun
Model Number:
TN600
Usage:
UPS SOLAR POWER
Voltage:
1.2v
Sealed Type:
Sealed
Maintenance Type:
Free
Size:
286*174*501m
Weight:
50.0Kg
Nominal Capacity:
600Ah
Nominal Voltage:
1.2V
Capacity(5HR,20℃):
600Ah
Nominal operating temperature:
20℃±5℃
Self-discharge (20℃)3 month:
<30%
Float charging voltage(20℃):
1.50~1.55V
Capacity affected by temperature20℃:
≥100%
container.:
MBS/ABS/PP
Capacity affected bytemperature-18℃:
≥80%
Operating temperature range:
-20℃~45℃
Float charging current(20℃):
0.004~0.006A/Ah

Packaging & Delivery

Selling Units:
Single item
Single package size:
286X174X501 cm
Single gross weight:
50.0 kg
Package Type:
STANDARD EXPORT WOOD CASE/PALLET.
Lead Time :
Quantity(Piece) 1 - 10000 >10000
Est. Time(day) 30 To be negotiated

SOLAR POWER SYSTEM UPS SYSTEM DEEP CYCLE LONG LIFE NI-IRON NI-FE STORAGE BATTERY TN600(1.2V, 600Ah)





External dimensions,weight of low rate Ni-Iron pocket type battery





Model



Nominal Votage

(V)

Nominal

Capacity

(Ah)

Max Dimension

(mm)

Thread of pole

Max.weight with electrolyte

(Kg)

Electrolyte

Volume

(L)

Container Material

L

W

H

TN10-(2)

1.2

10

85

39

136

M8

0.70

0.15

ABS or MBS

TN 20

1.2

20

82

43

260

M10×1.5

1.20

0.25

ABS or MBS

TN 22

1.2

22

112

31

220

M8

1.30

0.13

MBS

TN 30

1.2

30

136

56

264

M10×1.5

1.95

0.42

PP

TN 40

1.2

40

136

56

264

M10×1.5

2.40

0.50

PP

TN 50

1.2

50

141

71

295

M10×1.5

3.40

0.84

PP

TN 50-(2)

1.2

50

138

61

266

M10×1.5

3.2

0.7

ABS or MBS

TN 60-(2)

1.2

60

135

52

373

M10×1.5

3.9

1.0

ABS or MBS

TN 60

1.2

60

141

71

295

M10×1.5

4.5

1.5

PP

TN 100-(2)

1.2

100

139

79

362

M10×1.5

6.5

1.7

ABS or MBS

TN 150

1.2

150

167

162

343

M20×1.5

13.0

3.3

ABS or MBS

TN 200

1.2

200

167

162

343

M20×1.5

14.0

3.3

ABS or MBS

TN 250

1.2

250

282

170

348

M20×1.5

19.0

5.0

ABS or MBS

TN300

1.2

300

175

159

540

M16







TN350

1.2

350

175

159

540

M16







TN400

1.2

400

175

159

540

M16

21.6



ABS or MBS

TN 500

1.2

500

286

174

501

M20×1.5

39.0

6.0

ABS or MBS

TN 600

1.2

600

286

174

501

M20×1.5

50.0

6.0

ABS or MBS

TN700

1.2

700

286

174

501

M20×1.5





ABS or MBS

TN 800

1.2

800

398

184

557

M20×1.5

63.

18.3

ABS or MBS

TN 1000

1.2

1000

398

184

557

M20×1.5

73.0

18.3

ABS or MBS



1. Environmentally-friendly battery production

2. Temperature is kept below 35 ℃ and good maintenance, cycle life of up to 3000-4000 times.

3. float charging life is more than 15 years.

4. low Self-discharging

5. Convenient for installation and low maintenance

6. MBS/ABS container

7. OEM service available

8. widely used as DC back-up power supply for railway, rolling stocks, mine tractors, petrochemical, oil and gas, electricity industries,  photovoltaic and other renewable power applications.

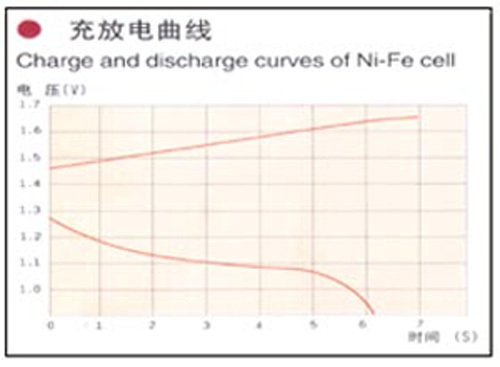

Discharging Characteristics :

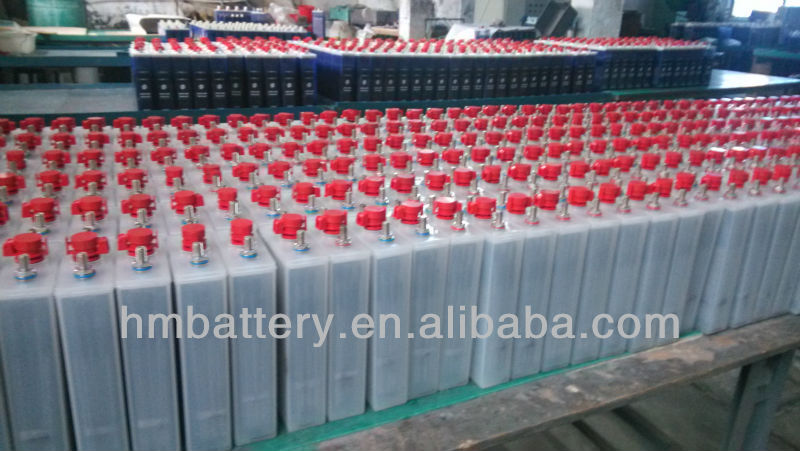

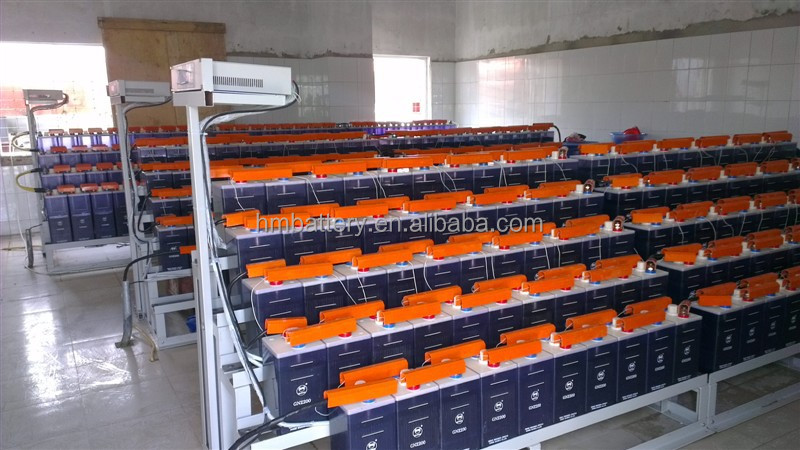

Views of Factory, productions:

IMG_20140317_141611IMG_20140312_161503
