SOLUXLED 112-120w Led driver power supply waterproof IP67 LED street light driver led high bay driver

  • 100-499 Pieces
    $14.50
  • 500-999 Pieces
    $14.00
  • 1000-4999 Pieces
    $13.00
  • >=5000 Pieces
    $12.00
Input Voltage(V):
AC 85-265V
Lamp Power(W):
120 112
Output Voltage:
DC25-36V
$
- +
available
DC30-49V
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
custom ouput specification (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 50000 Pieces)

More

Customized logo (Min. Order: 10000 Pieces)
Graphic customization (Min. Order: 10000 Pieces) Less
Samples: $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Warranty(Year):
3-YEAR
Lighting solutions service:
Lighting and circuitry design
Place of Origin:
Guangdong, China
Brand Name:
SOLUXLED
Model Number:
HG-WP-PF22100
Output Power:
112-120W
Output Type:
SINGLE
Input Voltage:
AC100-260V
Output Frequency:
50/60Hz
Output Current:
2400mA/3600mA
Application:
LED flood light driver/led street light driver/led high bay driver
Type:
Built-in Power factor correction
Name:
LED Driver power supplies
Warranty:
3years
Size:
L153*W70*H43 mm
Protection:
Short Circuit Over Load
Function:
Surge Protection 2.5-3KV
Working Temp.:
-30~+70℃
Working Humidity:
20 ~ 95% RH Non-condensing
Keyword:
LED driver constant current

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X15X15 cm
Single gross weight:
1.000 kg
Package Type:
20pcs/per carton. Gross weight : 16KG/per carton Carton dimension: 35x23x25cm
Lead Time :
Quantity(Pieces) 1 - 300 301 - 1000 1001 - 5000 >5000
Est. Time(days) 10 15 20 To be negotiated
Product Paramenters
MODEL
HG-WP-PF22100-2400
HG-WP-PF22100-3600
OUTPUT
DC VOLTAGE
DC47V
DC33V
CONSTANT CURRENT REGION
2400mA±5%
3600mA±5%
RATED CURRENT
2400mA
3600mA
RATED POWER
112W
120W
RIPPLE & NOISE(Max.)
3.6Vp-p
3.6Vp-p
VOLTAGE ADJ.RANGE
DC30-49V
DC25-36v
INPUT
VOLTAGE RANGE
AC100-260V
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
>0.95
TOTAL HARMONIC DISTORTION(THD)
<20%
EFFICIENCY(Typ.)
86-88%
AC CURRENT
<1A
PROTECTION
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER LOAD
Protection type: Shut down o/p voltage, re-power on to recover
Function
Dimmable Function
Non
OTHERS
DIMENSION
L153*W70*H43 mm
PACKING
730g/pcs 16KG/carton carton size :35X23X25 cm
WORKING TEMP.
-30~+70℃
WORKING HUMIDITY
20~95% RH non-condensing

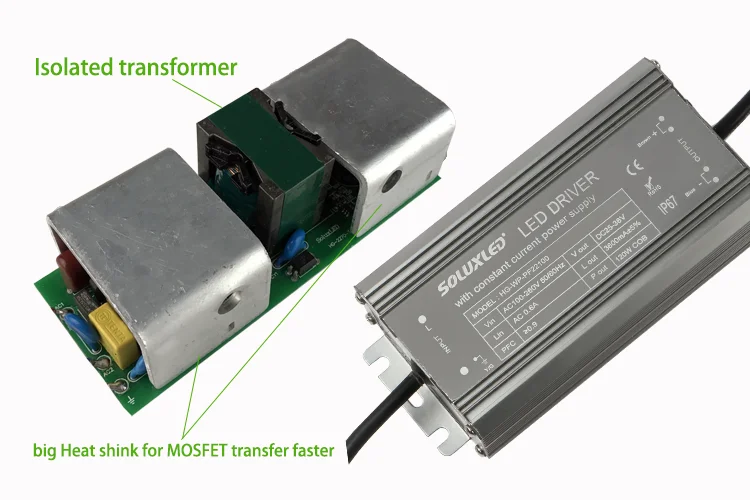

Detailed images
Front view
Backside view
cable view
LED Driver Power supply IP67 , application : LED Grow light , LED Street light, LED flood light, led high bay light etc.

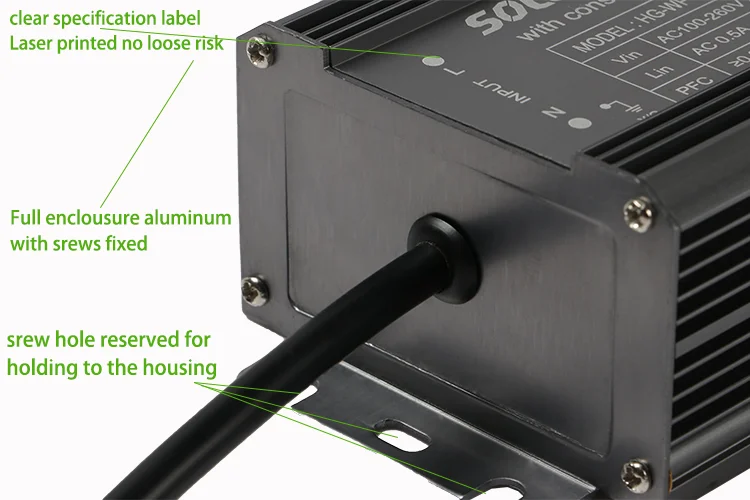

Customized enclousure

In this series product, some are half aluminum enclousure without srews. Customized full aluminum enclousure is available, please attached this request if you need before order, we will send new quotation for your refer.

Customized cable connector

we can solder the cable with connector required , detials price pls talk before confirm the order.

Capacitor change

Need change with better capacitor like Aishi or NEC capacitor, surely, it is possible. Please ask offer before confirm the order.
Related Products
Company Introduction
SOLUXLED industrial is a wholesale company that manufactures LED driver Constant current & led driver constant voltage and led lightings etc, starting from 2008. The company provides the customized products and OEM service, offer led lighting solutions, millions products sold to different counries in the world.
Our Advantages

Customer's ODM customized solution Case.

led driver constant current 45W & 90W for led street light built-in driver , customized dimension for put inside the housing,customized temperature control is required, EMC, 0% ripple with double stage power factor correction design etc.
