Safety power rails conductor bus bar for crane

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $10.00
  • 10 - 99 Pieces
    $9.80
  • 100 - 999 Pieces
    $9.60
  • >=1000 Pieces
    $9.20
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TUANRUI
Model Number:
TR-DJHCX
Product name:
trolley conductor
Conductor Material:
Aluminum
Insulation Material:
PVC
Application:
Heating
Type:
Insulated
Conductor Type:
Other
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week

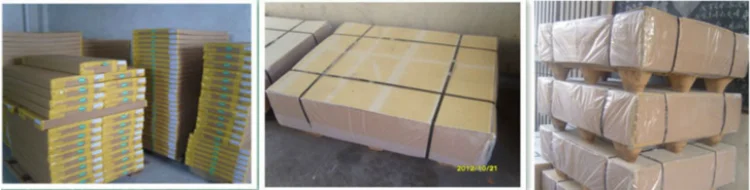

Packaging & Delivery
Packaging Details
Plastic bag + carton or wooden are usually used for professional manufacturer
Port
Shanghai
Lead Time :
10 working days after payment for casting aluminum heater

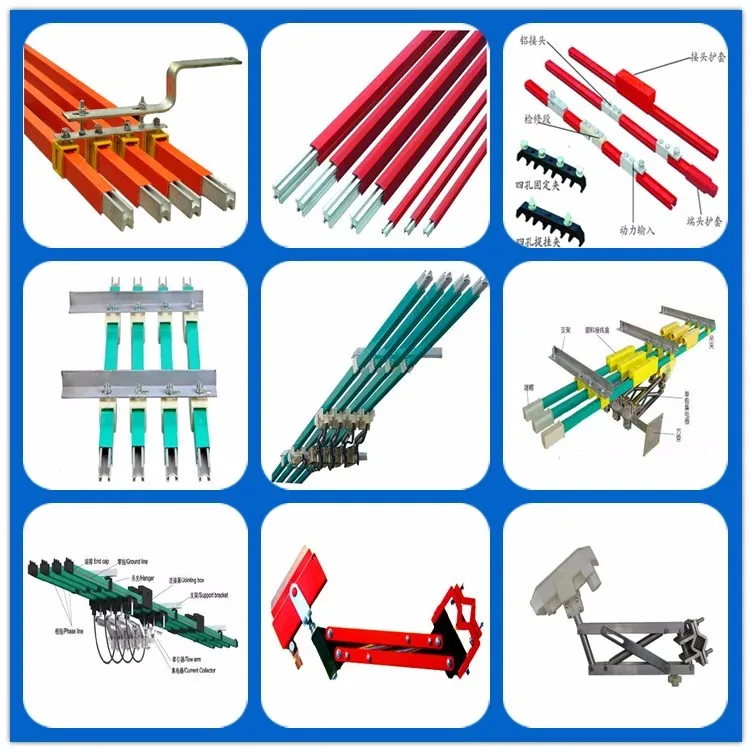

Detailed Images
Product Description
Product Introduction

     Hxpnp, R-H type protective safety valve, the conductive main body has an "H" type, which is a section of the Section, so, also known as "H"-type energy-saving slip line device, energy-saving is relative to angle to body the trolley line, the loss of Electric Power in transmission process is greatly reduced. Aluminum is far lower than steel, and the proportion is small, rolling aluminum into "H" type, it is to ensure that a certain conductive jie mian ji of yi neng increases the overall rigidity and strength. But aluminum surface hardness is low and not wear resistance. To enable the aluminum substrate to be satisfied as a conductive hua chu xian, in the "h" shape, also in accordance with the provisions of the process of the Process of qian zhuang strong stainless steel profiles. This "H" shape of stainless steel profiles is the friction surface of dao dianyuansu kuai in electrical appliances, its fitted craft assurance the stainless steel and aluminum the close connection with, to maintain contact with the current through stainless steel by importing the current through stainless steel. the friction contact will transmit the current, the continuity of the current in the operation process is guaranteed.


ABS plastics as a whole to protect the lower opening and conductivity of ABS as a whole outside the contact, therefore, after installation, contact line does not have a conductive part, which brings the convenience of installation and maintenance, at the same time, as a whole, case protection (except opening ), it does not have the function of jujube and rain, dew, ice, and snow to attack, the connection between the Guide Rail and the guide is the special guide rail connector and the plastic shell with the plastic shell, it is safe and reliable.

Product Model and specification.
The series of HXPnR-H 8 monopole assembled busbars

Packing & Delivery
Type&spec

  A
Busbar size(mm)
   B

   C
Current ( A )
Suitable current collector
HXPnR-H-160/150
24.0
31.0
8.0
150
HJD -150A
HXPnR-H-185/250
24.0
31.0
8.0
250
HJD -250A
HXPnR-H-250/320
32.0
40.0
10.0
400
HJD-320A
HXPnR-H-300/500
32.0
40.0
10.0
600
HJD -500 A
HXPnR-H-500/800
32.0
40.0
10.0
800
HJD -500A -800A
HXPnR-H-800
intensification
38.0
46.0
10.0
500/800
HJD -800 A
HXPnR-H-900/1000
32.0
40.0
10.0
1000
HJD -1000 A
HXPnR-H-1250
32.0
40.0
10.0
1250
HJD -1250 A
HXPnR-H-1500
85
60.0
15.0
1500
HJD -1500 A
HXPnR-H-2000
91.7
55.0
15.6
2000
HJD -2000 A
HXPnR-H-2500
91.7
55.0
15.6
2500
HJD -2500 A

Nore :

1 、 Standard busbar length : 6m .

2 、 Same performance different dimension.

 3 、 HXPnR-H type trolly line of alloy Aland Copper

Delivery:

• Packaging Details standard packing for

• Delivery Time 10 working days for
