Sanitary flat membrane pressure sensor

  • 1-9 Pieces
    $80.20
  • 10-24 Pieces
    $72.20
  • 25-49 Pieces
    $69.20
  • >=50 Pieces
    $65.20
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Contact Supplier
Samples - $80.20 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
YD34
Name::
Sanitary flat membrane pressure sensor
Accuracy::
± 0.25% FS ± 0.5% FS
Power::
12 ~ 36V DC (24V DC generally)
Long-term stability::
± 0.1% F S / year
Temperature drift::
± 0.01% F S / ℃
Measuring range:
0-30KPa...3.5MPa
Output:
4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V
Thread size:
1/2NPT male
wetted part material:
316L
Overload::
5 times full scale pressure

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X5X5 cm
Single gross weight:
0.3 kg
Package Type:
Sanitary flat membrane pressure sensor Corrugated cardboard boxes outer and foam paper inner
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Video Description
Yunyi Instrument
Product Description

Description of Sanitary flat membrane pressure sensor

Sanitary flat membrane pressure sensor adopts GS series piezoresistive flat membrane silicon oil-filled sensing element as the signal measuring element, the signal processing circuit is built-in of the stainless steel housing The membrane pressure sensor s output signal is transferred to standard element, the signal processing circuit is built-in of the stainless steel housing. The flat pressure sensor output signal can be made standard voltage output signal,or,current output signal,or frequency output signal.  The flat membrane pressure sensor is made with flush membrane structure clamping type. The sanitary pressure sensor has good ability on preventing fouling,crystallization and jamming of thick liquids.

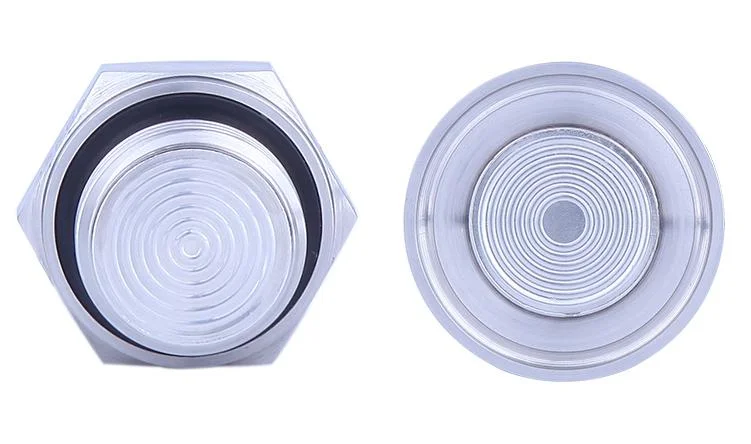

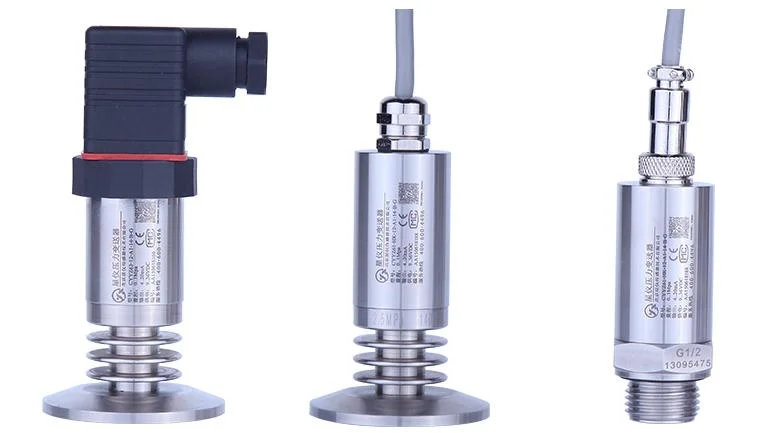

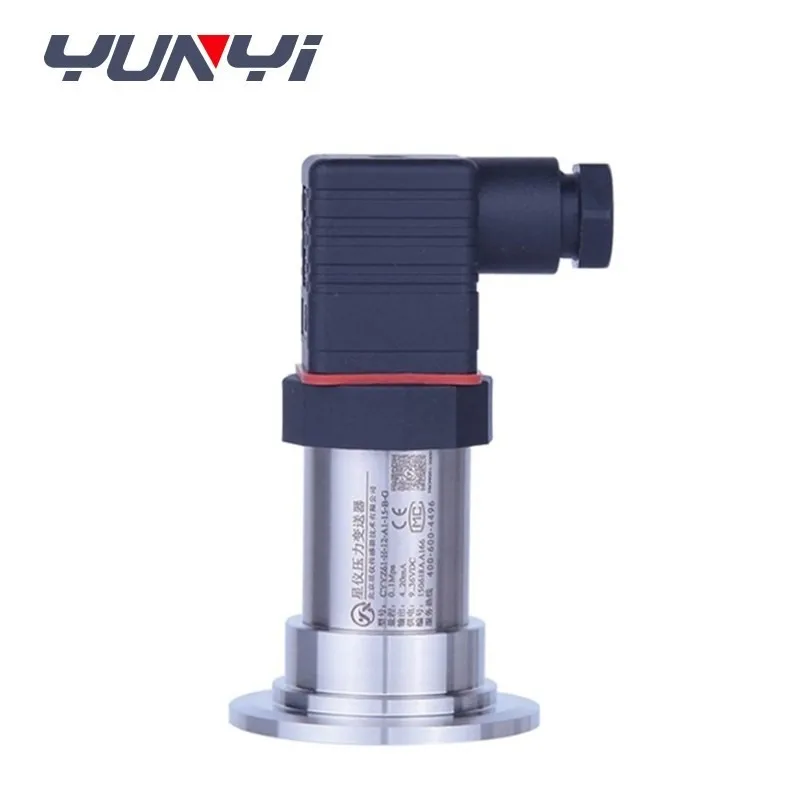

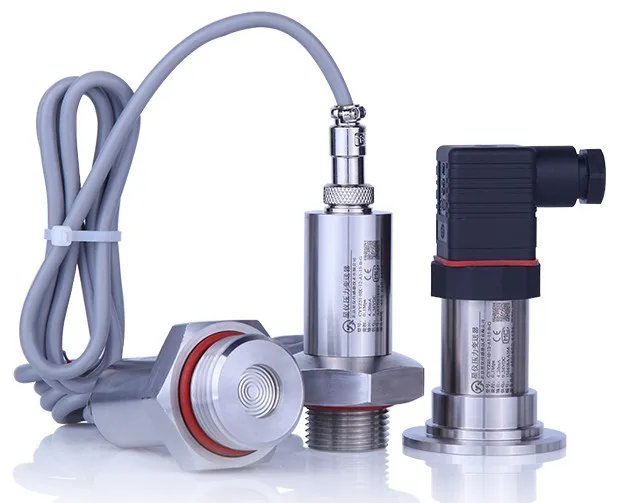

Detailed Images

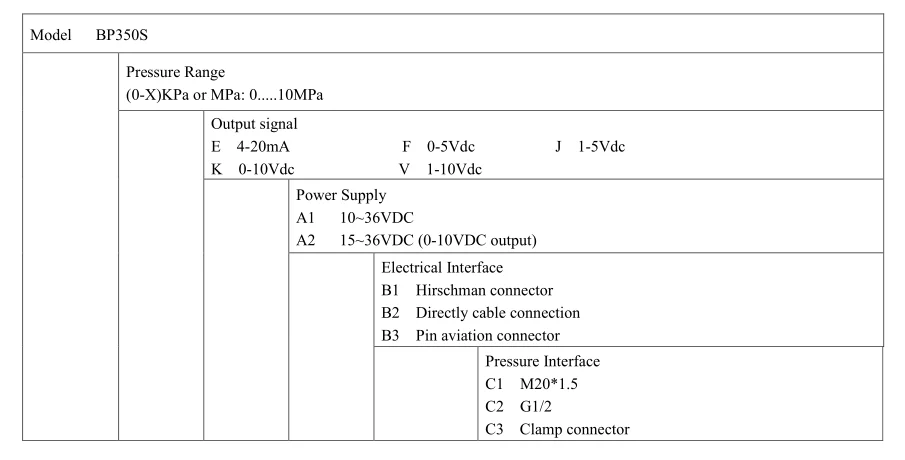

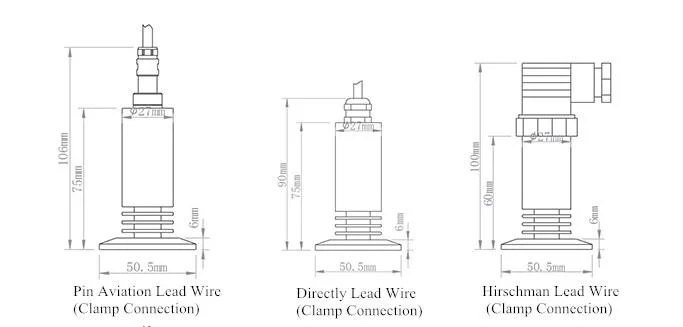

Specification
Item
Sanitary flat membrane pressure sensor
Pressure range
0-3.5MPa gauge
Power supply
9-36VDC
Accuracy
0.25%FS, 0.5%FS
Output
4-20mA, 0-5VDC, 0-10VDC, 1-5VDC
Medium temp
-40~85℃/-40~130℃
Ambient temp
-40~85℃
Overload
200%FS
Stability
±0.1%FS/Year
Temp drift
±0.1%FS/℃
Protection
IP65
Medium
Liquid/Air/Gas
Material
Case with SS304, Wetted part with SS316L
Features
Feature of  Sanitary flat membrane pressure sensor

Flush diaphragm
pressure range: 0~35kPa...3.5 MPa
gas or dilute liquid compatible with 316LSS
high reliability and stability

Application

Application of Sanitary flat membrane pressure sensor

process control system
medical
biological products
food hygiene
