Sawmills Wood Sawing Cnc Log Carriage Machine

$11,000.00 / Set | 1 Set (Min. Order)
Type:
Circular Saw Band Saw Rip Saw Frame Saw
Model Number:
YAL30
$11,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Woodworking machine
Condition:
New
Use:
Woodworking
Style:
Vertical
Place of Origin:
Hebei, China
Brand Name:
YSDMILL
Usage:
Log /Timber Cutting
Voltage:
380V/50Hz/3Phase
Power(W):
7.5kw
Dimension(L*W*H):
3200*850*1400mm
Weight:
2000kg
Certification:
ISO / CE / SGS
Warranty:
12 Months
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application:
Wood cutting, Slab/Planks/Lumber cutting
Name:
Log carriage for log cutting
Automatic degree:
PLC system
Maximum log cutting diameter:
800mm
Maximum log cutting length:
4000mm
Headblocks:
4 units

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X40X40 cm
Single gross weight:
15.0 kg
Package Type:
Plastic film for carriage, wooden case for spare parts , or as your request.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 5 6 - 10 >10
Est. Time(days) 15 30 To be negotiated
Product Description

Product Application

The automatic log carriage use cast iron headblocks and high efficiency and cutting accuracy. All our machine can customer made as your log specification.

Model
YAL30
YAL50
Control
Fully Automatic PLC System
Maximum log cutting diameter
800mm
800mm
Maximum log cutting length
4000mm
6000mm
Wood Clamping hook
Hydraulic
Hydraulic
Head blocks
3 Units
4 Units
Log turning(Optional)
3 Units
Automatic
Cutting speed
Adjustable by frequency changer
Adjustable by frequency changer
Feeding (Servo motor)
Automatic
Automatic
Voltage
380V/50Hz/Phase
380V/50Hz/Phase
Walking motor
4KW
5KW
Track
Steel track
Steel track
Hydraulic pump
4.5KW
4.5KW
Overall size(L*W*H)
3200*850*1400mm
5200*850*1400mm

Main Features

1) PLC System Control.

2) Servo motor for Log/Timber/Planks measurement, high cutting precision

3) Frequency changer control cutting speed.

4) Cast iron headblocks, more stronger for hardwood cutting.

5) Remote fault diagnosis system, easy maintenance.

Detailed Images

Machine Control

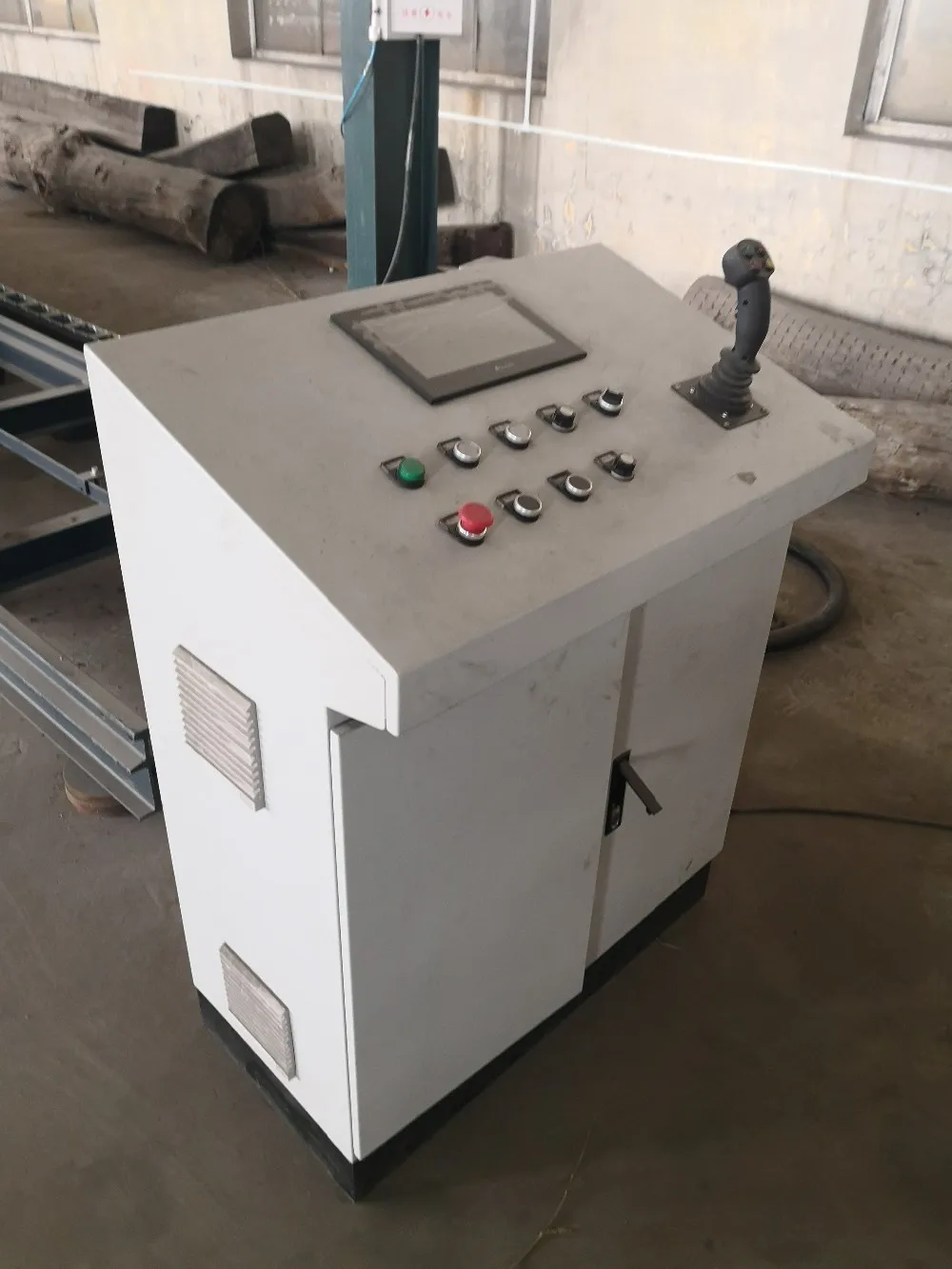

Name: Log carriage PLC control System

Brand: YSDMILL

Original: China

1.Touch screen and joy stick control

2.Remote fault diagnosis system.

Machine parts

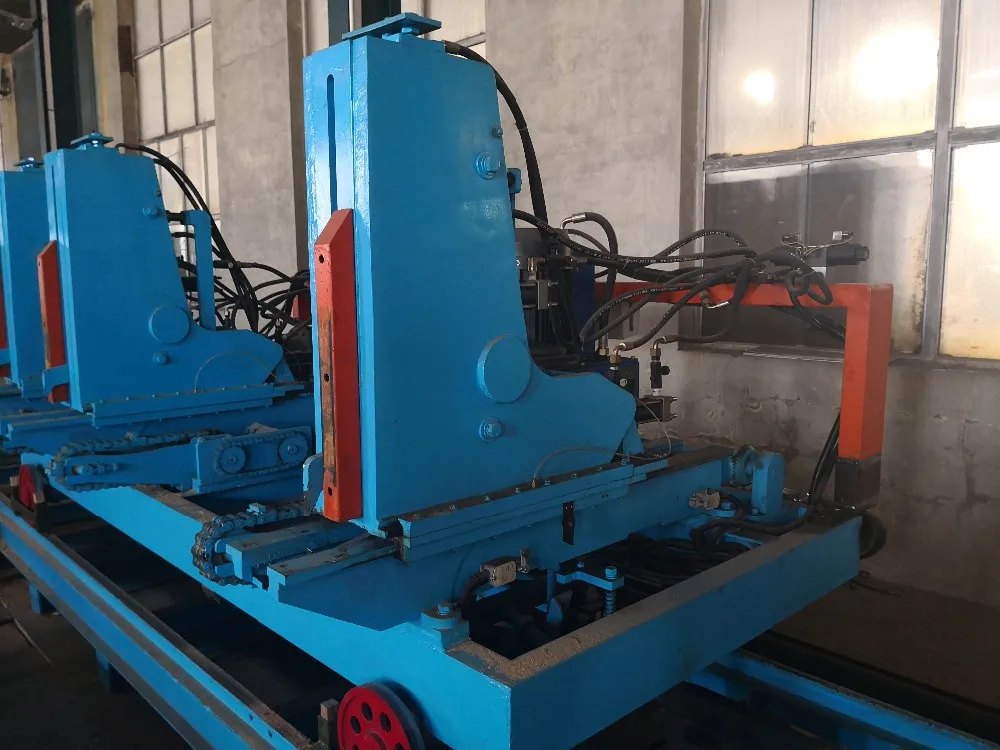

Name: Cast iron headblocks
Brand: YSDMILL
Original: China
More Stronger For Hardwood Cutting

Machine Parts

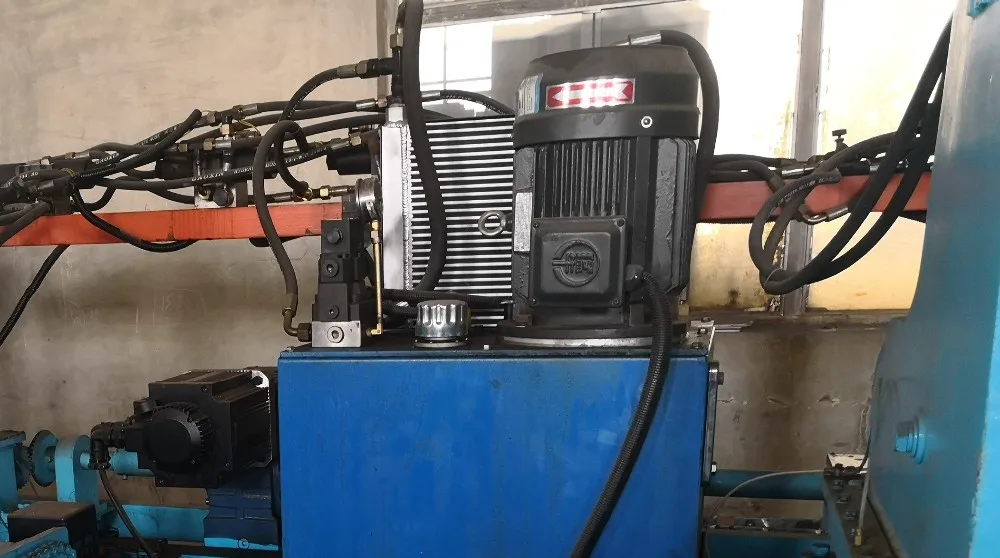

Name: High quality hydraulic control system
Brand: YSDMILL
Original: China
High quality hydraulic control system(Customer made)

Log carriage tract

Name: Sawmill log carriage track railway
Brand: YSDMILL
Original: China
Easy installation for sawmill owner, save make band saw and lumber carriage foundation cost.

FAQ

How to choose your suitable sawmill machinery?


1. Minimum-Maximum log length/Diameter
2. Do you need electric or diesel engine power? Our machine standard voltage is 380V/50Hz/3Phase,How about the voltage in your factory?
3. Would you please tell us the wood name you need cutting? Is it soft or hardwood?
4.We have both vertical and horizontal and table saw, all machine can customer made as your request.
5.The daily production.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
