Self Pump Powder Liquid Inline homogenizer/disperser/emulsifier/wetmilling/stirrer/ultra high shear mixer/Dyn Flyer-VT500

FOB Reference Price:Get Latest Price
US $2,500-4,000 / Units | 1 Unit/Units unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Paint/Chemical/Pharmaceuticals/Biotechnology/Soap/Detergent/Cosmetics
Application:
Powder and Liquid Mixing/solid suspension/Dispersion/Dissolution/
Additional Capabilities:
homogenizing/dispersing/emulsifying/wetmilling/stirring/high shear
Place of Origin:
Selangor, Malaysia
Brand Name:
Dyna-Flyers
Model Number:
VT300-10
Max. Loading Capacity:
up to 65,000 l/h
Voltage:
415
Power(W):
75000
Dimension(L*W*H):
500x300x200
Certification:
FAT,IQ,DQ,OQ
Warranty:
2 yrs
After-sales Service Provided:
Overseas third-party support available
Power:
7.5kW
Color:
Blue,Red,Stainless Steel
flow rate:
65,000 l/h
weight:
60 kgs
volume:
1,000 l
normal motor:
Execution-EFF-22,Mouting-B35,2 years warranty
explosion proof motor:
Execution-II 2G Ex d IIB T4,Mouting-B35,2 years warranty
Packaging Size:
600(L)x400(W)x300(H)
Digital Inverter:
Adjsut speed up to 6,000 rpm
Weight:
60kg
Supply Ability
Supply Ability:
1 Unit/Units per Month 10
Packaging & Delivery
Packaging Details
CRATE PACKAGING AND BASE ON REQUEST!
Crate Size : 300 mm (HIGHT) x 300mm (WIDTH) x 1800mm (LENGTH)
or dial 18883126992 , +60173576175 to our customer service for better answer
Port
PORT KLANG
Lead Time :
2 WEEKS

Specifications

stop searching and start to own a German's technology Dispax Reactor Inline Homogenizer!Price start from as low as USD6,000

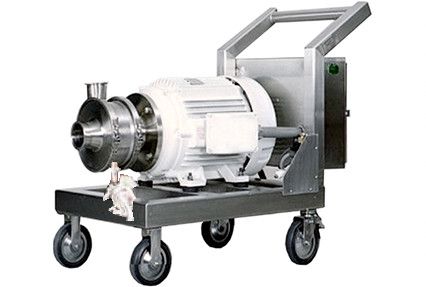

VT500 Self Pump Powder Liquid Inline Homogenizer - is high-performance dispersing machine for the production of emulsions and suspensions in self pump complete circulation operations. Using the rotor-statorand vacuum self generation  principle, it is best suited for applications that cannot be accomplished using conventional stirring methods. The machine is capable of processing highly abrasive products and media with a viscosity of up to 80.000 mPas.

Features & Specification

Working flow rate (l/h)

3,000 – 125,000



Operating Environment

0-175°C, 95% rel. humidity

Motor Power(kW)

5 -75 - 3 phase  Normal or Ex-Proof

Protection class

IP55

Voltage/ Frequency

380-450V / 50-60Hz

Certified standards

89/336EEC,72/023/EEC,        EMC acc. IEC/EN 61000-6-2 / 3,         Safety acc. IEC/EN 61010-2-51

Working Temperature and Pressure Range

Up to 160° C

15 bar

Seal type

Lip Seal (150° C ) or Double Acting Mechanical Seal (160° C and 15 bar)

Speed range (rpm)

3,000

Warranty

2 years – spare part due to manufacturing defects

Speed control type

(optional)

220V/50-60Hz frequency inverter control : 0-6000 rpm

Sterilization Method:

All

Pumping system (optional)

centrifugal pump

screw pump

pH Range:

2-13

Standard Packing Size ( mm)

700(L)x400(W)x600(H)

~1400(L)x750(W)x1350(H)

Suitable for solvents & abrasive substances::

YES

Weight (kg)

65-750

Ultimate Fineness, Suspensions&Emulsion: (µm)                Max Viscosity
(mPa)

Suspension: 10-15           Emulsion  : 1-5

80,00



VT300 Series
305
310
325
330
350
375
Power (kw/hp)
4
7.5
18.5
22
37
55
Speed (rpm)
2880
2800
2880
1470
980
980
Medium Inlet Diameter A(mm)
50
70
70
100
125
150
Medium Outlet Diameter B(mm)
32
50
70
80
100
120
Flow rate-H2O (L/min)
620
830
1080
1920
3050
5100
Weight (kg)
70
170
350
440
630
860





Features and Benefits

• Dispersions of gums in seconds without “Fish Eyes”
• Achievement of fine emulsions of 1-5 microns within 10 minutes
• Elimination of aeration within 8-25 minutes
• Flexible mixing capacities from 10-2000 liters

• Safe Operation on floor level for operator
• Higher production batches compare to batch homogenizer
• Outstanding stability and homogeneity where the circulation continue till the satisfaction achieved
• Improvement of product qualityand save cost

• No  clogging and balancing problem compare to "conventional inline powder inductions system"

• Faster rate of wetting process compare to high speed "rotor/stator disperser" which  efficiency is limited by the flow
pattern and high viscosityof medium

• No  air-entrainment problem compare to "high speed disperser"

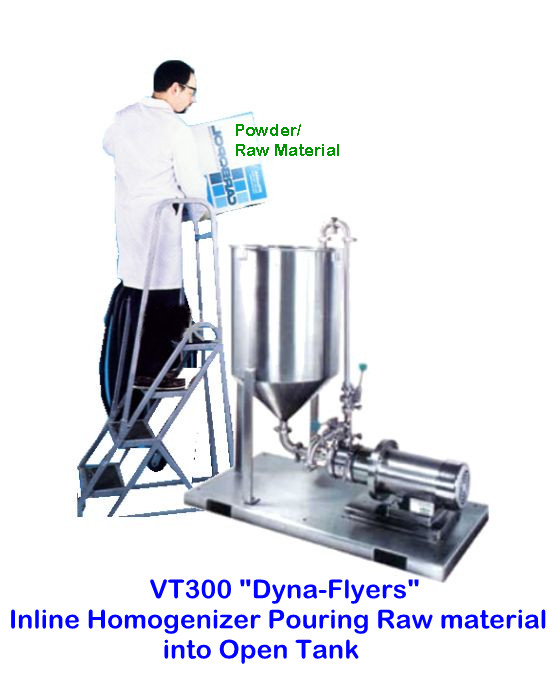

 ciculation inline with stirrer inside tankinline homogenizer open tankinline homogenizer1388300795796_us-fileserver-upload1_508864

Molecular/Colloidal Dissolving
Below is a list of some typical dissolving applications, and which Dyna-Ken
mixer provides the best solution for Dyes,Crystal powders,Salts,Sugar,Detergents,Binding agents,Hydrocolloids,Elastomers,Resins,Thixotropic agents

Powder-Liquid Incorporation

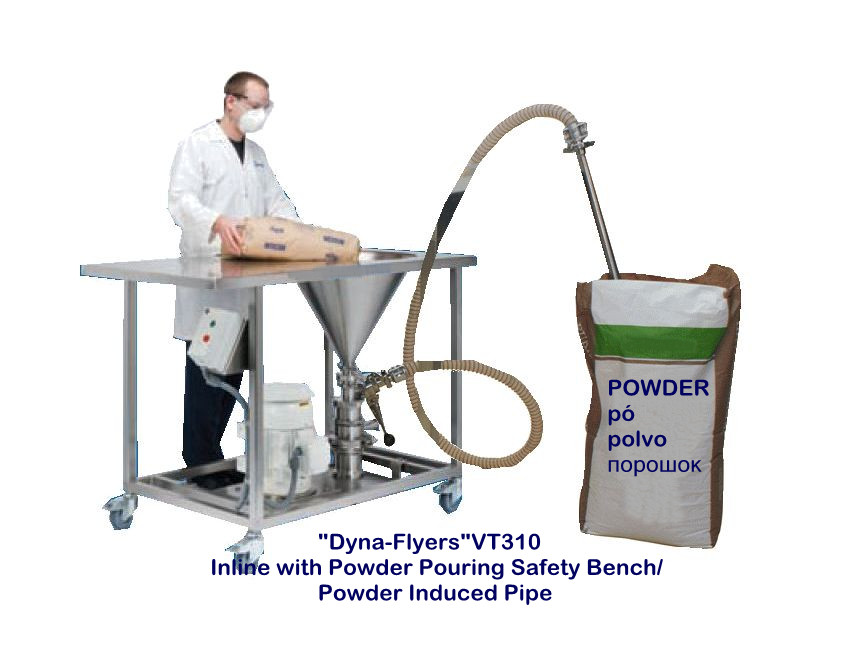

Incorporating powders into liquids offers many challenges to processors. The powders may be difficult to wet out, and may produce fish-eyes if not effectively dispersed into the liquid. The powders are often added to a vessel by dumping bags into the top, creating a plume of dust and creating a possible health hazard. Eductors, blenders, and other powder addition equipment will often clog, or not perform as well as desired, or the system is too complex to clean and maintain. dyna-Ken
mixer provides the best solution for :Xanthan gum,Starches,Fumed silica,Milk solids,Carbopol,Carbomel,Sugar,Cellulose,Xanthan Gum,Pigments,Pectin,Clays

Suspending -Wet Milling (Solid-Liquid)
Suspending is dispersing of solid particles in a liquid. It is often desirable to reduce the particle size of the solids in conjunction with dispersing, and this is often referred to as wet milling. With the use of our mixer and sufficient energy input, the final product will become homogenized
best solution for Carbon black,Titanium Dioxide,Seeds,Polishing agents,Clays,Graphite,Crystals,Catalytic agents,Sulfur,Slurries,Metal Oxides

Emulsifying (Liquid-Liquid Systems)
Emulsifying is the process of dispersing one liquid in a second immiscible liquid, such as oil dispersed in water. A colloidal suspension is a system comprising particles dispersed in a liquid that do not settle out of solution due to their extremely small size of less than one micrometer for :
Margarine,Ice cream,Proteins,Creams and Lotions,Salad dressings and sauces,Micro-encapsulations,Paraffin,Cosmetics,Mineral oils,Pesticides and herbicides,Waxes
