Sesame Seed Destoner Dry Stoner

FOB Reference Price:Get Latest Price
US $1,500-5,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
50 Set/Sets per Month
Port:
XINGANG
Overview
Quick Details
Type:
Sesame Seed Destoner
Use:
Suction type Destoner
Certification:
ISO9001, SONCAP
Place of Origin:
Hebei, China (Mainland)
Brand Name:
SYNMEC
Model Number:
TQSF-100
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Working Theory:
suction type
Application:
wheat, barley, cumin, spices
Optional:
can be with air blower or without
Voltage:
220-440V can be met
Hz:
50-60Hz
Color:
White
Have been export to:
Australia, Africa, Southest Asia, South America, Europe
Workers:
more than 100 workers
Near Airport:
Beijng Airport
Packaging & Delivery
Packaging Details
usually wooden cases
Delivery Time
5-10 days after payment

Suction type Destoner





Introduction of TQSF-100 Destoner:

TQSF destoner is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the stream of grain, according to the difference in specific weight.



Features of TQSF-100 Destoner:

TQSF-100 Destoner is suction type destoner, but it has two sieve layers, the first sieve layer to remove out some large impurities such as straws, and the second sieve layer is used for remove out stones.



Working Principle of TQSF-100 Destoner:

The sieve box normally equipped with two-layer sieves, and its vibration depend on two vibratory motors.

The grain feed in with an elevator, and then the grain stream fluided by the vibration of the screen and air suction from bottom to top. The light particles collect at the top, and the heavy ones including the stones at the bottom.

The lower layer with the heavy particles flows upward and transport to the stone outlet. The stone-free grain streams on the two screens float on cushions of air, flowing slowly toward the grain outlet.

To achieve the optimum degree of separation, the inclination of the screens, the air volume and final separation can be adjusted accordingly.









Model

Capacity

(tone/hour)

Power

(kw)

Weight

(kg)

Dimension

(L×W×H)mm

Remarks

5XQS-3 Destoner

3

4.75

600

2200×1200×1600

Blowing type

5XQS-5 Destoner

5

7

700

2500×1660×1600

Blowing type

QSX-85 Destoner

5

3.55

400

1300×1500×3200

Suction type

TQSF-60 Destoner

5

3.5

320

1450×876×1800

Suction type

TQSF-80 Destoner

7.5

3.5

400

1450×1046×1800

Suction type

TQSF-100 Destoner

10

3.5

480

1450×1246×1920

Suction type

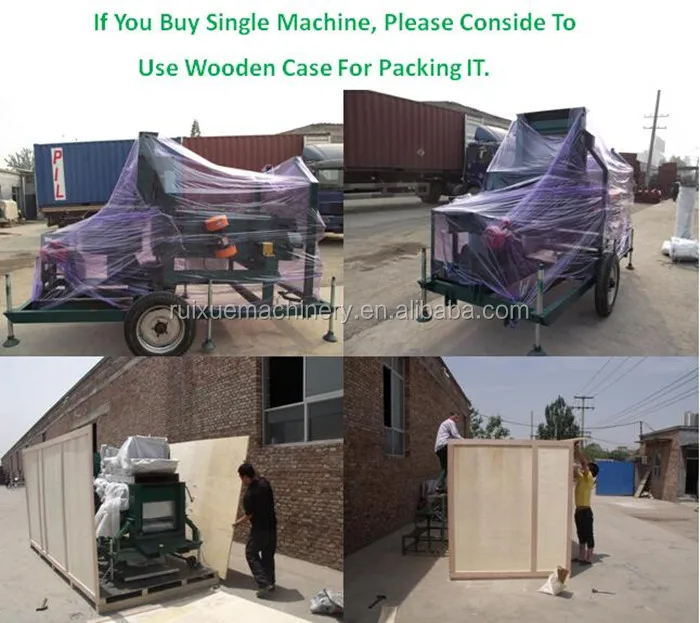

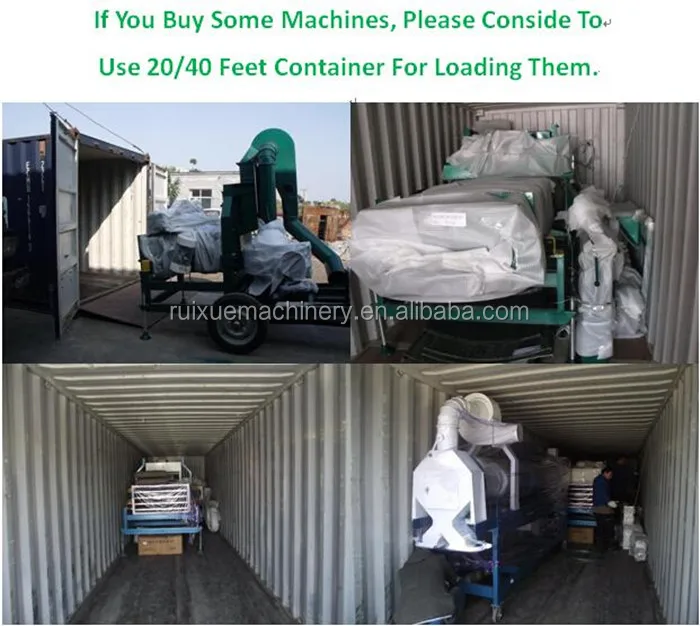

Packaging & Shipping





Our Services



We have professional world trading team with rich world trading experience, provide full English user manual, Video using
instruction, Oversea machine assembly and On-site training.



Company Information



Our company is manufacturer and also distributer in Agricultural, Food Processing, Construction machinery equipments and tools.
We are specifically manufacturing and exporting seeds processing machines, such as seeds cleaner, seed separator ,destoner, seed treater and packing machine etc. and also provide turnkey solutions for all kinds of seed processing line.
we have clients in over 70 countries around the world, and earns a goood reputation .
