Siheng 2 Phase Nema 34 Closed Loop Stepper Motor Set 12Nm 6A 86 Closed Loop Stepping Motor Encoder

  • 1 - 9 Sets
    $76.00
  • 10 - 19 Sets
    $74.00
  • >=20 Sets
    $72.00
Step Angle(degrees):
1.8 Degree
Holding Torque:
12N.M
Samples:
$72.50 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Siheng
Model Number:
86HS2180-06+SH-CL86BH
Phase:
2
Type:
Hybrid
Current / Phase:
6A
Certification:
ce, ISO
Product name:
Stepper motor and driver set
Application:
Automatic Product
Motor type:
DC Step Motor
Frame size:
86*186mm
Shape:
Square Shape
Motor Weight:
5.6kg
Resistance:
0.6Ω
Torque:
12N.M
Voltage Range:
20-70VDC
Material:
Stainless
Supply Ability
Supply Ability:
5000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Carton with Inner Foam Box,Pallet,OEM
Port
Shanghai Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated

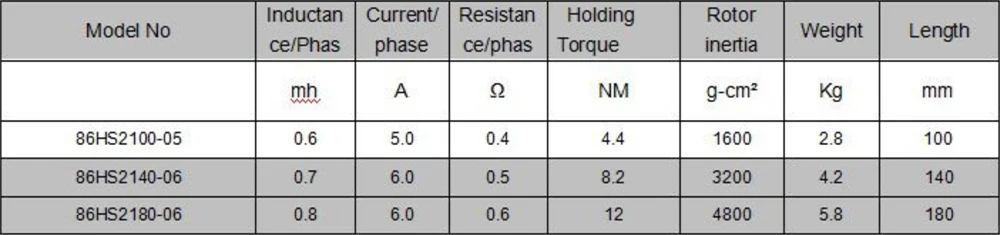

Product Description

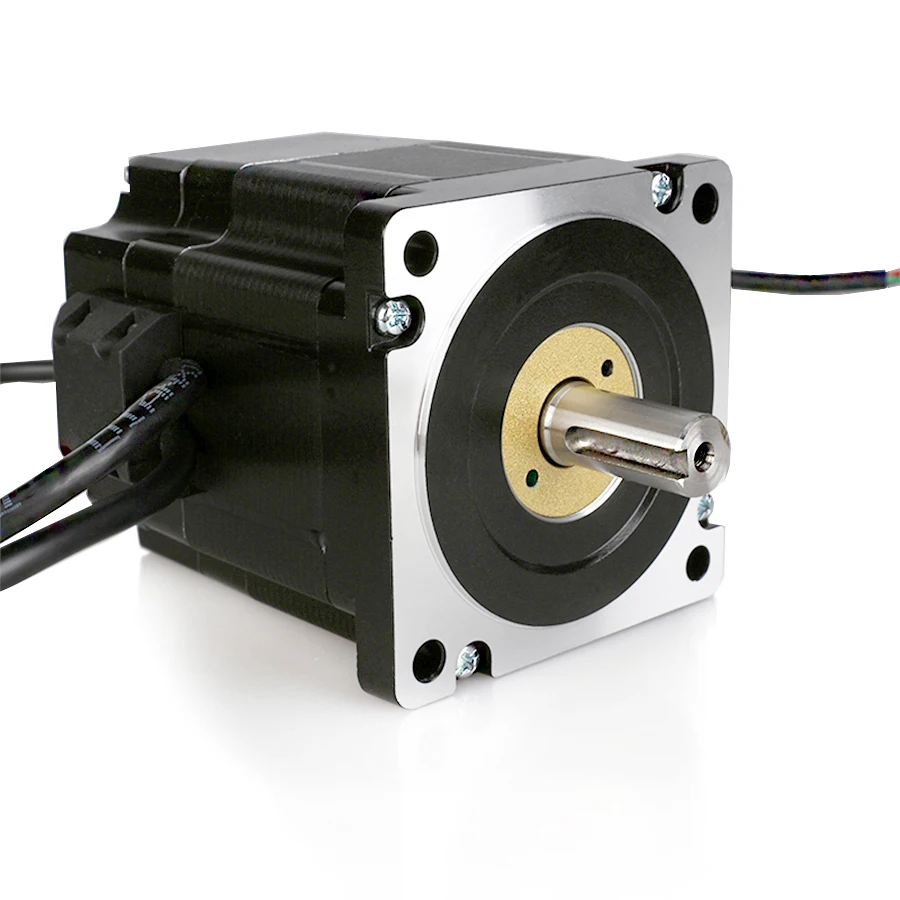

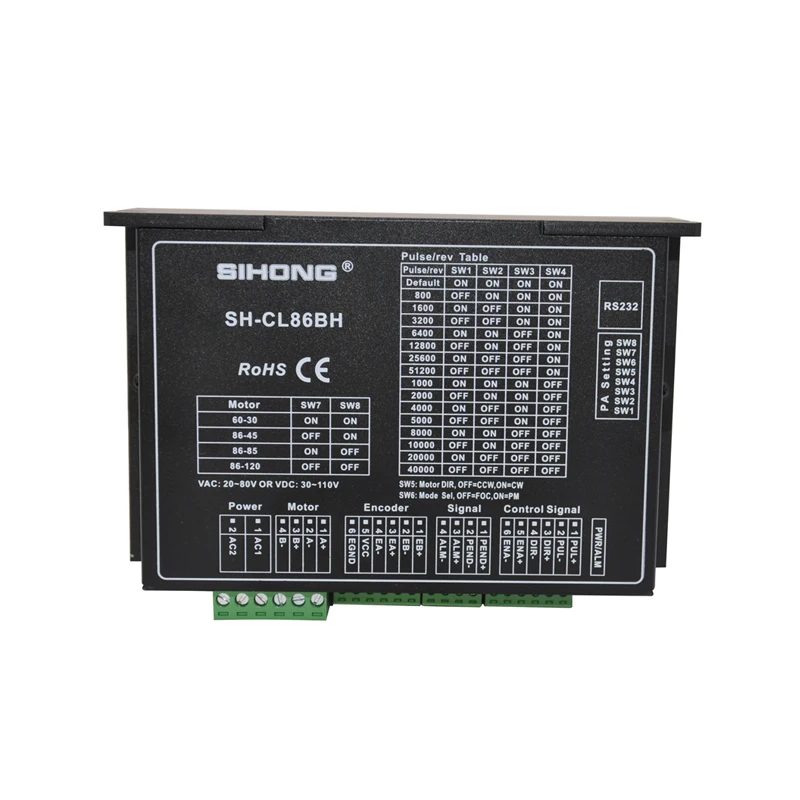

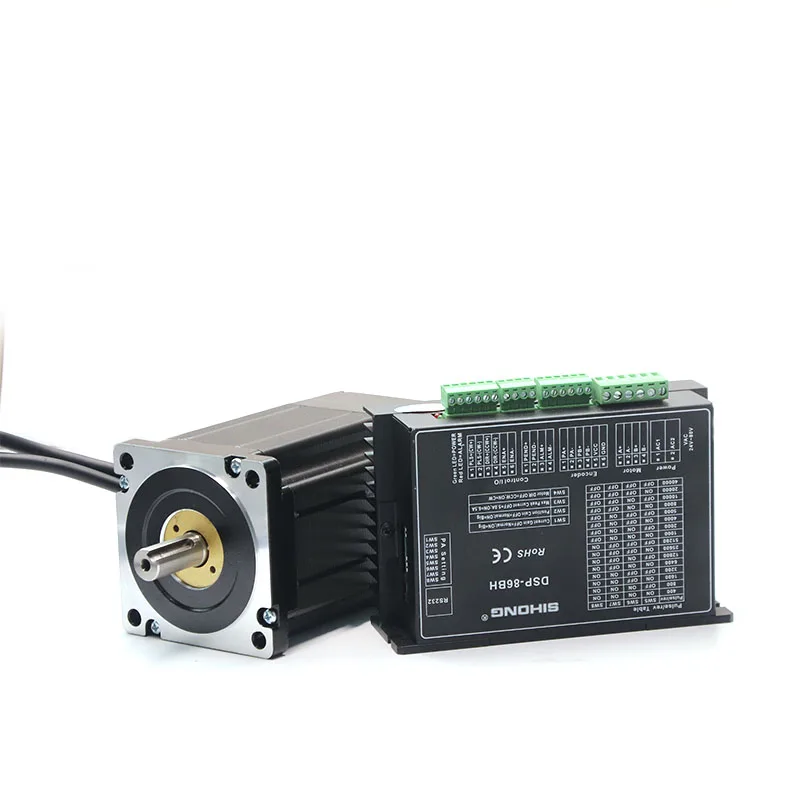

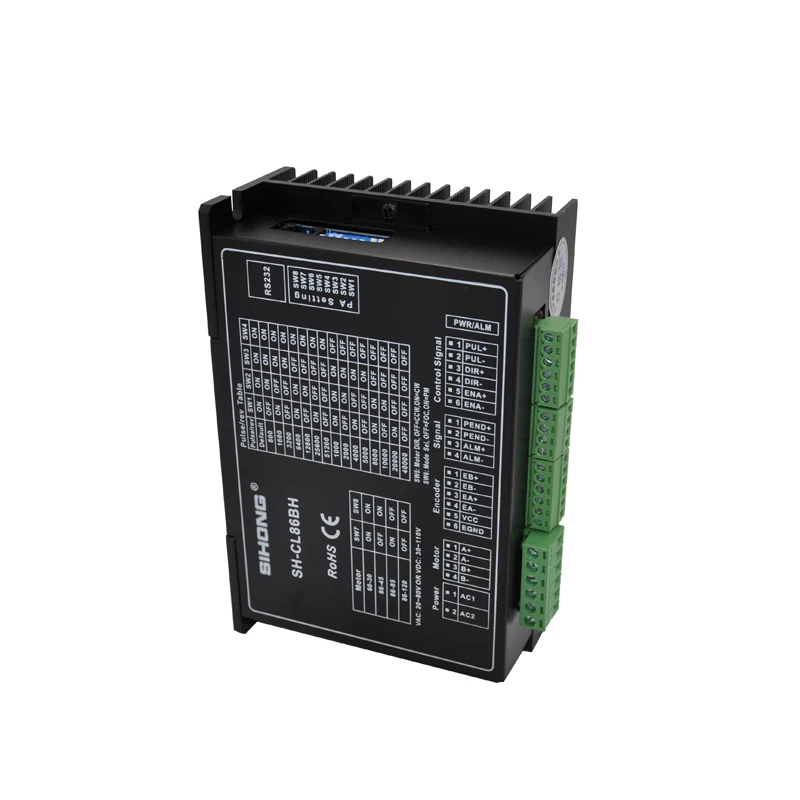

SH-CL86BH Close loop stepper motor for nema34
      SH - CL86BH is my company based on years of experience in research and development of low pressure servo system, a new type of low-voltage hybrid servo products, this product USES the latest DSP digital processing chip and advanced technology, current and frequency conversion control algorithm for device manufacturers provide a cost-effective hybrid servo drive solutions.Sh-CL86BH is compact in structure, compact in volume, space-saving, and reduces electromagnetic interference between lines.Better vibration technology and low heat technology are adopted to effectively solve the problems of heat, vibration and noise of motor and driver, and low heat, green and environmental protection.
Note: if the power input is dc, the input range is 24-110vdc!!!!

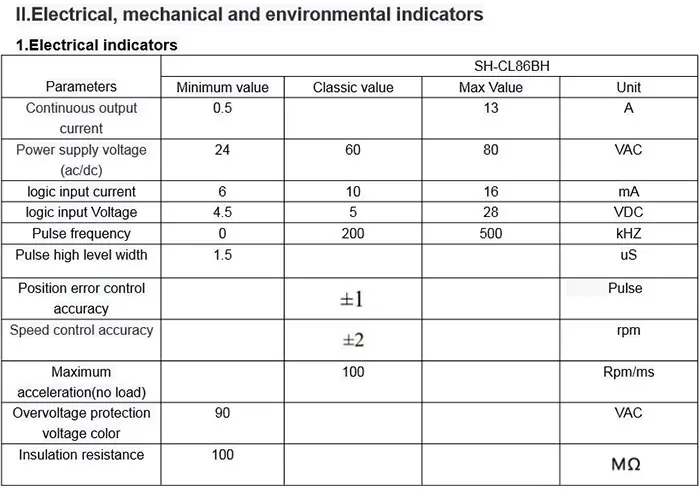

2.Use environment and parameters
Cooling way
Natural cooling or forced air cooling
Environment situation
Do not put it beside other heating equipment.Do not put it beside other heating equipment. gas.If the humidity is too high and the vibration conductive dust are prohibited.
Temperature
-5 ℃- +45℃
Humidity
40-90%RH
Vibration
10-55Hz/0.15mm
Keep the temperature
-20 ℃- +65℃
Using an altitude
≤1000m
Weight
0.6kg

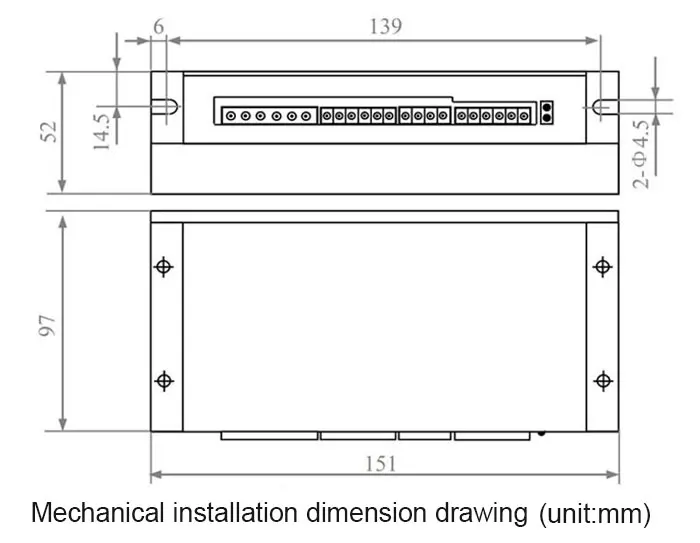

3.Structural dimension drawing

        SH - CL86BH drives can match any type of structure, stand 60 and 86 two-phase hybrid motor frame, the department is mainly recommended 3.0 NM and 4.5 NM and 8.5 NM and the mixture of 12 NM servo motor, also can match the other vendors a mixture of servo motor, encoder line number 250-5000 line, but need to contact with our company, provide the motor parameters, according to different motor matching related procedures.If you have higher requirements for low-speed vibration or high-speed performance, please contact our company. Our company will write the algorithm matching the motor according to the motor parameters, and the motor will show perfect performance.

4.Heat dissipation considerations

     The reliable operating environment temperature of the driver is usually within -5℃ ~45℃, the temperature of the driver is within 65℃ when the driver is working, and the temperature of the motor is within 70℃ when the driver is working. When necessary, a fan is installed near the driver to force heat dissipation, so as to ensure that the driver works within the reliable operating temperature range.

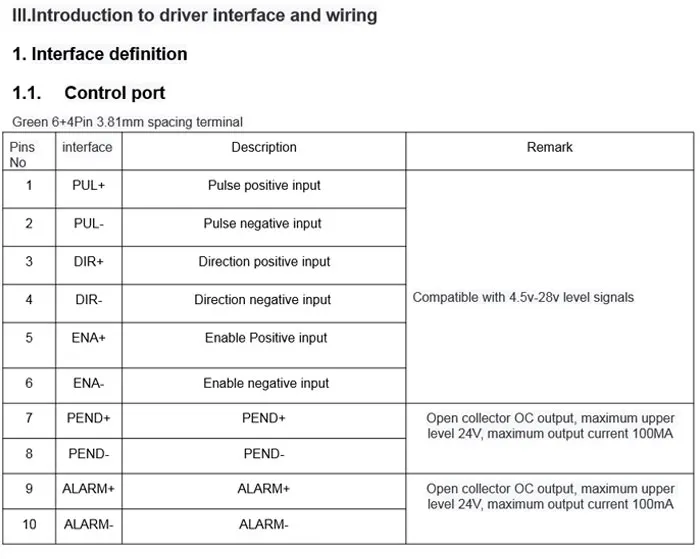

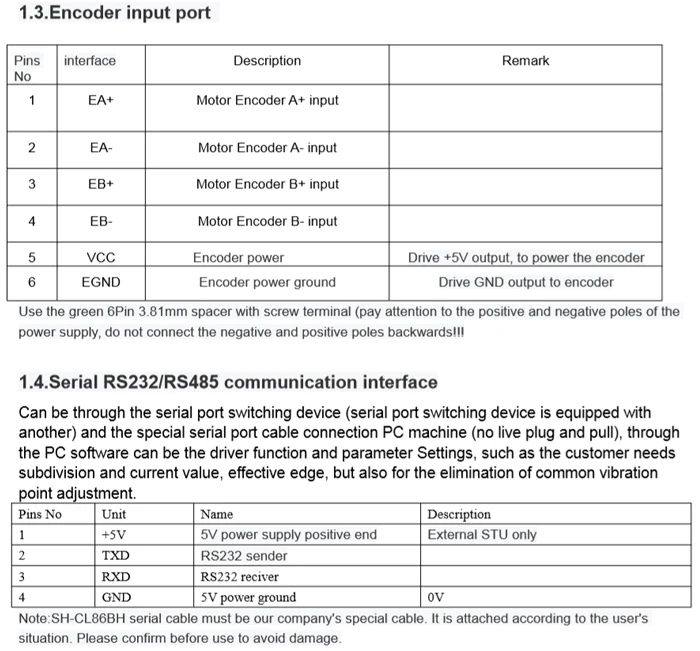

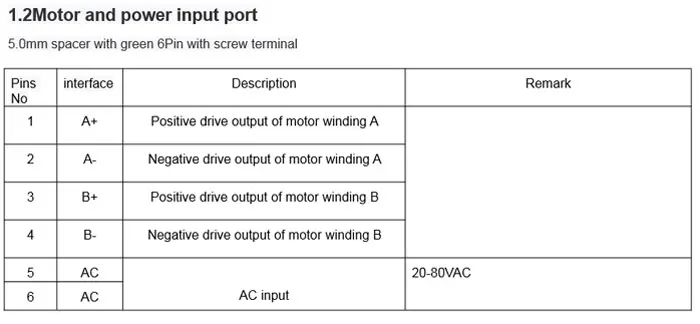

2.Control signal interface circuit

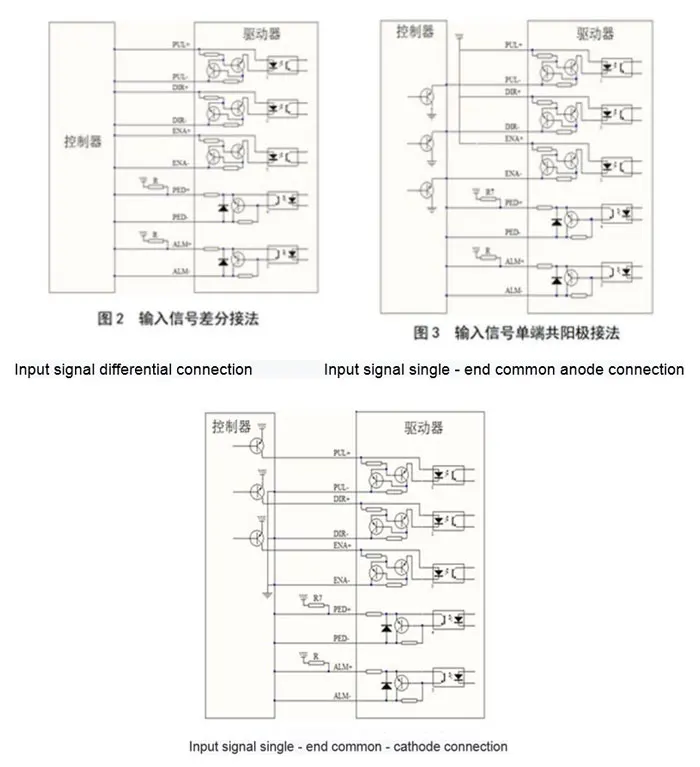

        SH-CL86BH driver signal input interface can be differential signal input, single-end input of common anode signal and single-end input of common cathode signal, built-in high-speed photoelectric isolation coupler;The output is OC output with open collector of triode, and the interface is as follows:

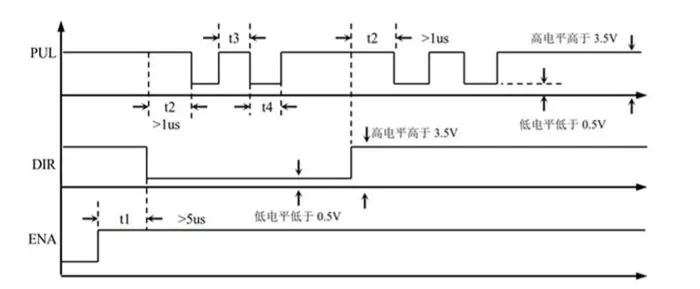

3. Control signal timing diagram

     To avoid some missteps and deviations, PUL-, DIR- and ENA- should meet certain requirements, as shown below:

IIII.Dial code switch setting

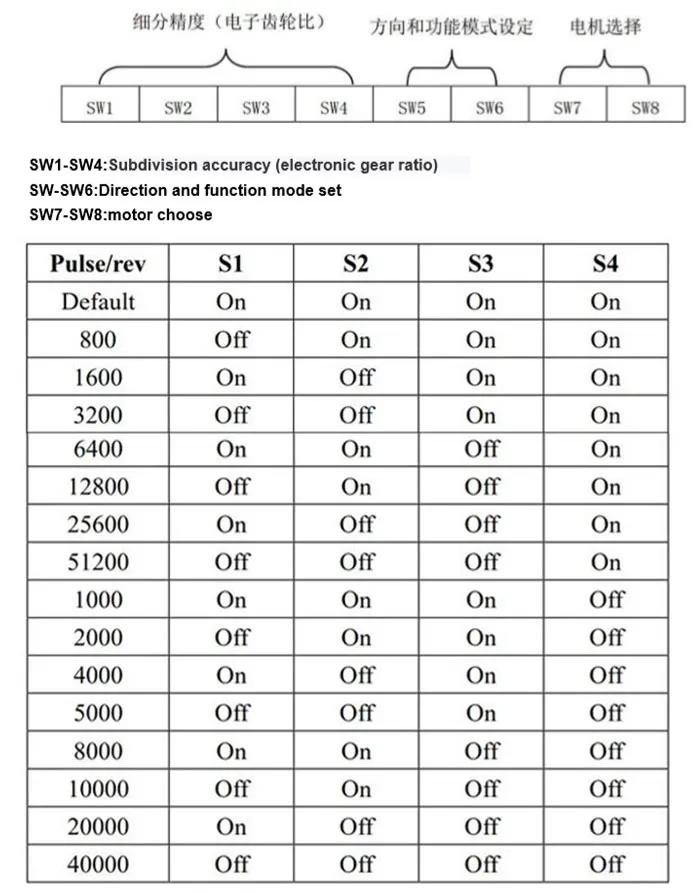

      SH-CL86BH digital integrated low-voltage servo driver adopts 8-bit dial-code switch to set subdivision accuracy (electronic gear ratio), initial direction of motor rotation, self-test and function mode selection.Detailed description is as follows:
Why Choose Us
Company Profile
    Shanghai Siheng motor co., LTD.we have through ISO9001,and CE certificate,we are adhering to the "integrity-based, customer first, quality first, full participation, continuous improvement, the pursuit of excellence" .We promise the excellent quality, reasonable prices, value service, look forward to your guidance and sincere cooperation.
Packing and Shipping
FAQ

1. Do you have online contact info?

A1: Yes, Skype is sihengmotor,whatsapp is +86 13816978557



2. How can we know the product quality?

A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.



3. How can we get your catalog?

A3: Please go to below website link to download it .-http://www.sihengmotor.com/download.php



4. Can we have free sample?

A4: Yes sure, but please pay the shipping cost by youself.



5. Is this your final price? May i have the discount?

A5: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.



6.Is there cheap shipping cost to import to our country?

A6: Yes, we have our regular shipping company, they have very good price.



7. Can we visit your factory?

A7: Yes welcome warmly. Our address is Floor 3,B building,No 388,Songhuang Road, Qingpu District, Shanghai City, China.



 8.What is the Warranty for your products?

A8: One year warranty for all electronic products. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.
