Sinovision Day&Night Vision Outdoor CCTV Wireless Solar Powered Wifi IP Camera with 3G 4G Sim Card P2P 22x zoom lens ptz camera

FOB Reference Price:Get Latest Price
$288.60 - $290.60 / Pieces | 5 Piece/Pieces (Min. Order)
Type:
IP Camera 4G Camera SD Card recording camera Varifocal 2.8-12mm HD camera 1080p HD Camera 5x optical zoom lens camera 22x optical zoom lens camera Solar panel camera
Style:
Dome Camera Box Camera Hidden Camera PTZ Camera speed dome camera
Resolution:
1280 X 960 1920 x 1080
Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 >100
Est. Time(days) 3 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
sinovision
Model Number:
SN-B6C20-4G-22X-TYN-60W-30AH
Sensor:
CMOS
Special Features:
4g ptz solar camera
Technology:
Pan / Tilt / Zoom
Resolution:
1920*1080P
ptz control:
Electronic PTZ horizontal:0°~360°,vertical:120°
2 way audio:
support
Storage:
Built in TF Slot
Mobile APP control:
yes
lens:
2.7-13.5mm Varifocal Lens
application:
indoor&outdoor use
Night vision:
yes
OEM/ODM:
support
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package and sinovision color package
Port
SHENZHEN
Lead Time :
Quantity(Pieces) 1 - 5 6 - 100 >100
Est. Time(days) 3 7 To be negotiated
Products Display

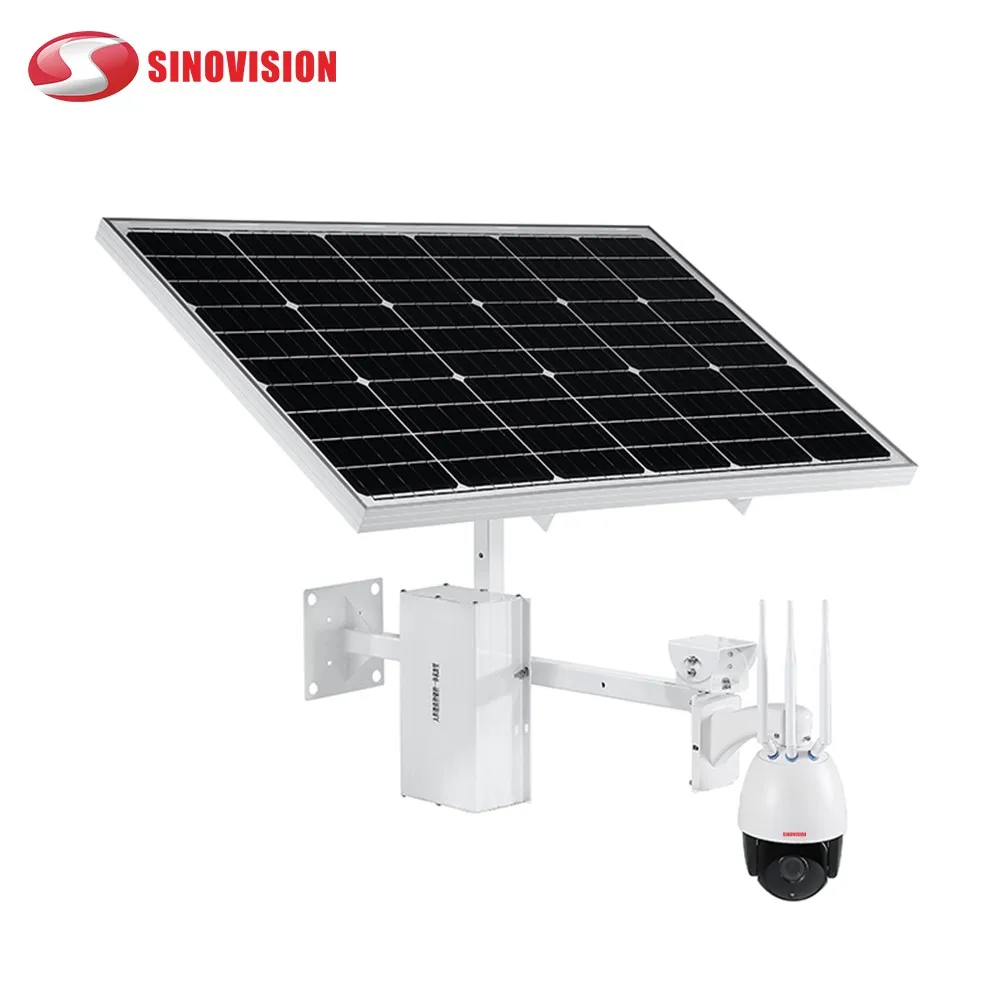

Solar Camera
Camera
SN-B6C20-4G-22X-TYN-60W-30AH
Image Sensor
1/3 "Low illumination CMOS sensor
Effective Pixels
1920(H) x 1080(V), 2.0 Megapixels
RAM/ROM
1024M/128M
Scanning System
Progressive
Electronic Shutter Speed
1/1s~1/30,000s
Minimum Illumination
Color: 0.005Lux F1.6; B/W: 0.0005Lux F1.6; 0Lux F1.6 (IR on)
S/N Ratio
More than 55dB
IR Distance
Distance up to 80m (492ft)
IR On/Off Control
Auto/Manual
IR LEDs
6pcs Array IR LED
4G
Support Network
FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band
B1/B3/B7/B20/B38/B39/B40/B41/B26
                                                                                                                                                                                                                        Support Band of Frequencies
FDD LTE Band7 / Band3/BAND1/BAND8
TD-LTEBand38(2570-2620MHz)/Band39(1880-1920MHz)/Band40 (2300-2400MHz)Band41 (2496-2690MHz)
WCDMA/1900/2100/2600MHz
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
                                                      Network Speed
FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS
WCDMA(3G):21MBPS/5.76MBPS;TD-SCDMA(3G):2.8MBPS/2.2MBPS
Lens
Focal Length
2.7mm~13.5mm
Max. Aperture
F1.6 ~ F4.4
Angle of View
H: 55.4° ~ 2.9°
Optical Zoom
22X
Focus Control
Auto
Close Focus Distance
100mm~ 1000mm
PTZ
Pan/Tilt Range
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed
Pan: 0.1° ~200° /s; Tilt: 0.1° ~90° /s
Preset Speed
Pan: 240° /s; Tilt: 200° /s
Presets
128
PTZ Mode
5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup
Human-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no command                              in the specified period
Protocol
Pelco-P/D (Auto recognition)
Intelligence
Event Trigger


Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Auto Tracking

 Optional

IVS
Tripwire, Intrusion, Abandoned/Missing
Video
Compression
H.265/H.264
Streaming Capability
2 Streams
Resolution
1080P(1920×1080)/ D1(704×576/704×480)/CIF(352×288/352×240)
                                                                                                          Frame Rate
Main stream: 1080P/ (1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/D1/CIF (1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.265/H.264: 448K ~ 8192Kbps
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / D-WDR
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Motion Detection
Support
Region of Interest
Support
Electronic Image Stabilization (EIS)
Support
Defog
Support
Digital Zoom
22x
Flip
180°
Privacy Masking
Up to 24 areas
Audio
Compression
G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Network
SIM Card
Support 3G 4G SIM Card
Max. User Access
20 users
Edge Storage
NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Interface
Video Interface
1 port(BNC, 1.0V[p-p], 75Ω)
RS485
1
Audio I/O
1/1
Alarm I/O
2/1
Environmental
Operating Conditions
-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection
IP66
Vandal Resistance
N/A
Casing
Metal
Solar Panel
Power
12V 60W single crystal solar panel
