Sipuxin 200L PLC Touch screen Cosmetic Vacuum emulsifying mixer machine

FOB Reference Price:Get Latest Price
US $6,500-50,000 / Set | 1 Set/Sets Vacuum homogenizer have stock (Min. Order)
Supply Ability:
50 Set/Sets per Month vacuum homogenizer with short leading time
Port:
Guangzhou
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
hand cream, BB cream, CC cream, cosmetic cream etc.
Application:
cosmetic cream, paste, liquid, viscous liquid, Mixing for ointment, cosmetic cream or paste product
Additional Capabilities:
homogenizing,mixing,heating
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sipuxin
Model Number:
SZR-S
Max. Loading Capacity:
5-5000L
Voltage:
220V/380v 50hz-60HZ
Power(W):
7.5KW
Dimension(L*W*H):
According to the capacity
Certification:
CE Certificate, GMP
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Machine name:
200L Steam heating vacuum emulsifying homogenizer
Material:
Stainless steel 316L &stainless steel 304 material
Homogenizer:
Upper Homogenizer or bottom homogenizer
Heating method:
Electric/ steam heating for option
Discharge:
Bottom valve discharge or tilting discharge
Speed control:
Homogenizer speed: 0-3000rpm, Mixing speed: 0-63rpm
Vacuum control:
Controlled by vacuum pump
Consisit of:
Main tank, oil tank, water tank, vacuum pump etc.
Brand:
SIEMENS motor, full stainless steel, Delixi Electric etc.
Packaging & Delivery
Packaging Details
wooden cases or customized package
Delivery Time
Shipped in 40 days after payment
Product Description

Product Application

The high shear emulsifier distributes one or several phases to another continuous phase rapidly and evenly.

The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect.

By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly.

After reciprocation circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.

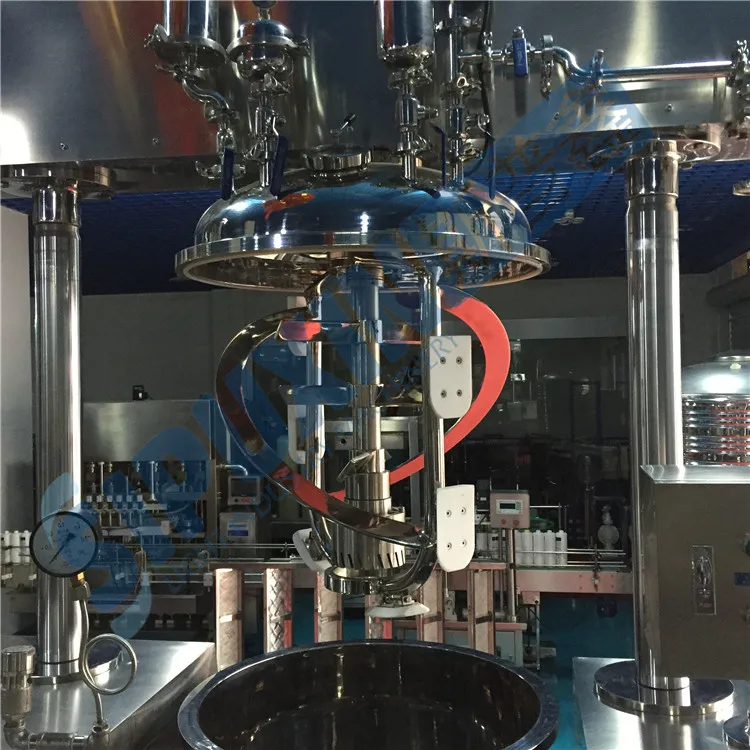

Specifications For Cosmetic Cream Vacuum Emulsifying Mixer

Main tank
Working capacity
L
200L
Material
*
Inside layer: SS316;
Middle layer: SS304;
Outside layer: SS304
Mixing power
KW
2.2

Main performance parameters
Heating & cooling way
*
Sream heating in the jacket with tap-water cooling
Mixing way
*
Bidirectional Frame-wall type and helical ribbon agitator scraping the wall
Double hydraulic jack lifting power
KW
4

Other
Middle layer work pressure
MPA
0.3
Vacuum pump power
KW
2.2
Mixing speed
RPM
0-65RPM

Main Features

1). Triple mixing adopts the the imported frequency converter for speed adjustment, which can meet different technological demands.
2). Structure is with German technology, sealing performance adopts imported double-end mechanical, the mixing speed can reach 3500Rpm., high shear fineness can reach 0.2-0.5um.
3). The Vacuum defoaming function ensure product to meet aspecit request, and avoid pollution come into the mixing tank.
4). 3 layers welding stainless steel, which is above 300 mesh polishing and up to GMP standard.
6). International brand main parts to ensure smooth and durable production.

Certifications
Detailed Images

Machine Parts

Name: Transducer

Brand: Delta

Original: Taiwan

Strong driving force.

Main Features

Name: PLC Control Screen
Brand: Siemens
Original: Siemens joint venture
Full English and Chinese Operation interface

Machine Parts

Name: Electric
Brand: Delixi
Original: China
Famous brand with strong quality.

Main Features

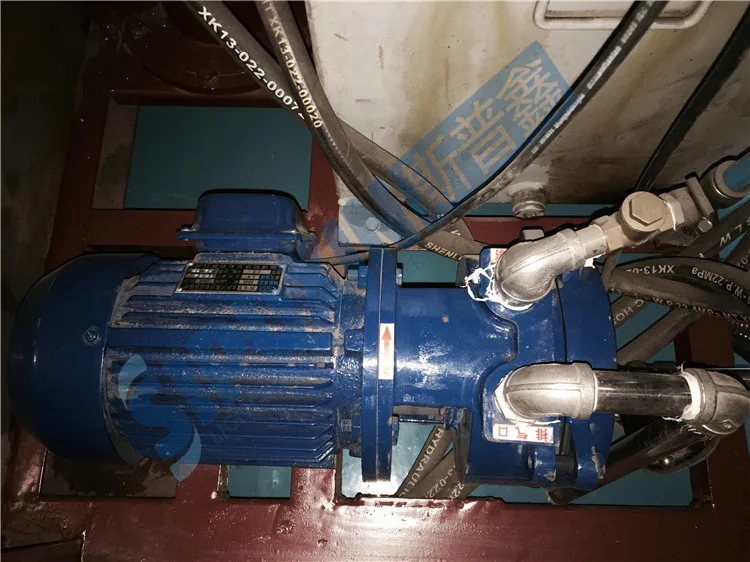

Name: Vacuum pump
Brand: Zibo
Original: China
Domestic famous engines

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Machine size
Size
2000 (L) * 3500 (W) * 4000 (H)
Weight
3.5 T



Packaging Details
The normal package is wooden box (Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery
Size
2000 (L) * 3500 (W) * 4000 (H)
Weight
3.5 T



Packaging Details
The normal package is wooden box (Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
