Small pub brewery equipment 300L micro beer brewing microbrewery equipment for sale

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SLET
Model Number:
300L microbrewery
Processing Types:
Carbonated Beverage
Voltage:
customized 220v/380v,50hz/60hz
Power(W):
15-75kw depend on
Dimension(L*W*H):
1x20GP container
Weight:
depend on the tanks
Certification:
CE,PED,LVD
Material:
food grade sus304,red copper
Function:
beer fermenting,beer making machine
Keywords:
micro beer brewing equipment
Control system:
auto control the fermenters temperature
Heating way:
electric heating,gas heating,direct fire heating
Thickness of Tanks:
inner3.0mm outer2.0mm
Insulation:
polyurethane 80-100mm
Cooling Jacket:
dimple jacket on the body and cone
Technology Advantage:
mirror polishing,pickling
fermenting pressure:
test pressure 0.3mpa,working pressure 0.15-0.2mpa
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 years for main tanks
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
PE film,wooden case packaging,steel packaging
Port
Qingdao China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description
Small pub beer brewery equipment 300L 500L 5BBL 700L 1000L micro beer brewing equipment,complete microbrewery,the craft beer brewing machine for sale

The small capacity like the 300L 500L 5BBL 700L 1000L are the suitable for the pub,hotel.And also is the best investment for the brewery project on the early time.The complete brewery equipment include the milling system,beer brewhouse,beer fermenting system,cooling system,cleaning system,control system also have the filling line.

Like the 300L brewery,the 300L brewhouse equip the 300L fermentation tanks,can brewing one patch one day,and with 600L fermenters,can brewing two patches one day,so depend on the customers' requirements,we can customized the brewery according to your brewing design.

Take the complete 300L micro beer brewing equipment info for checking:
Name
Components
Capacity
Speficications
Millng System
Malt Mill
300kg/h
Use the double ruller,make it easier for sugar to separate out when brewing
Heating System
Heating tube
Electric boiler
50kg/h
The electric heating or the gas heating depend on the customers' requirements
Beer Brewhouse
Mash/lauter tank
300L
With the rake knife,and the false bottom
Kettle/whirlpool tank
300L
With the agitator,can boiling the wort
Fermenting system
Fermentation tank
300L/600L
Conical beer fermenters with 60 degree,top or side manhole.and include all accessories
Cooling system
Ice water tank
900L
working with the chiller unit to cooling the fermenters temperature,with insulation
Chiller unit
3P
Use the gas Freon 404A,cooling the fermenters temperature
Cleaning system
CIP tanks
50L
Include the alkali tank,sterilization tank,with the elctrci control
Control system
Control cabinet
one
Control the brewhouse,fermenters,cooling and working.
Detailed Images
No1.The Milling System
Malt Mill:Normally from 300L-1000L capacity,all use the 300kg/h capacity malt mill is enough.If bigger capacity like 1500L 2000L and more bigger,will equipped with the grain hopper and the grain conveyor.

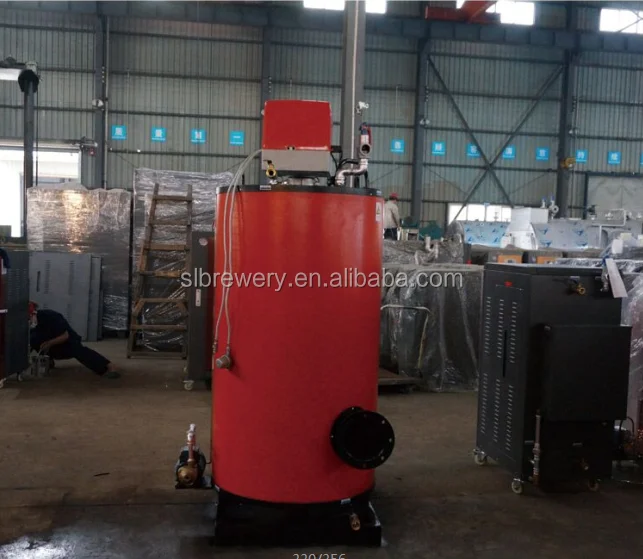

No2.Heating System

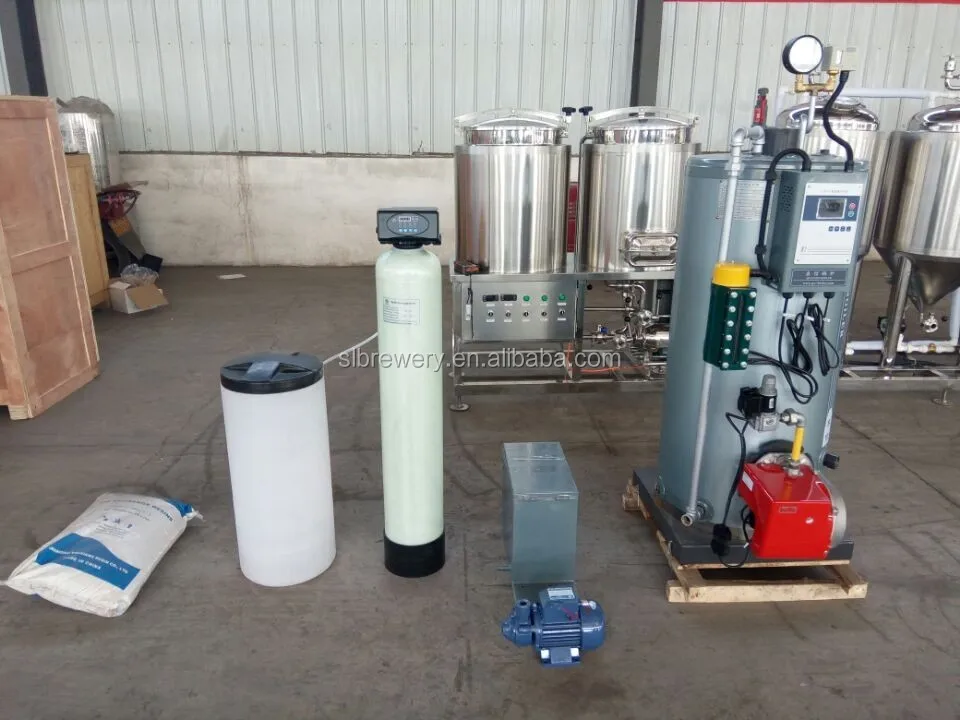

From 100L-500L the most is the electric heating is ok,and with less power.more than 500L capacity we most suggest use the gas heating,so need to add the boiler.The boiler fuel can be electrical,oil,and natural gas,depend on the customers'Local actual situation,which one is more economic and convenient

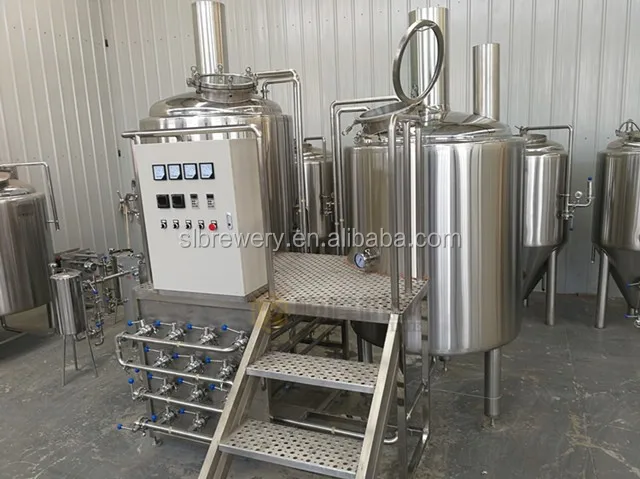

No3.Beer Brewhouse
The brewhouse have more Combination:two vessel,two vessel three body and the three vessel and so on

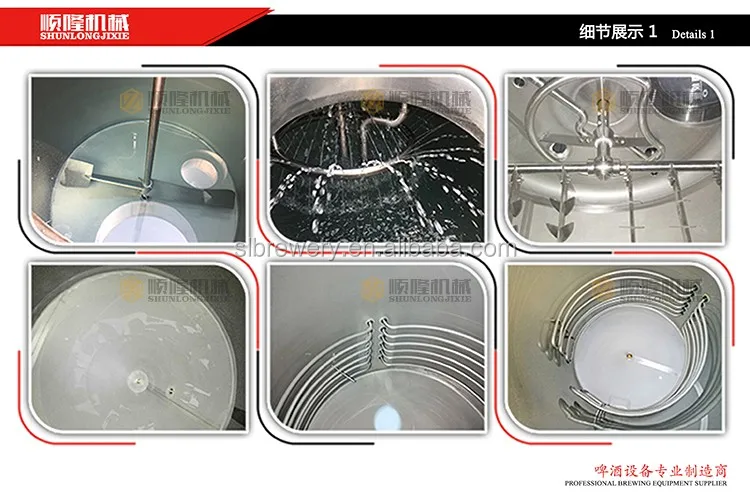

The complete beer brewhouse also include necessary accessories.like the plate heat exchanger,working platform,yeast tanks,valves,wort pumps,pipelines.sight glass.rake knife,agitator,cleaning circle ball and so on
If for electric heating,will do the electric heating tubes inside of the boiling tank,if for gas heating,will do the steam jacket on tanks working with the boiler.

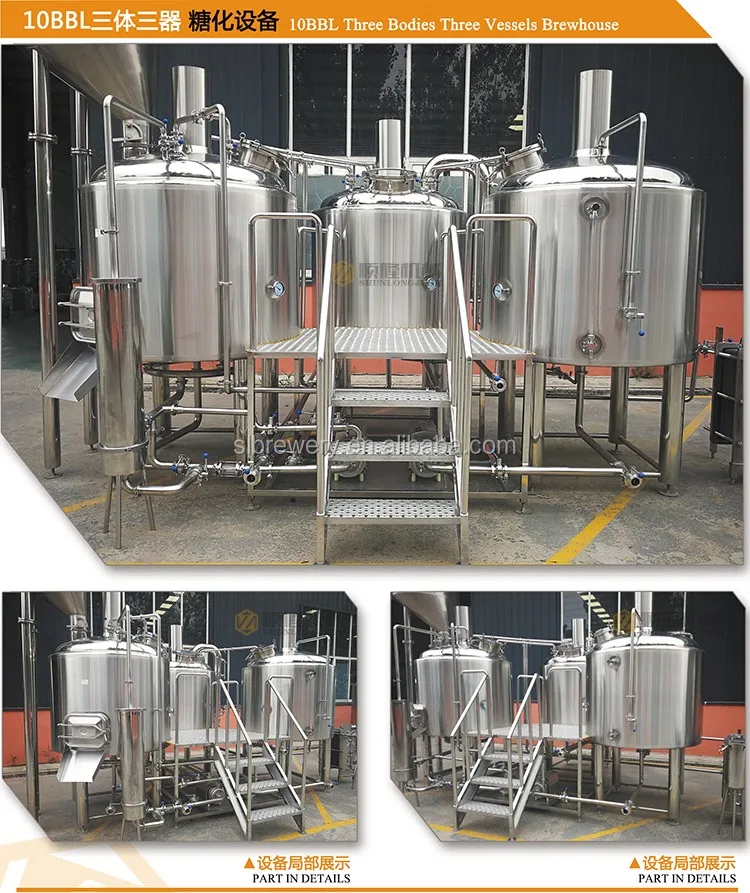

Now let me introduce the more combination brewhouse as below;

Two vessel: Mash tun/lauter tank,brew kettle/whirlpool tanks.

Three vessel two body:Mash tun,Lauter tank/whirlpool tank.(lauter tank on the top,whirlpool tank at the bottom)
Three vessel: Mash tun/lauter tank,brew kettle/whirlpool tan,hot water tank.(is the popular one)

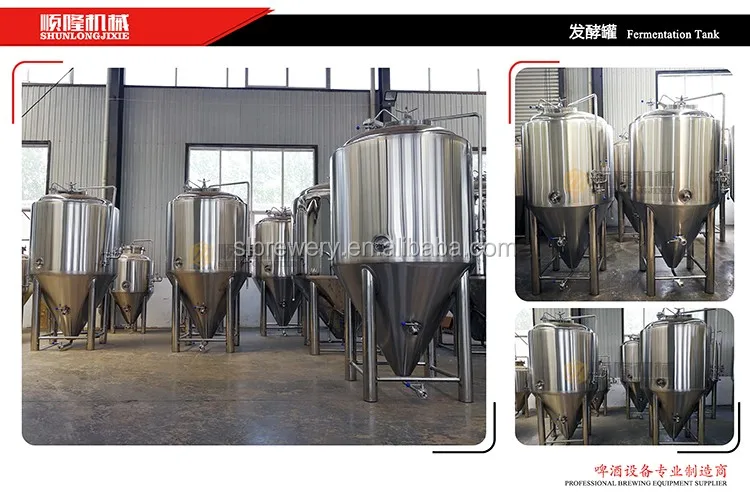

No4.Fermenting system

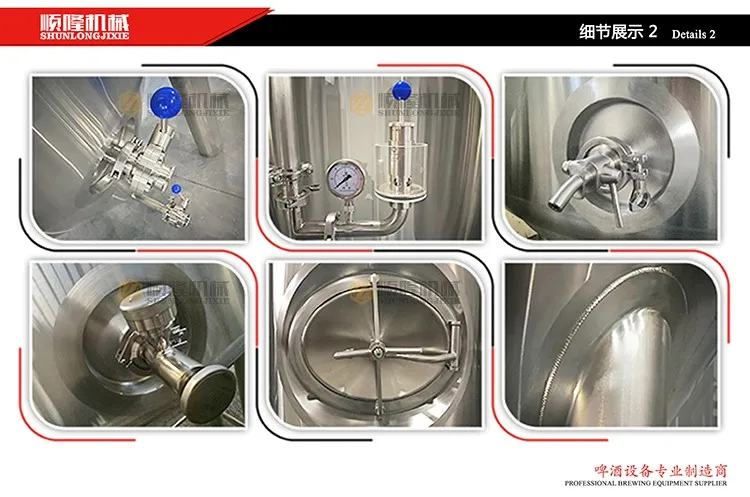

Fermentation tanks: conical beer fermenters with the pressure gauge,dry hop port,tinatium stone,simple valves,beer valves and all necessary accessories.

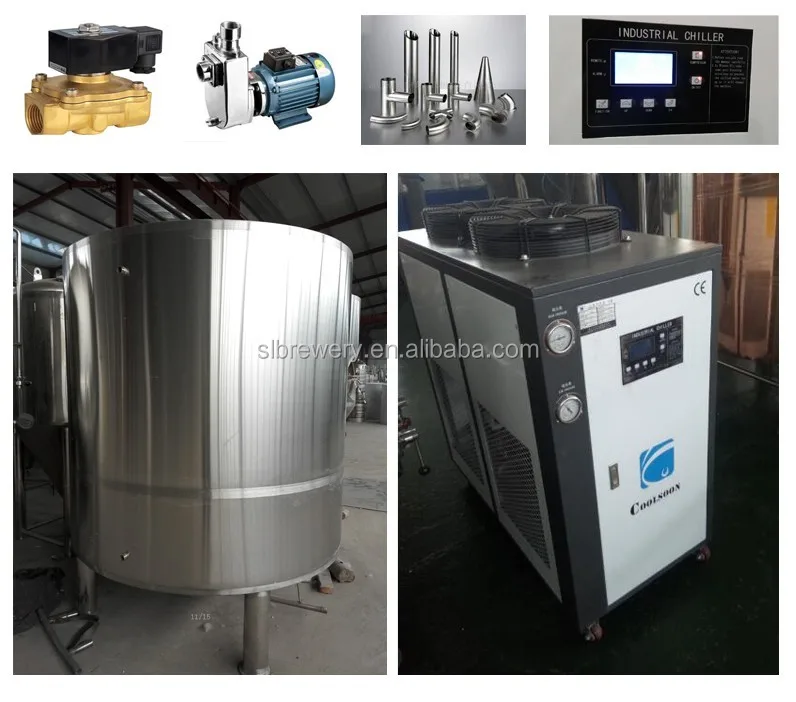

No5: Cooling system
Ice water tank with chiller unit together can cooling down the fermenters temperature

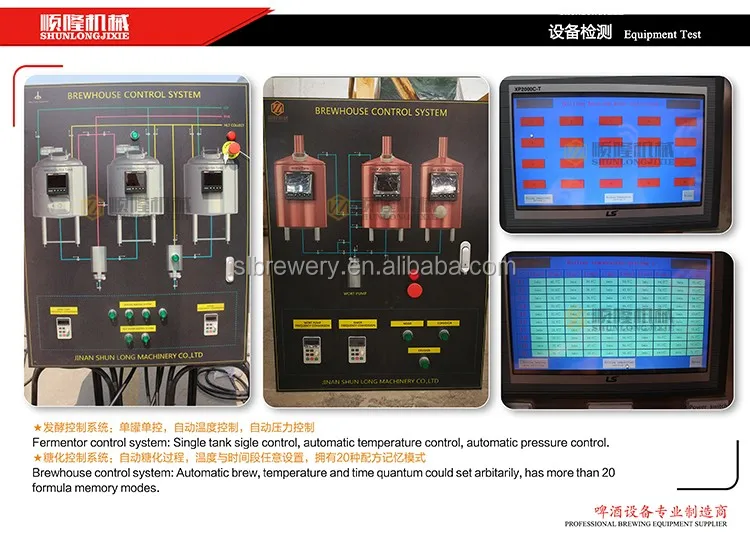

No6.Control System;

Normally one control cabinet is ok control the brewhouse and the fermenters,but now more customers like the separate brewhosue controller install on the working platform,easy to control the brewhouse working.

We also can supply the bottle filling line,keg filling,washing machine,and the beer kegs and so on
Packing & Delivery

With plastic paper firstly then outside by iron frame (Export standard packaging)
1.Sound production management and Reliable sea forwarder for many years guarantee the timely delivery.
2.Experienced package guarantee the quality of equipment and ensure customers' satisfying.
3.Packing details: packing with steel stainless and wood cases, standard export package
4. Delivery details: delivery time within 35 days from Qingdao.

Our Company

Nowadays, Craft beer is popular in the whole world.
No matter you are a beginner or a skilled brew master.
Only if you have passion for beer, then you could have your own one.
Why choose Shunlong? Because We know what you want,
We know how to help you brew beer, We know brewer's need best.
Choose Shunlong, Choose the finest beer.

Certifications

We have got CE, PED, LVD certificates. If necessary, we can offer electronic record's certificates but the original document must be kept in the company.
Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc. At present, we have no formal foreign agents but we are looking for superior agents to create a brilliant future.

Welcome your email here and visit to our factory
