Stainless steel 304 Plain Twill Dutch Woven Wire Mesh

FOB Reference Price:Get Latest Price
$3.20 - $5.80 / Square Meter | 1 Square Meter/Square Meters (Min. Order)
Wire Diameter:
0.019mm to 2.32mm
Samples:
0.019mm to 2.32mm
$10.00 /Square Meter | 1 Square Meter (Min. Order) | Buy Samples
Customization:
Customized logo (Min. Order: 100 Square Meters)
Customized packaging (Min. Order: 100 Square Meters)

More

Graphic customization (Min. Order: 100 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Material:
STAINLESS STEEL WIRE, stainless steel 304 316L
Type:
Weave Wire Mesh
Application:
Screen, filter
Weave Style:
Dutch Weave, Plain, Twill, dutch
Technique:
Woven, Weave, woven
Model Number:
Dutch mesh-01
Brand Name:
Qualified
Hole shape:
Rectangular
Warp Mesh:
8 - 90mesh
Weft mesh:
20 - 3500 mesh
Wire diameter:
0.019mm to 2.32mm
Square meter weight:
0.27-2.81kgs
Opening size:
0.023 to 0.347mm
Supply Ability
Supply Ability:
256 Square Meter/Square Meters per Day
Packaging & Delivery
Packaging Details
Stainless steel plain dutch weave mesh packing:
1.paper tube
2.,plastic film,
3.water-proof paper
4.wooden or steel pallet,
Port
Xingang, China
Product Description

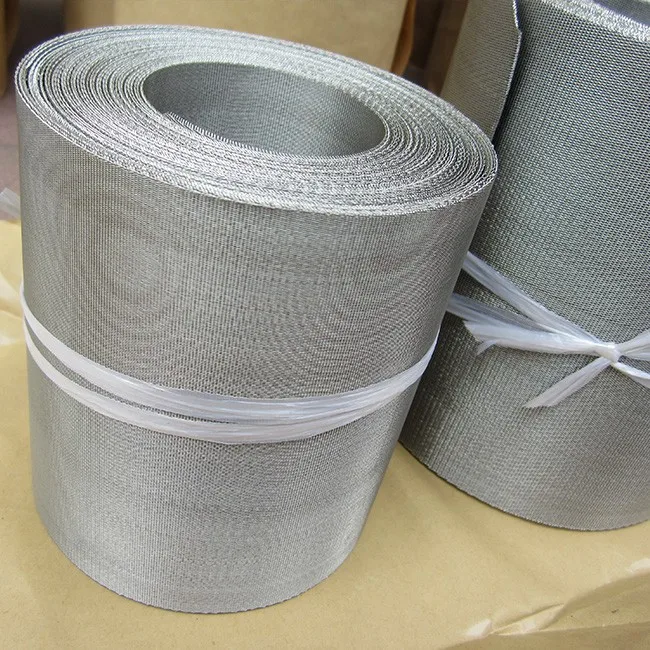

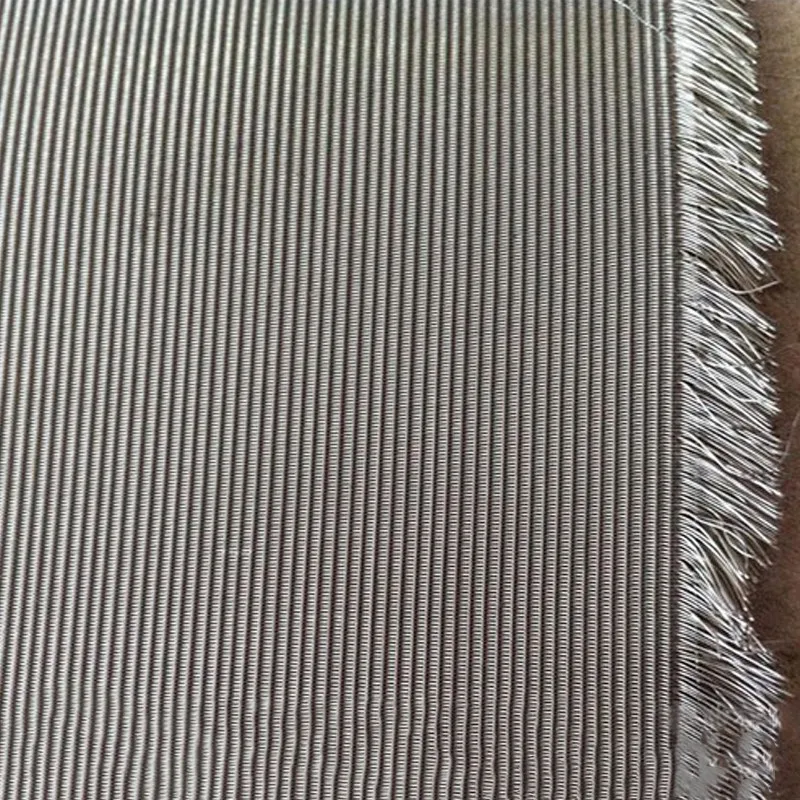

Stainless Steel Dutch Weave Wire Mesh


Stainless steel dutch wire mesh is also known as stainless steel dutch woven wire cloth and stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire.Stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units ,due to its stable and fine filtration capability.

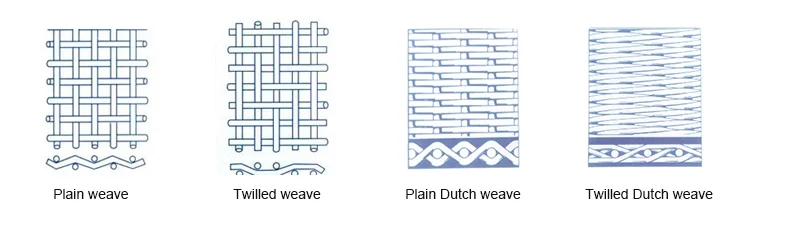

Plain Dutch Weave: Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker.


Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.


Reverse Dutch Weave: Reverse Dutch Weave. The same weave as Dutch except the warp & weft wires are reversed, i. E the warp wires have a smaller diameter than the weft wires. The larger weft wires are woven closer together than would usually be seen in a Dutch weave.

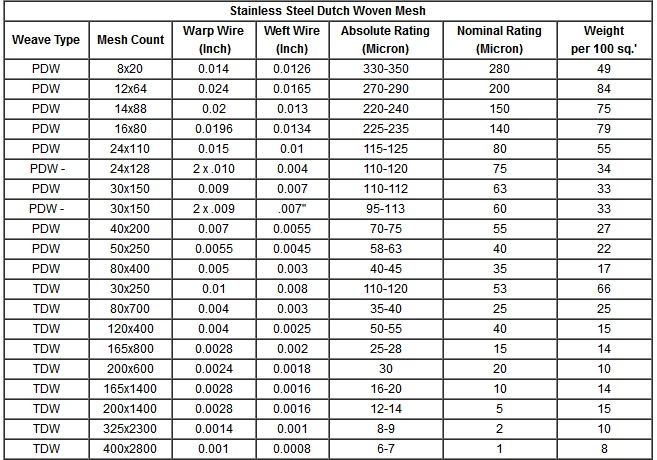

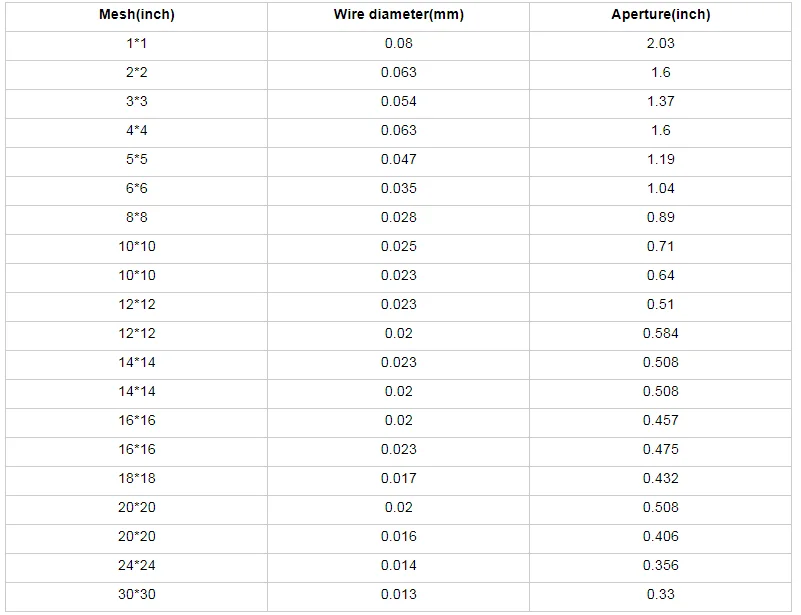

Specification

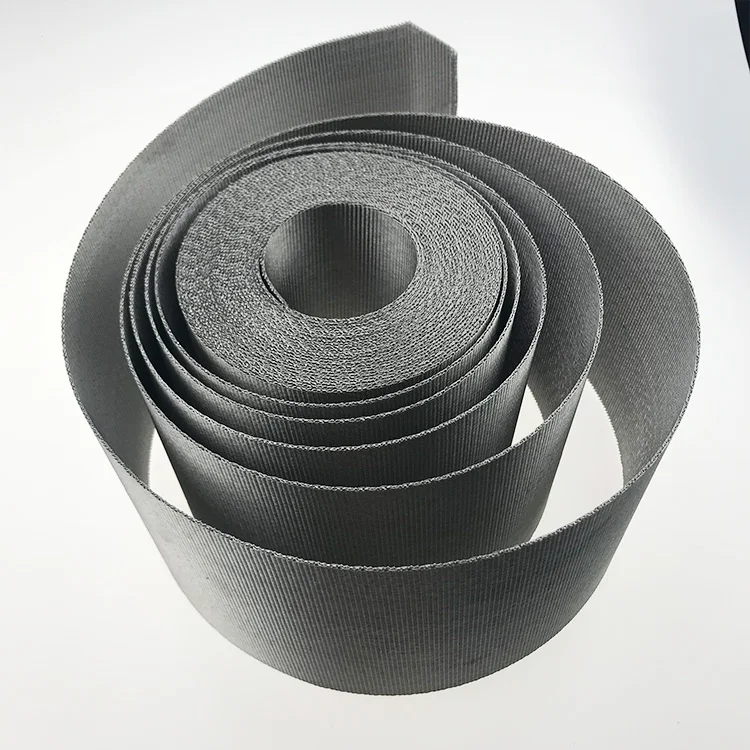

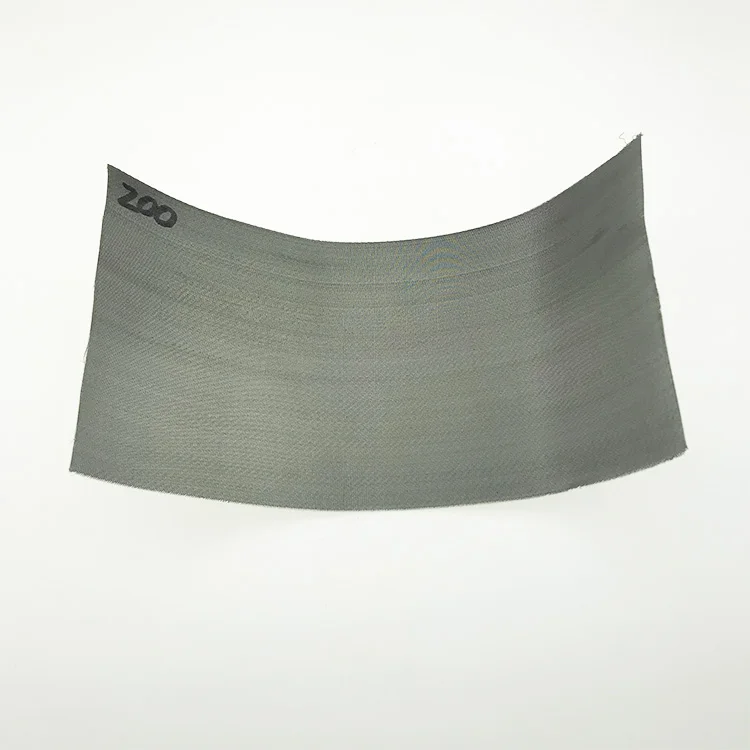

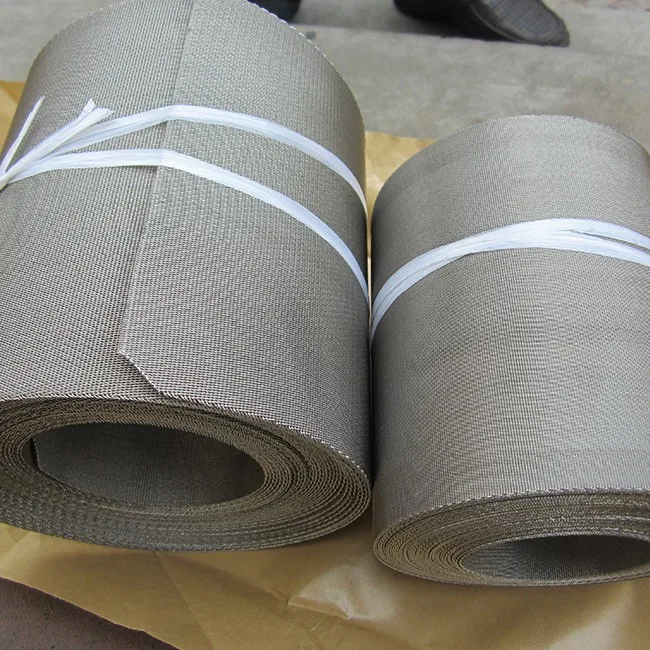

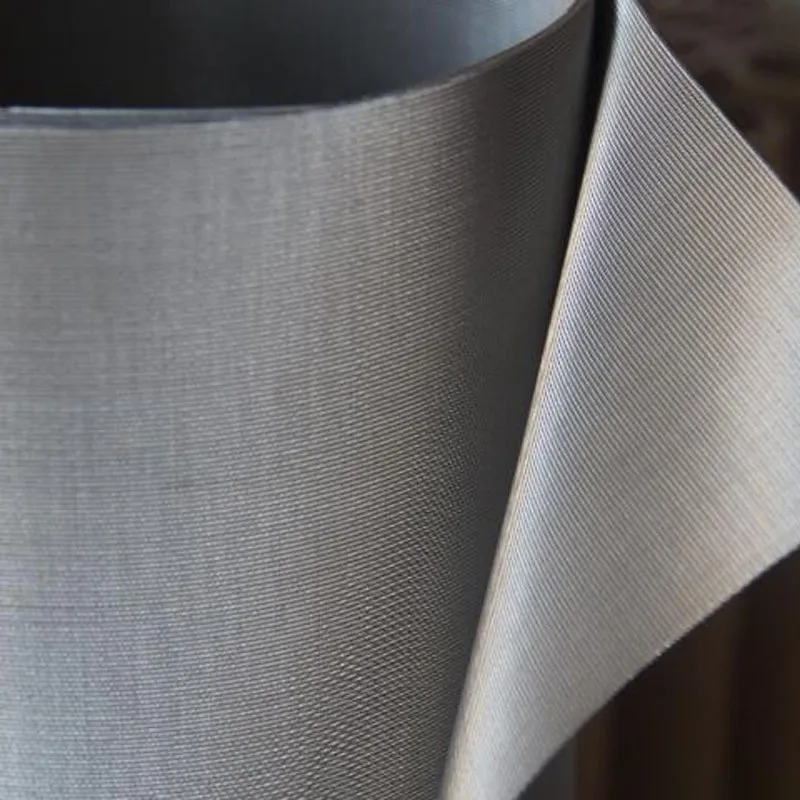

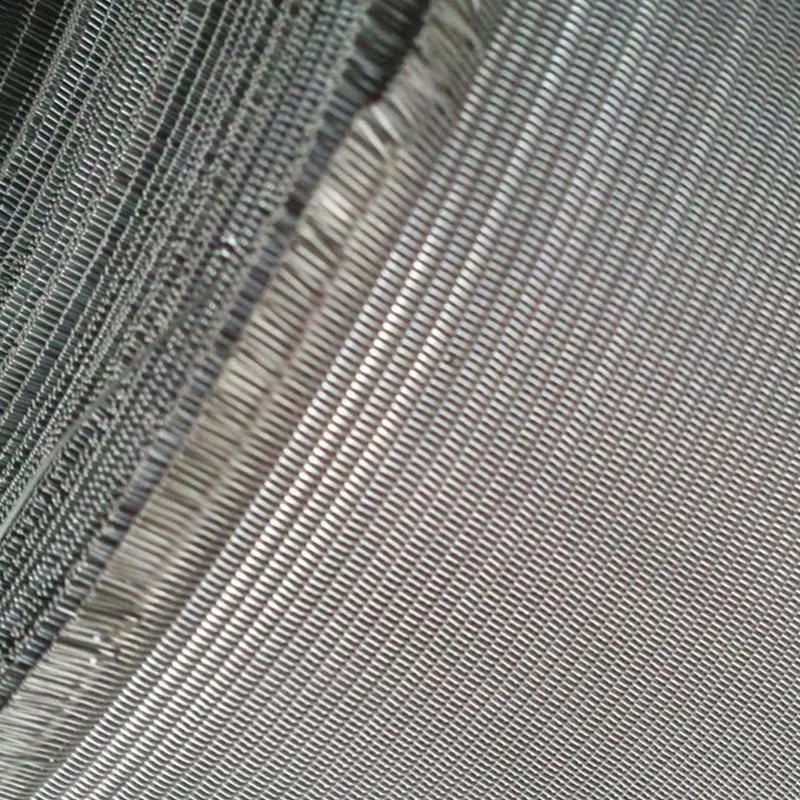

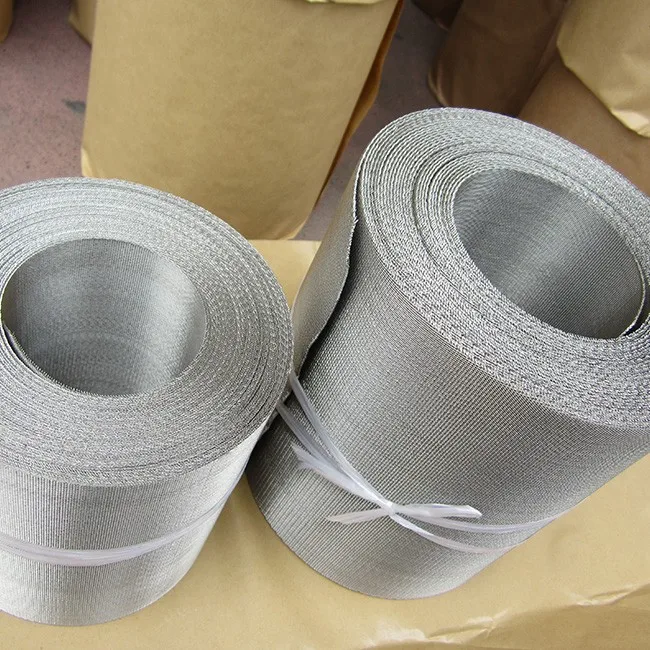

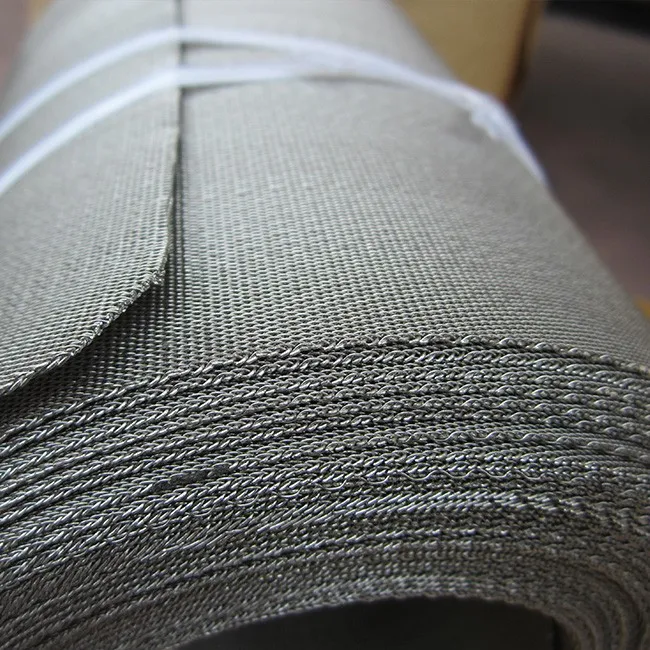

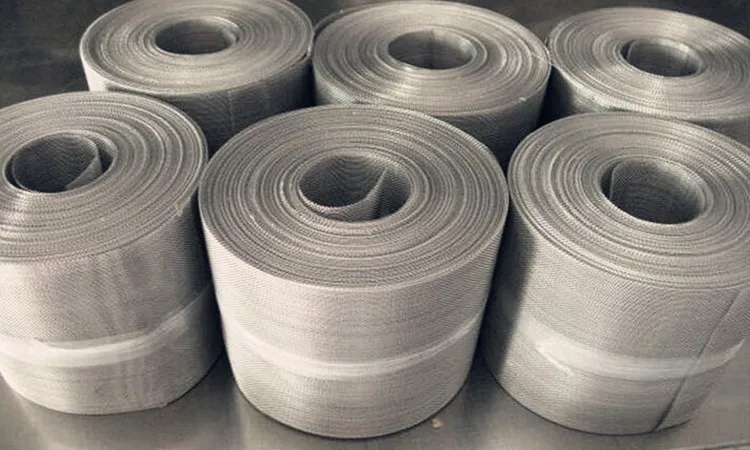

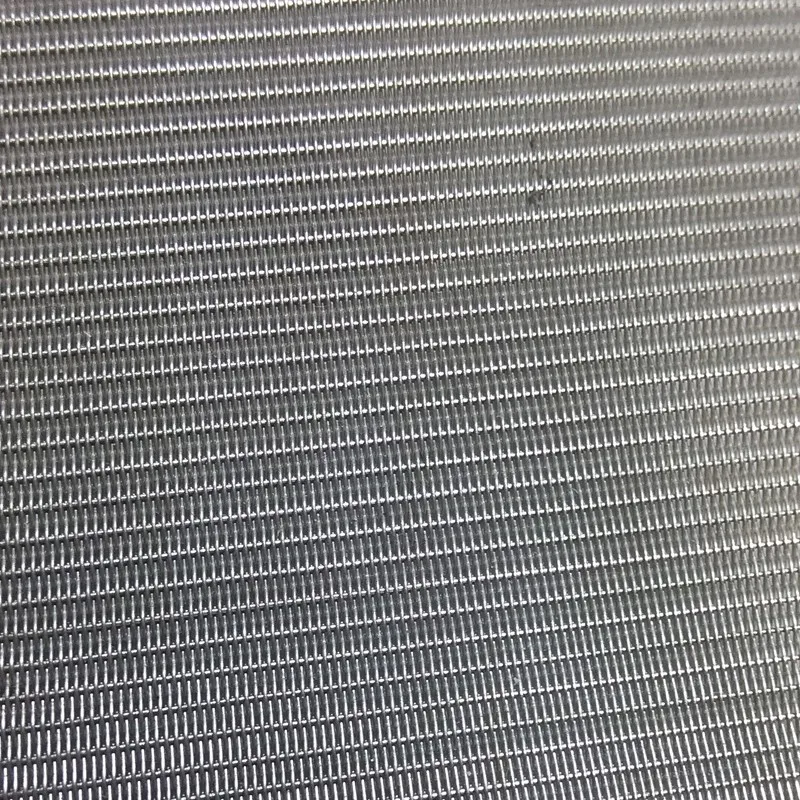

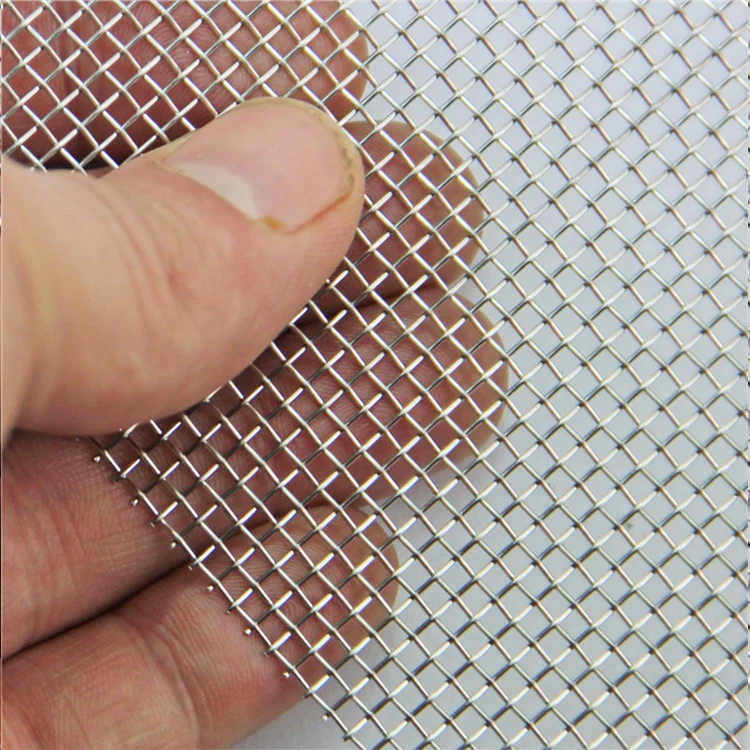

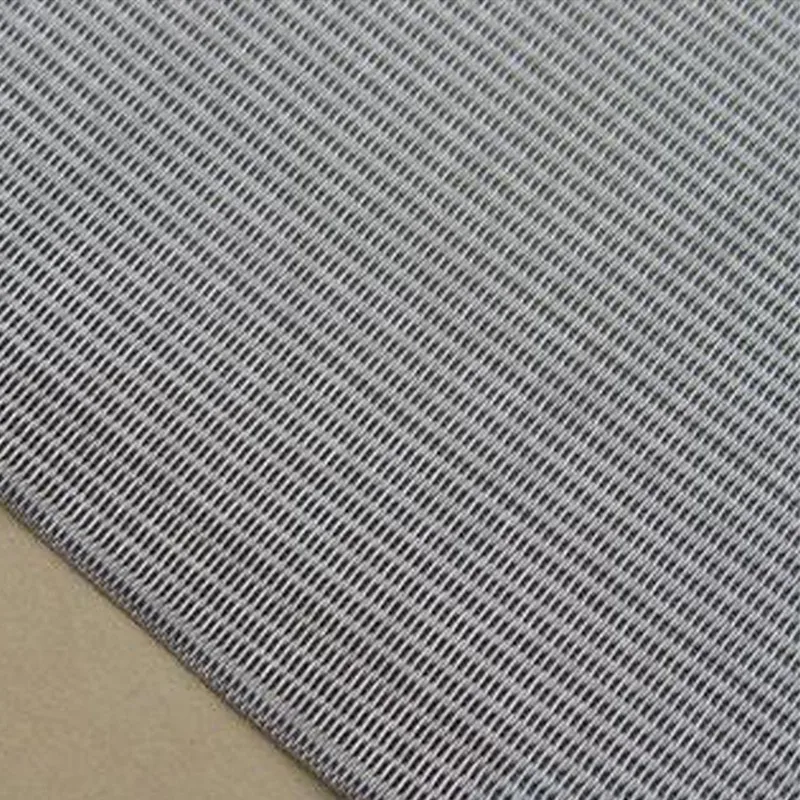

Detailed Images
Certifications

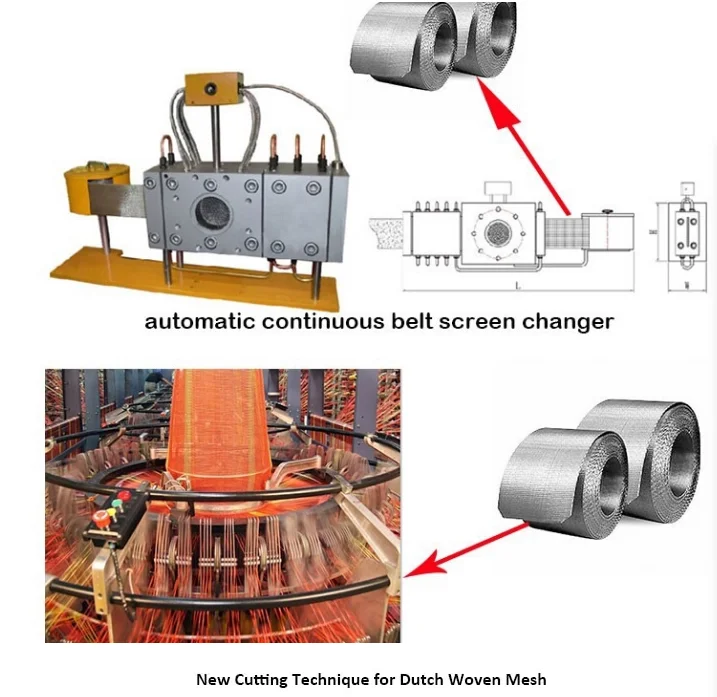

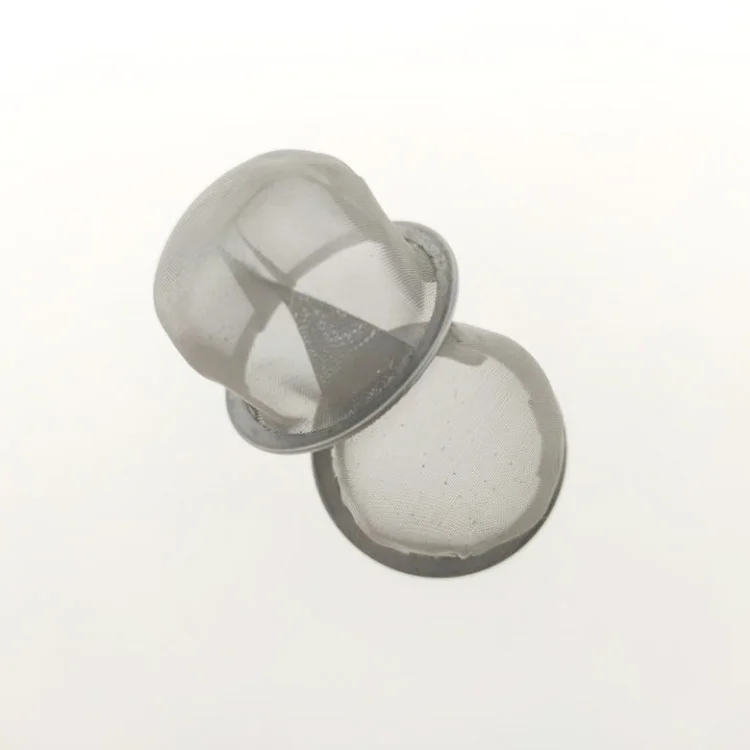

Application

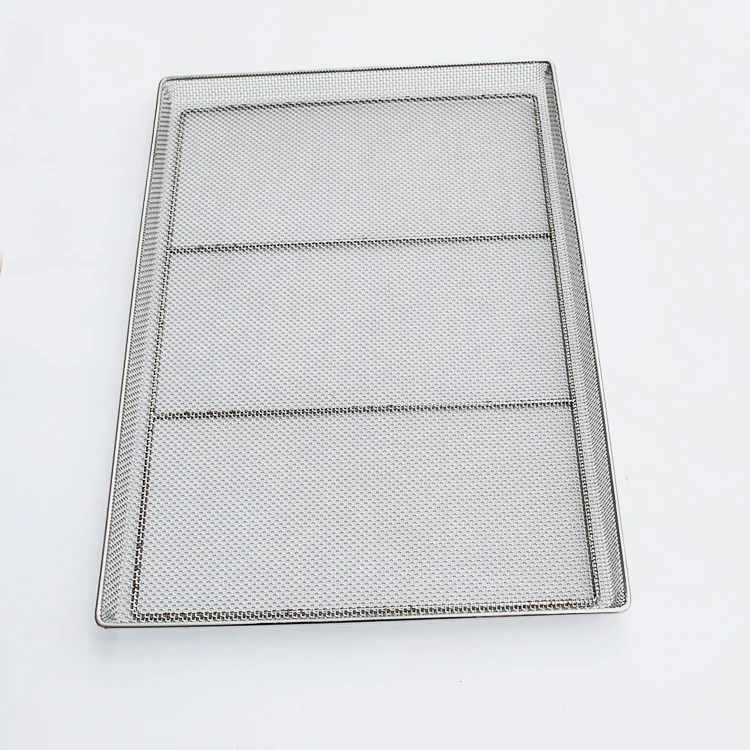

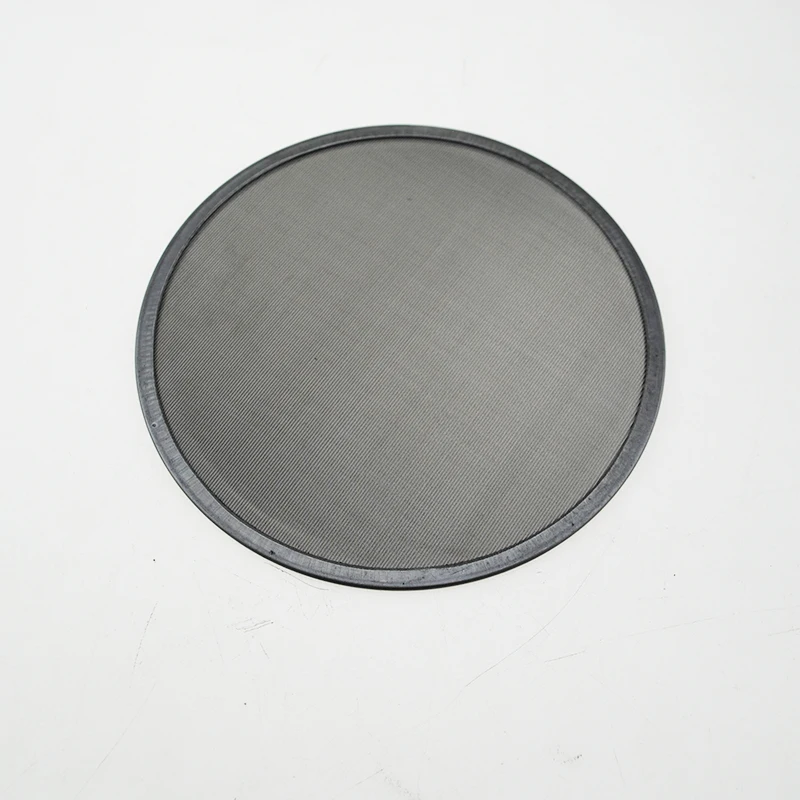

Related Product
Packing & Delivery

Packing details: In waterproof paper,PVC bag,wooden case.Customer request avalible.



Delivery details: 7-15 days after receiving the 30% deposit or as required.

Our factory
