Buying silos is a significant, long-term investment – take the time to make the right choice. Consider the storage requirements for the next 20 years — not just the next season. For reliable insect control and grain quality maintenance, choose a gas-tight sealable storage,
which also has aeration.
steel storage silo
Steel Silo Volume
10.8 m, 13 layers
Alternative: 14 15 layers
Steel Cone Base
Alternative: Flat bottom silo

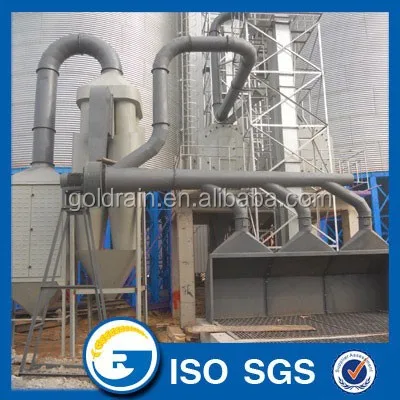

1. If your grain is dirty , we will use the cleaner , dust remove machine to clean out the
impurities first :
2.Then we use the Bucket elevator to lift the grain into the Grain Storgae Steel Silo :
3. steel silo for grain storage top :
There is Silo top cap to prevent the rain drop into the Silo .
4. There is Column to strengthening the Silo Body .
There is connection plate between the two column .
5. Ladder outside the Silo for worker use .

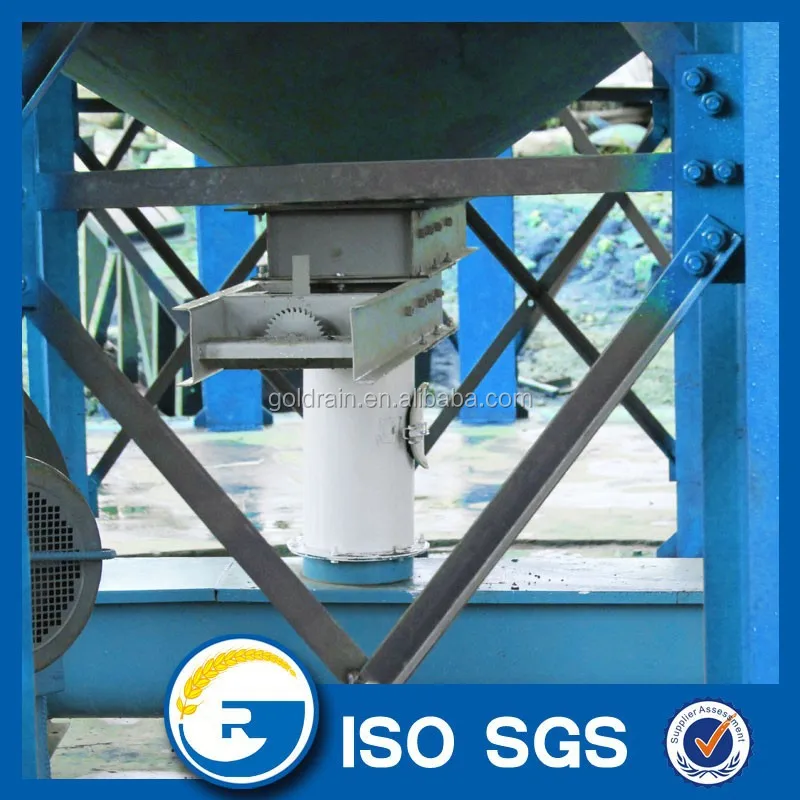

6. The Silo bottom is Steel Cone Base .
Of course, we can deisgn to Flat bottom type silo .
7. At the Silo bottom, there is unloading scrpaer conveyor to discharge the grain out .
1. How can i know the grain state inside the Silo ?
We equip the Level monitor system inside the Silo to indicate product level in the silo,
because silos, are built with cone, to prevent bridging in the silo. So as the product flows down
the silo, the product levels needs to monitored & measured.
2. How can i control the grain inside the Storage silo stayed a good condition ?
we equip the Temperature control system, Circulation Fumigation system , Aeration system .
To prevent damage to the grain caused by the increase in temperature and humidity,
3. What is the types of this assembly silo?
A. Hopper bottom: Steel cone base:
The capacity is below 800t and the diameter is below 8.5m.
B. Cement cone base / Flat bottom:
The capacity is comparatively big and the diameter is below 12m, its base is general made into
cement cone base.
4. what is the zinc coating per sqm available ?
The silo is made of hot-galvanized steel sheet 275g/m2,350 g/m2 and 400g/m2 are options.
5. What is the usage of the fabricated silo ?
The steel silos are widely used in grain storage, animal feed, flour, starch, rice milling factory,
grease processing, brewing, monosodium glutamate etc.
