Steel scrap smelting furnace aluminum shell melting induction furnace

FOB Reference Price:Get Latest Price
$5,000.00 - $9,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SN-KGPS-3000KW-5T
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Induction Furnace
Usage:
Melting Furnace
Place of Origin:
Henan, China (Mainland)
Brand Name:
SHENNAI
Voltage:
1000V*2
Dimension(L*W*H):
1955mm*1800mm*2000mm
Weight:
14Ton
Certification:
ISO9001
Warranty:
1 Year
Power factor:
0.95
Capacity:
5T~5.5T
Melting speed:
<55 min
Reated frequency:
300Hz
Input current:
960A
Max output voltage:
3200V
Output DC current:
1200A
Power consumption:
<550C
Rated Power:
3000KW
Output DC voltage:
2500V
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
3000KW
Supply Ability
Supply Ability:
30 Set/Sets per Month Aluminum shell induction furnace
Packaging & Delivery
Packaging Details
Packing:wooden box or customer requirements.The size of the box is based on the specific products.As the unit area will be heavy , a wooden box contains an aluminum furnace.
Port
shanghai, qingdao, shenzhen, and so on.
Company Advantage

15 patents were exported
to more than ten countries

Service team one-stop service, the government vigorously
promote

Company covers an area of
8000 square meters, 25 years
of production history
Product Description

Product selling point of Aluminum shell induction furnace  :
1. Intelligent equipment, easy to operate, high stability
2. High efficiency and energy consumption less than 550KWH/T
3. Electronic components using well-know brands at home and abroad

SCR series rectifier , series resonant inverter medium frequency power supply

Our series resonant inverter medium frequency power supply can achieve that one furnace melting and the other furnace thermal insulation refining .So that this advanced technology achieves that one set of equipment is equivalent to two sets of equipment working at the same time.And the utilization rate of power transformer is very high.According to the theoretical calculation and field test, it can save half of the transformer capacity.Because of adopting SCR series rectifier , series resonant inverter it is with high power factor and keeps over 0.98 with high order harmonic wave pollution.It is no need to add reactive power compensation device and harmonic wave control device.The current of induction coils are small and the melting time is short.It can save electricity 20%.

Model
Input
Voltage (V)
Input
Current (A)
DC
Voltage (V)
Input
Current (A)
IF Voltage
(±10%V)
IF Frequency(HZ)
IF
Power(KW)
DX-250kw
380V
6 phases
408A
500V
500A
1200V
100~500HZ
205KW
DX-500kw
816A
1000A
500KW
DX-800kw
1305A
1600A
800KW
DX-1000kw
380V
6 phases
816A
1000V
1000A
2400V
100~400HZ
1000KW
DX-1500kw
1220A
1500A
1500KW
DX-2000kw
1630A
2000A
2000KW
DX-2500kw
2040A
2500A
2500KW
DX-3000kw
480V
6 phases
1960A
1250V
2400A
2900V
100~300HZ
3000KW
DX-3500kw
2280A
2800A
3500KW
DX-4000kw
2610A
3200A
4000KW
DX-4500kw
2940A
3600A
4500KW
DX-5000kw
575V
6 phases
2720A
1500V
3330A
3400V
100~250HZ
5000KW
DX-6000kw
3260A
4000A
6000KW
DX-8000kw
4350A
5330A
8000KW
DX-10000kw
620V
6 phases
5100A
1600V
6250A
3600V
100~200HZ
10000KW
DX-15000kw
7650A
9370A
15000KW

Advantages of Aluminum shell induction furnace:
1.
This kind of furnace has the advantages of high melting efficiency, good power saving effect, compact structure and strong overload capacity.
2. T
he surrounding of the furnace is low temperature, smoke less, the working environment is good .
3.
Simple operation and reliable operation.
4.
Fast temperature heating-up, furnace temperature easy to control, high production efficiency.

Water - cooled cable connections

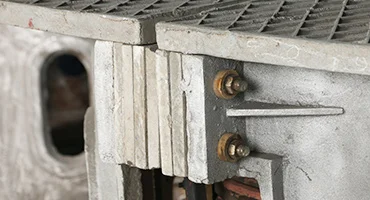

Asbestos plywood

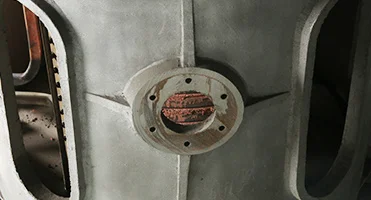

Inlet and outlet

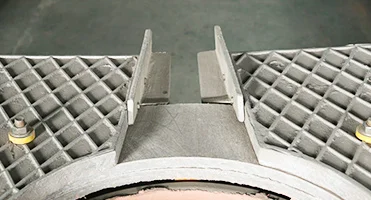

Tilting mouth

Reducer connection

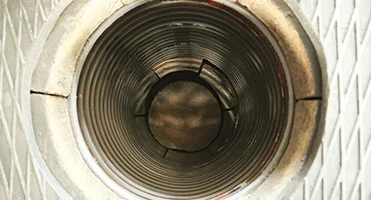

Inside

Related Products

Steel shell induction furnace

Aluminum shell induction furnace

Power supply cabinet

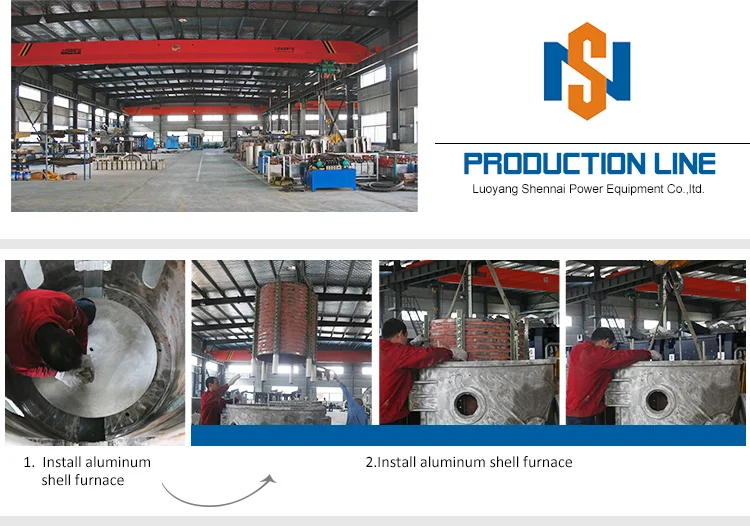

About Us

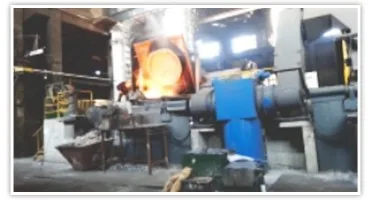

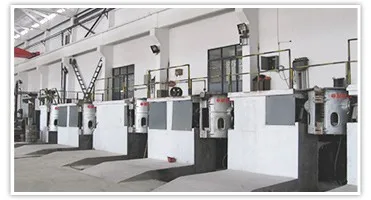

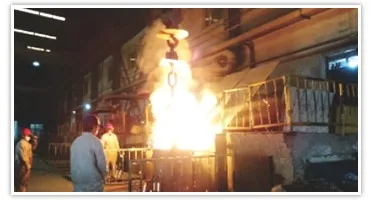

Shenhuo Group 20T steel furnace

 furnace baked scene

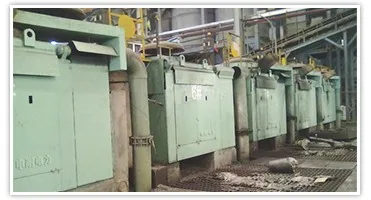

Luotong 5T smelting workshop

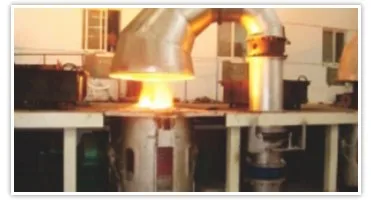

Henan Yongdeng Aluminum 2T aluminum
furnace furnace site

Bar material heat through the automatic feeding

Seven one five melting steel workshop

Wuhan Iron and Steel Group smelting workshop

Our Customer
Certificate
FAQ

Q1: Our workers are not professional on the induction furnaces, how can we solve that?
A1:Don’t worry, when the induction furnaces arrive at the clients’ plant, our engineer will go and assist in installation, commission, and training until the workers can operate by themselves.

Q2:Which kind of power supply do you supply? Electricity or gas?
A2:The power supply we provide is electricity.

Q3:What about your package? If damages happen, how do you solve?
A3:We take container loading, wire fixing. If damages occur, we will send the spare parts for you.

Q4:You are a green hand on Alibaba, just ONE year, how can I trust your company and machine?
A4:Our factory have been in induction equipment ,induction furnace and product parts for around 25 years , just entering alibaba for ads .And our machine have exported to East Asia, South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints.

Q5: Is it all right to make customer's own brand name?
A5: Sure, with your authorization of brand. We accept OEM service.

Q6: How do you control the quality?
A6: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.

Q7: How long is your delivery time?
A7: Generally it is 7-14 days if the parts are in stock. or it is 30-45 days if the parts are not in stock, it is according to quantity.
