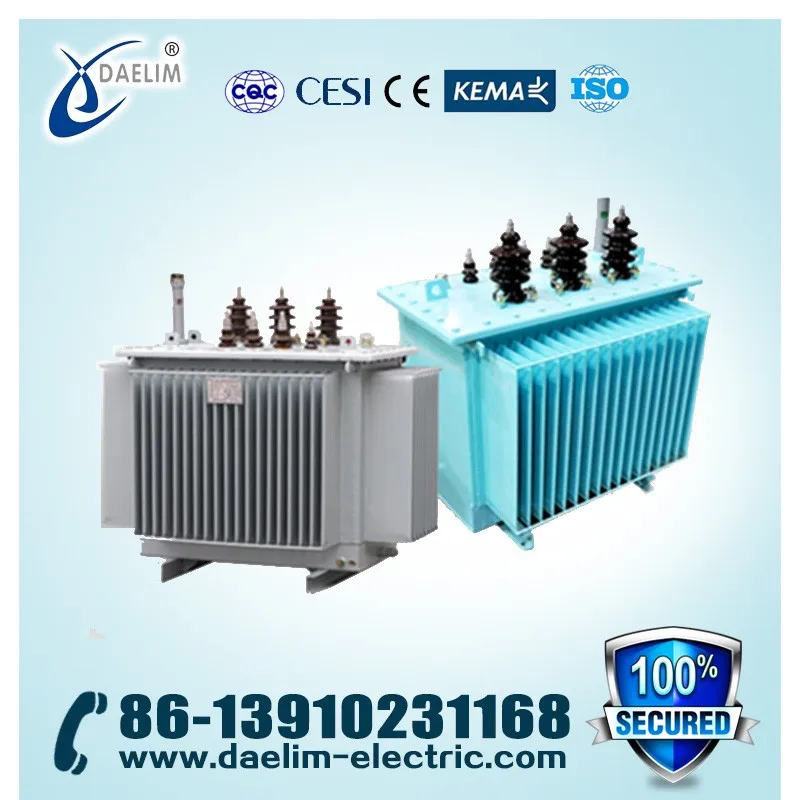

Step Down 15kv NEON 1000kva Distribution Power Transformer with Price

Feedback Ratings
  • 2-4 Sets
    US $4500.00
  • >=5 Sets
    US $4450.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
S11-M
Usage:
Electronic
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
2 winding
Product name:
Step Down 15kv NEON 1000kva Power Transformer with Price
Rated capacity:
1000kva
Rated voltage:
15kv
Frequency:
50/60Hz
Output voltage:
0.415kv
Certification:
ISO9001:2008
Standard:
IEC60076
Type:
Distribution Transformer
Material:
Copper Winding
Cooling system:
ONAN

Packaging & Delivery

Selling Units:
Single item
Single volume:
2 cm 3
Single gross weight:
1000.0 kg
Package Type:
As per client request
Lead Time :
30

Step Down 15kv NEON 1000kva Distribution Power Transformer with Price

Product Description


Aplication of products

Our SC(B) series epoxy resin cast dry transformer is cast under vacum with thin insulating bands automatically . the core is made of high permeable grain orientated silicon sheet and cast wth imported epoxy resin.thanks to advanced technology , quality raw meterials , scientific management , and perfect inspection means , our products have the following features.

The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties , is free of crack and inner bubble and has low local discharge , high reliablity , and long service life.

The high and low voltage systems are cast under vacuum , thus the coil will not absorb moisture ; the clamps of core are subjected to corrosionresistant treatment and it may run under high temperature or the serious environments .

Flame retardancy , explosion proof and no environmental contamination . The insulating meterials in the coil such as glass fiber are self extinguishing and they will not cause fire by the arc resulted from short circuit . the resin will not generate toxic or harmful gas under high temperature.

Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(W) On-load loss(W)No load
current
(%)
3015±5%
±2x2.5%
0.415Dyn11
Yyn0
41306001.7
501708701.3
6320010401.2
8025012501.1
10029015001
12534018000.9
16040022000.7
20048026000.7
25056030500.7
31567036500.5
40080043000.5
50096051500.5
6304.5120062000.3
800140075000.3
10001700103000.3
12501950120000.2
16002400145000.2
200052830174000.2
25003350202000.2
Certification


Trade Shows




Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.

2. We can arrange technicians to install the equipments and train your staff on site.

3. Anytime, we provide considerate technical consultation.

4. Prompt reply for your inquiry and feedback.

Packaging & Shipping

Our mode of transport, we are your best business partner.


Company Information

Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.


The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..
