Syntec 6MD bus type controller Japan Yaskawa servo motor atc cnc router

Feedback Ratings
  • 1-2 Sets
    $17,900.00
  • 3-4 Sets
    $17,500.00
  • >=5 Sets
    $17,000.00
Model Number:
AIS-1325
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $17,800.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
220V/380V/Customer made
Dimension(L*W*H):
3500*1840*1900mm
Certification:
CE ISO9001
Warranty:
2 Years
Control system:
Syntec 6MD
Spindle:
9KW ATC SPINDLE
Application:
MDF WOOD ACRYLIC ALUMINUM
Motor:
YASKAWA SERVO MOTOR
Spindle power:
9KW
Driving system:
YASKAWA
Software:
ARTCAM/ASPIR
Inverter:
DELTA
Spindle speed:
0-24000RPM
Keywords:
taiwan cnc router machine
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
15KW
Weight:
2000kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
370X228X210 cm
Single gross weight:
2000.0 kg
Package Type:
Plywood Package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Product Description

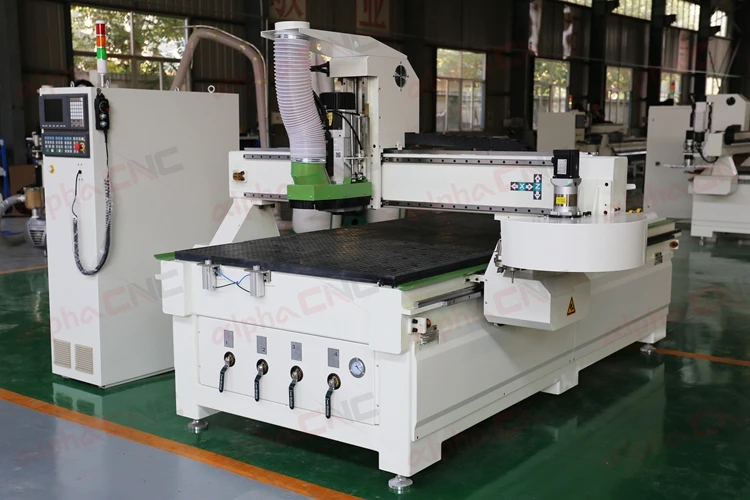

atc cnc router

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features---taiwan cnc router machine

#9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool rotary carousel
#Maintenance free brushless Japan Yaskawa AC servo motors and drives
#Automatic tool calibration pad
#6-zone vacuum table
#Pneumatic material placement stops
#Syntec industrial AC servo controller
#Hand-held pulse generator

Descriptions
                                                                     Parameters
Model
AIS-1325
AIS-1530
AIS-2030
AIS-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
60000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9kw HQD Spindle (Italy HSD for Optional)
Spindle Speed
0-24000RPM
Drive Motors
Digital TypeJapan Yaskawa digital servo motor and driver(Delta optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Taiwan SYNTEC 6MD bus type control system
Computer Interface
USB interface
Collet
ISO30
Inverter
Taiwan DELTA 11kw
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

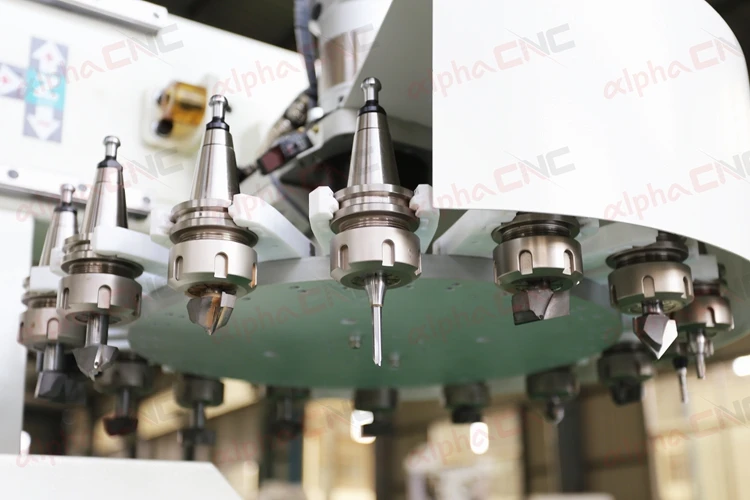

CNC Tool Rotary Carousel

The use of an 8-12 Tool Rotary Carousel speeds up tool changes assuring faster cycle times increasing production throughput.

Gantry

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

9kw High Frequency Automatic Tool Changer Spindle

The Alpha ATC CNC Rouer machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

Drive Motors

Brand: Yaskawa  Servo Motor
Origin: Japan

The Alpha Series CNC Router utilizes AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.

Drive Train Assembly

The Alpha Series uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

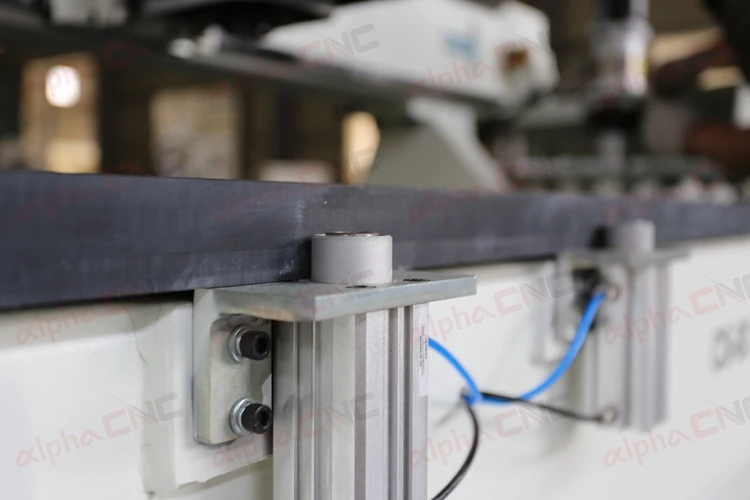

Pneumatic Material Alignment Stops

The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

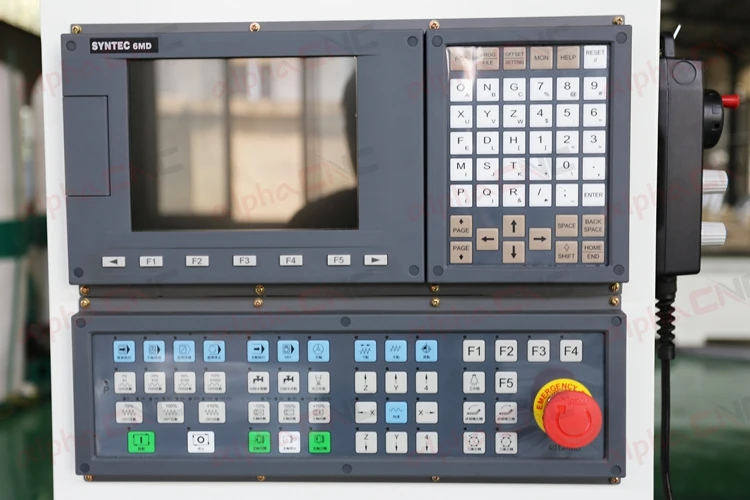

Control System

Brand: Syntec 6MD
Origin: Taiwan

Bus type, friendly interface, easy to learn to operate interface, accelerate the operation of learning.

Electrical parts

All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

Optional Parts

Becker Rotary Vane vacuum pumps

Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3700 (L) * 2280 (W) * 2100 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
