TAIAN BEACON PQ2000 auto electrical diagnostic tools common rail injector test bench

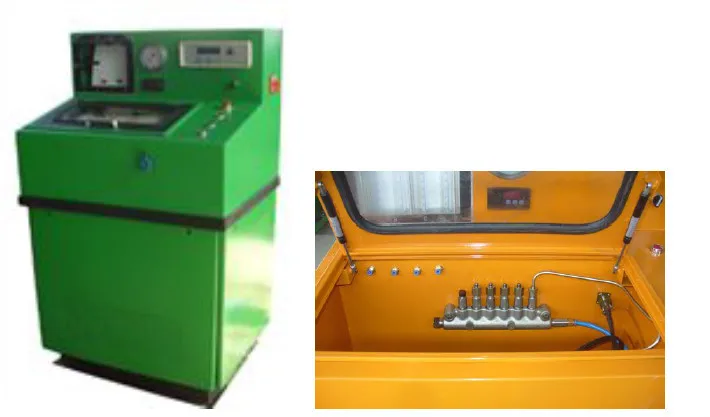

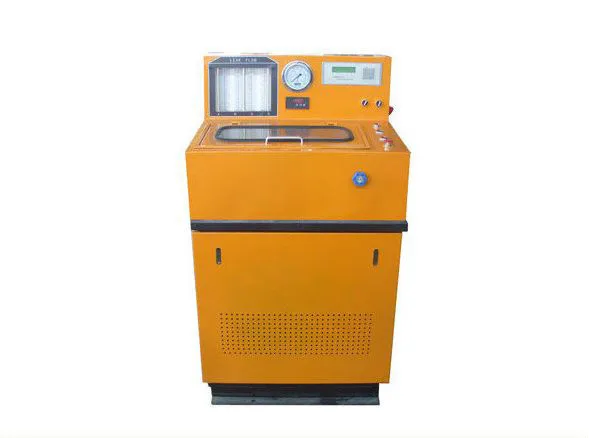

The PQ2000 common rail injector test bench
is applied for CR system repair in three aspects:
(1) To test if the CR injector is still function
To connect a CR injector to a high pressure fuel source by a high pressure fuel line, and to the CR tester
by harness. The tester is set to continuous injection mode. The CR injector is in normal condition, if it is
capable to inject fuel under the driving signals by the tester.
(2) To test injector spray atomization, To connect a CR injector to a high pressure fuel source by a high
pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow
observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.
(3) Checking the Injectors return oil and injection oil.
PQ2000 CRDI Common Rail Injector Test bench include two parts:
1. CR injector electronic tester( Common rail electromagnetic injector and piezoelectric injector)
2. Mechanical part
It can be used test the common rail injector—Bosch, Denso , Delphi.
l .Modulated driving signal to ensure the safety of the solenoid of the CRDI injector.
2.The frequency and the pulse width of the driving signal are user adjustable.
3.Short circuit protection for the output circuitry of the solenoid driving signal.
1. High pressure 0-1980bar
2. Check the injector starting pressure
3. Assessment of the injector spray fog quality
4. Inspeciton of the injector spray oil range
5. Check of the injector seal and angel
6. Check of the injector oil flow
7. The machine has fog dissipation convulsion device to improve the work condition.
8. It has the two garde filter to ensure the cleanliness of test.
9.The parameter of common rail injector ( fuel spray counts, frquency, pulse width, pressure etc..)
can be set willfully.
Standard export packing:Plywood package
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
