TBS2603 HDMI to IP H.265 H.264 hdmi encoder iptv streaming encoder for IPTV or OTT streaming Support RTSP/RTP/RTMP, HTTP, UDP

Feedback Ratings
  • 1-19 Units
    $199.00
  • 20-99 Units
    $179.00
  • >=100 Units
    $169.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TBS
Model Number:
TBS2603
Input:
1x HDMI (1.3a)
Xtream sever:
Support
Live Broadcast:
Support
Hotel IPTV System:
Support
Data Rate:
0.8Mbps~12Mbps
Encoding:
AAC, MP3
Sampling rate:
Auto
Rate Control:
CBR/VBR

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X16X6.6 cm
Single gross weight:
0.8 kg
Package Type:
Carton Packing
Lead Time :
Quantity(Unit) 1 - 10 11 - 100 >100
Est. Time(days) 2 10 To be negotiated
Product Description
What's TBS2603 HD H.264/H.265 HDMI encoder?

TBS2603 professional H.265 HDMI encoder is our newest HD audio & video encoding device with powerful functionality. It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.
Application

    IPTV
    Digital Signage
    Video Conference
    Replace HD Video Capture Card
    Hotel TV system
    Live Broadcast
    Teaching/Campus Broadcast
    Recording System; NVR (Net Video Recorder)
Product Features:

-- System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX

-- Support multiple equipments display at the same time on a computer

-- Support direct network connection without HD capture card

-- Support RTSP/RTP/RTMP, HTTP, UDP protocol and ONVIF

-- Main stream and secondary stream can use different network protocols for transmission

-- Encoding specification: BASELINE PROFILE (for H.264 and H.265) / MAIN PROFILE (for H.264 only)/ HIGH PROFILE (for H.264 only)

-- CBR/VBR rate control, 16KBIT/S~12MBIT/S

-- Web control interface

Video
Input
1x HDMI (1.3a)
HDMI Resolution
1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below
Encoding
H.264/AVC Main Profile/High Profile ; H.265/HEVC Baseline
Profile; Audio AAC
Data Rate
0.8Mbps~12Mbps
Rate Control
CBR/VBR
GOP Structure
IBBP
Advanced Pretreatment
De-interlacing, Noise Reduction, Sharpening
Audio
Encoding
AAC, MP3
Sampling rate
Auto
Bit-rate
48K/64K/96K/128K/160K/192K/256k
Sampling precision
16bit
Data Rate
64Kb/s ~ 384Kb/s
System
Ethernet/RJ45
1000 Base-T Ethernet interface
Protocol
HTTP, UDP, RTP, RTSP, RTMP
Control Interface
WEB

Why you should choose H.265?

--Downsize large HD videos with nothing lost

An HD video is usually very large in size, so converting the HD video to an H.265 video is the perfect solution to save space while remain the video quality.

--Convert DVDs/Blu-rays to H.265 videos for feasible playback

If you want to view a DVD or Blu-ray movie on your video player devices, you need to convert the movie to a specific video at first. Here you can use H.265 encoder to get a video with high video quality and relatively smaller size.

--Convert regular videos to H.265 for better video quality

You can convert regular videos in other formats to H.265 videos with better video quality, and the file size is not large.



H.264 VS H.265

Table below gives a good basic idea of what sorts of benefits H.265 can offer compared to H.264.


H.265/HEVC
H.264/AVC
Names
MPEG-H, HEVC, Part 2
MPEG 4 Part 10, AVC
Approved date
2013
2003
Progression
Successor to H.264/AVC
Successor to MPEG-2 Part
Key improvement
* 40-50% bit rate reduction compared with H.264 at the same visual quality
* It is likely to implement Ultra HD, 2K, 4K for Broadcast and Online (OTT)
* 40-50% bit rate reduction compared with MPEG-2 Part
* Available to deliver HD sources for Broadcast and Online
Support up to 8K
Yes
No. Support up to 4K.
Support up to 300 fps
Yes
No. support up to 59.94 fps only.

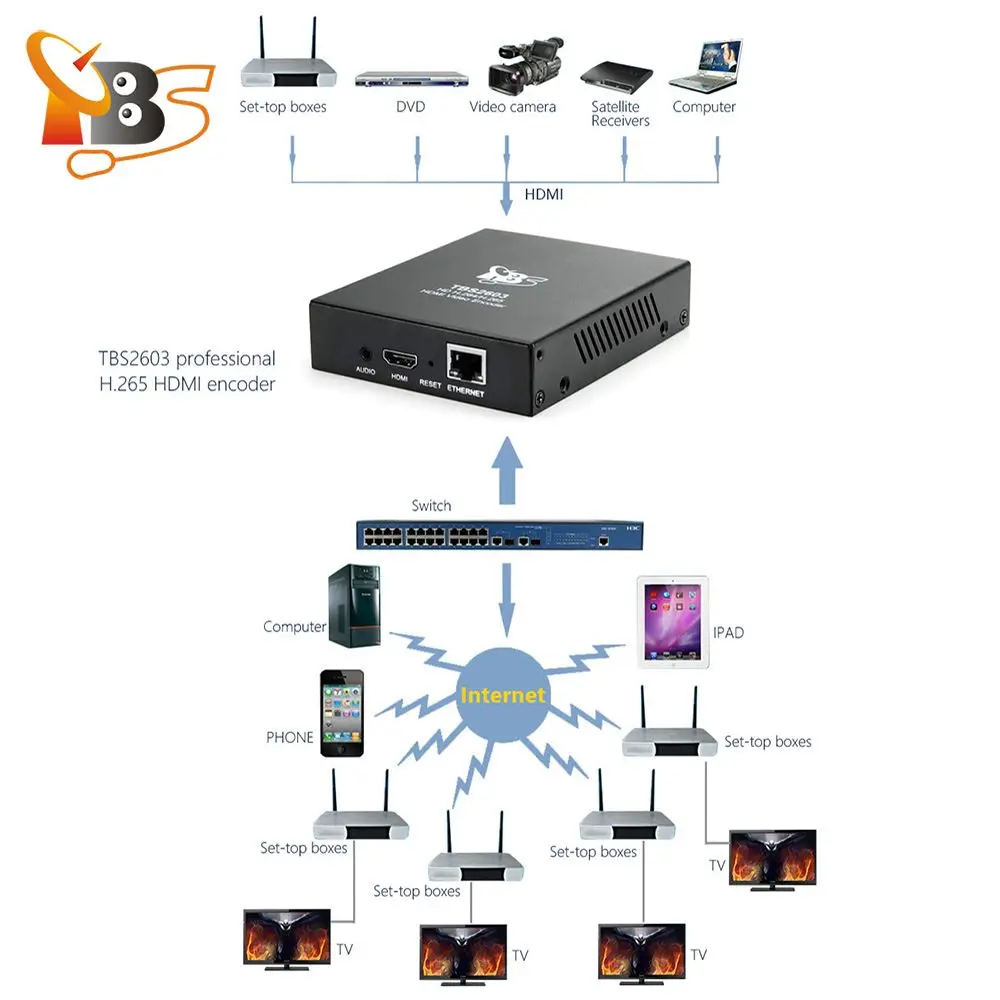

How TBS2603 Works?



Detailed Images
Our Company

TBS Technologies International Ltd. established in 2005, with headquarter in Shenzhen, China, focus on digital broadcasting region for 10 years, offers IPTV system solution, DVB (all standards) solutions for telecommunication and HD & SD video over IP Servers solutions.

Professional provider for digital TV Tuner card & IPTV streamer
Kylone IPTV Panel for Hotel &Coffee shop IPTV Solution
DVB-S2/S, DVB-C, DVB-T,ATSC, Multi-standard TV Tuner, HD encoder and Streaming Server
DVB-ASI / HDMI Capture Card ,H.265/H.264 video IP encoder
Your OEM/ ODM partner

TBS has an excellent R & D team with many years experience in providing a high degree of technology integration and development capabilities. We persist in seeking a breakthrough in technique and strive to provide wider space for designing and developing new products for our customers.

Founded in 2005, TBS has established an incredible worldwide network of distributors and resellers in Germany, Britain, Italy, France, Russia, Bulgaria, United States, Canada, Japan, Dubai, India and Australia. Over 60 partner countries and regions have started cooperation with us.

FAQ

Q1: How does your factory do regarding Quality Control?
A1: Quality is very important and always be put at the first place. Our team members always pay great attention to quality controlling from the very beginning to the end.
Inspections of each step will be done during the production process.

Q2: Can I get some Samples?
A2: Yes, sure, we are honored to offer you samples to test, but sample is not free.

Q3: What is your Delivery date and method of Transportation?
A3: All goods in stock , just need 100%QC testing and Aging testing again before delivery.So delivery within 2~7 days after confirm payment !
We deliver goods via International Express like FedEx, UPS, DHL, TNT, EMS etc, take 3-6 days to your address!

Q4: Could you please make OEM for us?
A4: Surely yes. We provide the service of replacing your logo and company name on box and software interface of the device.

Q5: What's your Payment method supported?
A5: We accept T/T, Paypal, Western Union, MoneyGram , Alibaba Trade Assurance etc.

Q6: What about your Warranty?
A6: It's 1 year warranty for free repair or replacement.
