TBS6004 DVB-S/T, ISDB, IP to 4 QAM DVB-C modulator PCIe card with free generating software (ETSI EN 300 429/ITU-T J.83A/C)

  • 1-2 Units
    $650.00
  • 3-9 Units
    $620.00
  • >=10 Units
    $580.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Units)
Customized packaging (Min. Order: 500 Units)
Contact Supplier
Samples - $650.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TBS
Model Number:
TBS6004
Inputs signal:
DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or IPTV resources
Output:
DVB-C (ETSI EN 300 429/ITU-T J.83A/C) in 4 frequencies
Output Audio codecs:
AAC, MP3
Frequency range:
100 ~ 1000 MHz
Symbol rate:
2000 ~ 7200kbps
FEC:
16QAM,32QAM,64QAM,128QAM,256QAM
Max bit rate:
53Mbps/per channel
Software:
Free generating software

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X14X5 cm
Single gross weight:
0.5 kg
Package Type:
carton
Picture Example:
package-img
Lead Time :
Quantity(Unit) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description

TBS6004 4 QAM DVB-C modulator PCIe card with free generating software (ETSI EN 300 429/ITU-T J.83A/C)


Overview:

TBS6004 is a DVB-C 4 QAM modulator PCIe card, working as a DVB-C signal generator. It supports to be fed with any DVB resource or other digital resources, and then output DVB-C channels in 4 Frequencies. For example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and then use TBS6004 modulator card converting these channels into DVB-C coaxial system. TBS6004 is equipped with a Loop-in interface, which allows to receive DVB-C resources from other devices, and then remix all the different resources into a new DVB-C coaxial system.

TBS6004 provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or even IPTV resources into an existing DVB-C Coaxial system in hotels, hospitals, or dormitories.


Specifications:
Available Inputs
DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or IPTV resources
Outputs
DVB-C (ETSI EN 300 429/ITU-T J.83A/C) in 4 frequencies
Frequency range
100 ~ 1000 MHz
Symbol rate
2000 ~ 7200kbps
Channel bandwidth
8 MHz
Level
5-120
FEC
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Max bit rate
53Mbps/per channel
Working Temperature
-40°~85°
Power
12V/9W
System Requirements
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Package Contents
1 * TBS6004
1 * low profile bracket
F-IEC connector
Packing:
Dimensions/Weight:
130mm * 68.7mm, 0.5KG/unit

How does TBS6004 work?

TBS6004 DVB-C modulator is designed to convert MPEGT which generated from TBS DVB-S/S2 card, DVB-T/T card, network IP, or local SPTS file to DVB-C signal. Then you can use DVB-C STB to receive and play the channels directly.

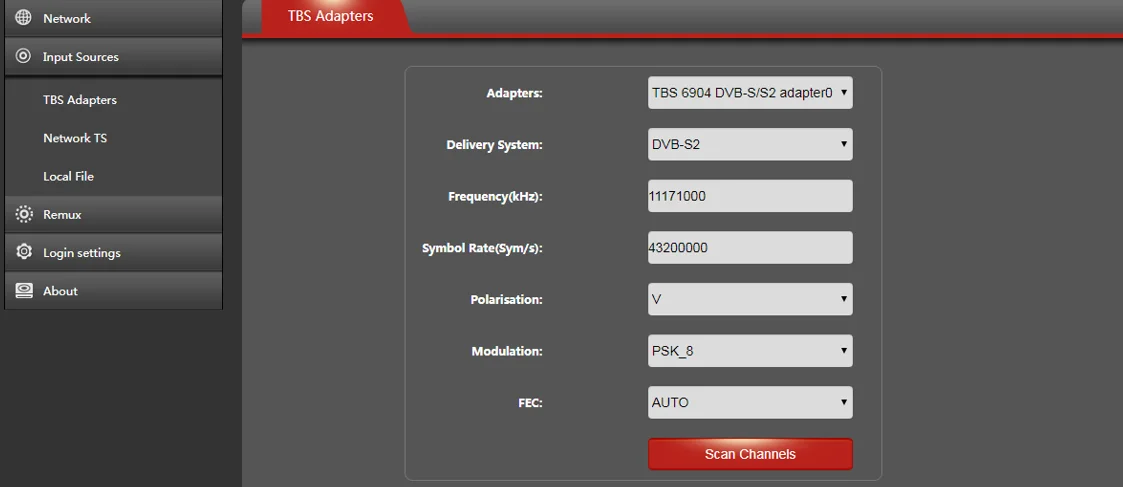

1.Configure input source:

TBS Adapters --- Only DVB-S2/S Card supported currently.

Network TS --- HTTP, UDP, RTP supported

Local Files (SPTS) --- Video format: MPEG-1 MPEG-2 MPEG-4 H264 H.265

Audio format: MPEG-1 MPEG-2 AAC_ADTS AAC_LATM A52 (aka AC3)

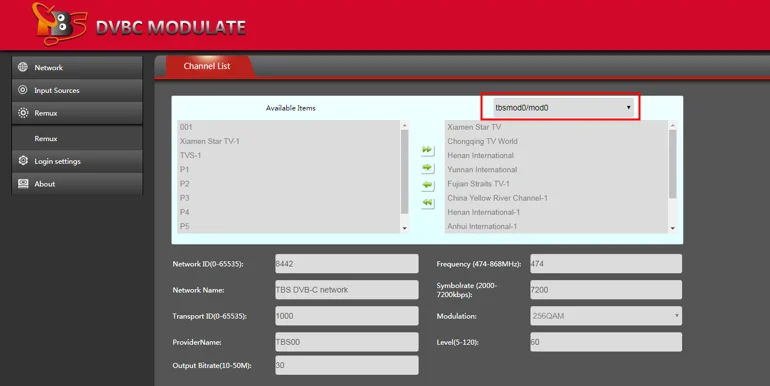

2. Remux and generate the channels into DVB-C streams

A TBS6004 has 4 modulators. As long as the first mod is set with frequency, the other mod will be set automatically by adding 8M one by one.
