TBS6504 Quad Tuner dvb s2 fta satellite receiver pci-e dvb-t2 tuner tv card ISDB-T DVB-C capturing card for IPTV streaming

  • 1 Units
    $239.00
  • 2-4 Units
    $235.00
  • 5-99 Units
    $230.00
  • >=100 Units
    $198.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Units)
Customized packaging (Min. Order: 500 Units)
Contact Supplier
Samples - $230.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TBS
Model Number:
TBS6504
IPTV Streaming:
Yes
Media Monitoring:
Yes
Fast Scanning Function:
Yes
Blind Scan:
Yes
Tuner:
2 tuners
interface:
PCI-e
Digital TV Signal:
DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-2X and ISDB-T
TS Data Rate:
Up to 173M/bps
VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK:
Support
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X16X4 cm
Single gross weight:
0.7 kg
Package Type:
paper box
Picture Example:
package-img
Lead Time :
Quantity(Unit) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description

TBS6504 Quad Tuner DVB Digital TV  PCIe card DVB-T DVB-C DVB-S DVB-S2X ISDB-T receiver Multistand TV receiver for IPTV streaming

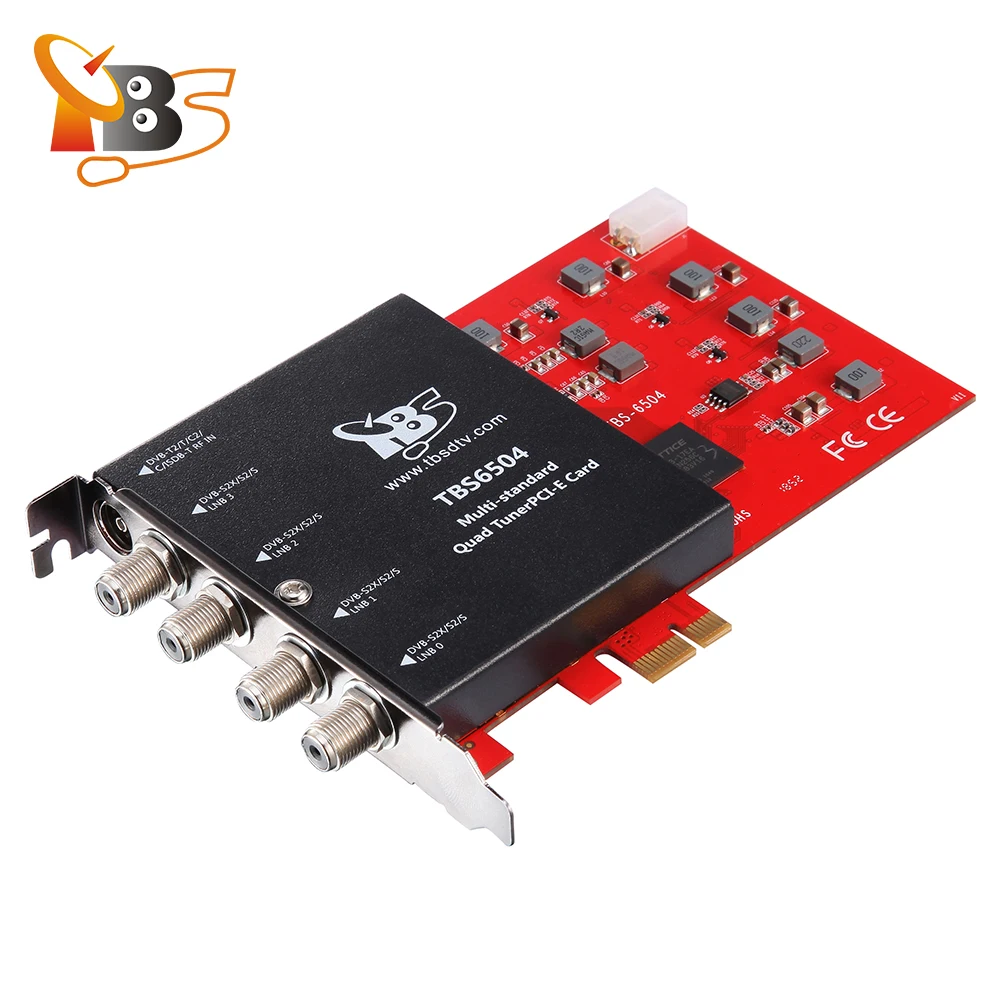

TBS6504 is a Quad PCI express TV tuner card which supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C/ISDB-T. With a switchover between different digital TV signals, TBS6504 multi-standard TV tuner card allows to switch the signals by simply changing the signal cable and switch over the signal mode in application.

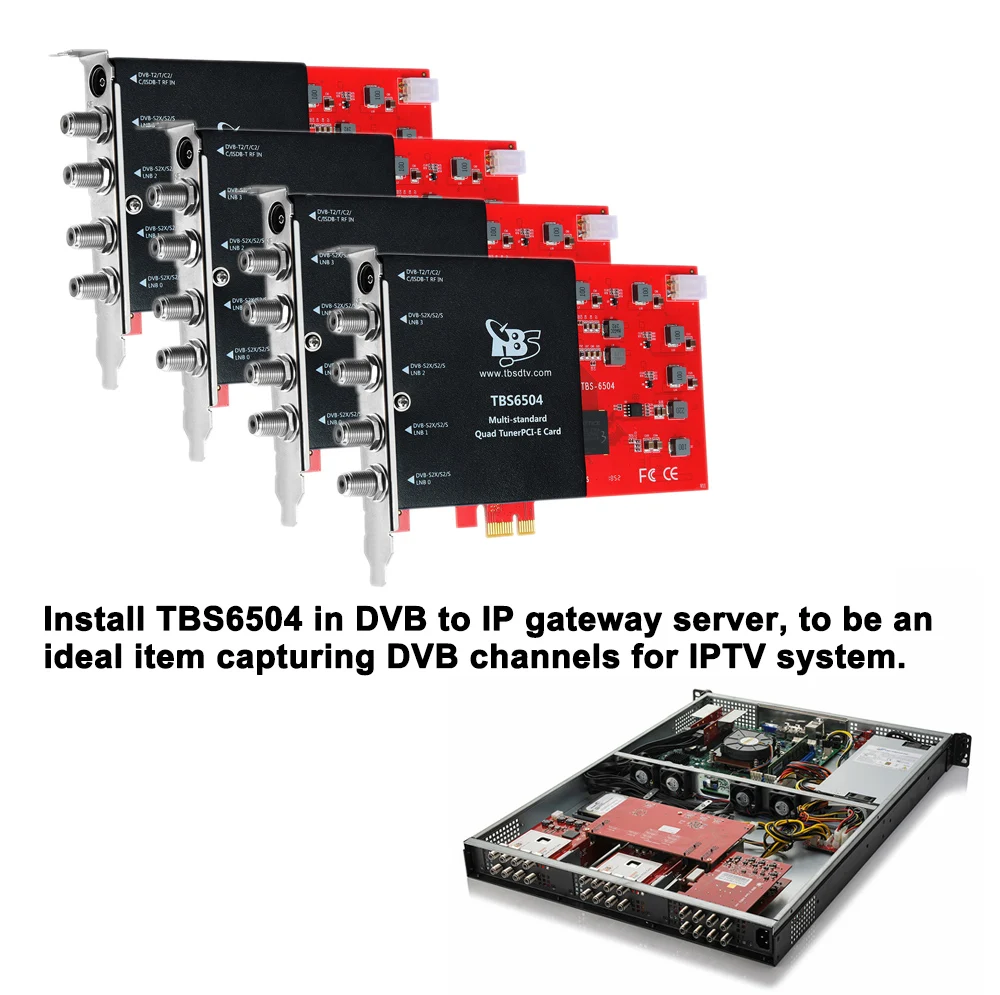

Four DVB-S/S2/S2X inputs and a DVB-T/T2/C/ISDB-T input are independent with each other, and they will enable you to capture TV channel from four transponder/frequencies simultaneously. This makes TBS6504 to be an ideal choice for IPTV headend server which is used to capture TV source.


Main Features:

> Support DVB-S2/S DVB-T2/T DVB-C ISDB-T
> Fast scanning functionality for all media, including efficient bliand scan for satellite and cable
> Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK
> Up to 173M/bps(TS Data Rate)
> Supportable maximal symbol rates: 45M for 8PSK,16APSK, 40M for 32APSK
> Power consumption (each demod):<440 mW in DVB-S2 modes; 360 mW in DVB-T2 modes; <190mW in ISDB-T, DVB-T, and DVB-C modes
> Automatic spectral inversion detection for all media
> Dual flexible TS interfaces with serial or parallel single outputs with tri-state and cross-bar features
> 3.3 and 1.2V power supplies

Specifications:

ISDB-T
COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-Lite
Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC: QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2
COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B
QAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/S2/S2X
FEC:(DVB-S/S2)
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
FEC:(DVB-S2X)
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/18
8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK: 2/3
4_8_4_16_APSK: 128/180, 132/180, 140/180
Power consumption
Input/ Power:
12V/6~18W
temperature
0°~ 60°
Other information:
System Requirements
Windows XP / Vista/ 7/8/10, Linux
PCIe slot
Available PCI Express x1, x4, x8 or x16 slot
DVB Signal
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)

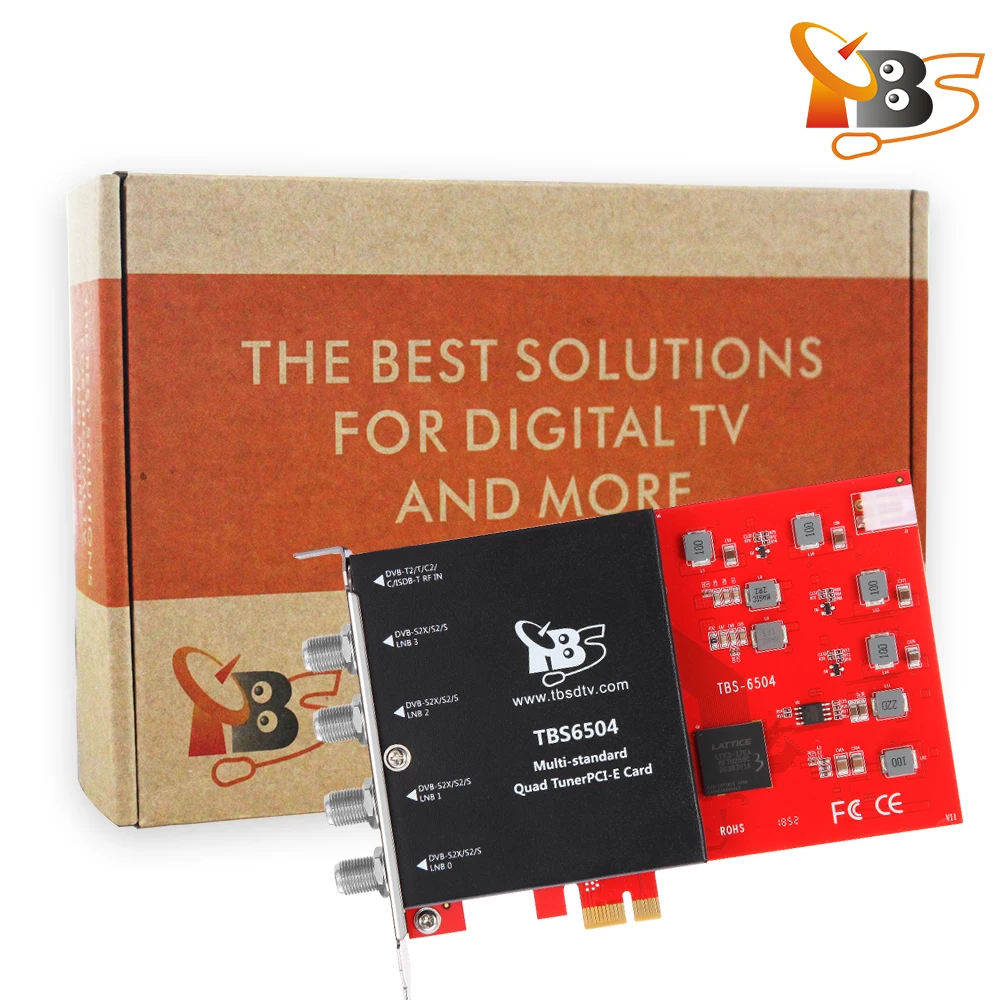

Package Contents
1 x TBS6504
1 x DC cable
2 x F-IEC adapter
Detailed Images
Packing & Delivery






Dimension:


18*16.5*3.5CM

Net weight: 0.7kg


20 units / CTN


36*35*23cm / CTM
