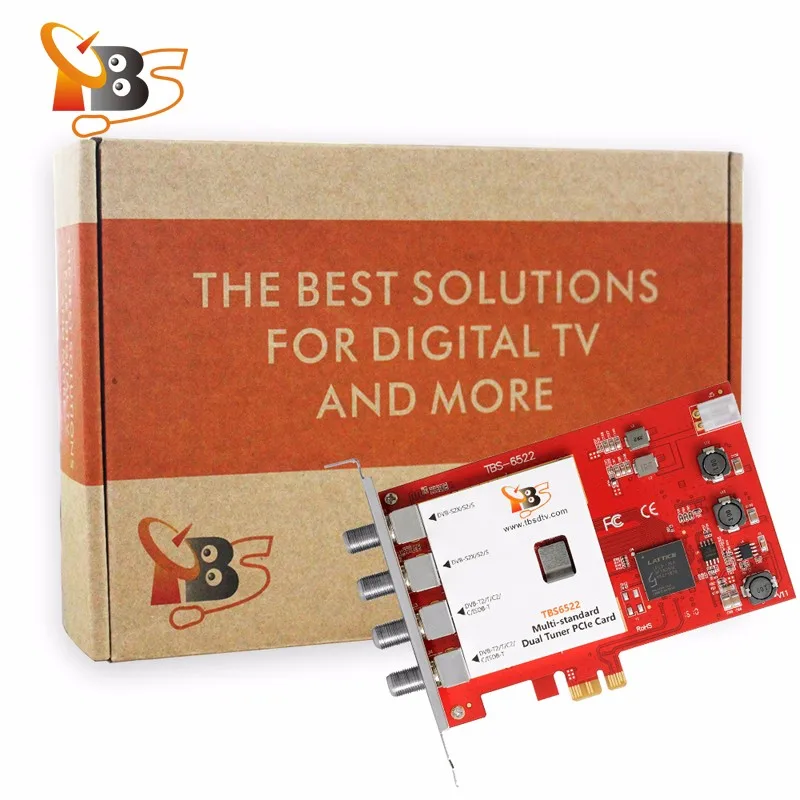

TBS6522 Dual Tuner DVB Digital Satellite Receiver DVB-T DVB-S ISDV-T receiver Multistand tuner receiver.

  • 1 Units
    $157.00
  • 2-4 Units
    $153.00
  • 5-499 Units
    $149.00
  • >=500 Units
    $99.99
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
TBS
Model Number:
TBS6522
IPTV Streaming:
Yes
Media Monitoring:
Yes
Fast Scanning Function:
Yes
VCM, CCM, ACM:
Support
Blind Scan:
Yes
Tuner:
2 tuners
interface:
PCI-e
Digital TV Signal:
DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-2X and ISDB-T
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X16X3 cm
Single gross weight:
1.0 kg
Lead Time :
2
Product Description

TBS6522 Dual Tuner DVB Digital Satellite Receiver DVB-T DVB-S ISDV-T receiver Multistand tuner receiver.

Main Features:

Support DVB-S2/S DVB-T2/T DVB-C ISDB-T

Fast scanning functionality for all media, including efficient bliand scan for satellite and cable

Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;

Up to 173M/bps(TS Data Rate)

Supportable maximal symbol rates: 45M for 8PSK,16APSK, 40M for 32APSK

Power consumption (each demod):<440 mW in DVB-S2 modes; 360 mW in DVB-T2 modes; <190mW in ISDB-T, DVB-T, and DVB-C modes

Automatic spectral inversion detection for all media

Dual flexible TS interfaces with serial or parallel single outputs with tri-state and cross-bar features

3.3 and 1.2V power supplies



Applications:

Data receiving

IPTV streaming

Media monitoring

Digital content distribution



Specifications:

ISDB-T
6,7 and 8 MHz bandwidth
Partial reception supported
Carrier recovery:±600 kHz
Timing recovery:±200 ppm
DVB-T2 and T2-Lite
Bandwidth: 1.7, 5, 6, 7 or 8 MHz
DVB-T2 versus DVB-T automatic detection
Carrier recovery: ±600 kHz
Timing recovery: ±200 ppm
DVB-T
Bandwidth: 6, 7, 8 MHz. ACI filtering for 7 MHz channels enables use of a fixed 8 MHz IF filter
Carrier recovery: ±600 kHz
Timing recovery: ±200 ppm
Supports all C.R.; G.I.;LP and HP streams
Advanced terrestrial channel equalizer
DVB-C2
Notch management
Timing recovery:±200 ppm
Advanced cable channel equalizer
DVB-C and ITU-T J.83 Annex B
DFE equalizer specific for cable network
Carrier recovery: ±11% of Symbol rate
Timing recovery: ±1000 ppm
DVB-S/S2/S2X
Enhanced immunity to co-channel interferers
Programmable carrier recovery range
Timing recovery: ±1000 ppm
Power consumption
Input/ Power:
12V/6~18W
temperature
0°~ 60°
Other information:
System Requirements
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
Dimension:
TV tuner card size
130mm*92mm
Net weight
115g
Gift Box Size
200*130*30mm
Weight
210g
Package Contents
1 x TBS6522
1 x DC cable
2 x F-IEC adapter
Detailed Images
Packing & Delivery

Dimension: 482mm*320.2mm*108mm

Net weight: 15kg

temperature -20℃+ 60℃
