TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder All in One IPTV Sever for Streaming Transcoding Encoding

  • 1 Units
    $3,500.00
  • 2-9 Units
    $3,300.00
  • >=10 Units
    $3,000.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TBS
Model Number:
TBS8510
Input interface:
RJ45 1000M Base-T2 2xPCI-E slot
Video codecs:
MPEG-2, AVC / H.264, HEVC / H.265
Output types:
UDP, RTMP, HTTP, HLS(ABR), Media Files
Rate Control:
CBR/VBR
Size:
1U
Input Net Stream:
UDP, RTP, HTTP, HLS, Media Files
Input Signal:
DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI
Audio codecs:
AAC

Packaging & Delivery

Selling Units:
Single item
Single package size:
59.2X43.8X5.3 cm
Single gross weight:
22.0 kg
Package Type:
Carton box
Lead Time :
Quantity(Unit) 1 - 3 >3
Est. Time(days) 5 To be negotiated
Product Description

TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder All in One IPTV Sever for Streaming Transcoding Encoding


TBS8510 is a real-time multi-channels/format transcoder server, which supports to convert media files from their source format into the best-possible-quality streams to each user's specific device. It allows to convert streams to any MPEG-2, MPEG-4 or H.264/H.265 format, bitrate and resolution.


TBS8510 real-time transcoder is a cost-effective IPTV/OTT headend server, as it supports 20 HD channels or 40 SD channels transcoding, with protocol of UDP, RTP, RTMP, HTTP, HLS, and Media Files.

Based on the powerful hardware, TBS8510 real-time transcoder enables to deliver impressive images to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming and so on.

TBS8510 can be easily managed through NMS system and has become an ideal solution for operator to provide high quality video transcoding. It is a real multi-channel/formal transcoding server which answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks.


Key Features:


* High performance transcoder supports to convert up to 20*Full HD or 40*SD profiles.


* Multiple inputs available: DVB/S2/S/T2/T/C, ISDB-T, HDMI, ASI or IP.

* Optimized for 1000Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.

* Supports HEVC / H.265 transcoding.

* Baseline, main profile and high profile with variable GOP.

* Multiple codec, Protocol, Bitrate Resolution, Profile per channel.

* GbE IP output: UDP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist files.

* Flexible GOP structures with Reference-frame and B-frame edit.

* Frame rate down and up conversion.

* High quality pre-processing including filtering, deinterlacing, cross scaling, image insertion.

* Support variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency.

* Based on embedded Centos 7 Linux.

* DVB Subtitle and Logo insertion.

* Parameter templates settings and imports

* Easy configuration via Web UI

* Designed for secure 24*365 operation


Specications:

Size
2U

Input interface
2xRJ45, 1000M Base-T2
2xPCI-E slot
Input
Input Signal
DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI
Input Net Stream
UDP, RTP, HTTP, HLS, Media Files
Video codecs
MPEG-2, AVC / H.264, HEVC / H.265
Resolution
1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,704x576
Audio codecs
AAC, MP2, MP3, AC-3
Output
Output types
UDP, RTMP, HTTP, HLS(ABR), Media Files
Video codecs
MPEG-2, AVC / H.264, HEVC / H.265
Resolution
1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
Audio codecs
AAC
Rate Control
CBR/VBR
Transcoder
up to 80 SD / 30 HD1080 AVC(H.264) streams
up to 50 SD / 26 HD1080 HEVC(H.265) streams
Power Consumption
Power Consumption
Dimensions
59.2X43.8X5.3 cm
Weight

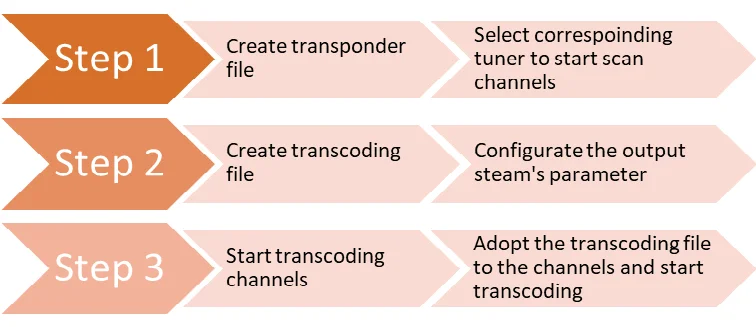

How to scan and log DVB-S2/S channels and transcode the channels to low bitrate?

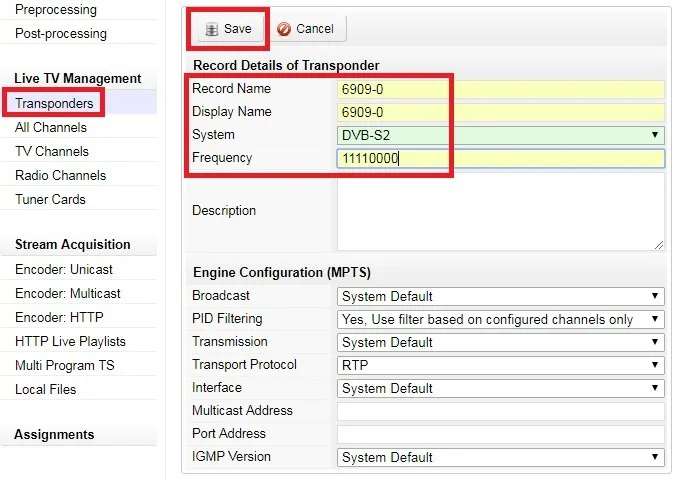

Step 1. Create transponder file and select corresponding tuner to start scan channels.
> Navigate to "Content" → "Transponders"

> Select corresponding tuner input for the transponder and start scan the channels.
> After scanning, all the channels will be listed in "All Channels".

Step 2: Create transcoding file
> Navigate to "Content" → "Post-processing"
> "HW Acceleration Auto" can choose Node 1 or Node 2, because TBS8520 has 2 available acceleration.
> "Input Video Codec" for DVB-S2/S channels should be H.264/MPEG-4
>Output Video/Audio Codec should be configurated according to your system requirements.
> Click "Save" to finish the step.

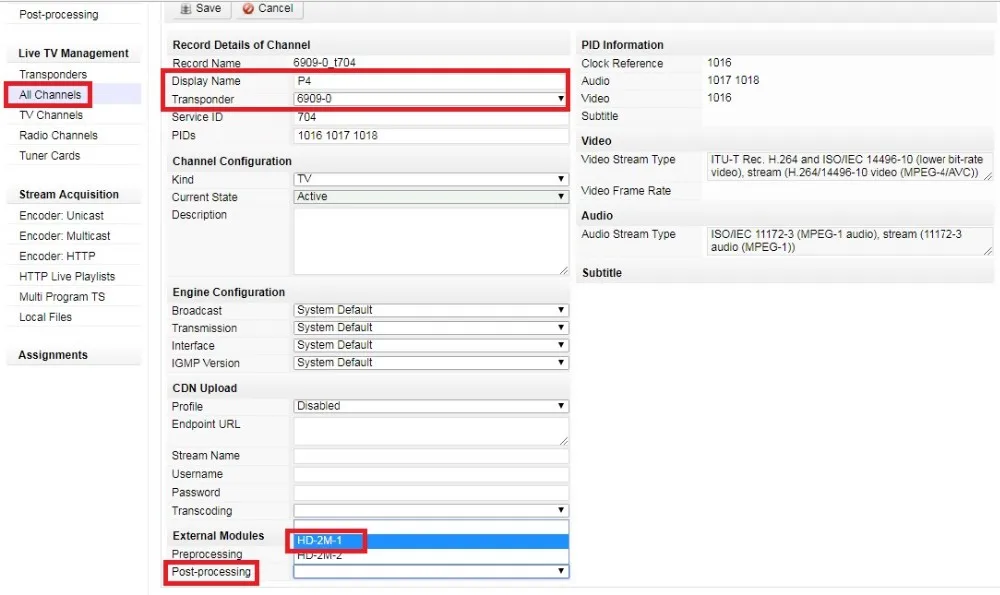

Step 3: Adopt the transcoding file to the channels and start transcoding
> Check the channels list from "Content" → "All Channels"
> Double click the channel you want to compress
> Choose corresponding "transcoding file" in "Post-processing" for the channel.

Step 4, Commit the configuration
> Navigate to "Content" "Settings", tick "Restart Media Server" and click "Commit"
> After TBS8520 restars, the selected channels will be transcoding and streaming.

Detailed Images
Packing & Delivery

Dimension: 64cm*58cm*25cm
Net weight: 17kg
temperature -20℃+ 60℃


We usually ship goods via International Express like FedEx, UPS, DHL, TNT, EMS etc, which will take 3-7 days to deliver!

Our Comany

TBS Technologies International Ltd

TBS Technologies is one of the leading providers for cost-efficient IPTV headend solutions, a company which specializes in developing, producing and marketing of IPTV streamers, HDMI encoding device and digital TV tuner cards for PCs. We are committed to providing customers with high quality products. With years of unremitting efforts, TBS has become one of the worldwide leaders in production of IPTV headend provider.


Our main products include IPTV streaming server, professional HDMI encoder , PCIe DVB-S2 TV Octa/Quad tuner devices, PCIe DVB-S2 Dual TV tuner cards, PCIe DVB-S2 TV tuner CI receivers, USB DVB-S2 TV tuners CI box, USB DVB-S2 TV Box with blind scan, DVB-C TV tuner USB boxes, DVB-C digital Cable TV CI box and so on.


TBS has an excellent R & D team with many years experience in providing a high degree of technology integration and development capabilities. We persist in seeking a breakthrough in technique and strive to provide wider space for designing and developing new products for our customers.
