TGM-130 Soybean Grinding and Separating Machine/Soybean Grinding Machine/soya milk machine

  • 1-4 Sets
    $450.00
  • >=5 Sets
    $400.00
Model Number:
TGM-130
Type:
Soybean Machinery
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Tiangang
Voltage:
220v/50Hz, 220v/50Hz
Power(W):
1500w
Weight:
45kg, 45kg
Dimension(L*W*H):
360*480*880mm
Certification:
ce
Warranty:
1 year
After-sales Service Provided:
Online support
Material:
Stainless Steel
Capacity(soybean):
35-65kg/h
Power:
1500w
Speed:
2880 R.P.M
Filter:
100 mesh
Diameter of grinding stone:
125mm
Material of grinding stone:
white corundum
Dimension:
360*480*880mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
38X42X102 cm
Single gross weight:
53.0 kg
Package Type:
wooden cases
Lead Time :
Quantity(Set) 1 - 20 >20
Est. Time(days) 10 To be negotiated
Product Description

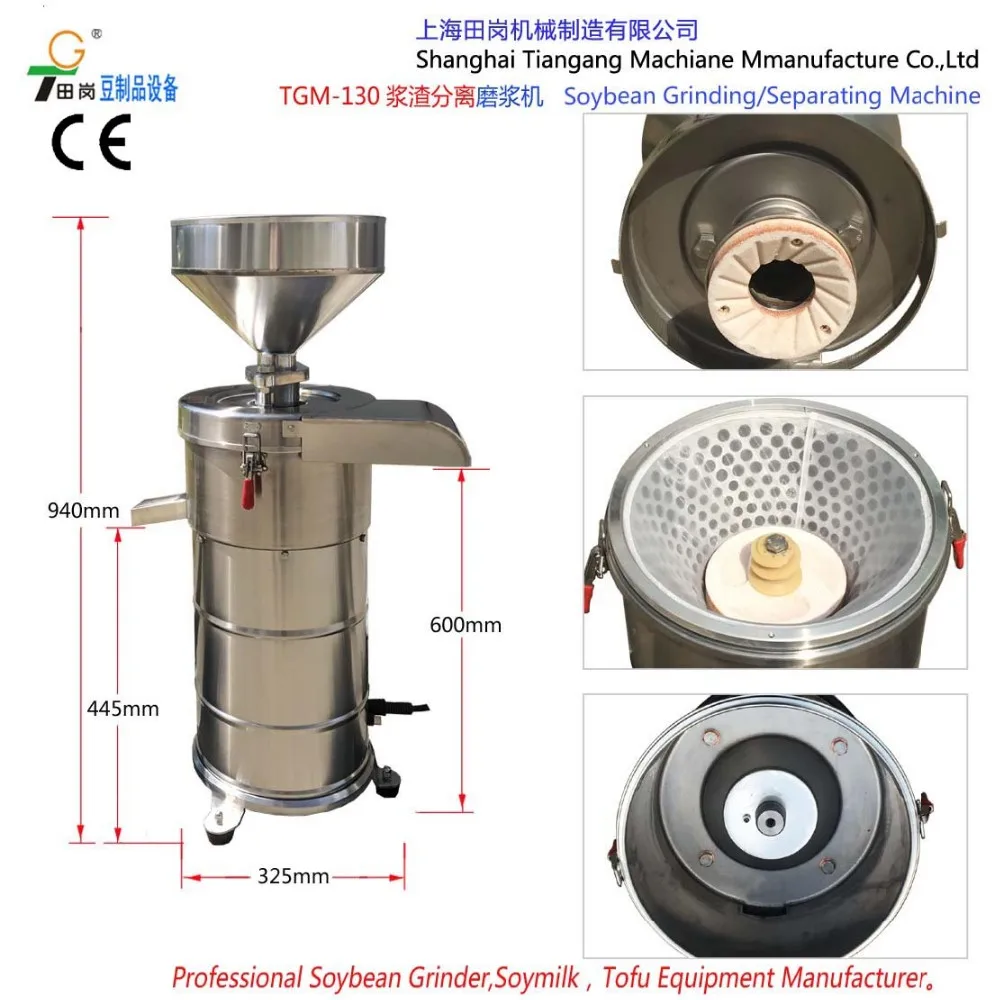

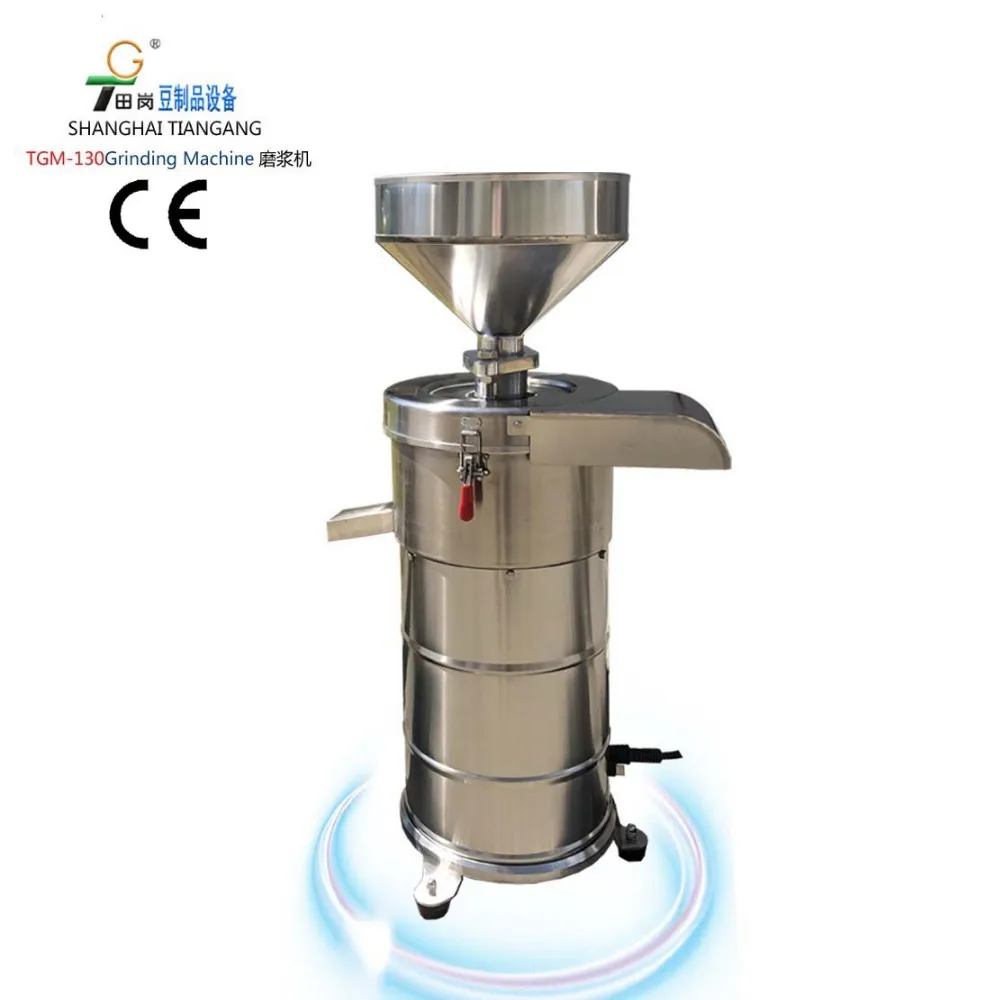

TGM-130 Soybean Grinding and Separating Machine/Soybean Grinding Machine/soya milk machine

Soybeans grinder machine. Suitable for make soy milk, tofu etc. Application to the unit canteens, restaurants and small food processing plants.
Made of Stainless Steel Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.

Main Features

1) Unique material door mechanism and special waterproof device for grinding and motor, which effectively solves the leakage problem of equipment.


2) The well-designed honing can make the slurry flow smoothly, less material accumulation and convenient cleaning.


3) Practical and unique coarse and fine pitch adjustment mechanism, convenient adjustment and reliable locking.


4) The specially formulated edible sand tablets have long service life and high output .


5) Clean and sanitary, the entire working flow path from feeding, grinding to discharging is made of all stainless steel .

Technical Data
Voltage
Motor Power
Output
(Soybean)
Diameter of the grinding stone
Weight
Size
TGM-100
220V 50Hz
750w
15-30Kg/H
95mm
22Kg
270*360*730mm
TGM-130
220V 50Hz
1500w
40-65Kg/H
125mm
40Kg
360*480*880mm
TGM-200
380V 50Hz
5kw
80-175Kg/H
200mm
95Kg
480*600*1150mm
M-18
220V 50Hz
1.5HP
20-45Kg/H
100mm
36Kg
468*353*980mm
F-16
220V 50Hz
2HP
50-135Kg/H
120mm
56Kg
510*426*1085mm

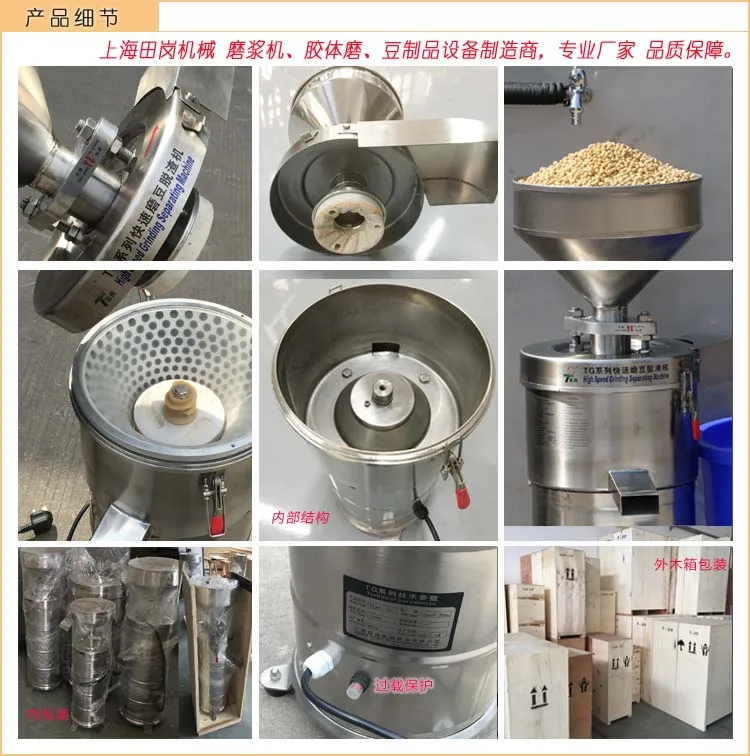

Detailed Images
Related Products






Our Company

Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
