TRSQ380B press dryer water dehydrator plastic films squeezer

Feedback Ratings
  • 1 Sets
    US $12500.00
  • >=2 Sets
    US $12000.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Application:
Plastic Recycling, PP,PE films,woven bags squeezer
Automatic Grade:
Automatic
Production Capacity:
800-1000kgs PER HOUR
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TURUI
Model Number:
TRSQ380B
Voltage:
380V 50HZ
Power(W):
22kw
Dimension(L*W*H):
4000*1800*3800mm
Weight:
2300kgs
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Capacity:
800-1000KGS PER HOUR
Motor Power:
22KW
Working principle:
screw squeeze dehydrator and hydraulic press
Hydraulic station:
with 2.2KW
Screw Diameter:
380MM
Color:
Metalic Purple and grey
Control Panel:
Siemens PLC touch screen
Function:
Dehydrating water from films

Packaging & Delivery

Selling Units:
Single item
Single package size:
4000X1800X1800 cm
Single gross weight:
2300.0 kg
Package Type:
PLASTIC FILMS
Lead Time :
2
Product Description

TRSQ380B press dryer water dehydrator plastic films squeezer

LDPE LLDPE HDPE Films,PP films,PP bags are very hard to dehydrate its water after washing.The SQ series squeezer is designed to use  as  dry the plastic film material by squeezing mechanically.

Processes 500 kg to 1500 kg per hour proportional to the system capacity.by different models.
Extruder type reducer is used depending on the system capacity.
By transferring the dirty material to the squeezing machine after the washing phase the humidity of the material is minimized via the squeezing method and therefore energy comsumption for the second phase at the agglomeration machine is minimized.
Made of heavy duty steel and sheets completely by gas welding manufacture.
The squeezing machine is enviromentally protected with protection panels in order to prevent any danger arising around the machine for a number of reasons.
Our machines have TSE, Warranty Certificate,After Sales Compliance Certificate and CE certificate

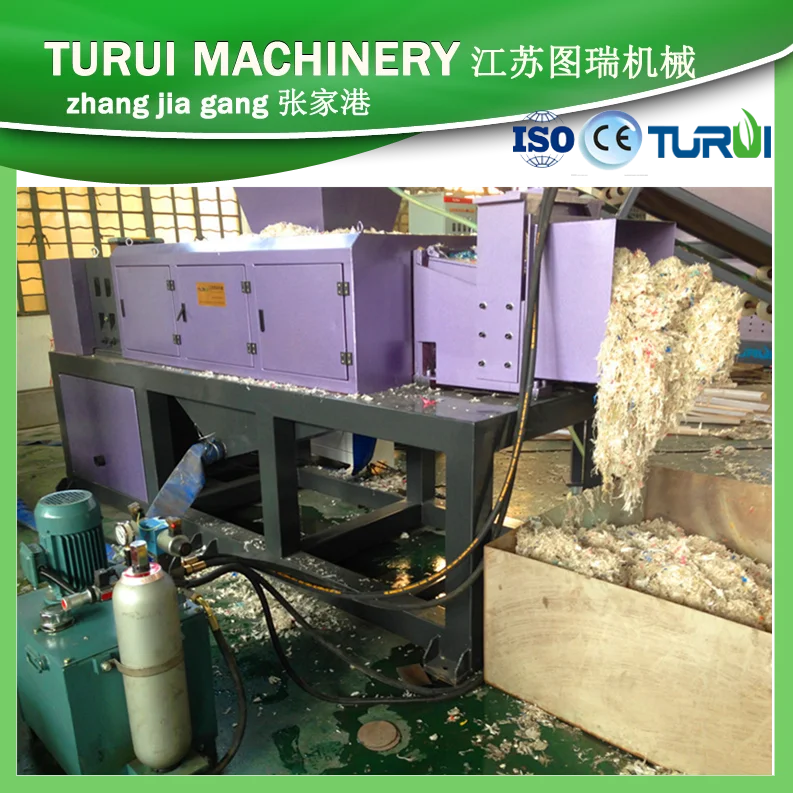

Working Principle

a)This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;
b)It is equipped with a electric control cabinet, feeder mouth is easy to control the drying effect;
c)This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past.
d) Instead of the dewatering machine,and hot blow dryer in the recycling line.

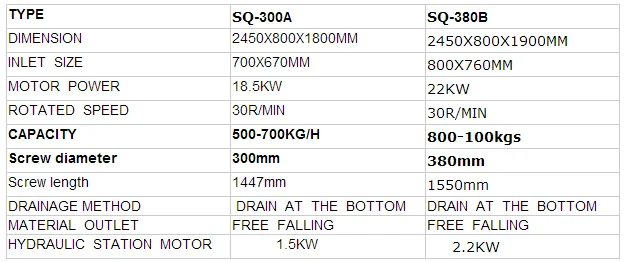

technical parameters
Certifications
Factory

Turui Machinery specially work for independent research and development of plastic extrusion RECYCLING technology.pelletizer,washing line,recycling line,dehydrator,press dryer water dehydrator plastic films squeezer,PVC profiles,like pvc panels,pvc sidings,pvc ceilings,pvc corners,pvc doors, WPC products,like PE WOOD decking,pvc wood sidings.PVC ,PE,PPR PIPES,Corrugated pipes,plastic stone corners.


Turui Machinery is also professional in plastic recycling machines,plastic pelletizing lines,pp pe pet washing recycling lines,plastic shredder,plastic crushers,agglomerators and etc.

Turui pelletizer engineers will design machine according to your raw materials, give advice which plastic pelletizer is good for you. According to different raw materials characters,there are different types pelletizer for choice,such as water cooling strand pelletizer,air cooling strand pelleizer,water ring pelletizer, rub face hot cut pelletizer.

Turui is an innovation high tech company,always keep focus on plastic recycle.

technology research,like pe pp recycling machine, ABS recycling plant,PET washing recycling line, plastic pelletizer for PE PP films,BOPP films,HDPE flakes,ABS,PA,PVC, XLPE,EPS etc.

Packing & Delivery

We packed and fastened the plastic films squeezers very well.

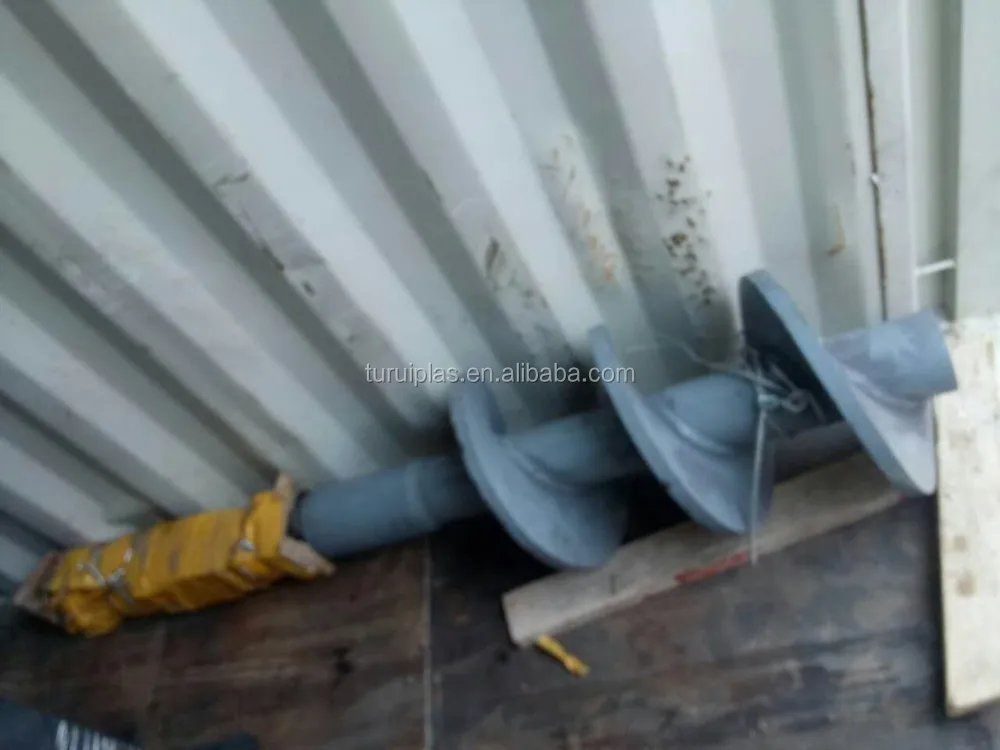

Client ordered another piece of screw for spare use.

Related Products

We are orininal manufacturer.

We have a lot in stocks.We are good at squeezer.

projects in Ukraine

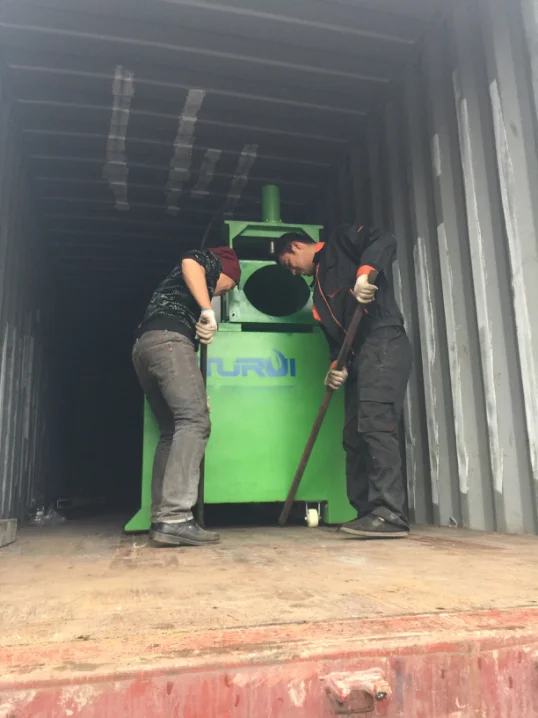

Delivered to Container

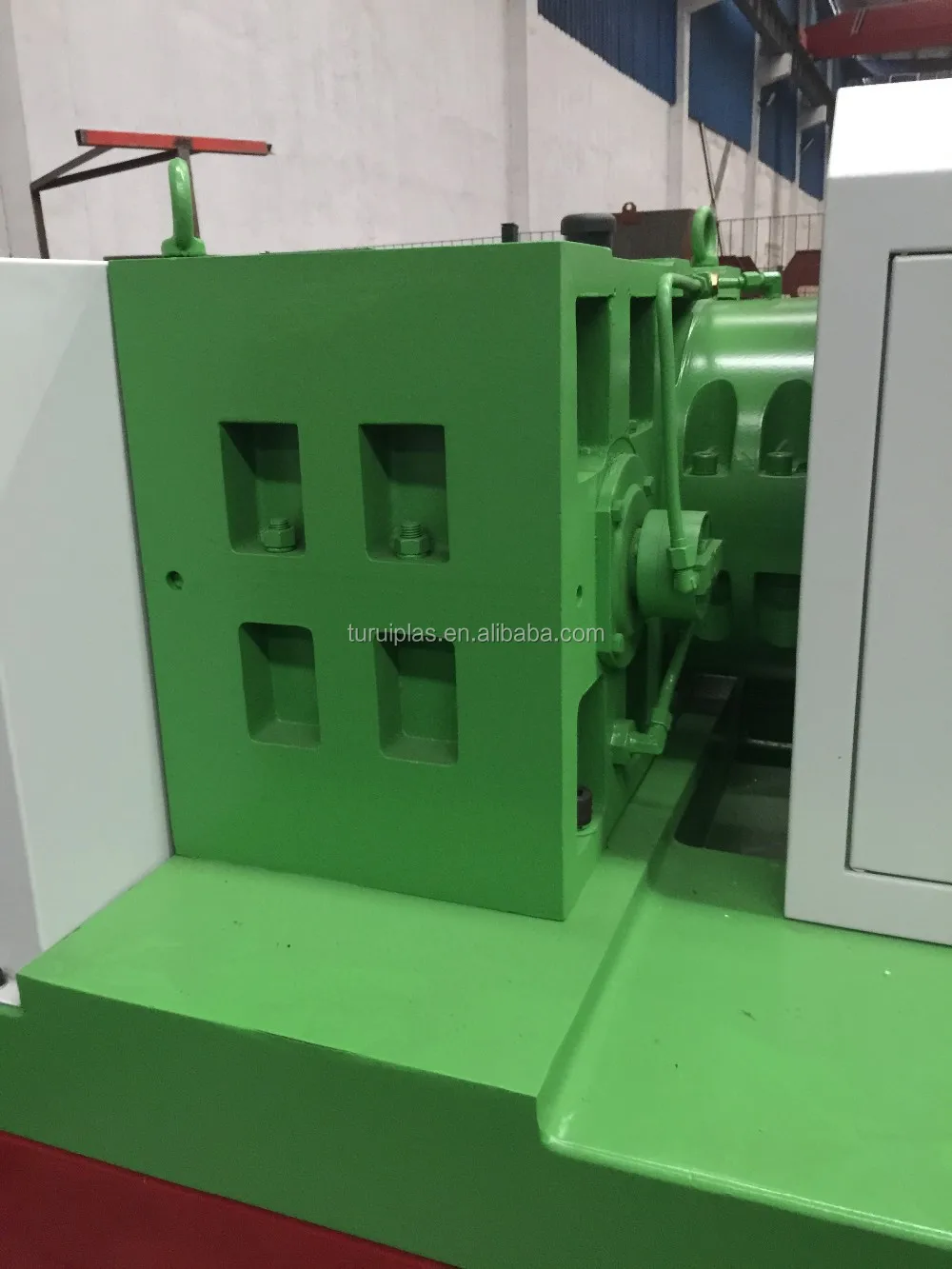

We are using harden teeth gearbox.

Guarantee high torque output

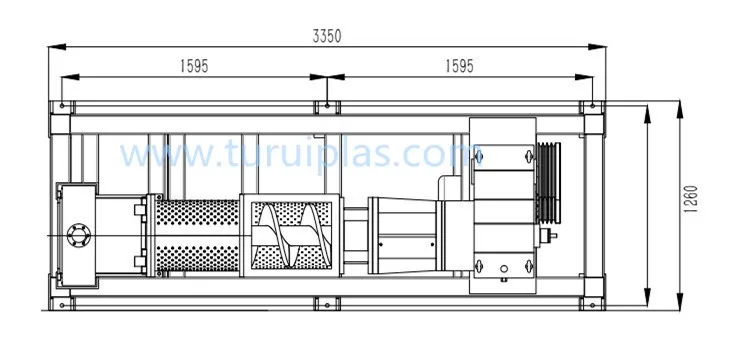

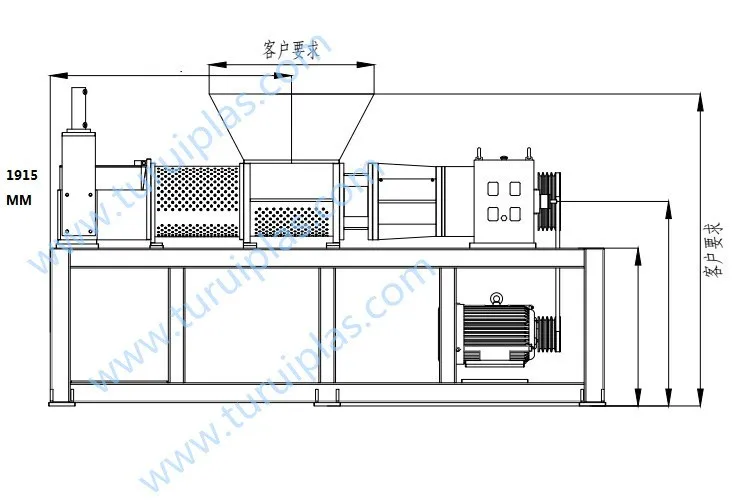

Drawing

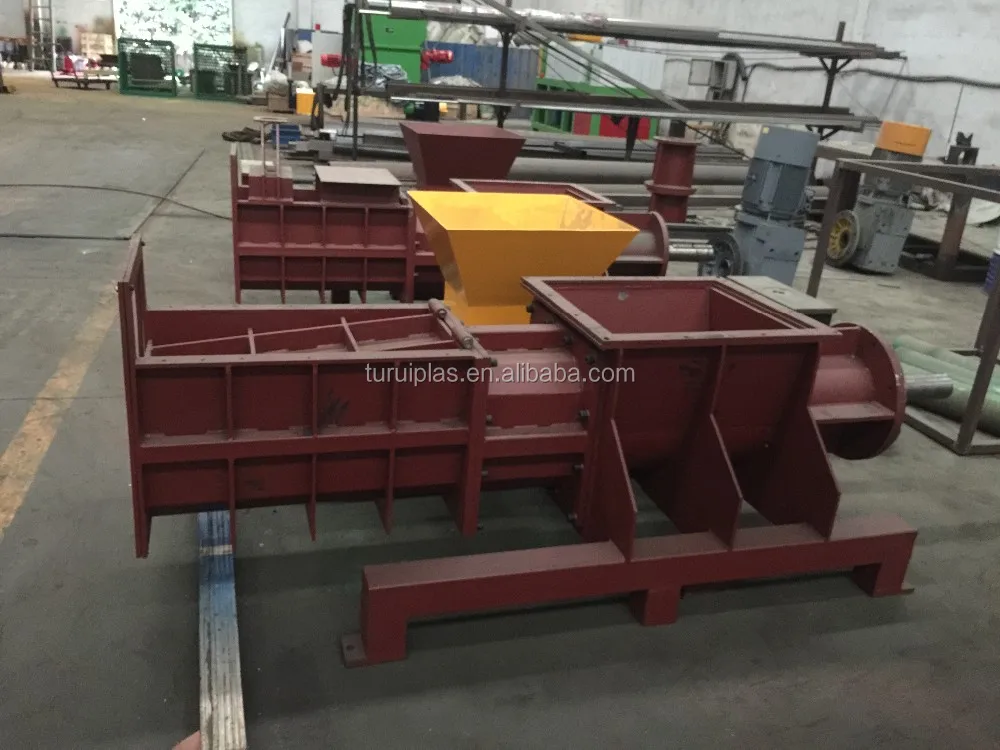

We are manufacturer

We are the orinigal manufacturer of plastic films squeezer.

We havefinished plastic films squeezer  in Stock

Welcome to bring your materials to us for test running.

Or you can use our materials for test.We have in stock.
