TUV Solar MC4 Connector With 25 Years Warranty

Feedback Ratings
  • 50-9999 Pairs
    US $0.40
  • >=10000 Pairs
    US $0.32
Quantity:
- + Pairs available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
R4
Type:
Adapter
Application:
Solar System Connection
Gender:
Male&Female
Brand of raw material:
SABIC Innovative Plastics
Material:
PC
Certificate:
TUV
Quality Warranty:
25 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X5 cm
Single gross weight:
0.023 kg
Package Type:
50pairs/bag
Lead Time :
Quantity(Pair) 1 - 5000 >5000
Est. Time(day) 5 To be negotiated
Video Description
Product Description

 MC4 Connector





*Photovoltaic cable coupler.

*Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.

*Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.

1



Technical Data of Solar Connector:

Type:R4
Electrical Features:
Rated Current20A(2.5mm2), 25A(4mm2),32A(6mm2)
Withstanding Voltage1000V DC(TUV),600V(UL)
Contact Resistance≤0.3mΩ
Protection ClassClass II
Mechanical Features:
Temperature Range-40 ºC~+90ºC
Protection DegreeIP2X,unmated;IP68,mated
Wire Size Range2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force200 Newton
Material Features:
Insulation MaterialPC
Contact MaterialCopper,Tin plated
Flame ClassUL94-V0 or UL94-5VA

1000V- .jpg





Advantages of Solar Connector:

•Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly

•High mechanical endurance

•High current and voltage carrying:32A,1000VDC

•Low transition resistance

•Innovative sealed,waterproof,dust resistance design:IP68

•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

•Approved by TUV



Assembly instructions for connector of PV-R4C/...Especially




During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP68



Touch Protection,mated/unmated IP68/IP2XRated Current 20A(2.5mm2) ,25A(4mm2) ,32A(4/6mm2)
Amblient temperature -40°c ~85°c Roted voltage 1000V DC
Safety class ll

TypeCrimping Ranges
 mm2AWG
PV-R4C/F-12.5/4.014/12
PV-R4C/M-12.5/4.014/12
PV-R4C/F-24.0/6.012/10
PV-R4C/M-24.0/6.012/10




Assemble the cable and connector

4

(Picture 1&2)

Push the crimped contact into the socket resp.Plug insulator until it engages .

Pull lightly on the lead to check that the metal part has engaged.

Screw on the cable gland ,hand-light,with the tools PV-STX,tightening torque about:2.2Nm.



Plugging

5

(Picture3)

Mount the connector together until they engage.

Check correct engagement by Pulling on the coupling.



Unplugging

6

(Picture 4&5)

Compress the two snap-in springs by hand or with PV-STX tool and separate the coupling

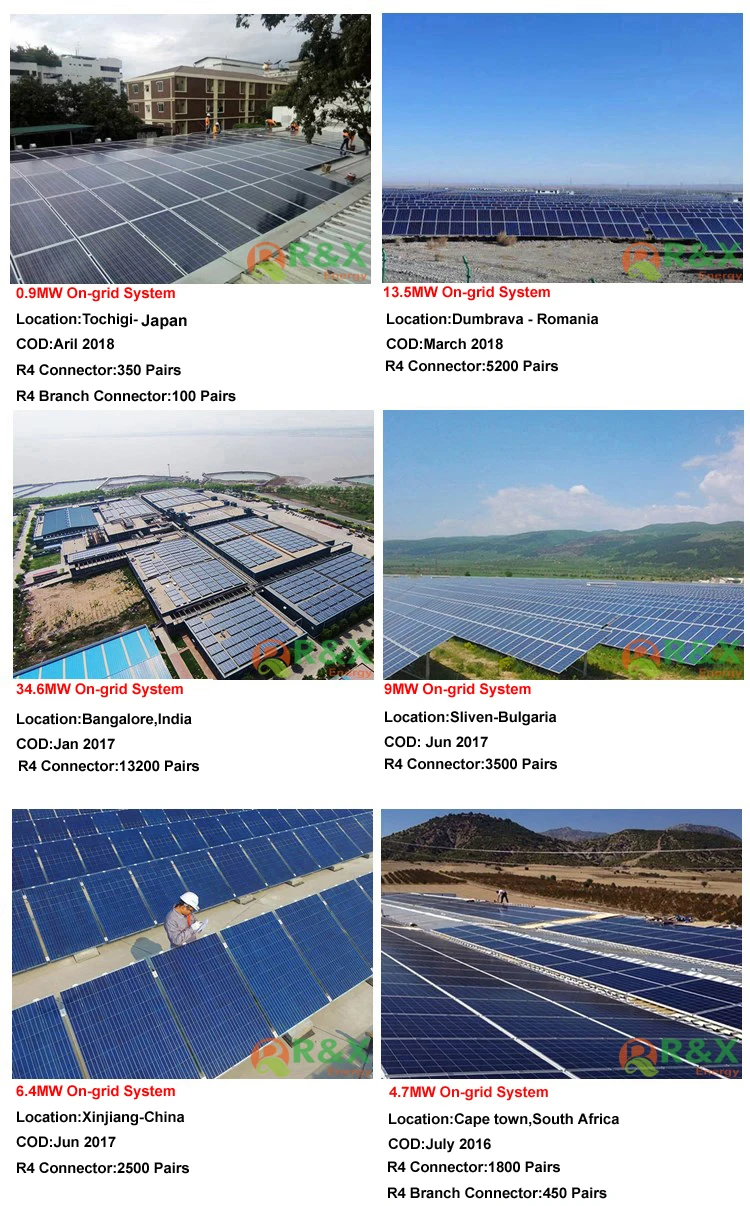

Our Project Case-1.jpg-2.jpg
