Temperature monitoring cable used in grain storage silo

  • 1-4 Sets
    $1,860.00
  • >=5 Sets
    $1,800.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
TSE TEMPERATURE MASTER
Model Number:
DALLAS 18B20
Power:
Electronic
Usage:
Auto Testing Machine, Testing temperature and moisture in grain storage silo
Sensor Model:
DALLAS 18B20
Transmmision way:
Wireless or wire
Product name:
Temperature monitoring cable used in grain storage silo
Application:
Temperature monitoring cable used in grain storage silo
Power supply:
220V/380V/415V/600V/450V
Warranty:
free service one year after commissioning
Standard:
Chinese standard, America standard, Australia standard
Function:
keep grain in safe storage
Certificate:
CE BV ISO

Packaging & Delivery

Selling Units:
Single item
Single package size:
593X234X240 cm
Single gross weight:
500.0 kg
Package Type:
With plastic film. Temperature monitoring system used in grain storage silo
Lead Time :
2
Product Description

Product Application

Temperature monitoring cable are installed in grain storage silo or grain building warehouse, it is used for monitoring grain's moisture or temperature.
In order to keep material in a good quality.

Device Introduction

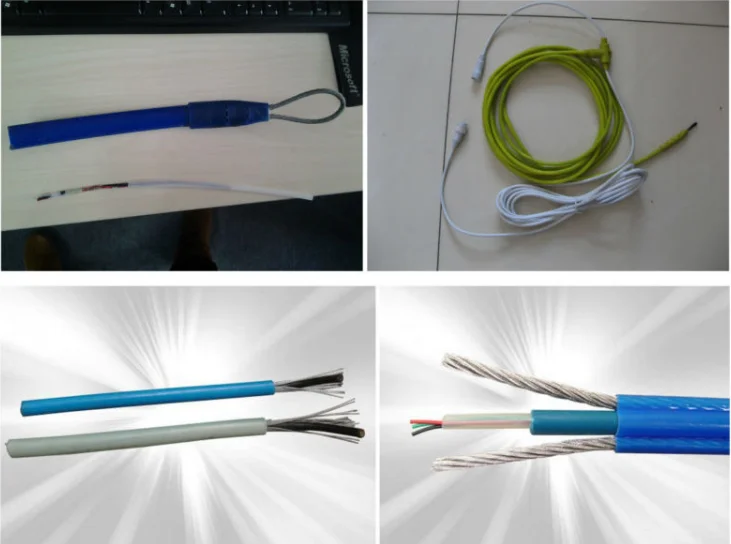

Temperature testing Cable



The temperature line has three or two cores inside, usage: convey signal and power.

Sensor



The sensor is exported from USA DALLAS 18B20, as a key component, it is high quality and sensitive.

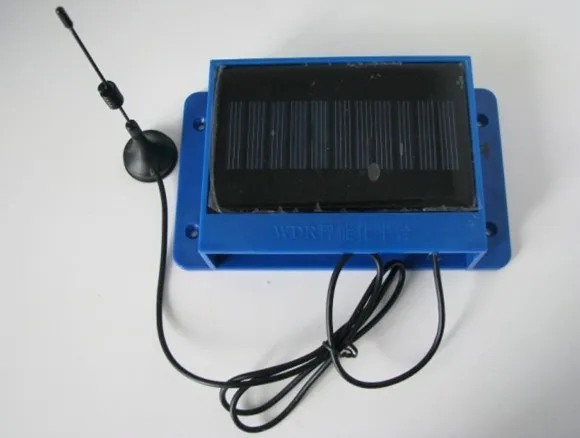

Extension

Extension can insert 8-16 testing lines, generally speaking, we install one extension on per silo roof. Its function is receiving and gathering the signal, then conveys the signal to display terminal.Because the long distance between extension and display terminal, we have two connect ways: wireless and wire.The wireless technical is mature and it need not power, because it can produce power by itself, it use solar power.At the same time, even though the extension is on the roof, it still can avoid the lightning, after lightning, it will refresh to work.

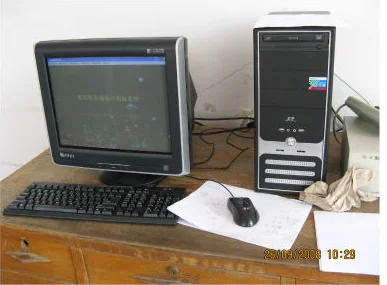

CPU terminal

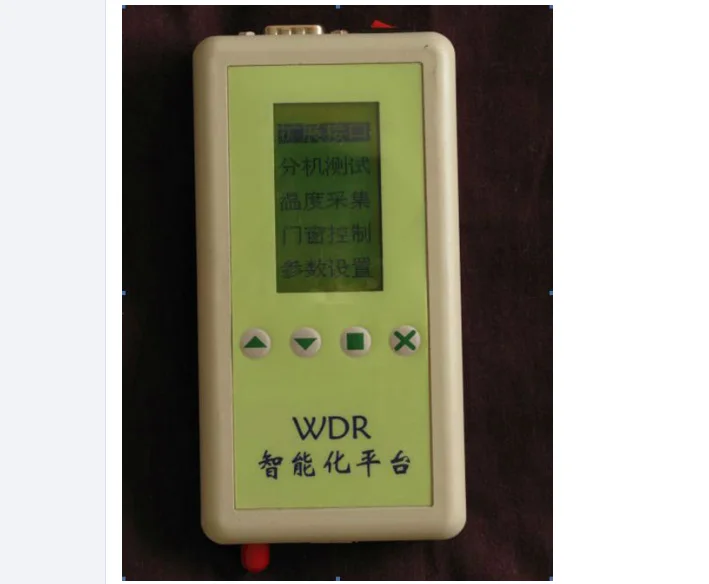

Hand Held terminal

When we closed to extension, the extension can give signal to this device, Another function is that it can detect system bug.
Cost of This kind of terminal is lower than CPU.

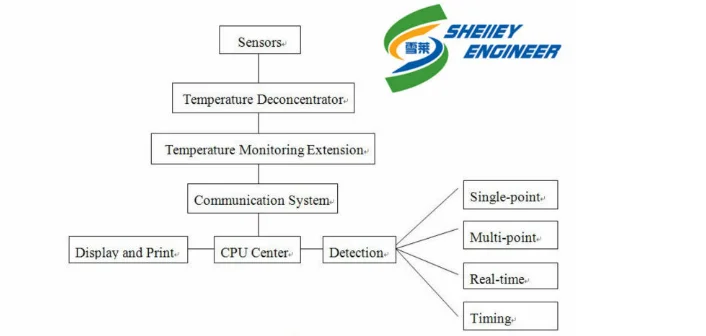

Entire Connection schematic

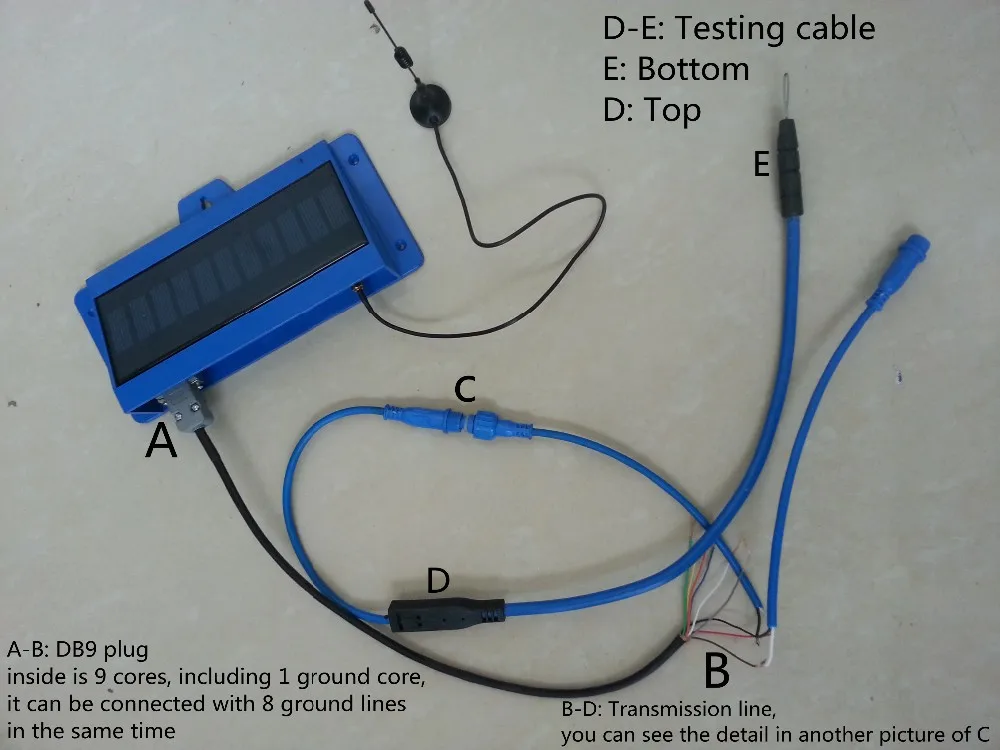

connection Component

Application


The temperature testing cable is buried in the grain, and every 2.5m, it has a senor inside, the sensor can collect the temperature/moisture information.
Then by core in testing line, the signal will come to temperature testing extension, then by wireless or by wire, the signal turn to display terminal.

Packing & Delivery

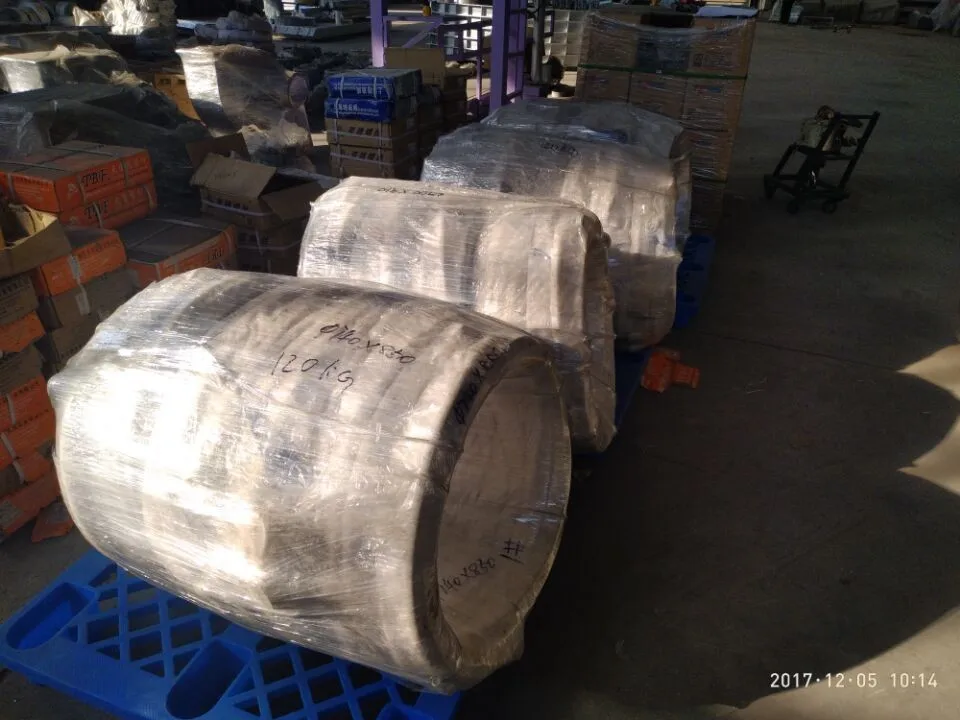

Packaging
Size
593CM * 234CM * 240CM
Weight
10T



Packaging Details



If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
Our Company

Taian Shelley Engineering Co., Ltd. ( subsidiary company named Taian Shelley Grain Silo Co., Ltd) is the leading steel silos designer, manufacturer and exporter dedicated in supplying turn-key grain storage solutions to worldwide customers. We had gained advantages in steel bins research and development, product design, manufacturing, site installation and services since the foundation by Shelley Jin in 2007.

There were more than 318 sets of steel storage silo plant running in domestic and 50 overseas market since 2007. Our customers are from Argentina, Australia, America, Chile, China, Cambodia, Ethiopia, Honduras, Iran, India, Indonesia, Malaysia, Myanmar, Pakistan, South Africa, Sudan, Serbia, Thailand, Tanzania, Ukraine, Vietnam, Peru, New Zealand, Mexico, Korea, Philippine and Uganda, etc.
