The Best Liquid Water Ultrasonic Level Sensor

FOB Reference Price:Get Latest Price
US $10-1,000 / Piece | 1 Piece/Pieces of ultrasonic water level sensor (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month of liquid water ultrasonic level sensor
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
GN
Model Number:
CX-ULM
Measuring Range:
1-30m of water ultrasonic level sensor
Output:
4-20ma of water ultrasonic level sensor
Media:
liquid and solid
Accuracy:
0.3% of ultrasonic levle sensor
Display:
LED or LCD or without display
blind area:
0.5m of ultrasonic level sensor
Power supply:
24VDC
Working temperature:
-10~+60C of liquid water level sensor
Body Material:
ABS of ultrasonic level sensor
Protection class:
Terminals:IP67
Packaging & Delivery
Packaging Details
carton of ultrasonic water level sensor
Delivery Time
7 working days
Description

                                                          The Wate Ultrasonic Level Sensor

                                                                                               ---------We are gold supplier in 9 consecutive years

    Ultrasonic water level sensor is microprocessor controlled digital level instrument. Ultrasonic pulses generated by the sensor (transducer) sent in the measurement, the surface acoustic wave after reflection by the liquid or receiving the same ultrasonic receiver transducer, a piezoelectric crystal or a magnetostrictive element into an electrical signal by transmitting and receiving sound waves the time between the sensor to calculate the distance to the measured surface of the liquid. As a result of non-contact measurement, the measured media is almost unlimited, and can be widely used for measuring the height of a variety of liquid and solid materials.

    Application: The ultrasonic water level sensor apply to water and wastewater treatment: pumping stations, wet wells, biochemical reaction tanks, sedimentation tanks, etc.Electricity, mining: Mortar pool, coal slurry pond, water treatment, etc.

    Our company with many kinds ultrasonic water level sensor .Base on the measuing range ,medium,display and output divided to many categories.If you intersting in water level sensor ,pls note the detail.we will choose the best series to you.

Parameters

                                                  The ShangHai CiXi Instrument Company

                                                                                         ------Without quality complaints in 3 consecutive years

Item1
                                           The ultrasonic water level sensor
Accuracy
0.3% or 0.25%
Medium
Liquid and solid
Temperature
-20~+60C
Power supply
24VDC & 220VAC
Output
4-20ma & RS485
Item2
CX-ULM-A
Range
5. 8. 10. 12. 15m
Blind zone
<0.4-0.5m(different for range)
Display
LED or LCD
Dimension
Φ92mm×198mm×M60
Electrical interface
Electrical interface:M20X1.5
Item3

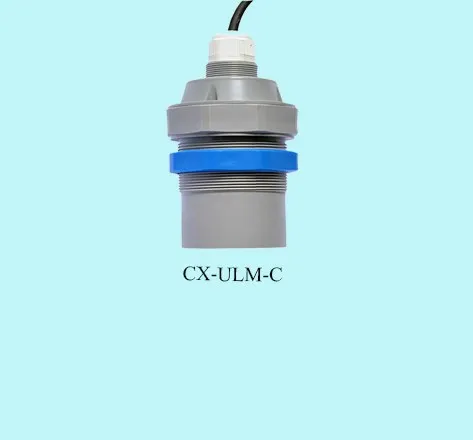

CX-ULM-C
Full scale
2,5,8,10,12,15m
Blind zone
0.25m; <0.4-0.6m(different for range)
Display
none
Installation
M60*2 (5-15m) ABS G1 1/2 (2m)
Anti explosion sign
ExiaIIBT4(optional)
Item4

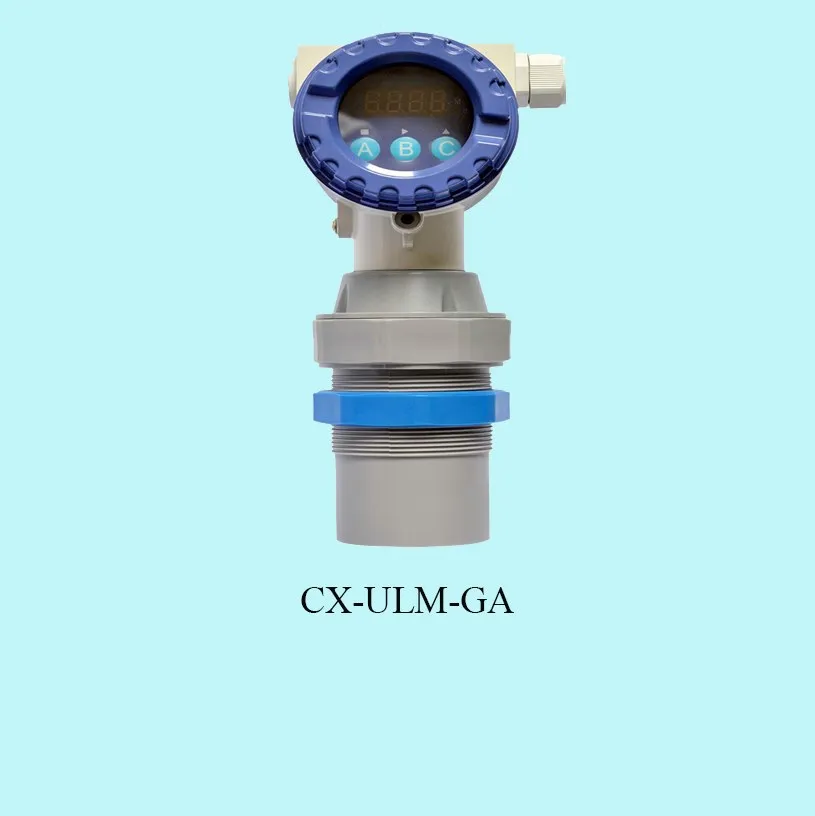

CX-ULM-GA
Range
3、5、8、10、12、15、20、25、30m
Display
LED OR LCD
Output
4-20ma;1-5V/1-10V;RS-485;3NPN
Emission  angle
12°
Anti explosion sign
EXia IIBT4Gb
Item5

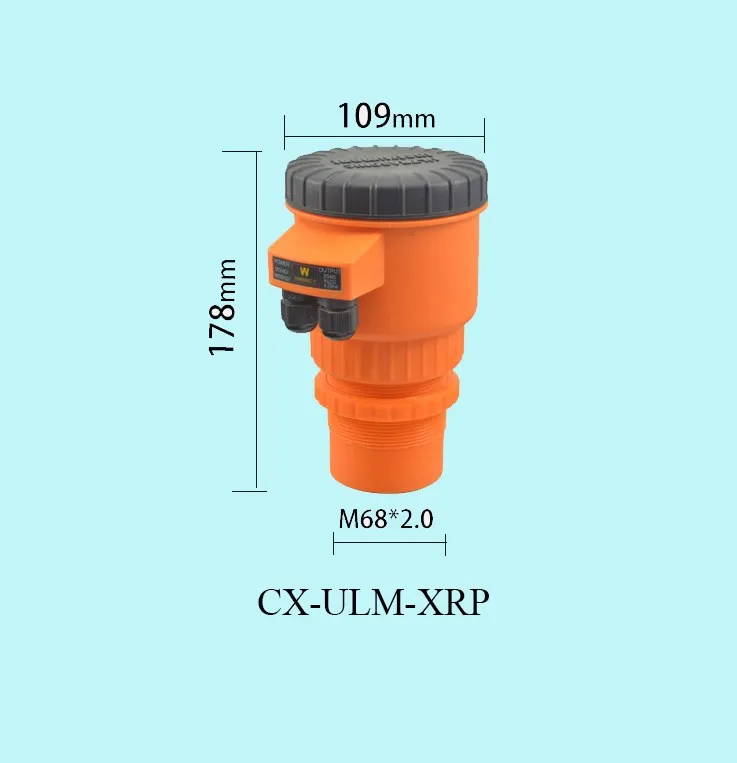

CX-ULM-XRP
Flow range
5m,7m,10m,12m,15m
Blind area
≤300~1500mm
Display
LED,LCD
Output
4~20mA(three, four-wire),0~5V,RS485, switch value
Application environment
Constant pressure, NOT explosion-proof, Non erosive environment
Detailes

                                             The ShangHai CiXi Instrument Company

                                                                                               -------More 30 years’ technology to focus details

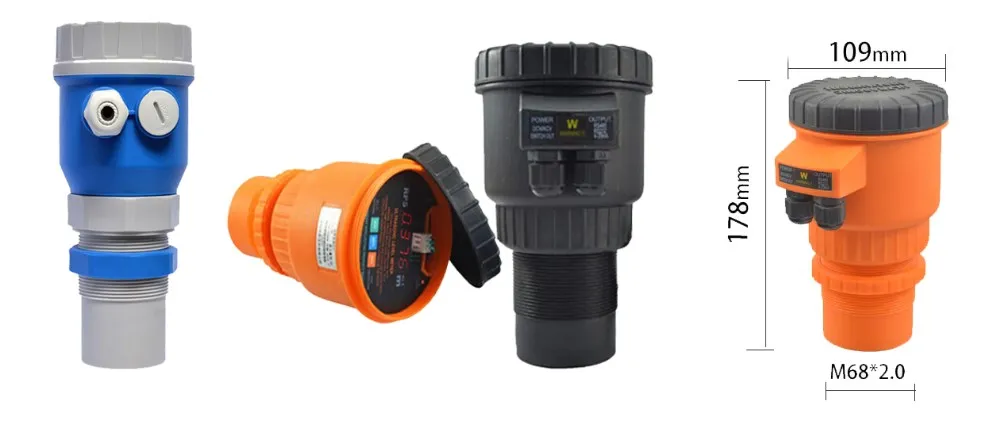

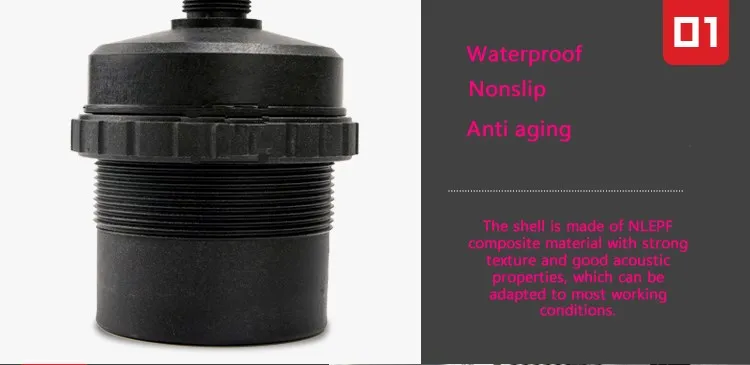

            Ultrasonic water level sensor



    Waterproof   Nonslip   Anti aging

    The sheel  is made of NLEPF composite material

with strong texture and good acoustic properties,

which can be adapted to most wroking condtions.

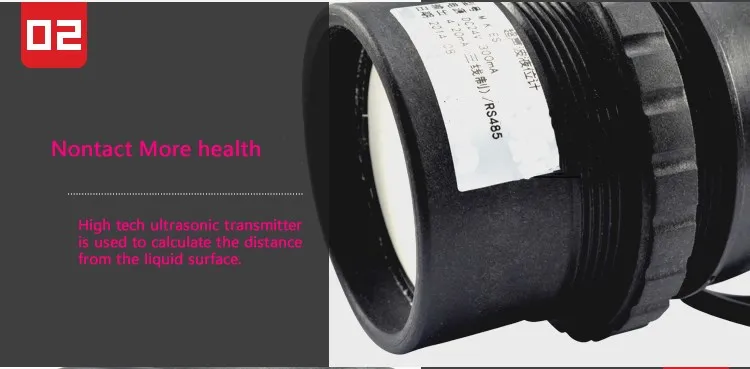

                         Ultraonic Water level sensor



       Nontact More health

      High tech ultrasonic level sensor is used to calculate the distance from the liquid surface.

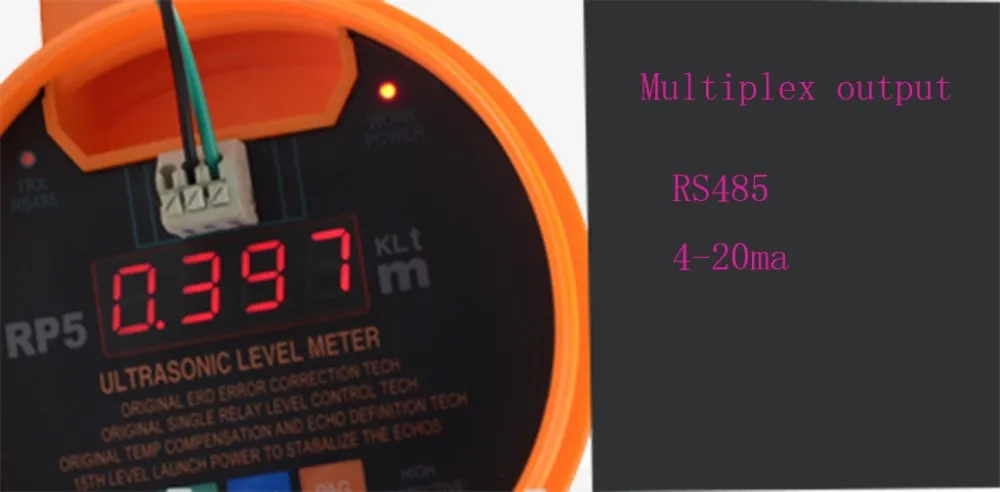

                                The output



    The ultrasonic level sensor with many output.

    1.RS485;

    2.4-20ma.

              Ultrasonic level sensor connection



     The ultrasonic level sensor with waterproof connection

        1.inport connection;

        2.safety

        3.reliable

Advantage

                                                    The Shanghai Cixi Instrument Company

                                                                                                          ------------80% instruments is for exporting

1) As Alibaba Assessed 9 years Gold Supplier;
2)About 30 years experience in production;
3) Our ultrasonic water level sensor have been exported to more 100 countries and area;
4) 100% QC inspection Before Shippment;
5) ISO,CE,SGS standard and factory price.;
Pls Believe our company could provide the best services for you.

                                                         The Feature Of Ultrasonic water Level Sensor

1.Automatic power adjustment, gain control and temperature compensation.
2.Advanced detection technology, rich software features to adapt to complex environments.
3.Using the new wave computing technology, improve measurement accuracy of the ultrasonic water level sensor.
4.Has disturbing echoes of suppressed function ensures the real measurement data.
5.16-bit D / A converter, to improve the accuracy(ultrasonic water level sensor) and resolution of current output.
6.Tetrafluoroethylene sensor material can be used for a variety of corrosive applications.
7.Variety of output forms: programmable relay output, high-precision 4-20mA current output, Rs-485 digital communication output split ultrasonic level probe

Our Factory

                                     The ShangHai CiXi Factory

                                                                               -----Cooperation with many 500 enterprises at home and abroad

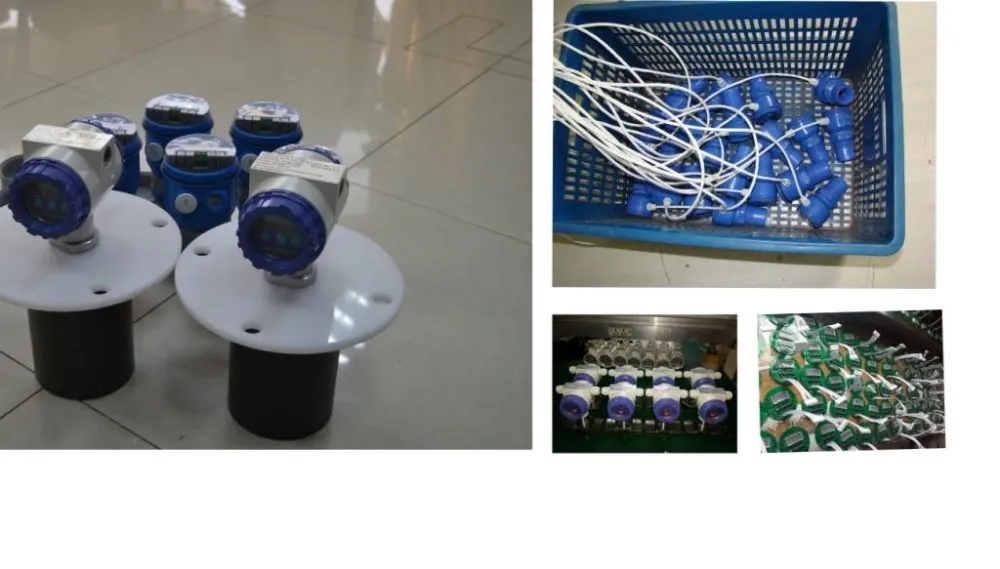

                                               The Factory Of Ultrasonic Water Level Sensor

        About the ultrasonic water level sensor ,our company have ourself factory and Professional Engineers.

Imported equipment to keep the accuracy and performance of liquid level sensor.we could guarantee wo will rechange the sensor if it damage or can not working in 1 year.

     Welcome to our factory.

                                                            The Shanghai Cixi Instrument Company

             Professional Company and Handsome Guys  :)

Packing & Delivery
Packaging of ultrasonic water level sensor
Size
L*W*H(Based on the size of sensor)
Weight
1~10KG(SIZE)

Pachage

Details

1.usually the package is carbon.

2.if you have special request pls note in the email.
