The User Most Need Mini Water Flow Meter Is Micro Flow Meter

Free Inspection
FOB Reference Price:Get Latest Price
We offer premium service for Trade Assurance orders. Learn more
US $1-10,000 / Piece | 1 Piece/Pieces of mini water flow meter (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month of micro flow meter
Port:
shanghai
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GN
Model Number:
M series
Accuracy:
0.2% of micor flow meter
Meduin:
chemiacal liquid
Temperature:
-30~80C of mini flow meter
Min flow:
0.5~150mL/M
Nominal Pressure:
32bar and could Customized
Power supply:
4~26VDC
Material:
SS316 of mini water flow meter
Output:
pulse of micro flow meter
certificate:
CE,ISO ,SGS
Connection:
Female Thread
Packaging & Delivery
Packaging Details
carton of mini water flow meter
Delivery Time
5~7 working days
Description

                           The Best Mini Water Flow Meter is Micro Flow Meter

    Micor oval gear flow meter principle is a liquid pushing one pair of oval gears; volume of each cavity is a fixed volume; gear speed leads, the sensor sends the sync pulse count, oval gear rotated by the magnetic seal coupling and reduction gear mechanism passed directly to the counter indicates the total flow through the meter. If the additional transmission means, the display together with electrical instrument can achieve remote only instantaneous flow or accumulated flow.

  Micro flow meter provide precise volumetric flow measurement of clean liquids found in a broad range of industries including automotive, aviation, mining, power,paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity fed .

     The Professional Micro Flow meter From ShangHai CiXi Instrument Copany

                                                                                                      --------------AS Gold Supplier In 9 Consecutive Years

     The micro flow meter with M2,M3,M5,M6,M9,M12.and with Stainless steel material and Aluminum.

Parameters

                                                               The CiXi Micro Flow Meter

                                                                                       ---------------- Without Quality Complaints in 3 consecutive years

Item1
                                             The Professional Micro Flow Meter
Accuracy
0.2% accuracy (More Than other Supplier 30%)
Temperature
-30~80C(Customized for 150C)
Pressure
About 32bar (be custmized for 250Bar)
Output
square-wave pulse
Supply
4-26VDC
-SS series
The material is Stainless Steel
Material
chamber:ss316 ,gear:SS316L, shaft:SS316L
Medium
suitable for various chemical liquid
-AL series
Some material is AL
Medium
suitable for non-corrosive fluid
Material
chamber: anodized aluminum , gear: anodized aluminum, shaft:SS316L
Item2
       CX-M3
      CX-M5
       CX-M6
     CX-M9
     CX-M12
    CX-M25
Flow Range
  1-300mL/m
5-1750mL/m
  0.5-100L/h
    5-550L/h
     1-30L/m
  5-110L/m
Connection
       G1/8
       G1/8
       G1/4
      G1/4
       G1/4
       G1
Connection
female thread
female thread
female thread
female thread
female thread
female thread
Details

            The Professional Micro Flow Meter From ShangHai CiXi Instrument Company

                                                                                                ----------------More 30 years’ technology to focus details

 1.Que:   Why cixi micro flowmeter with long life?

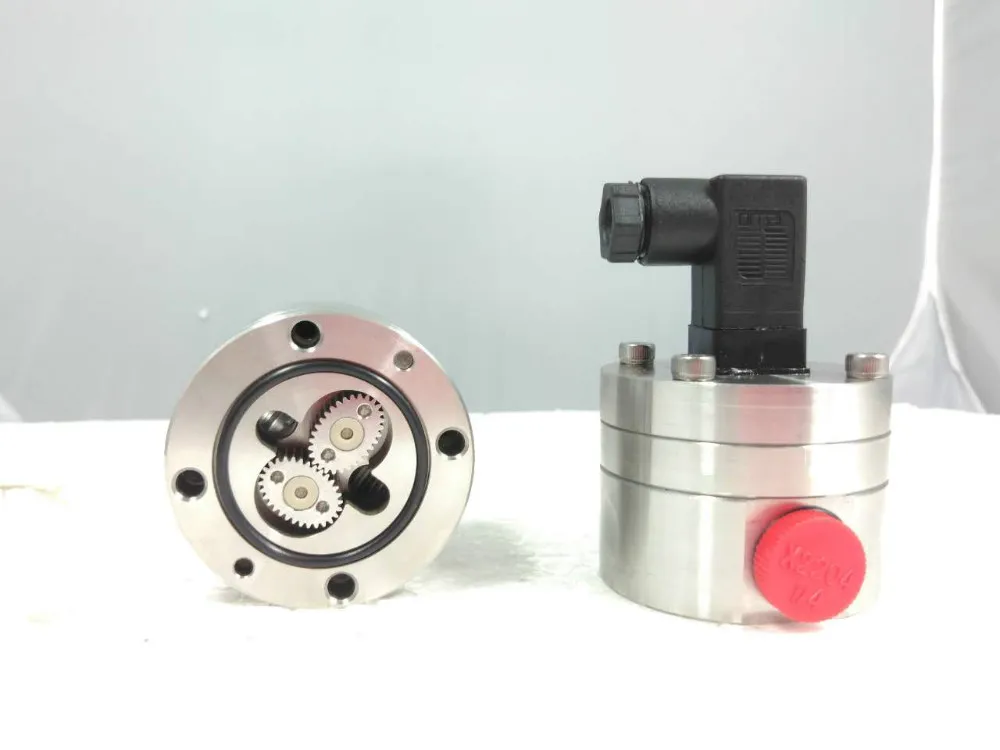

        Our CiXi micro flow meter 's material is all stainless steel , chamber:ss316 ,gear:SS316L, shaft:SS316L.

       Advanced technology, quality assurance.

2.Que:  How to Keep the High Accuracy?


   The CiXi mini water flow meter accuracy is 0.2%

   It is 30% more than other supplier.

   Advanced equipment and professional engineers to keep the Highest accuracy.

3.Que: How to ensure the stable output Signal?


       Import from Italy's Hirschmann connector.

      Four step waterproof structure with Standard IP65 protection.Suitable for most operating conditions.

      The output signal stable and reliable.

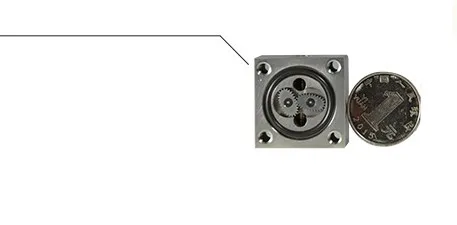

4.Qus  What extent the flow meter small?

   The Min Flow about 0.1mL/m

   The import CNC Machine tools's accuracy is 0.001%.

   The size of the M2 micro flow meter is 30mm,but not the

  Smallest size .If you want to know the smallest ,pls contact us freely.

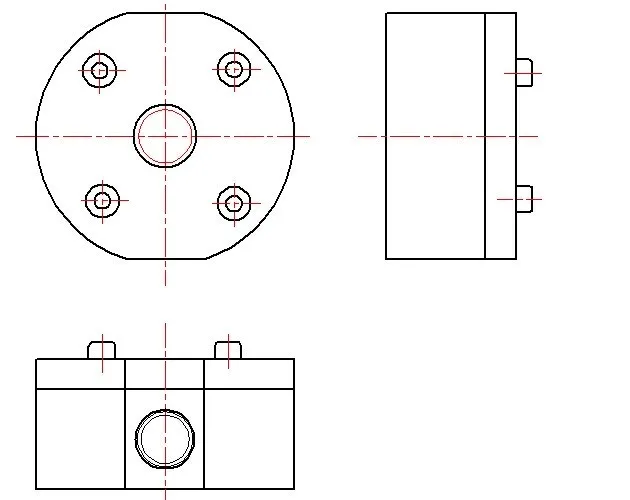

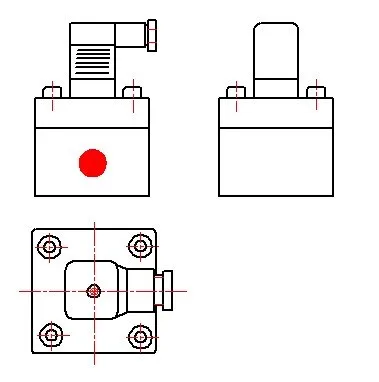

                      M2,M3,M5

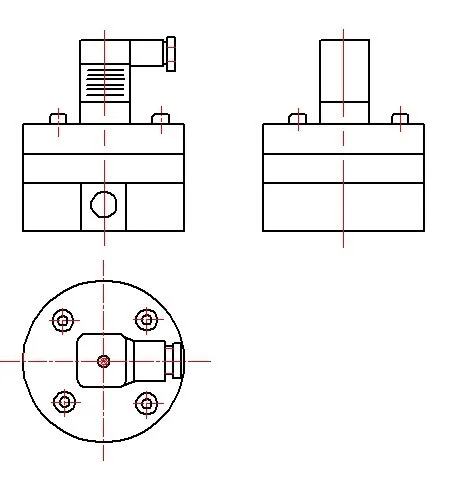

                       M6,M9

                      M12,M25

Advantage

        The World Minimun Oval Gear Flow Meter From ShangHai CiXi instrumetn company

                                                                                                                 ------------80% instruments is for exporting

The Feature of Micro Flow Meter

1) Compact & economical design suited for OEM;
2) High accuracy & repeatability of micor flow meter;
3) No requirement for flow conditioning;

4)Mini water flow meter with Stainless steel rotors;
5)Measures high & low viscosity liquids;

6) Original Equipment Manufacturers

                   The commitment From ShangHai CiXi Company

                                                                     ----------benchmark enterprise in Automation instrumentation industry

     The mini water flow meter and micro flow meter with nice Evaluation.

    The left is our User and the right is our model and engineer.

Factory

                                         The Professional CiXi Factory

                                                                           -------Cooperation with many 500 enterprises at home and abroad
