Overview
Quick Details
Place of Origin:
China
Brand Name:
Fudi
Model Number:
FD-200W
Installation:
Mini
Certification:
RoHS
Temperature Control:
Adjustable Thermostat
Dimensions (L x W x H (Inches):
300*153*150
Power (W):
200
Power Source:
Electric
Refrigeration Type:
Thermoelectric Refrigerator
Voltage (V):
24
weight:
4.6kg
Appliancation:
electrical,telecom cabinet cooling solutions
is customized specification available?:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X18X18 cm
Single gross weight:
4.6 kg
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 To be negotiated

The cheapest cabinet cooler  for industry and domestic ice wine

Product Description



 Product Application



Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom, industrial, medical,military and aerospace application areas.



  Battery cbinet in telecom

 Precise instraumentation

 Precise temperature control

 Photonics laser systems

 √ Food and Beverage cooling

 √ Medical instrumentation



Working  principe



Thermoelectric coolers operate by the Peltier effect (which also goes by the more general name thermoelectric effect). The device has two sides, and when DC current flows through the device, it brings heat from one side to the other, so that one side gets cooler while the other gets hotter. The "hot" side is attached to a heat sink so that it remains at ambient temperature, while the cool side goes below room temperature. In some applications, multiple coolers can be cascaded together for lower temperature.



Specitication



Item (Th=35℃)

DESCRIPTION

Hot side

Fan cooling

Cold side

Fan cooling

Qc max.(W)

275.6W at dT=0 ()

Rated power

DC24V, 13A

Working Temp.

-10 ~ 70 ℃

Temp. Control

Optional








Main features



· Small size

· Immediate effect of cooling / heating

· Achieves low temperatures

· Easy power control

· Silent operation

· Long life (theoretically unlimited)

· Can direct cooling to a very small area

· Combination of cooling and heating



* The product is widely used in outdoor cabinet/battery cabinet/electrical cabinets/industrial control cabinet/medical/military to heat dissipation.

* Holds the suitable working condition of bad environment, don't run around - 10-70 ℃ environment.

* Holds the semiconductor refrigeration device mainly includes the hot end of the cold end, heat dissipation, p-n components, control components, cold side fan, cooling fan, the temperature sensor.

* Holds the semiconductor refrigerating unit contains no moving parts, no compressor and refrigerant, environmental protection, high efficiency, the efficiency can reach 1.0 COP.

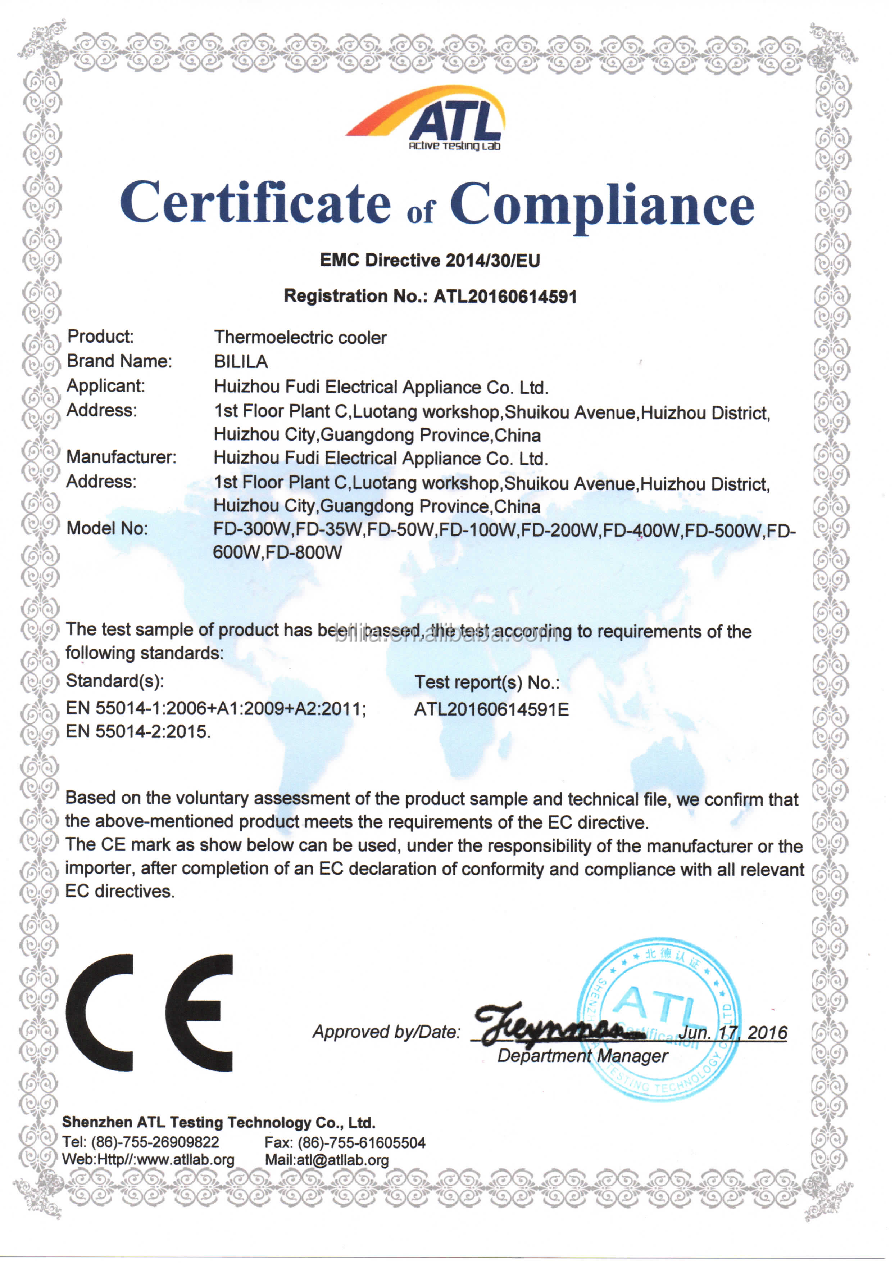

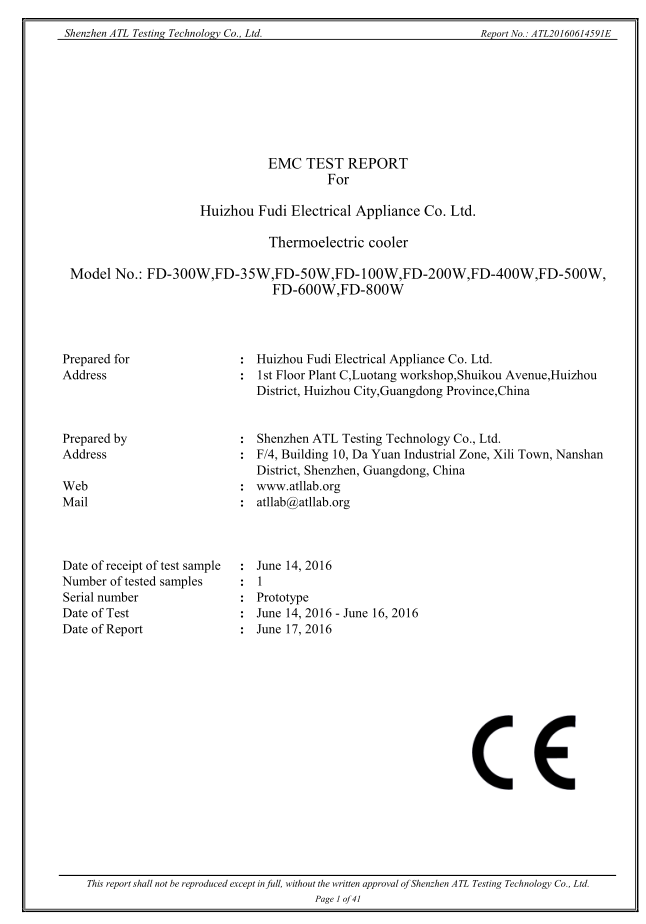

Certification

CE 1001QQ20170605111142

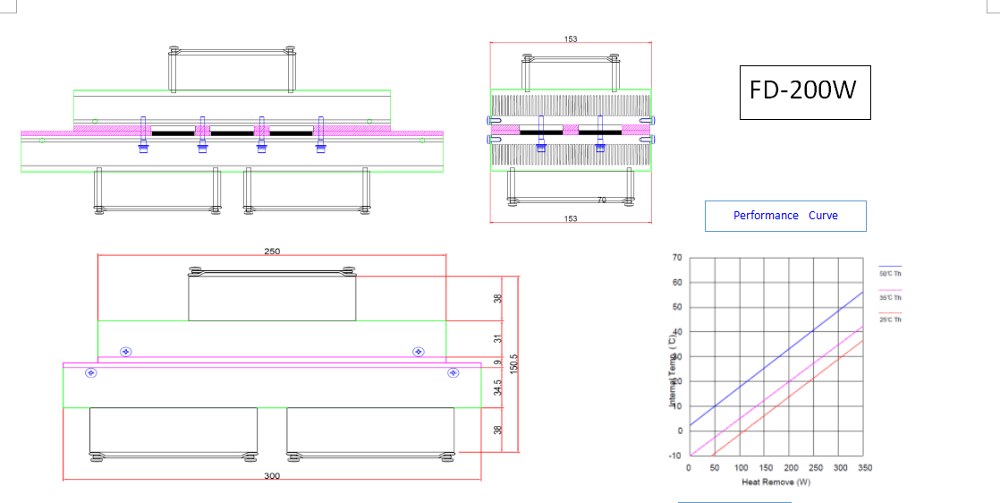

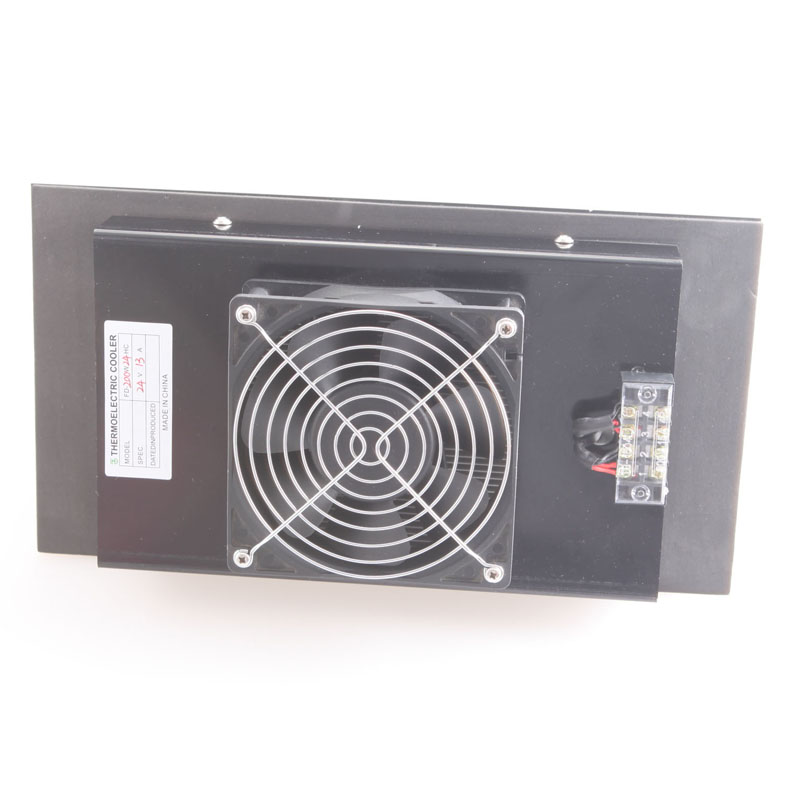

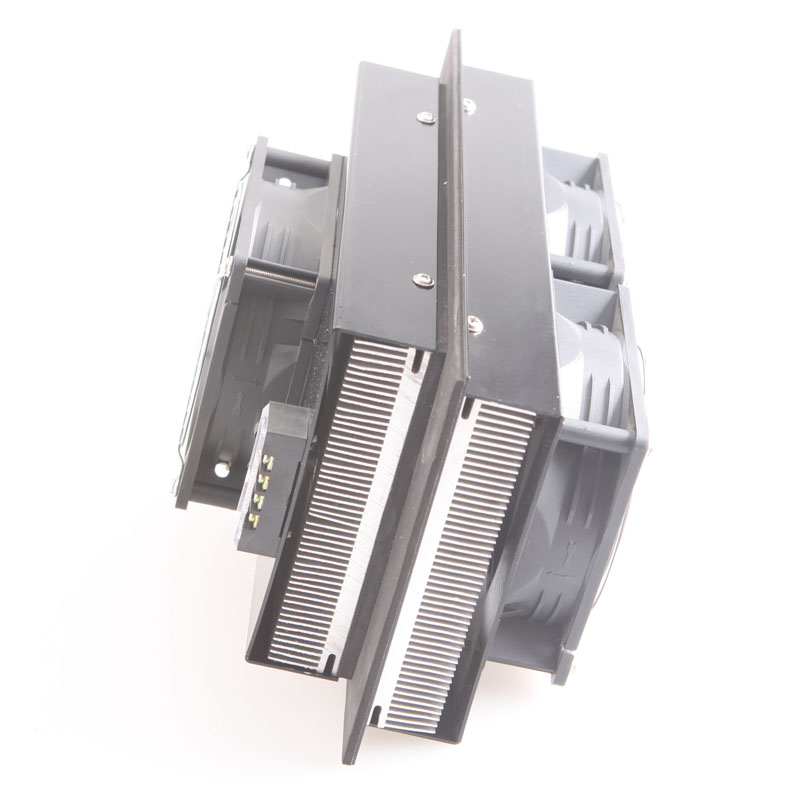

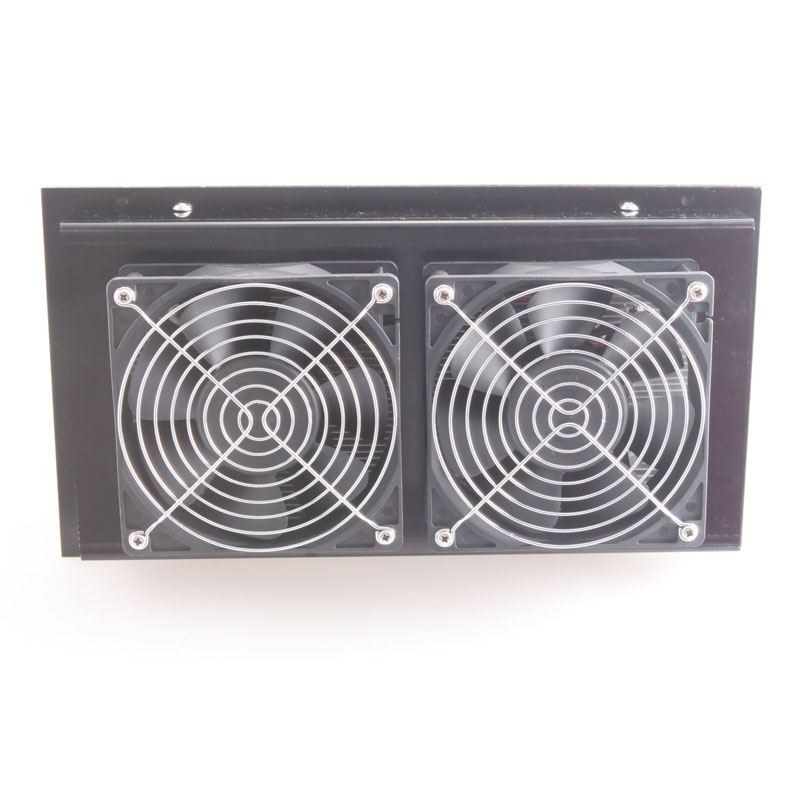

Dtail images








No.

PART

DESCRIPTION

QTY

1

Input

DC 24V, 13A

1

2

TEM

40×40×4.0mm,Qmax:275.6W

4

3

Inside Fan

120×120×38mm,24VDC

1

4

Outside Fan

120×120×38mm,24VDC

2

5

Cold sink

150×250×30mm,AL

1

6

Heat sink

150×300×30mm,AL

1

7

Spacer block

41×41×10mm,AL

4





Product Note

1, please use the 24 v dc switching power supply, ripple coefficient is less than 10%.

2, don't landing from over 20 cm high, the refrigerator will be damaged.

3, not waterproof, only in the indoor or outdoor.(except IP55).

4, please stay away from a wall or other objects more than 10 centimeters, install the refrigerator.

5, has not started, when the environment temperature and heat above 70 ℃, or refrigerating unit will be damaged.

6, please read carefully the specifications and other accessories.
