Three-phase SCR Power Regulator 500W High Power Solid State Voltage Regulator 220 v3kw4-20MA485 Communication

  • 1-9 Perches
  • 10-99 Perches
  • >=100 Perches
- + Perches available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Model Number:
Display Type:
Analog and Digital
Three Phase
Accuracy Class:
Output Voltage:
Input impedance:
120 ohm (4-20mA input mode)
Slow start time range:
adjustable range 0-60 seconds
Output voltage control range:
input voltage 0-98%
Adjust output resolution:
0.2 degrees
Protection action time:
Relay contact capacity:
250V AC 2A
External voltage control function:
voltage regulation (internal) / 0-100%
Insulation impedance:
minimum 20 M 500V DC
Current limiting function:
adjusting range 20-110%
Over current protection system:
electronic type protection

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X35X45 cm
Single gross weight:
30.0 kg
Lead Time :
Quantity(Perch) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Product Description

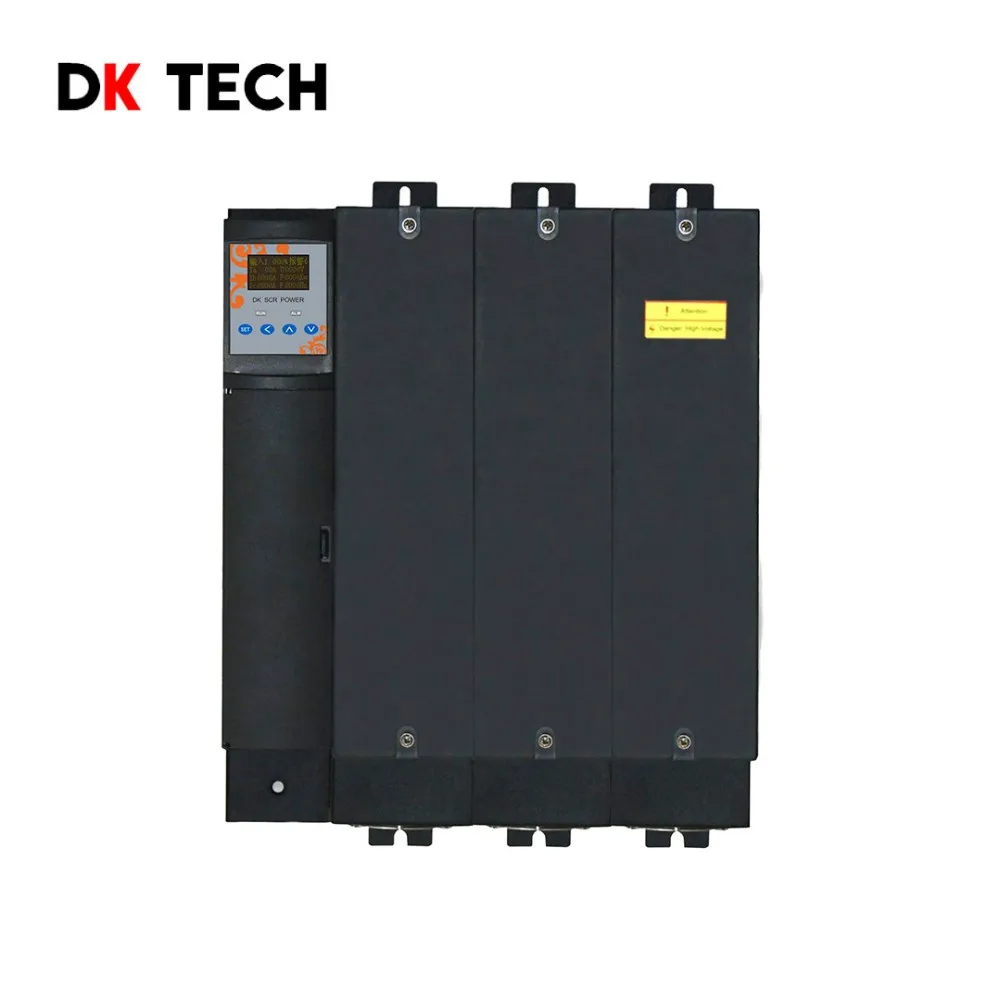

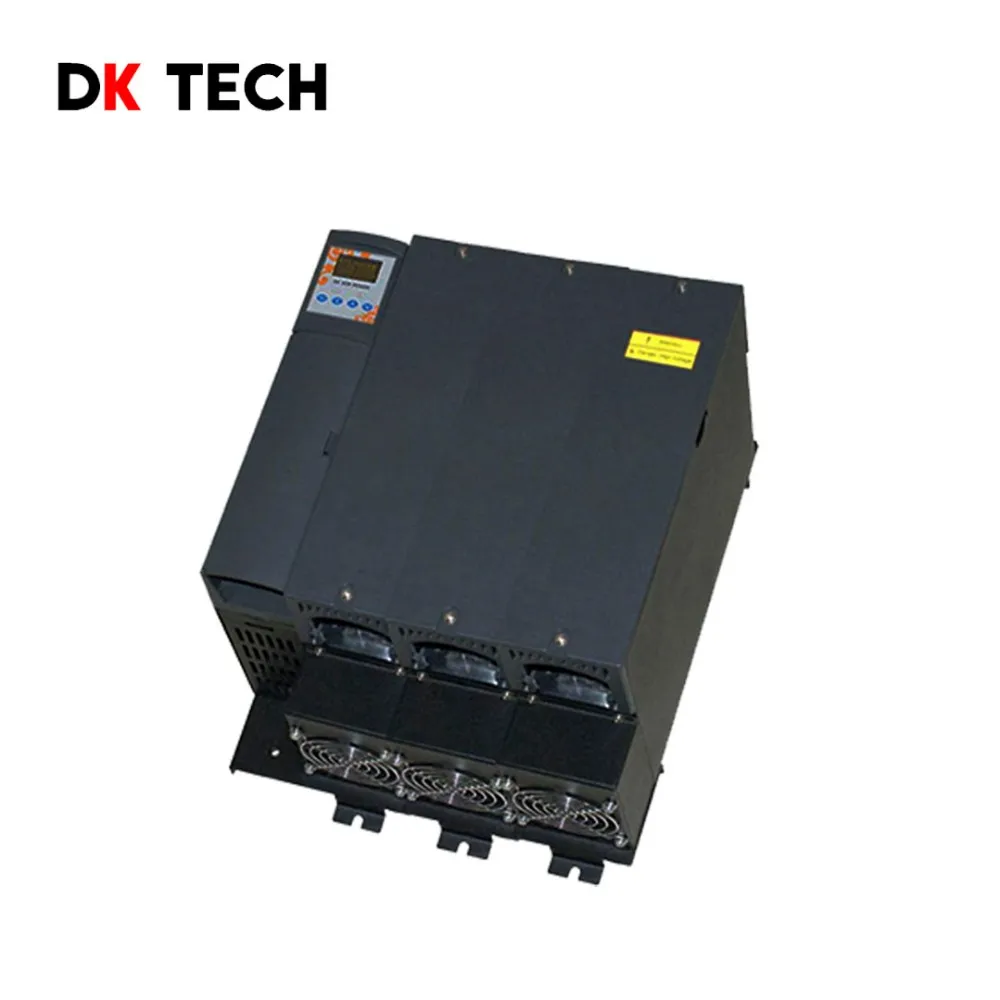

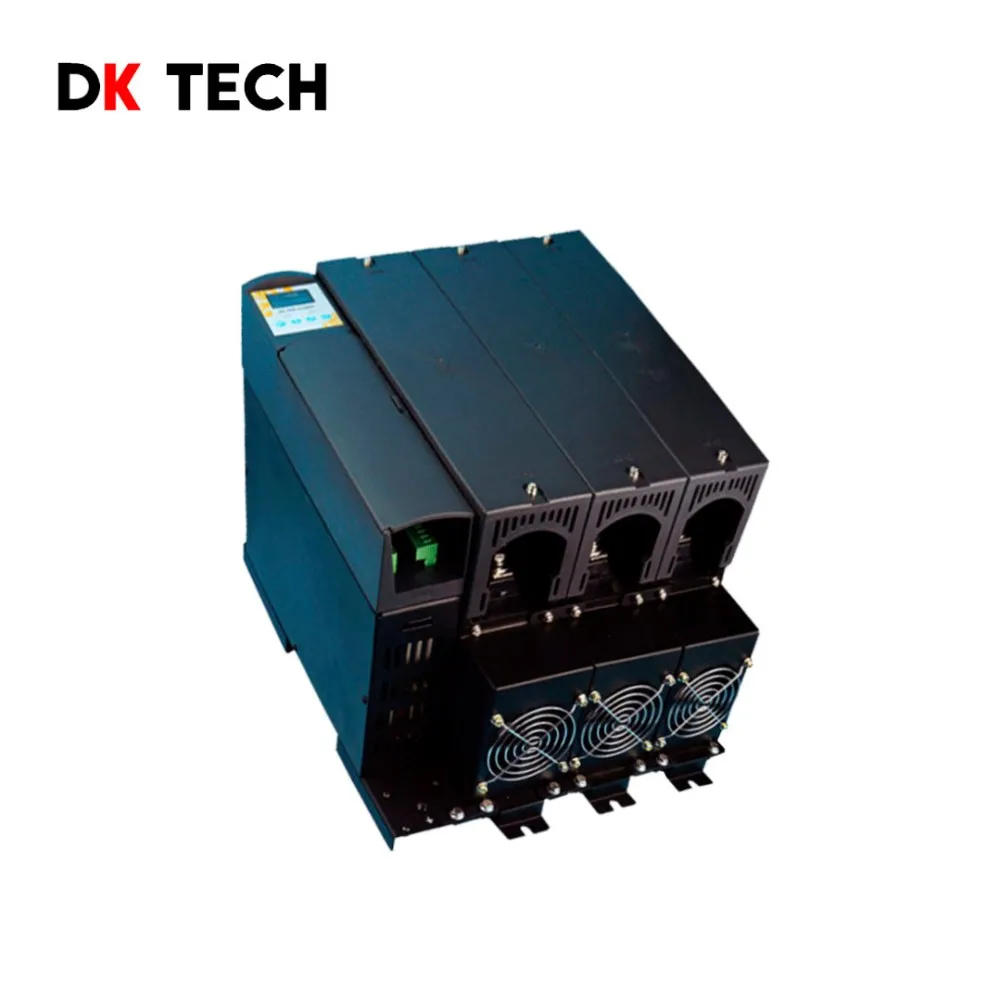

DK SCR series is a technology leading silicon controlled power controller. The product adopts leading OLED liquid crystal display technology and friendly UI man-machine interface. Using the modular design method, site maintenance and replacement is very convenient. High reliability and patented heat dissipation technology to ensure the reliability of the product for a long time. All the components are imported power components with first-class quality.

This product can be widely used in electric heating control. It can adapt to the heating control of resistive load, silicon-carbon bar, silicon-molybdenum bar, quartz lamp tube, graphite load and inductive transformer load. It is a good actuating unit for accurate temperature control. Products are widely used in petroleum, Chinese industry, medicine, glass, metal heat treatment, smelting and other industries.

This product has intelligent on-line distribution function, which can improve the impact of power grid. It has standard MODBUS RTU interface and optional PROFIBUS DP bus interface or MODBUS TCP communication. Performance beyond the import of similar products.

Product features
Power on slow start function, slow start time can be set to 0-360 seconds. It also has the function of easing off.

It has MODBUS RTU communication function and can be supplemented with PROFIBUS DP bus components to realize DCS field bus control.

It has the functions of SCR overtemperature detection, short phase protection of power supply and current limiting protection of precision transformer. It also has emergency stop function.

Load working voltage range is 100-690v.

Linear program control, no temperature drift output. Special anti-interference CPU is used to ensure the reliability of the system.

The equipment USES the flame retardant ABS enclosure and the internal device to improve the safety factor.

Adopt 12 - bit AD converter, realize more fine adjustment.

It has digital /OLED display function, which can display voltage, three-phase current, alarm code, etc., and can set parameter values locally.

Various load connection modes, star type neutral point connect zero, star type neutral point do not connect zero, triangle type connection, etc., can be set by parameters.

With advanced online distribution function, it can realize intelligent networking distribution control function, reduce the impact on the power grid and increase power factor.

Optional variable feed output function, various types of variable feed optional.

The product modules all adopt German original ximenkang products, the service life is longer.

Adaptive main power frequency, frequency range 47-63Hz. Can be widely used in various generator frequency unstable working conditions, guarantee  system safety and reliability.

Related Products

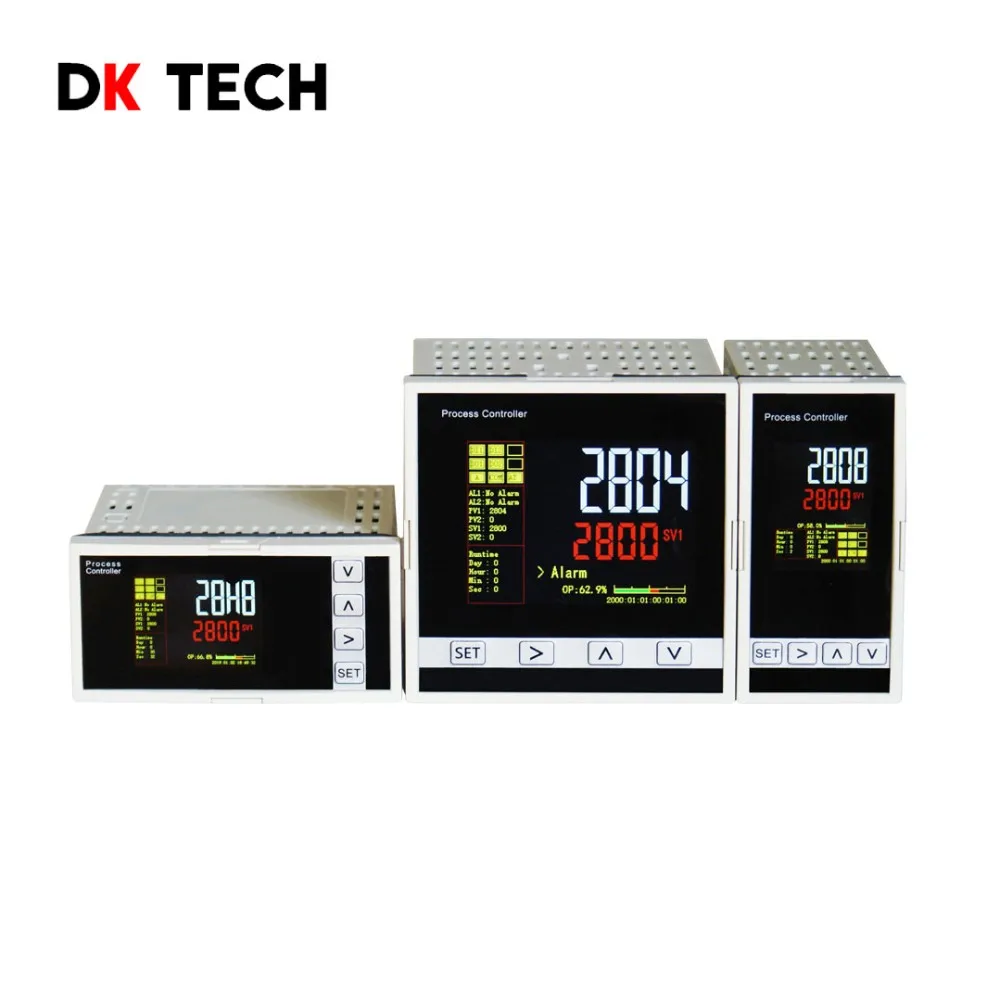

  Process control instrument

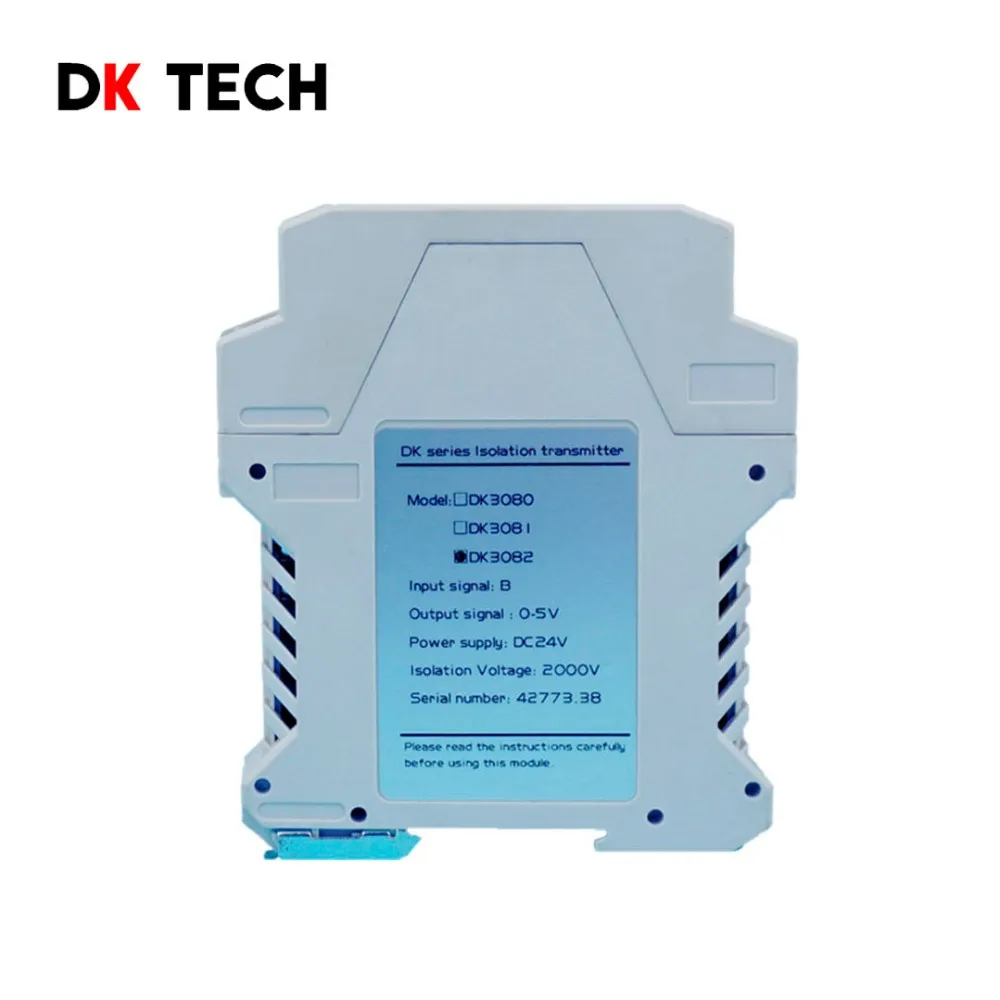

        Isolation transmitter
