Tongrui Oil Refinery equipment, Atmospheric and Vacuum distillation unit

FOB Price: Get Latest Price
Min.Order Quantity: 1 Unit/Units
Supply Ability: 50 Unit/Units per Year
Port: Chongqing
Payment Terms: L/C,T/T
Add to My Favorites

Quick Details

Condition:
New
Flow:
10,000Liters per day
Working Pressure:
20-50pa
Place of Origin:
Chongqing China (Mainland)
Brand Name:
TONGRUI oil refinery equipment
Model Number:
DIR oil refinery equipment
Usage:
recycle used engine oil, black oil to clean oil
Voltage:
380V,415V,440V or as needed
Power(W):
180KW
Dimension(L*W*H):
15M*10M*7.5M
Weight:
30,000Kg
Certification:
ISO,SGS,CE
After-sales Service Provided:
Engineers available to service machinery overseas
oil color after treatment:
No.1.5-No.2
Viscosity(40C)mm2/s:
49.57
Flash point:
228Degree
Anti-Oxidation:
180
Neutralization value:
0.02mgKOH/g

Packaging & Delivery

Packaging Detail: wooden case
Delivery Detail: 60days

Specifications

oil Atmospheric Distillation plant
1.20-50Pa high limited vacuum
2comeout oil isSN150 and SN300
3.More than 85% recovery rate

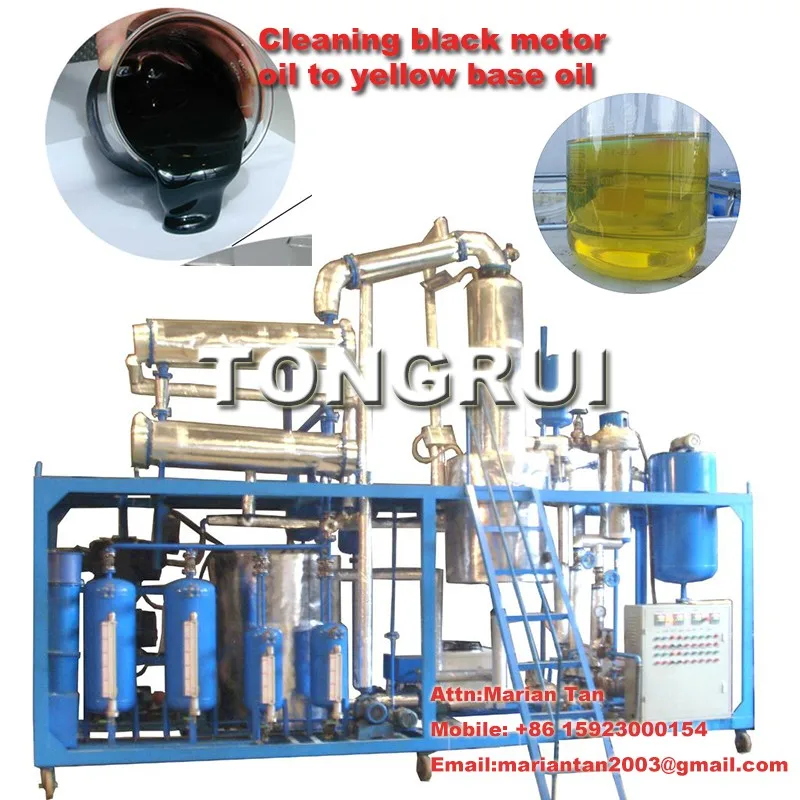

DIR Oil Refinery equipment, Atmospheric and Vacuum distillation unit







ModelDIR Waste Oil Vacuum Distillation Re-refinery Machine

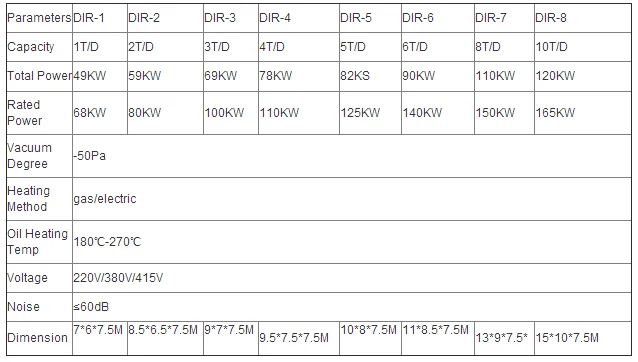

Capacity1,000Liters per day to 15,000Lites per day
Priciplepyysical-chemical reaction
Recovery ratemore than 85%
Working Temperation300-320Degree
ChemicalCatalyst with percentage 2%-5%







Used oil should not be thrown away. Although it gets dirty, used oil can be cleaned of contaminants so it can be recycled again and again. There are many uses for recycled used oil. Recycling of waste oil has potential to save the energy, protect environment and recycle the natural resources.









Advance Of Our Machine:



 1)The recovery rate of this machine is more than 85%

2) only need to add one chemical, named catalyst, percentage:2%-5%, catalyst is normal, the buyer can purchase it on local market, the price of catalyst in China is US$760/Ton.

so the chemical cost is about US$25-US$30 to refine 1000Liter waste oil.we will send all specification to you when you make the order.

3) Production cost is low,

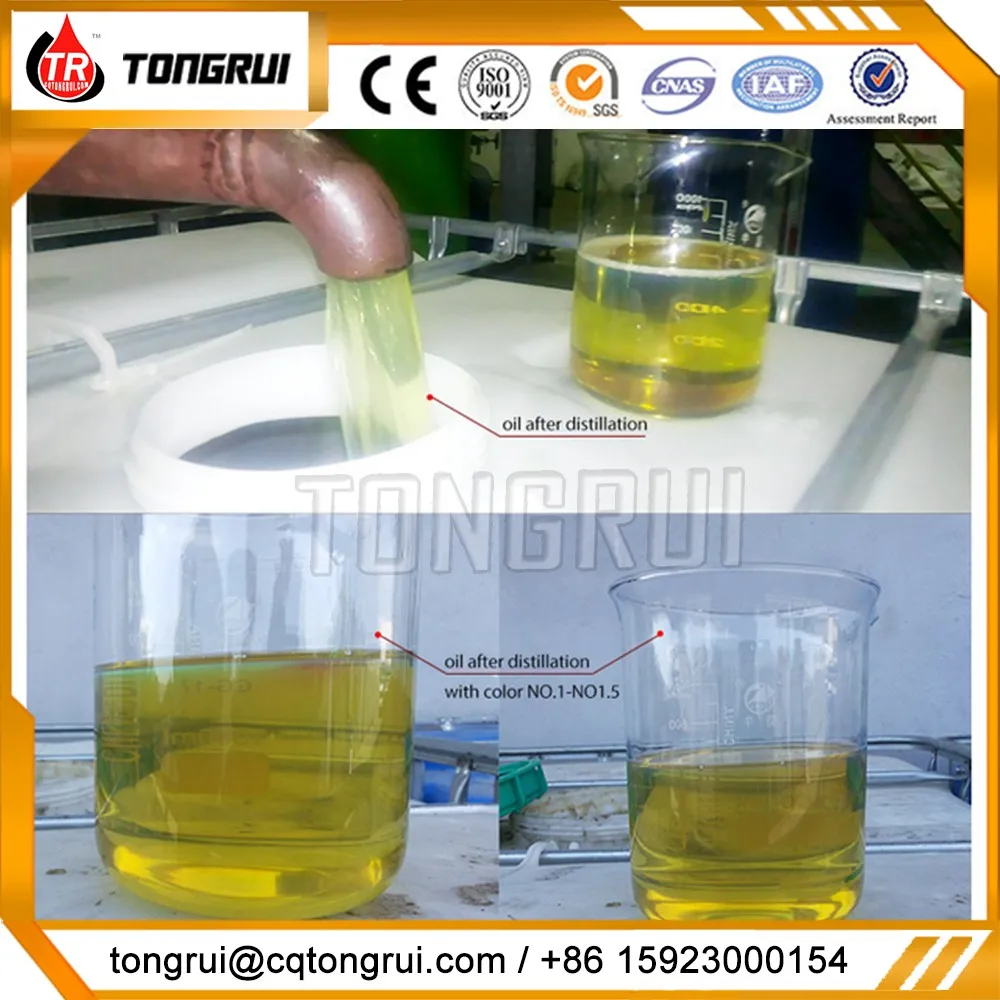

4) Recycled oil quality is good, color is No.1.5~No.2, like SN150







Due to waste oil contain too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. and due to the traditional technology only can refine the waste oil to base oil, can’t use directly, so our company is researching the new technology about distilling machine, which can distill all kinds of waste oil into clean oil, easy to operation, and the lower operation cost.







The purpose of waste distillation machine is re-refining industrial waste oil(including equipment lubricants, metal-working oil and process oil) and used automotive lubricants( such as engine oil, hydraulic oil and gear oil) to clean oil, then reuse it.







Distillation is the physical separation of components of lubricating oil by boiling range. Depending on the type of distillation, the boiling ranges can produce gases and gasolines at the lower boiling points with heavy lubricating oils being distilled at higher boiling points. Distillation is the core process for a facility capable of producing re-refined base-oils to virgin base-oil quality.







I.Working principle



This equipment adopt physicochemical actions to polymerize,passivate, absorb and eliminate impurities and harmful contamination. We research a new chemical alkaline complex catalyst, which can restore and regeneration the Waste oil to clean oil, save the component of the oil.







IV. Features:



1. Easy to operate, low operation cost



2. Environmentally friendly, without secondary pollution.



3. The machine can recycle gasoline oil, diesel oil, engine oil, rubber oil and other lubricant oil to clean oil.



4. High quality refined oil, no any discoloration caused by oxidation, no any bad smelling.



5. Low cost contain:



  1) only need the catalyst chemical, the cost is less thanUS$30 to refine one ton waste oil.



2) Heat consumption: 105kcal per ton waste oil



3) Power consumption: 40Kwh to recycle 1 ton waste oil



6. High degree of automation.







V. Recovery Rate:



Component

Percentage(%)

water

1.5%

Gasoline/diesel oil

7%

Light Lubrication oil

42%

Heavy Lubrication oil

43%

Residue

6.5%

Total

100%







VI. Treated Oil analysis (take the waste diesel engine oil for example)



Item

Heavy Lube oil

Light Lube Oil

Appearance

lucidity

lucidity

Color                        ≤

1.5

1

Viscosity (40°C)mm2/s

49.57

26.86

Viscosity Index                ≥

96

95

Anti-oxidation 150°C,min      ≥

180

180

Deemulsification,54°C

5min

5min

Flash Point(Open)°C            ≥

228

224

Pour Point  °C                 ≤

-12

-16

neutralization value (mgKOH/g)  ≤

0.02

0.02





















Our Machines:







Our products are largely used in the fields of electric power, petroleum, natural gas, mine, machinery manufacturing, steel,



metallurgy, chemical industry, railway station, aviation and shipping etc. large enterprise. Our products involve in ZJA Series



Double Stage Vacuum Insulation Oil and Transformer Oil Purifier, ZJB\ZJBT Series Vacuum Transformer Oil Purifier,



ZJC Series Turbine Oil Refinery, ZJD Series Lubrication and Hydraulic Oil Purifier, ZJL Series Multi-function Oil Recycling system, YL Series Portable Oil Purifier, NRY Engine Oil Recycling Machine and ZJD-F Fuel Oil Purifier,DIR Vacuum Distillation etc. our machines cover more than 500 different model products in 30



series and can meet different needs of customers. We can offer different settle blueprint according to customers' special



requirement to confirm safety production and decrease cost.





CERTIFICATION:









Our Clients



we have cooperated with many customers around the world and have good quality control such as ISO9001,2000 and SGScertificates.



Our machine mainly sold to Middle East(Dubai, Pakistan, Yeman, Saudi Arabia), Southwest of Asia(Singapore, Malaysia, Indonesia, Viet nam, Cambodia, Philippines, Hongkong), Africa(Egypt, Kenya, Mali, Lybia),Europe (Italy, England, Albania, Spain, Greece) and South America (Hondurase,Mexico,Colombia,



Chile,Peru) etc.















After-sales Services
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.











Welcome to visit us, Your inquiries are highly welcomed at any time, we are ready to make a response very soon
