Tonhe A20-T15-B3-C DN15 1/2 three way motorized valve

  • 1-9 Pieces
    $25.00
  • 10-99 Pieces
    $24.00
  • >=100 Pieces
    $23.50
Type:
BALL VALVES
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Contact Supplier
Samples - $25.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Size:
1/2in
Place of Origin:
Zhejiang, China
Brand Name:
Tonhe
Model Number:
A20-T15-B3-C
Application:
General
Material:
Brass
Temperature of Media:
Normal Temperature
Pressure:
Medium Pressure
Power:
electrical
Media:
Water
Port Size:
1/2"
Structure:
Ball
type:
3 way
Certificate:
CE, Rohs, IP67
Body material:
plastic
Color:
Gray/Black/blue
Torque:
2N.M
Voltage:
DC9-24volt
Working current:
≤500MA
Open/close time:
≤7 Sec
Life Time:
70000
Product name:
A20-T15-B3-C DN15 1/2 three way motorized valve

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X8X9 cm
Single gross weight:
0.8 kg
Package Type:
30pcs/carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 10 11 - 100 >100
Est. Time(days) 10 20 To be negotiated
Video Description
Product Description

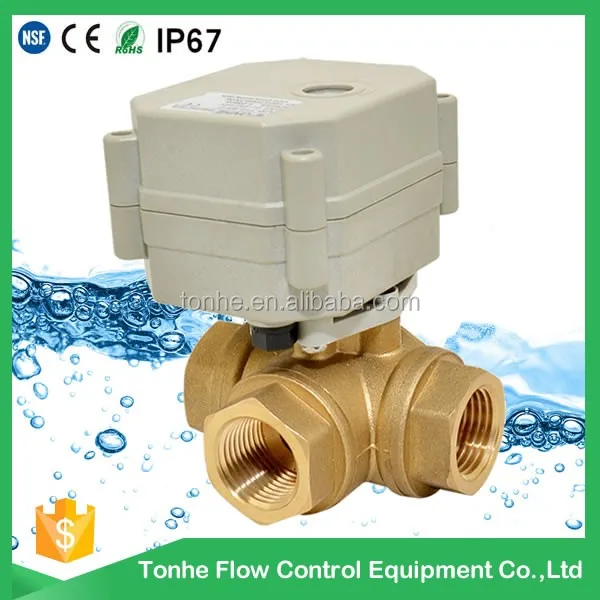

A20-T15-B3-C 1/2" DN15 brass electric 3way motorized valve

Technical Parameters:

Product size NPT/BSP 1/2"

Maximum working pressure 1.0 MPa

Circulation medium Fluid, air

Rated voltage DC9-24V

Wiring control methods CR202 L type

Working current ≤800MA

Open/close time less than 7S

Life time 70000 times

Valve Body material: Brass

Actuator material Engineering Plastics

Sealing material EPDM & PTFE

Actuator rotation 90°

Max. torque force 2 N.m

Cable Length 0.5m,1.5m(Optional)

Environment temperature -15℃~50℃

Liquid temperature 2℃~90℃

Manual override  No

Indicator Yes

Protection class IP67



Wire Drawing below:




befor order, Please choose 3 way flow direction below picture,which one you need?



Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, thread BSP or NPT?

4, valve  indicator ( yes or no)

5, actuator cable length 0.5M or 1.5M


Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.




TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .











Packaging & Shipping





FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
