Toroidal Transformer for Solar Power

FOB Reference Price:Get Latest Price
US $5-100 / Piece | 200 Piece/Pieces Depends on VA (Min. Order)
Supply Ability:
10000 Piece/Pieces per Day
Port:
Ningbo/Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Wanji
Model Number:
TDB
Usage:
Solar Power
Phase:
Single, Single/Three
Coil Structure:
Toroidal
Coil Number:
Customized
Power Range:
1000VA--30KVA
Input/Output:
Customized
Insulation Class:
UL class B,F,H,N.(optional)
Isolation:
4KV(Hi-pot)
Certificate:
CE/RoHS/UL/cUL
Packaging & Delivery
Packaging Details
Export Carton
Delivery Time
20 days

Since 2006, Wanji designs and produces high quality of Toroidal Transformers for Solar Power Industry with High efficiency, low inrush current and low noise characteristics which are popular in the market.



 Specification:
·Power Range: 1000VA to 30KVA

·Phase: Single/ Three phase
·Input/Output: Customized

·Insulation Class: UL class B, F, H, N. (Optional)

·Isolation: 4KV (Hi-pot )



Rated Power (VA)

Efficiency (%)

Outside Dimension

D*H (mm)

Weight (Kg)

Approval

1000

 97.0

 175*85

 9.1

UL/CE/RoHs/CQC

1500

 97.0

 195*85

 11.5

UL/CE/RoHs/CQC

2000

 97.5

 210*90

 14.7

UL/CE/RoHs/CQC

2500

 97.5

 210*100

 16.7

UL/CE/RoHs/CQC

3000

 97.5

 215*105

 16.7

UL/CE/RoHs/CQC

3500

 97.7

 230*115

 21.8

UL/CE/RoHs/CQC

4800

 98.0

 245*150

 31.2

UL/CE/RoHs/CQC

5200

 98.3

 245*150

 31.2

UL/CE/RoHs/CQC



Remark: All data are subjected to modification without prior notice.

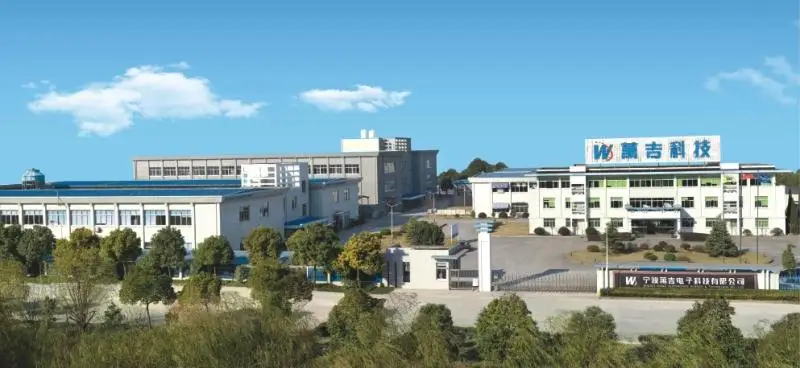

Our Company

Ningbo Wanji Electronics & Technology Co.,Ltd dedicated to provide one-stop power solutions since 1987, especially high performing transformers for various areas. We have been cooperating with Top 500 for years and we are always looking for Reputable & Potential strategic cooperative partner all over the world. We are open to discuss about any possibilities of mutual cooperation and expecting to see the establishment of a long-term relationship in the near future.
Our R & D:one of core departments owns 90 engineers and technicians (12 senior engineers,25 middle-level and 53 junior-level technicians).Using PROTEL and CAD S.W.for the design with the assistance of PE and IE Dept.,your customized items can be well-realized here.

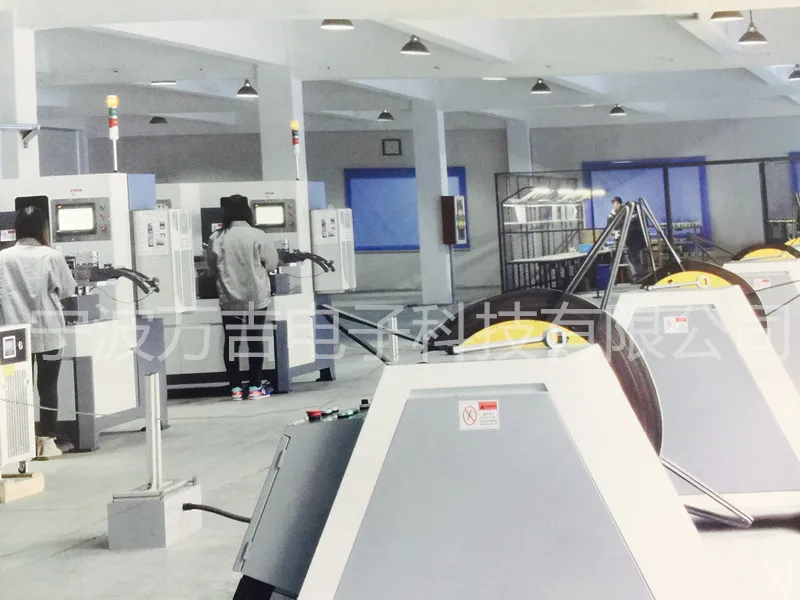

Installation Process

Wanji has 12 Toriodal Transformer Production Lines (monthly productivity of 500,000pcs), 8 EI transformer prod-uction lines (monthly productivity of 600,000pcs), and Toroidal Core monthly productivity of 300 tons. Reliable supp-liers around and self-provision not only reduce the purchasing cost, but also sho-rten the procurement cycles. Global sour-cing guarantees high volumes of material supplement and ensures to meet custo-mers’ specification.

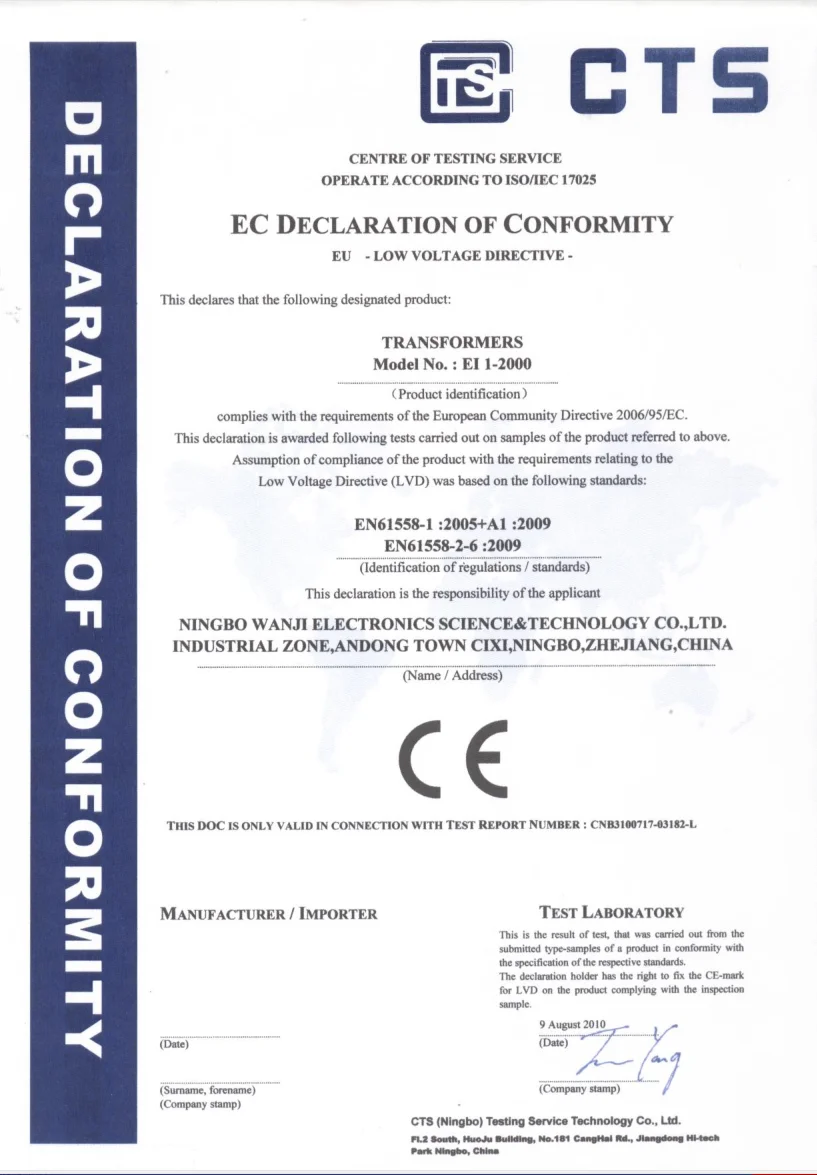

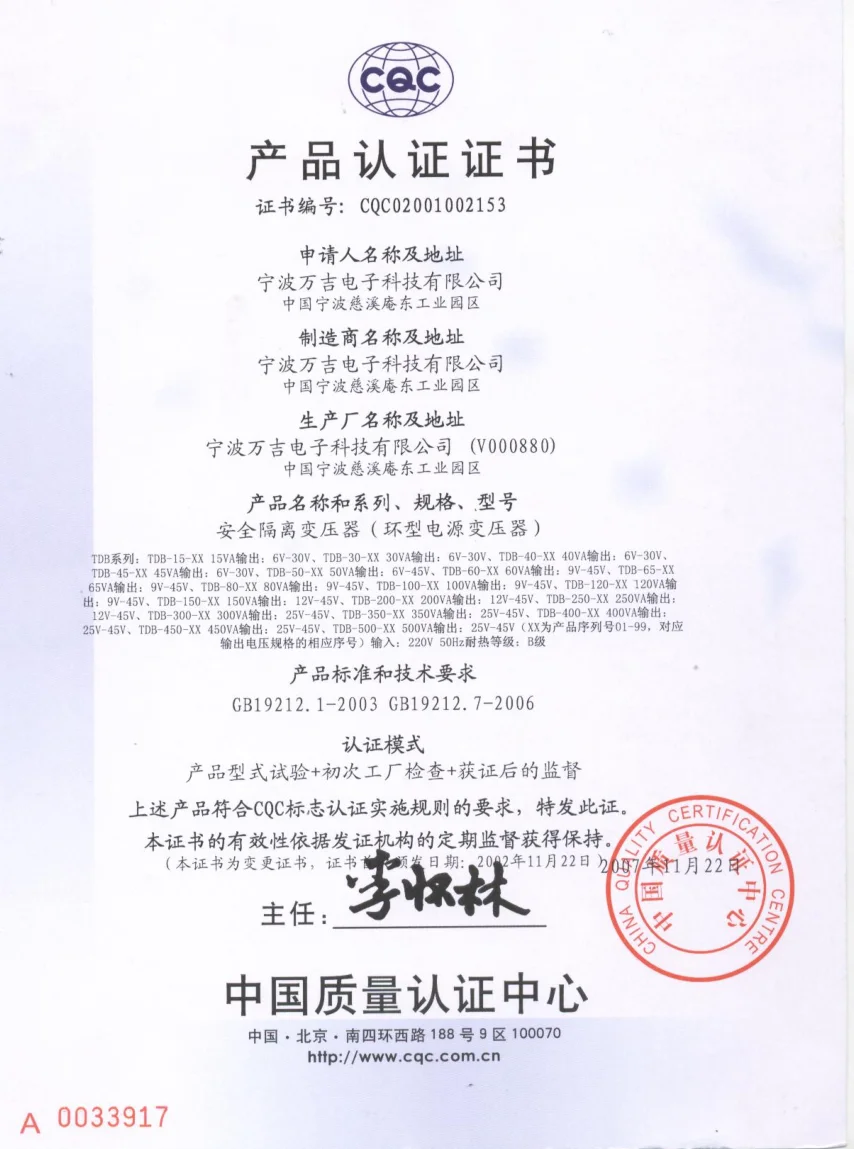

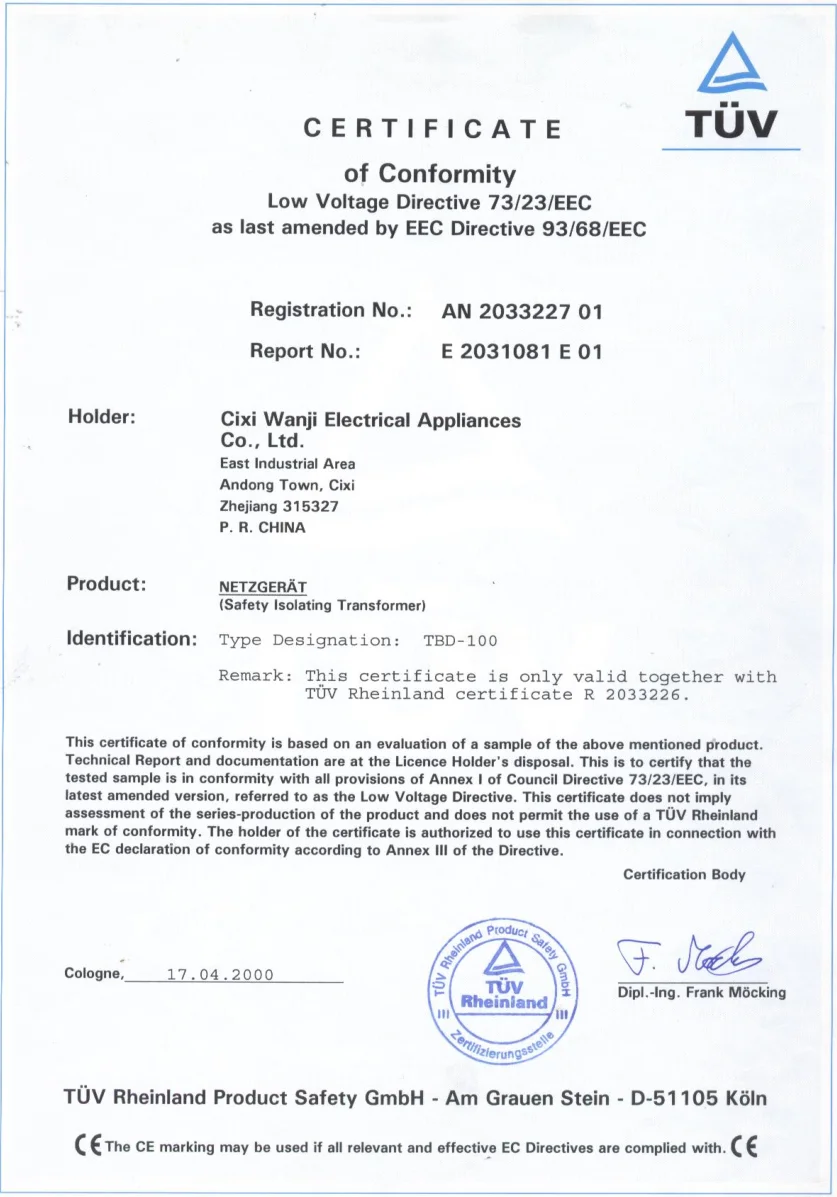

Certifications

We has passed the authorization of ISO9002 in 1999, and ISO14001 in 2008. We are proud of our products and services and moving forward to New Energy Area and devoting ourselves to creating more value for partners,employees and society.


Our Customers

Packing & Delivery
