Ultrasonic Flowmeter Pulse Ultrasonic Water Treatment Water Flow Meter Digital

  • 2-49 Pieces
    $385.00
  • >=50 Pieces
    $245.00
Material:
PVC
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
UF2000-SW
Type:
Variable Area Water Flowmeters
Pipe Size:
DN15mm to DN700mm Price
Output signal:
4-20mA
Flow range:
0-±30m/s
Measure accuracy:
±1%
Housing Material:
ABS
Display:
2X20 characters LCD with backlight
Power supply:
AC220V or DC24V
Recording Function:
last 64 days/64 months/5 years
Separated Mounting:
Clamp on/Insertion/Inline
Warranty:
18 months

Packaging & Delivery

Selling Units:
Single item
Single package size:
39X39X18 cm
Single gross weight:
8.0 kg
Package Type:
Carton box price for Pipe size DN 50~700mm 4-20mA wall mounted ultrasonic flowmeters
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 15 To be negotiated
Video Description

Ultrasonic Flowmeter Pulse Ultrasonic Water Treatment Water Flow Meter Digital

--Price for dn15mm~dn700mm pipe size,  4-20mA



ultrasonic flowmeterswall mounted ultrasonic flowmetersanalog ultrasonic flowmetersultrasonic flowmeterswall mounted ultrasonic flowmeters

Product Description

 analog ultrasonic flowmeters

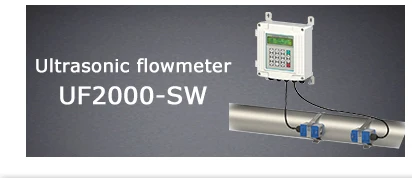

UF2000 wall mounted ultrasonic flowmeters has been manufactured with patent technologies and is equipped with more functions and advanced performance than our previous versions. UF2000 flowmeter incorporates the latest ICs manufactured from the famous semiconductor manufacturers like Philips, Maxim, TI, Winbond, and Xilinx It employs a patent balanced lower voltage multi-pulse igniting circuit which increases the anti-interference ability magnificently so that the flow meter will work properly even in demanding industrial environments such as those with power frequency transverter working nearby.

ultrasonic flowmeters



 wall mounted ultrasonic flowmeters





 You will benefit from wall mounted ultrasonic flowmeters ?

FeatureAdvantageBenefit

Transducers are economical

and non-intrusive

No shutdown, no drilling and

no pressure drop

Easy to installation. No maintenance

Several types transducer for

selection

pipe size from DN15mm to

DN6000mm

Suitable for a wide measuring range

Large LCD display With the

advanced data processing

functions

Displays instantaneous flow,

accumulated flow (positive,

negative and net), velocity,

working status etc.

User-interfaces self-explanatory and their operation

simple and easy

 It uses normal power, built-in battery or DC power, etc.

Built-in rechargeable Ni-MH rechargeable battery,

provide over 20 hours of

continuous operation.

low power consumption, high reliability,

anti-jamming and outstandin









Specificate of wall mounted ultrasonic flowmeters



ItemsParameter
      HostPrincipleTransit- time ultrasonic flowmeter
Accuracy±1%
Display

2X20 character LCD with backlight, support the language of

Chinese, English and Italy

Signal
Output

1 way 4~20mA output, electric resistance 0~ 1K,

accuracy 0. 1%(optional)

1 way OCT pulse output(Pulse width 6~1000ms,

default is 200ms)

1 way Relay output
Signal Output

3 way 4~20mA input, accuracy 0. 1%, acquisition signal

such as temperature, press and liquid level

Connect the temperature transducer Pt100, can finish the

heat/energy measurement

Data Interface

Insulate Rs485 serial interface, upgrade the

flowmeter software by computer, support the MODBUS

Special Cable

Twisted-pair cable, generally, the length under 50 meters ; Select the RS485,

transmission distance can over 1000m

Pipe Installation

Condition

Pipe Material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,

Aluminum, Glass steel product, liner is allowed

Pipe DiameterDN32~6000mm
Straight Pipe

Transducer installation should be satisfied: upstream10D,

downstream 5D, 30D from the pump

Work environmentProtection gradeHost:IP67;flow sensor:IP68
temperatureHost:-20~60℃;flow sensor:-30~ 160℃
Humidity

Host: 85%RH; Flow sensor:can measure under water,

water depth^2m (tansducer sealed glue)

Power SupplyDC8~36V or AC85~264V
Power Consumption1.5W
Dimension132*150*85mm(host)

Order information : Pipe size:DN15~700mm  , Output :4-20mA

ultrasonic flowmeters

wall mounted ultrasonic flowmeters



The UF2000 wall mounted ultrasonic flowmeters can be virtually applied to a wide range of measurements. The measured pipe ranges 15-6000mm. Because the instrument and transducers are non-contacting and have no moving parts; the flow meter can not be affected by system pressure, fouling or wear.

1. Water,industrial sewage,sea water 2. Acid & Alkali Liquid

3. Various oil   4. Feed water and drainage  5. Detection of water resources

6. Petrochemical  7. Food and pharmaceutical industry

8. Power plant  9. Metallurgical mines



Our Services



analog ultrasonic flowmeters



Company Information

 ultrasonic flowmeters



FAQ

How to place an order

1:How long will you give me the reply?

we will contact you in 30mins as soon as we can.
2:Could I get samples?

Price is for Pipe size DN 50~700mm 4-20mA Ultrasonic liquid flow meter , If you want to order other specification ,you can contacts us directly ,we will reply you 24 hours online .

3:How to pay for that ?

Of We could accept T/T,Paypal,WU ,Credit Assurance.

You will get full protection for your orders ,More details Kindly click Trade Assurance
